Description

PTFE Fuel Line Details

Brand	EVIL ENERGY

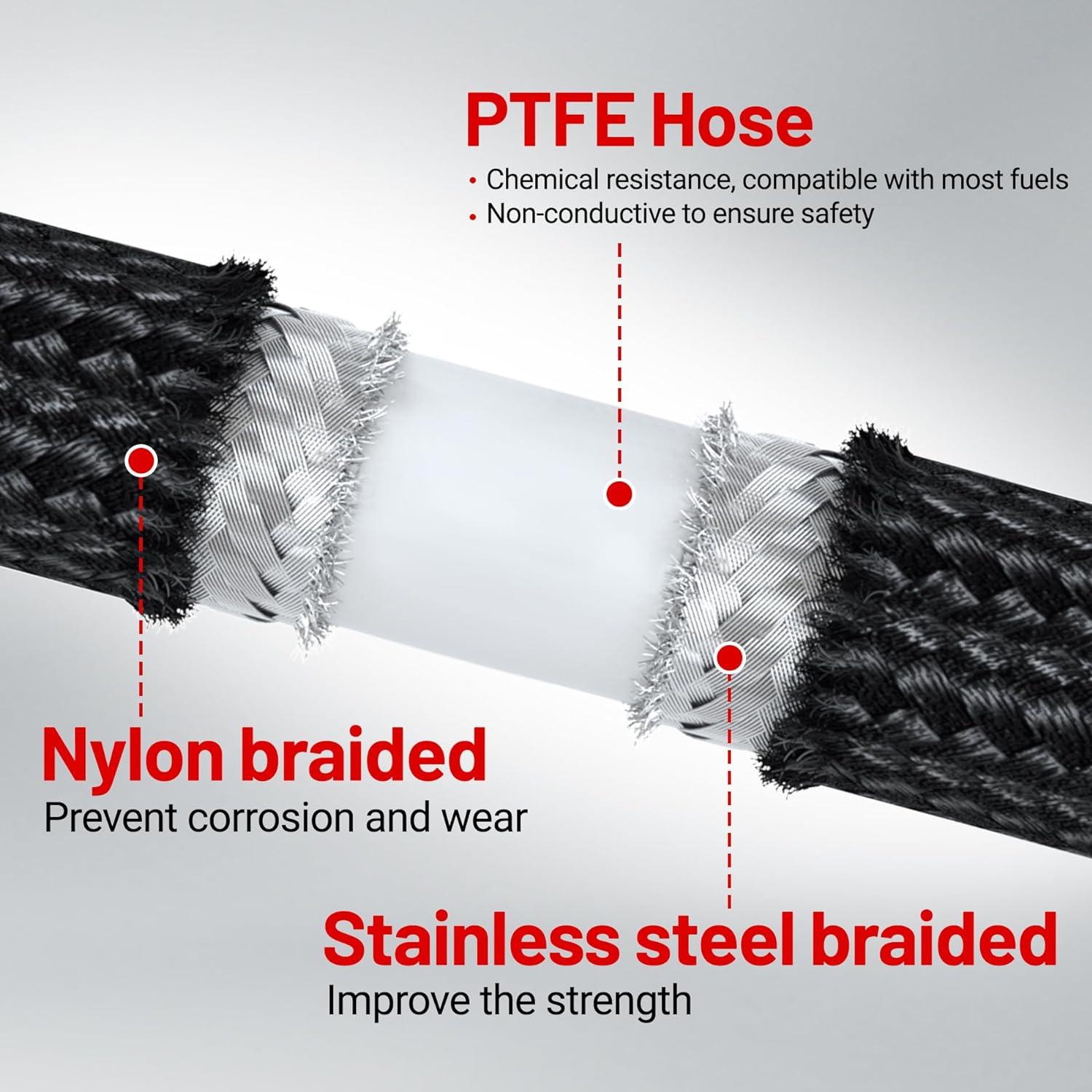

Material	Nylon, Polytetrafluoroethylene (PTFE)
Color	Black
Size	4/6/8/10AN
Length	10FT/20FT/25FT

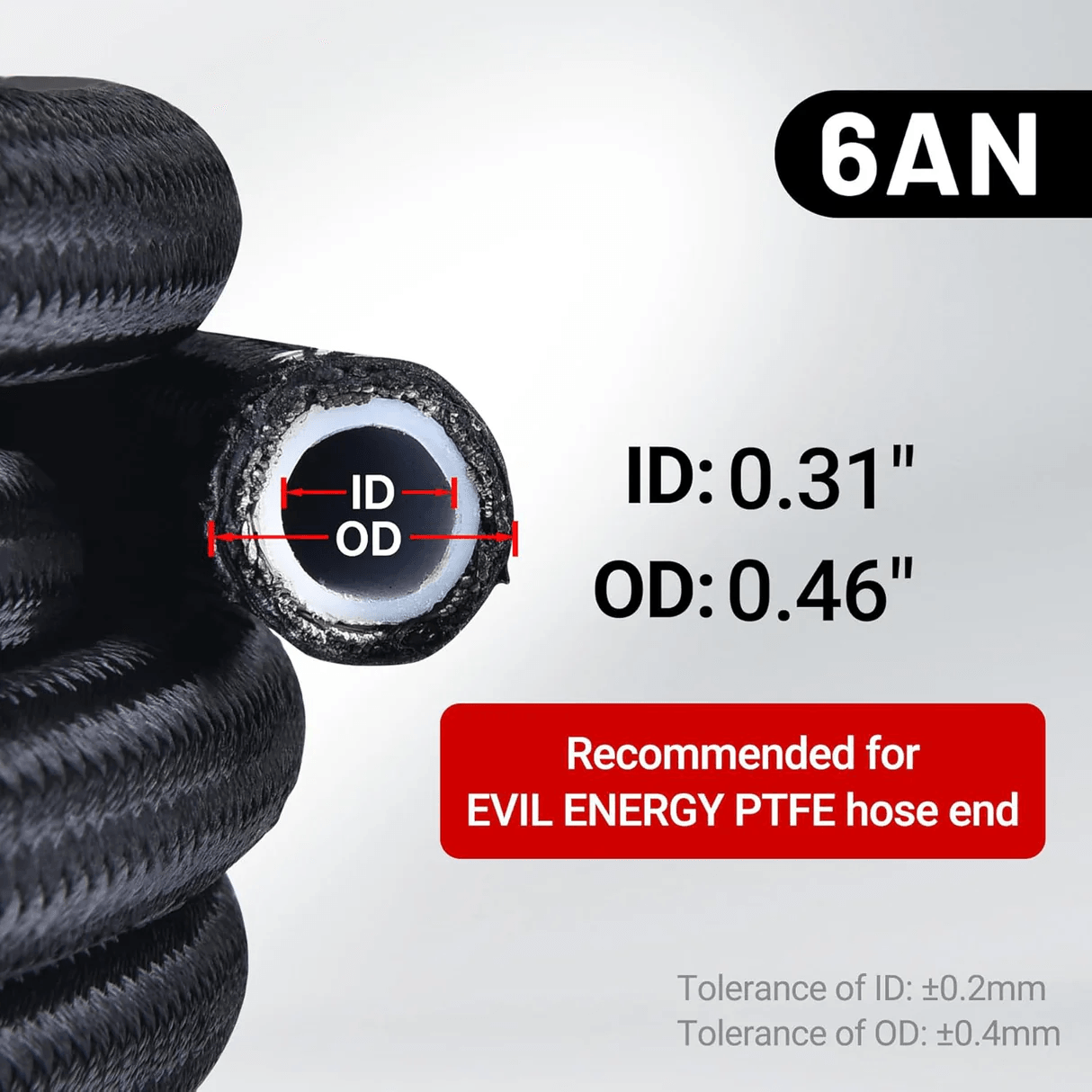

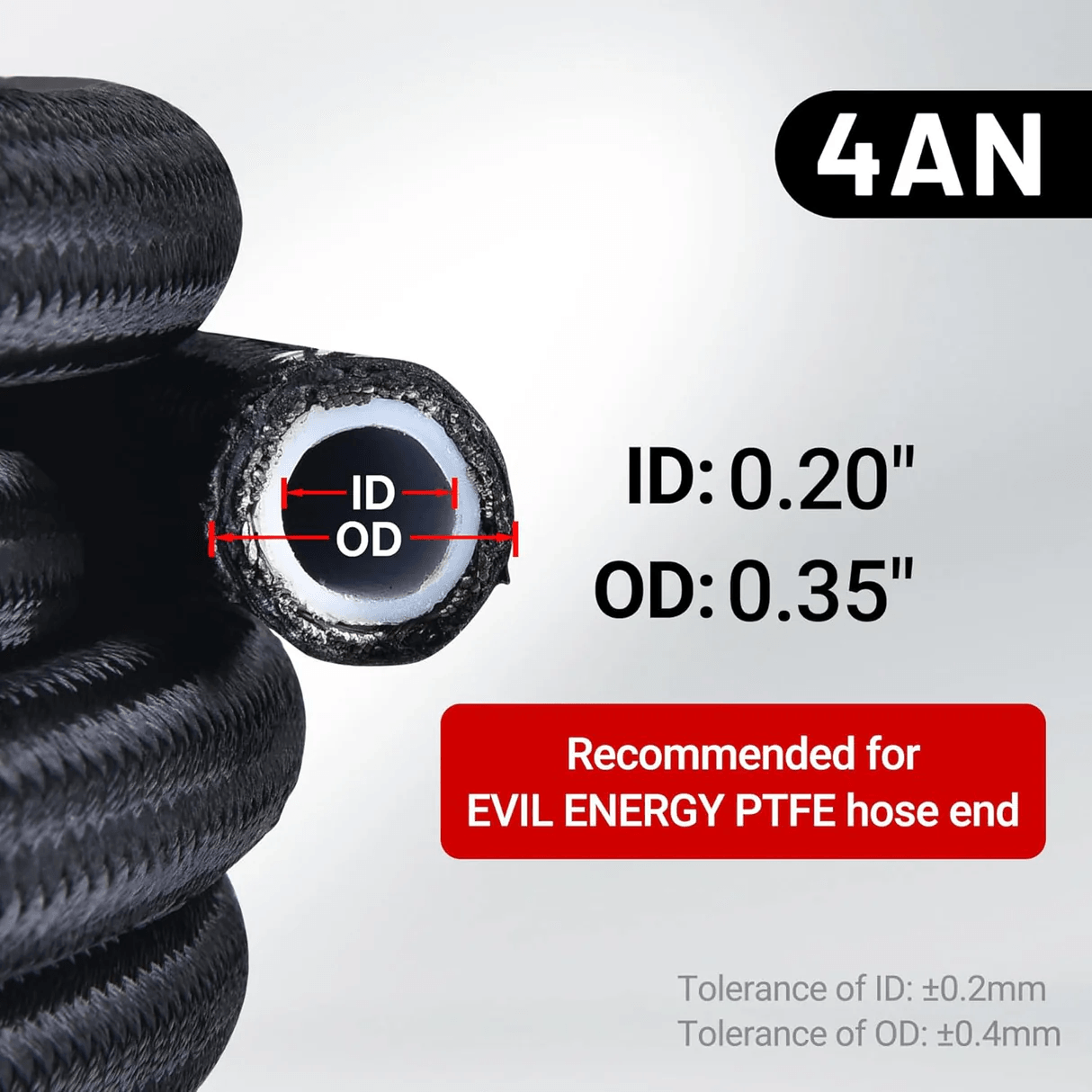

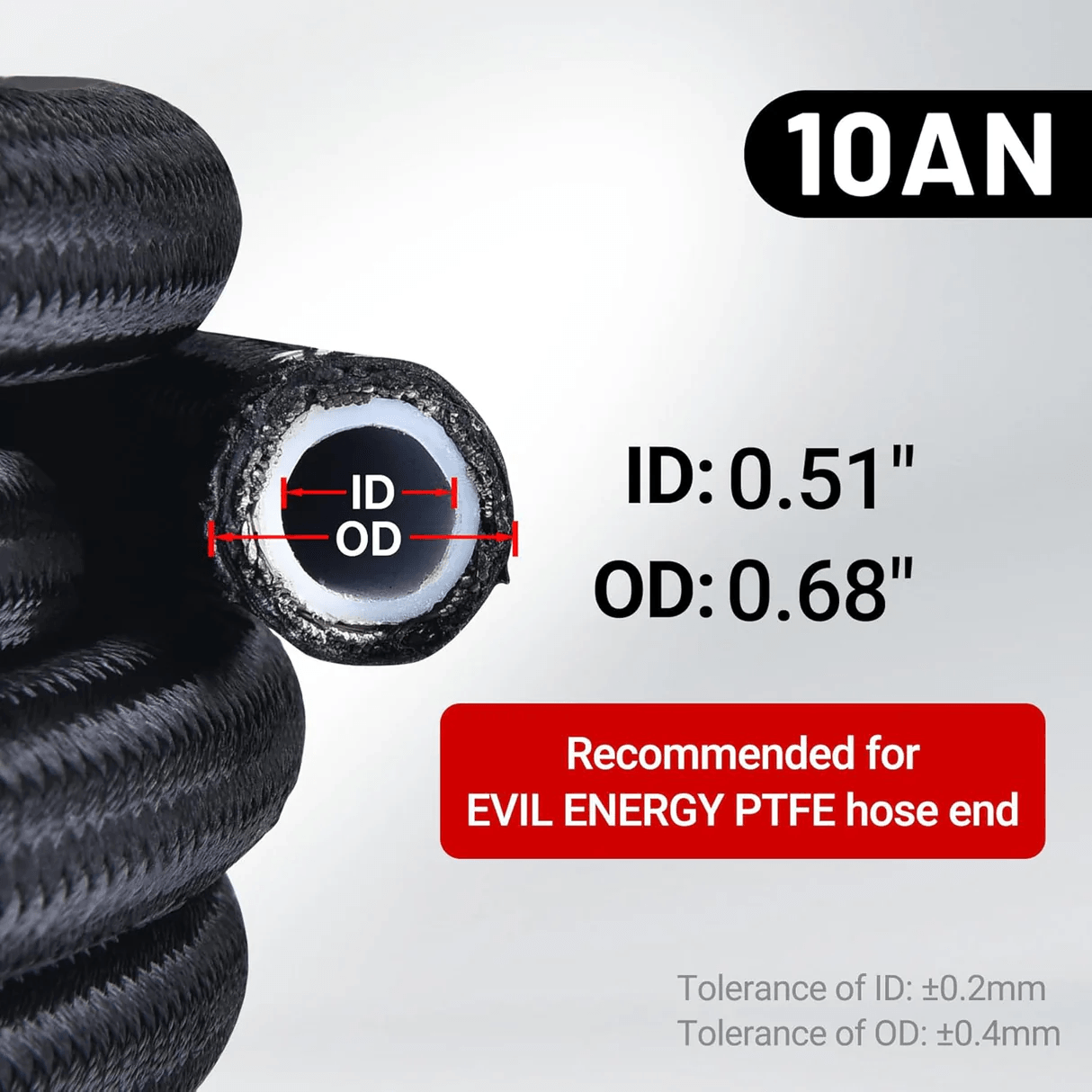

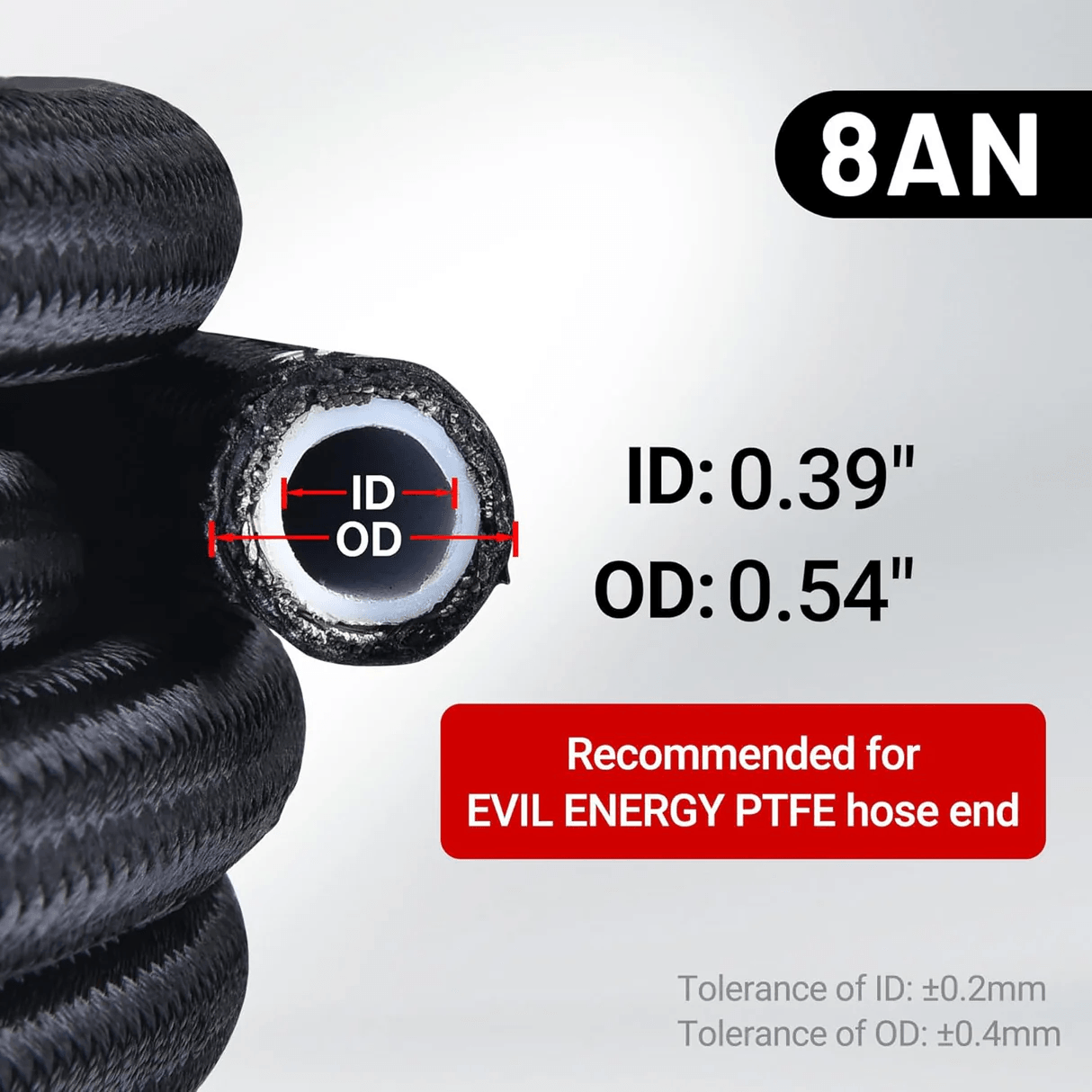

Hose ID & OD	4AN ID: 3/16". OD: 0.34inch. 6AN ID: 5/16". OD: 0.465inch. 8AN ID: 13/32". OD: 0.543inch. 10AN ID: 1/2". OD: 0.68inch.

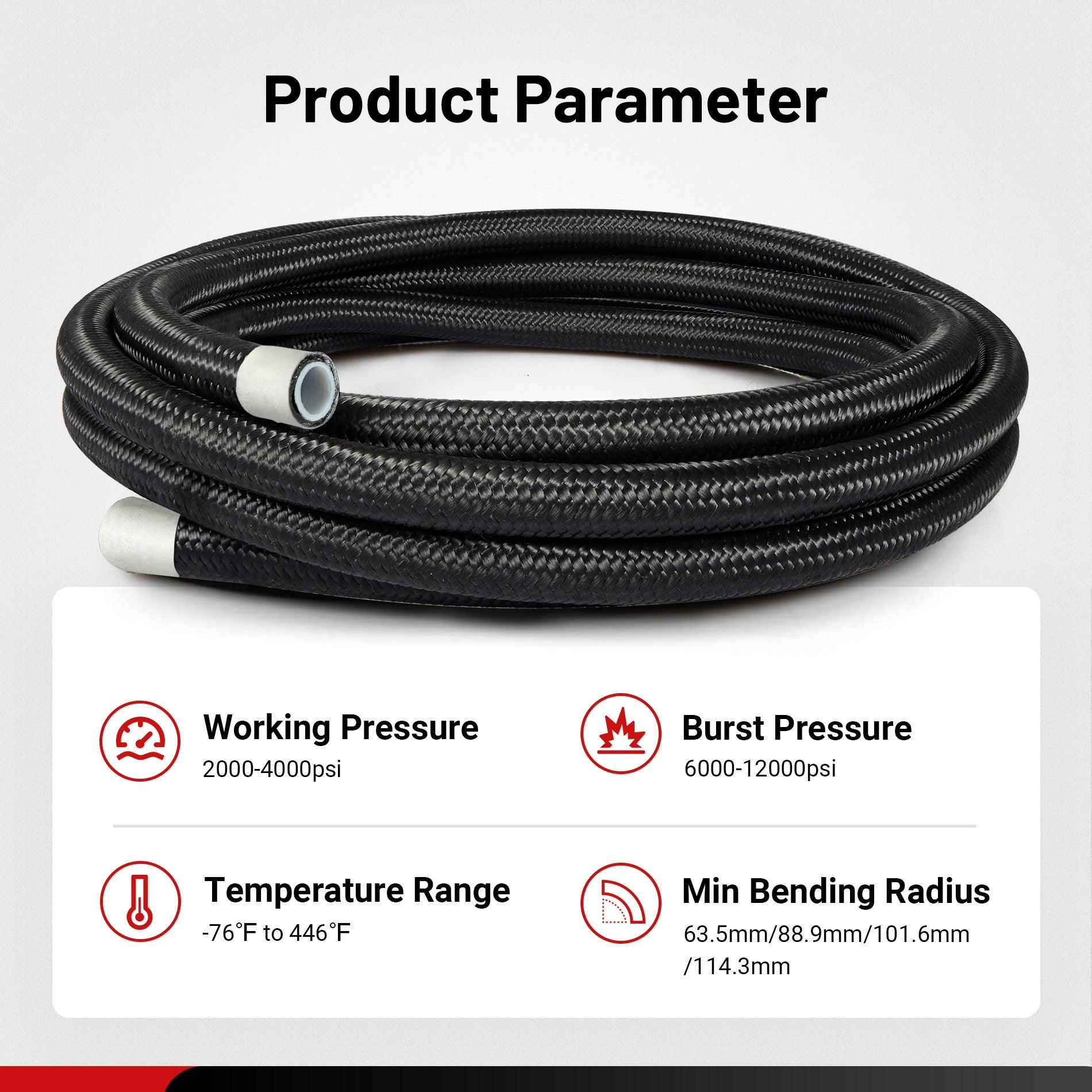

Temperature Range	-76℉ to 446℉ (-60℃ to 230℃)

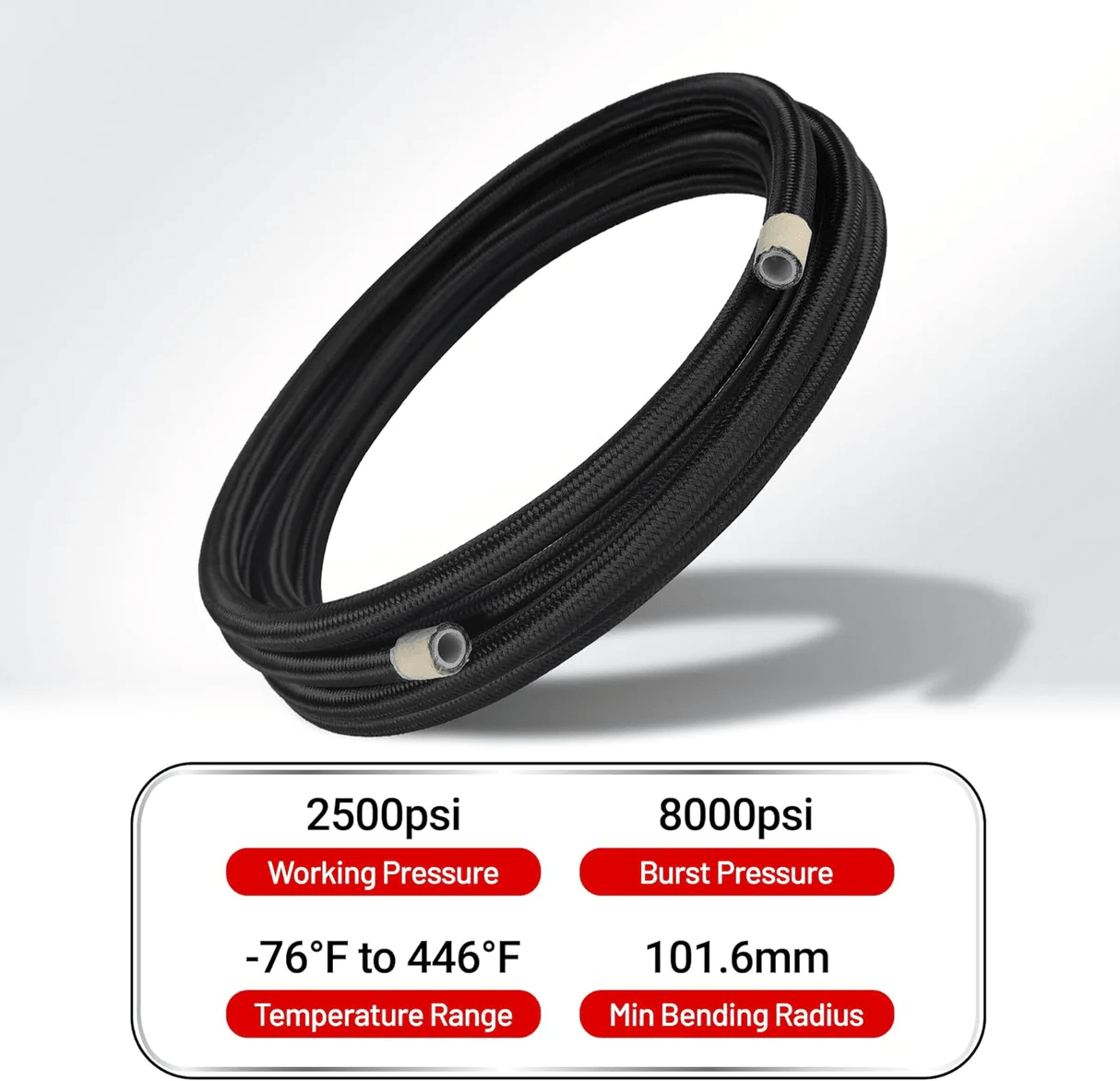

Max Working Pressure	4AN: 4000psi 6AN: 3000psi 8AN: 2500psi 10AN: 2000psi
Maximum Pressure	4AN: 12000 Pound per Square Inch 6AN: 10000 Pound per Square Inch 8AN: 8000 Pound per Square Inch 10AN: 6000 Pound per Square Inch
Min Bending Radius	4AN: 50.8mm 6AN: 63.5mm 8AN: 88.9mm 10AN: 101.6mm
Kit contains	1* PTFE fuel hose 4* Straight hose fitting（6/8/10AN Optional） 2* 45 Degree hose fitting （6/8/10AN Optional） 2* 90 Degree hose fitting （6/8/10AN Optional）

PTFE Hose End Fitting Kit Details

Size	6AN/8AN/10AN
Thread size	6AN is 9/16-18 UNF 8AN is 3/4-16UNF 10AN is 7/8-14 UNF
Material	Aluminum
Color	Black
Connector Type	Adapter
Number of Pieces	8

About Fuel Line

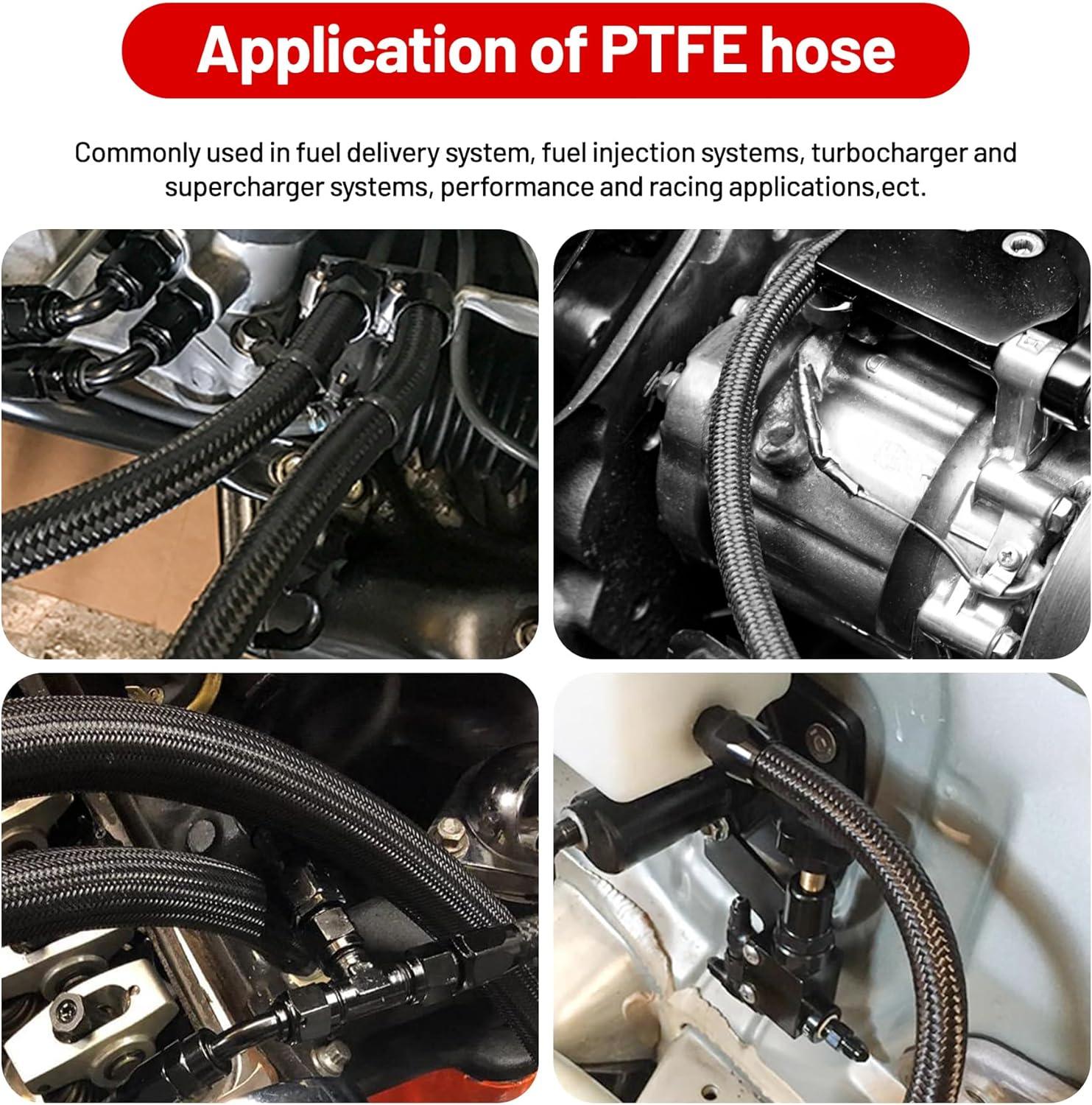

[Applications] PTFE fuel lines are versatile and suitable for various applications including fuel injection hoses, boost lines, carburetor fuel lines, LS engine swap fuel lines, fuel return lines, vapor return lines, and fuel supply lines.
[Medium] They are compatible with all automotive fuels, lubricants, and coolants.
[Installation] Due to their rigidity, PTFE hoses do not bend or fold easily, so professional installation is strongly advised.
[Warranty]: EVIL ENERGY provides 6 months warranty for this. For any questions or additional information, feel free to contact us at service@ievilenergy.com.

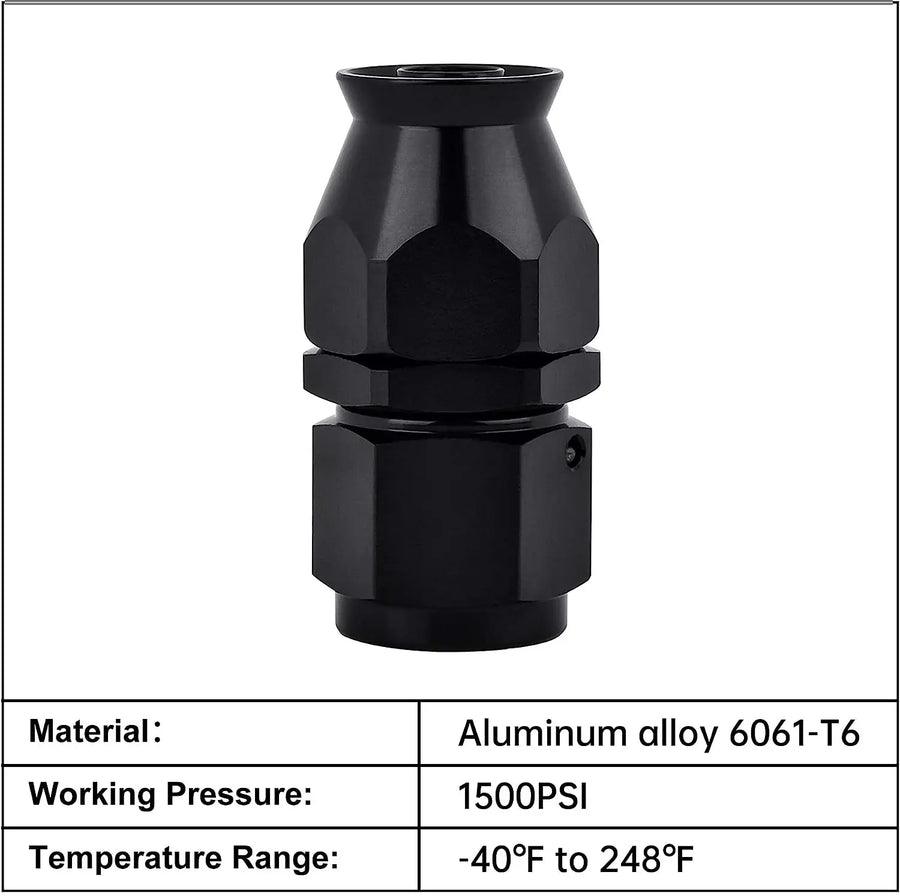

About PTFE Hose End

[Applications] The PTFE Hose End only work with PTFE fuel line.
[Parameter] Working pressure: 1500PSI. Temperature range: -65°F-252°F.
[Seal] The AN side is sealed by a 37 degree angle.
[Material and Feature]: Made of aluminum alloy 6061-T6. 360° Swivel design for easy assembly.
