EVIL ENERGY 3/4/6/8/10/12AN PTFE Hose End Fitting 45/90/180/Straight D

SPECIFICATIONS DESCRIPTION SHIPPING & RETURN VIDEOS & BLOGS FAQS REVIEWS

SPECIFICATIONS
DESCRIPTION
SHIPPING & RETURN
VIDEOS & BLOGS
FAQS
REVIEWS

Available Sizes	3AN, 4AN, 6AN, 8AN, 10AN, 12AN

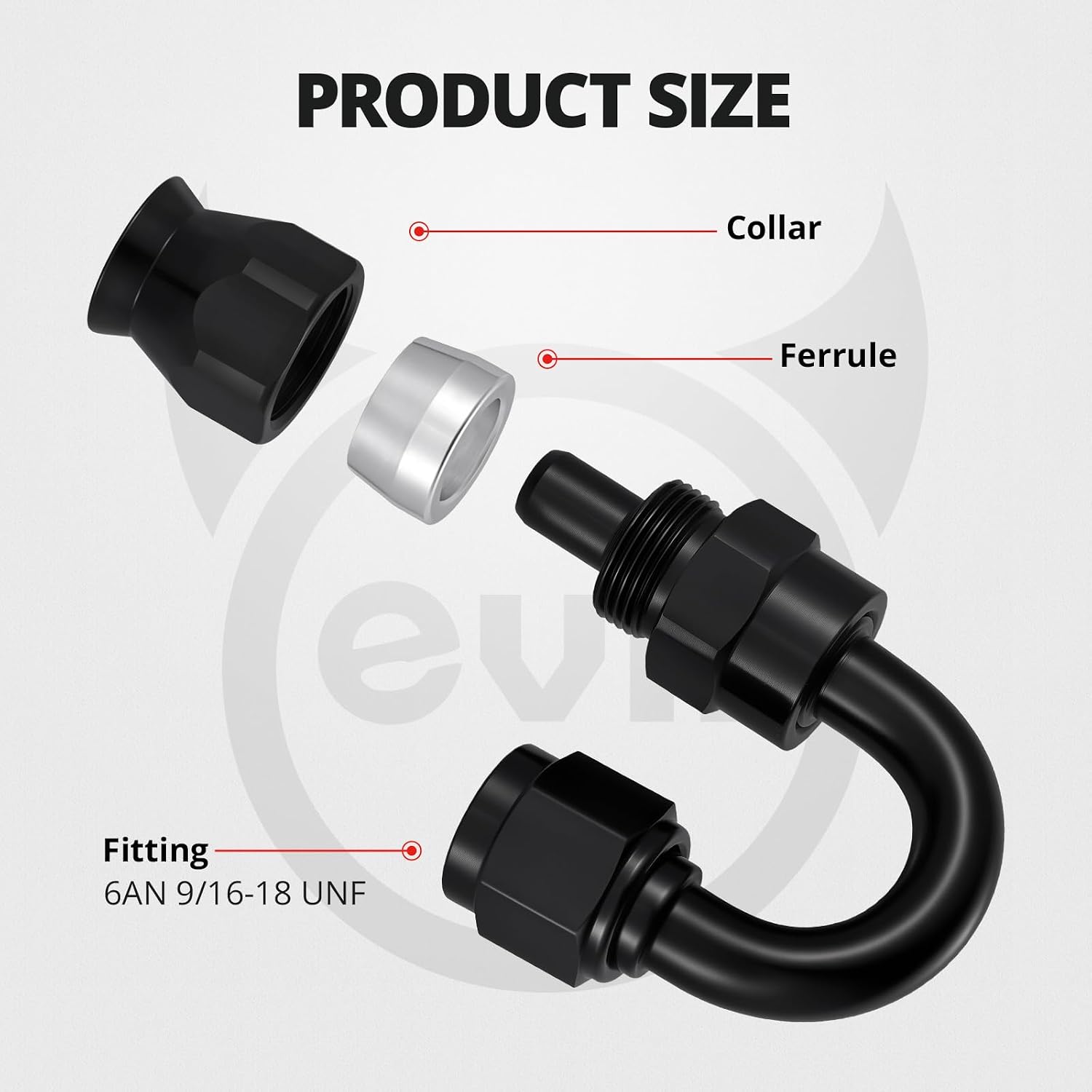

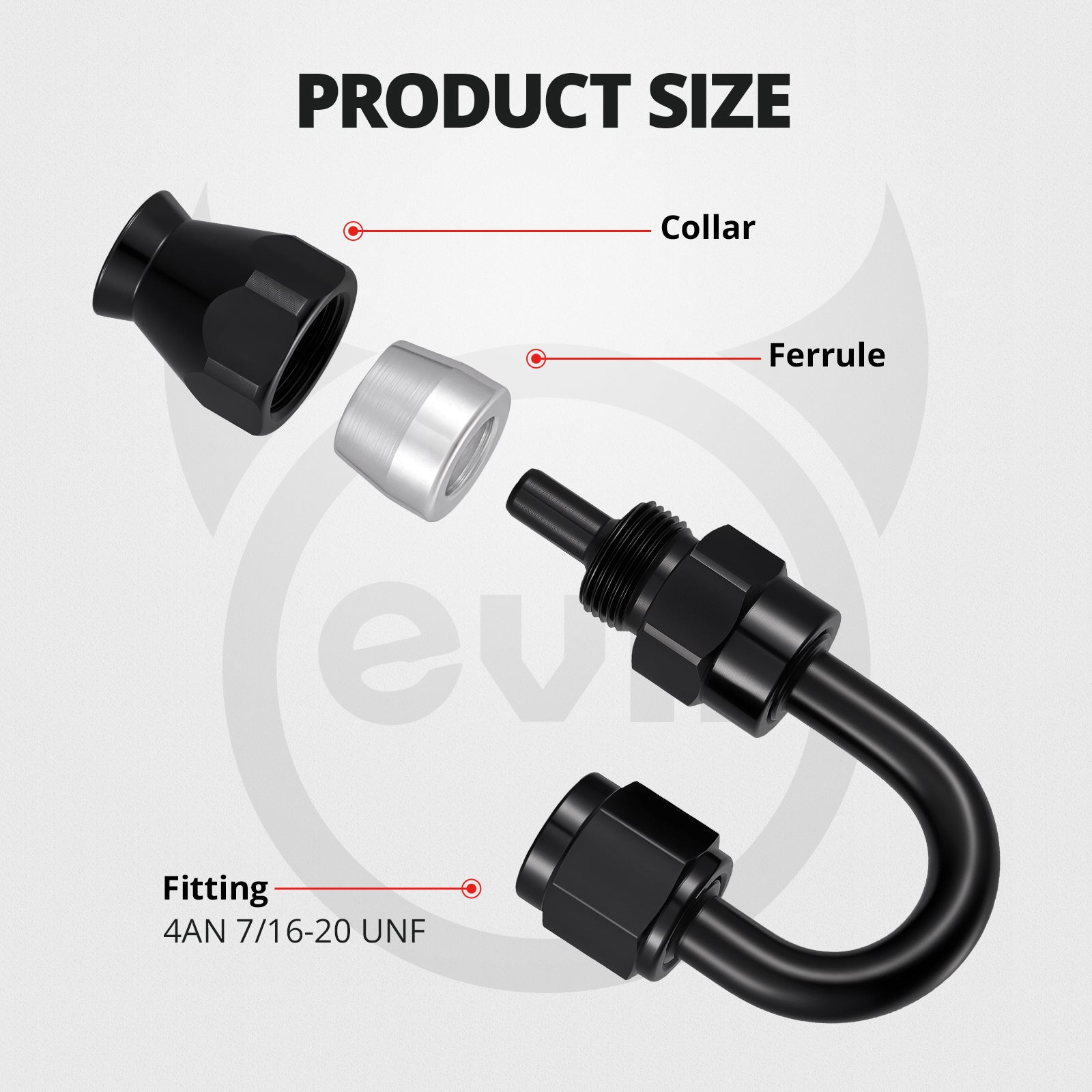

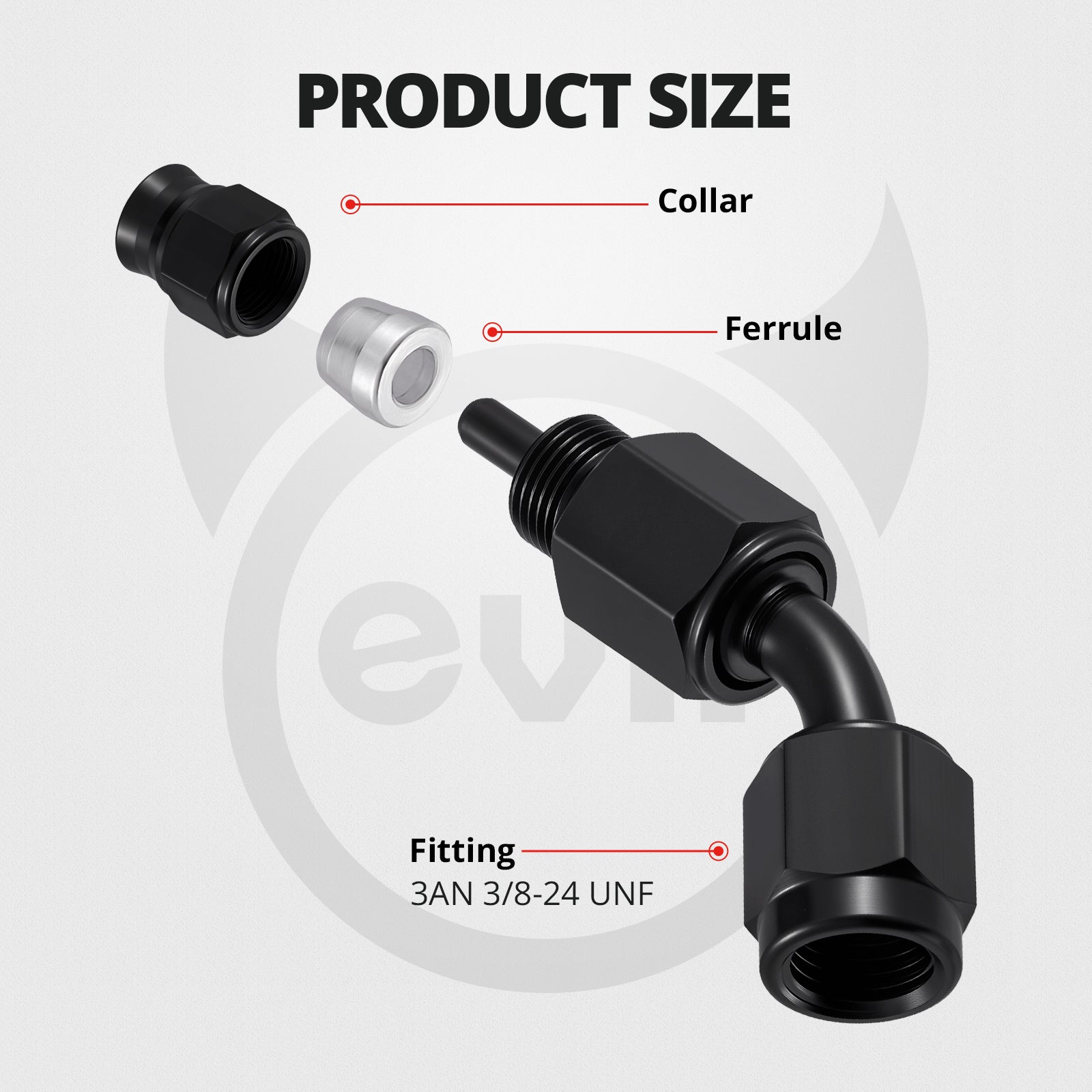

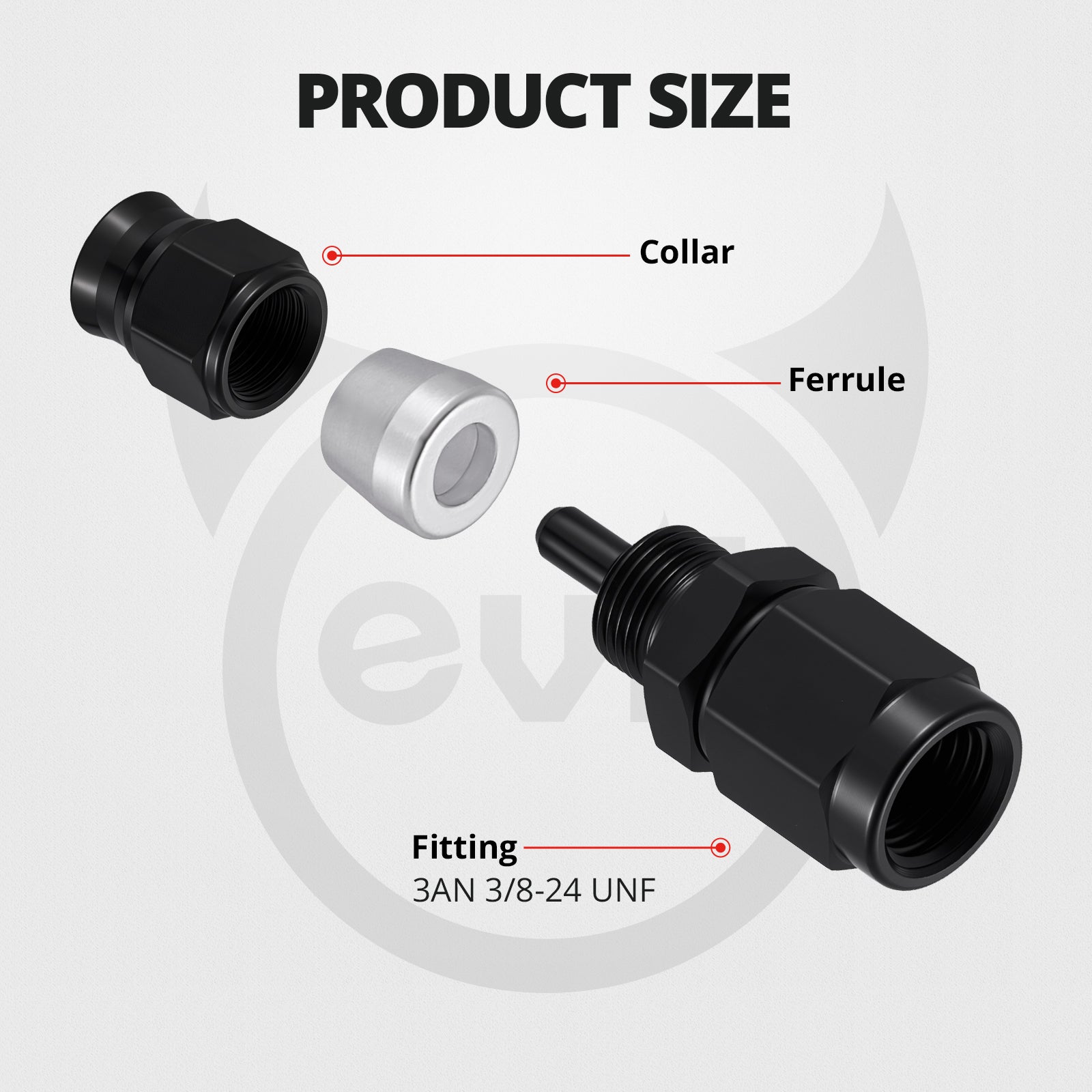

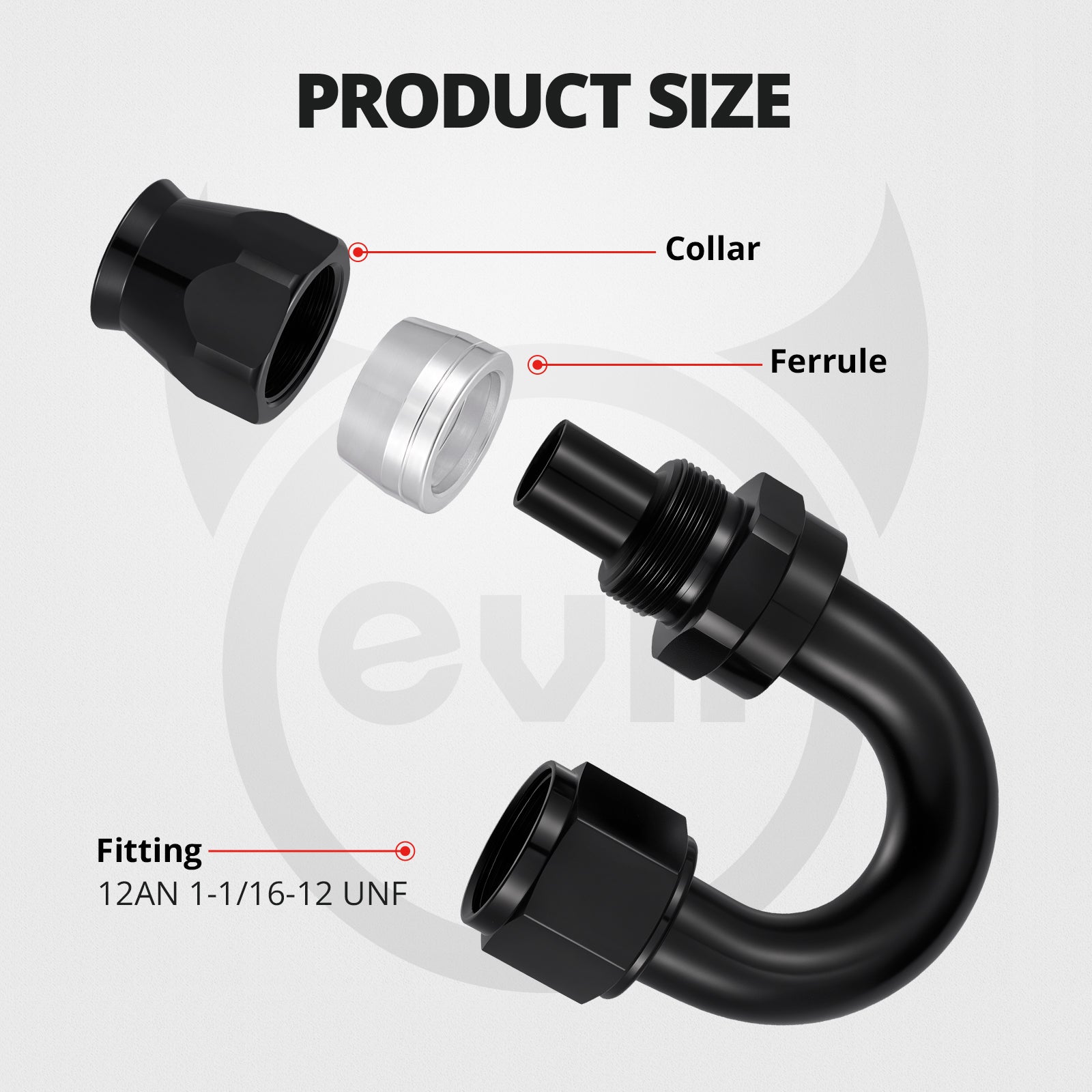

Thread Size (UNF)	3AN: 3/8-24 UNF 4AN: 7/16-20 UNF 6AN: 9/16-18 UNF 8AN: 3/4-16 UNF 10AN: 7/8-14 UNF 12AN: 1-1/16-12 UNF
Available Angles	Straight, 45°, 90°, 180°

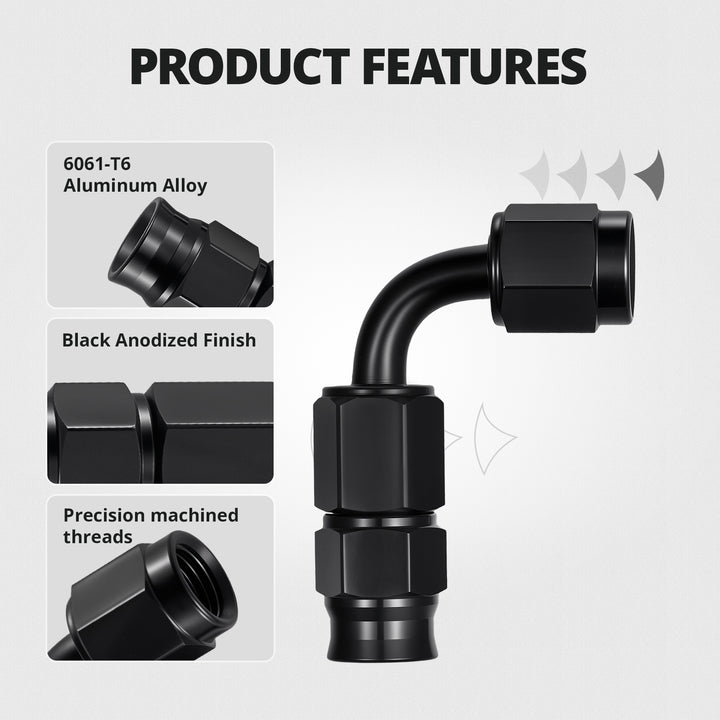

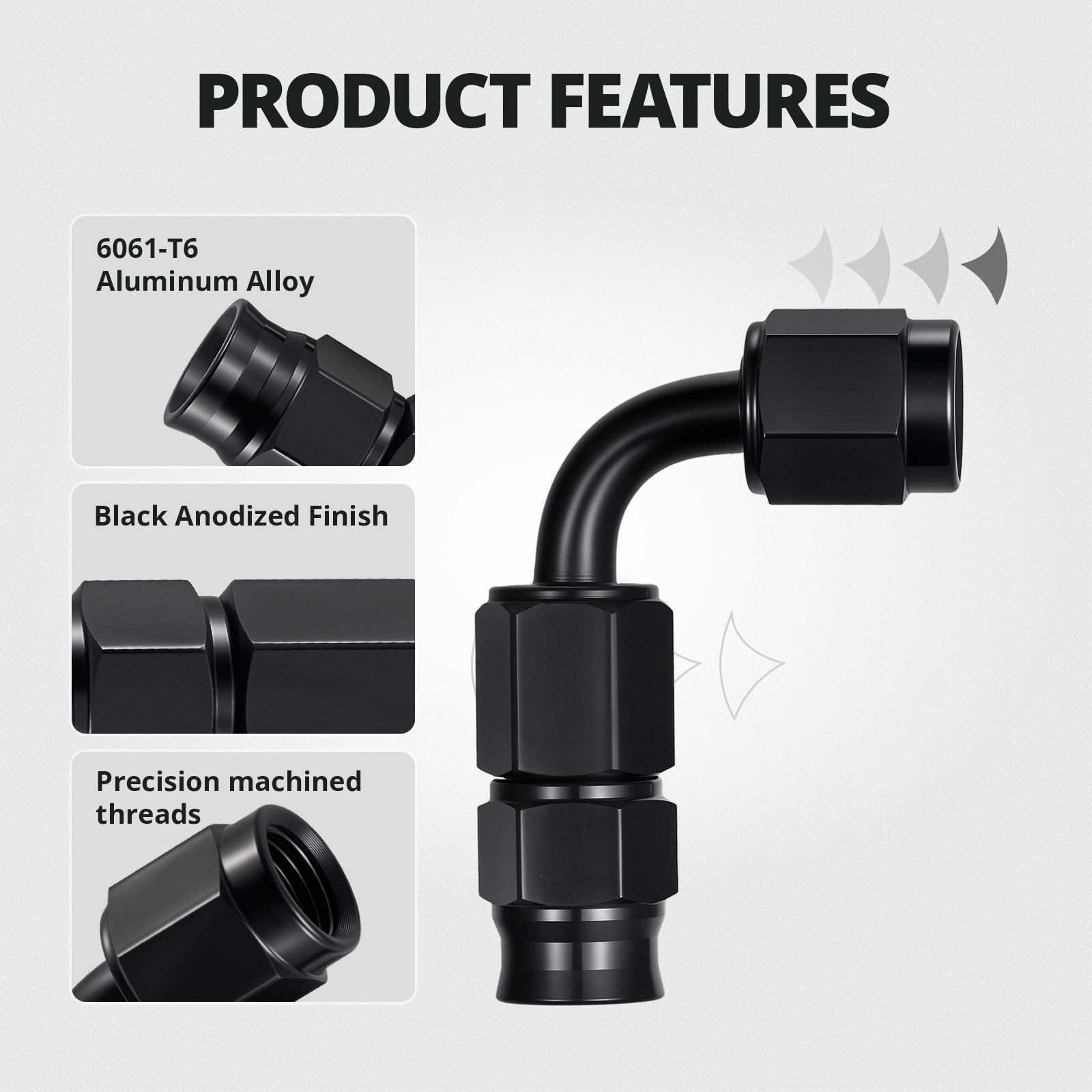

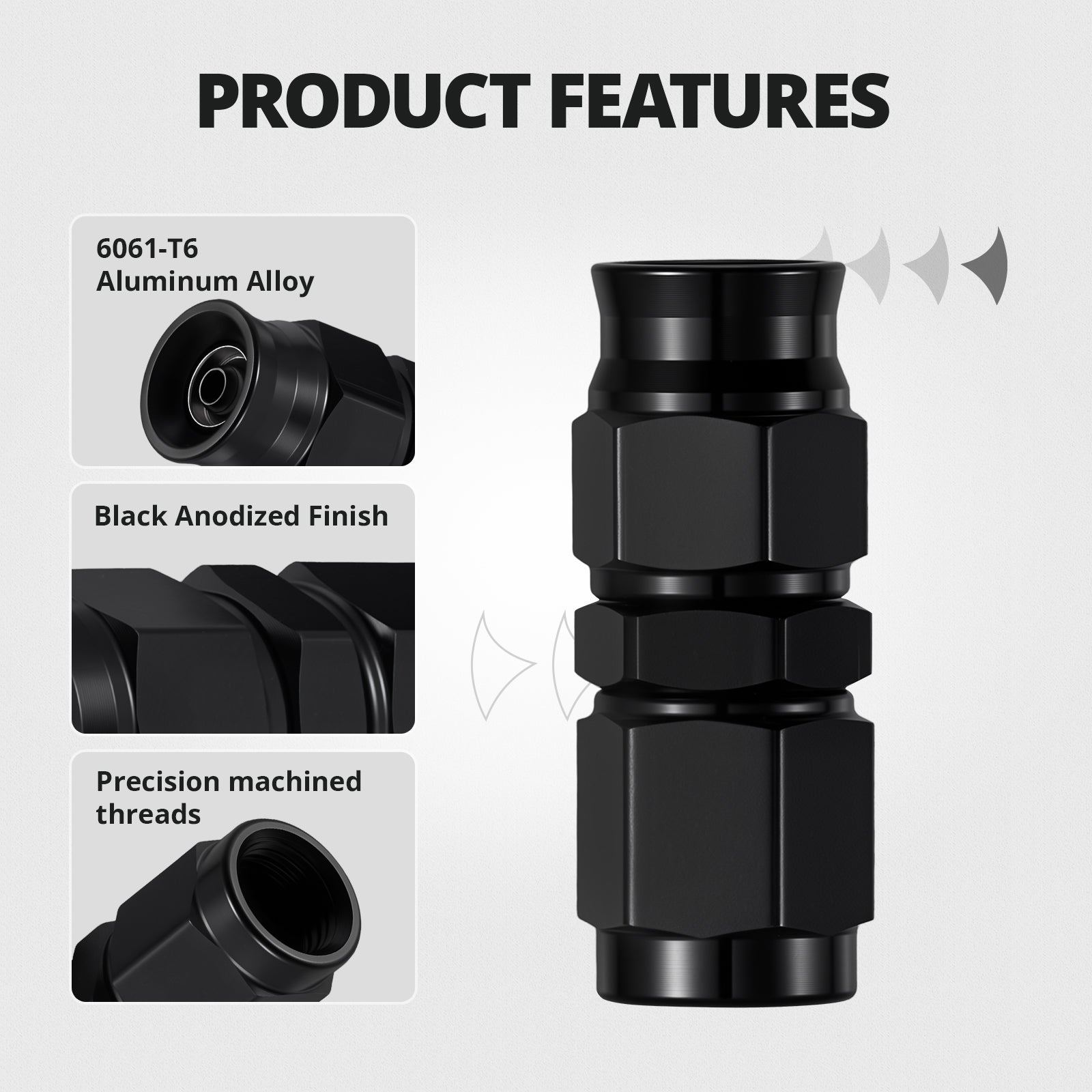

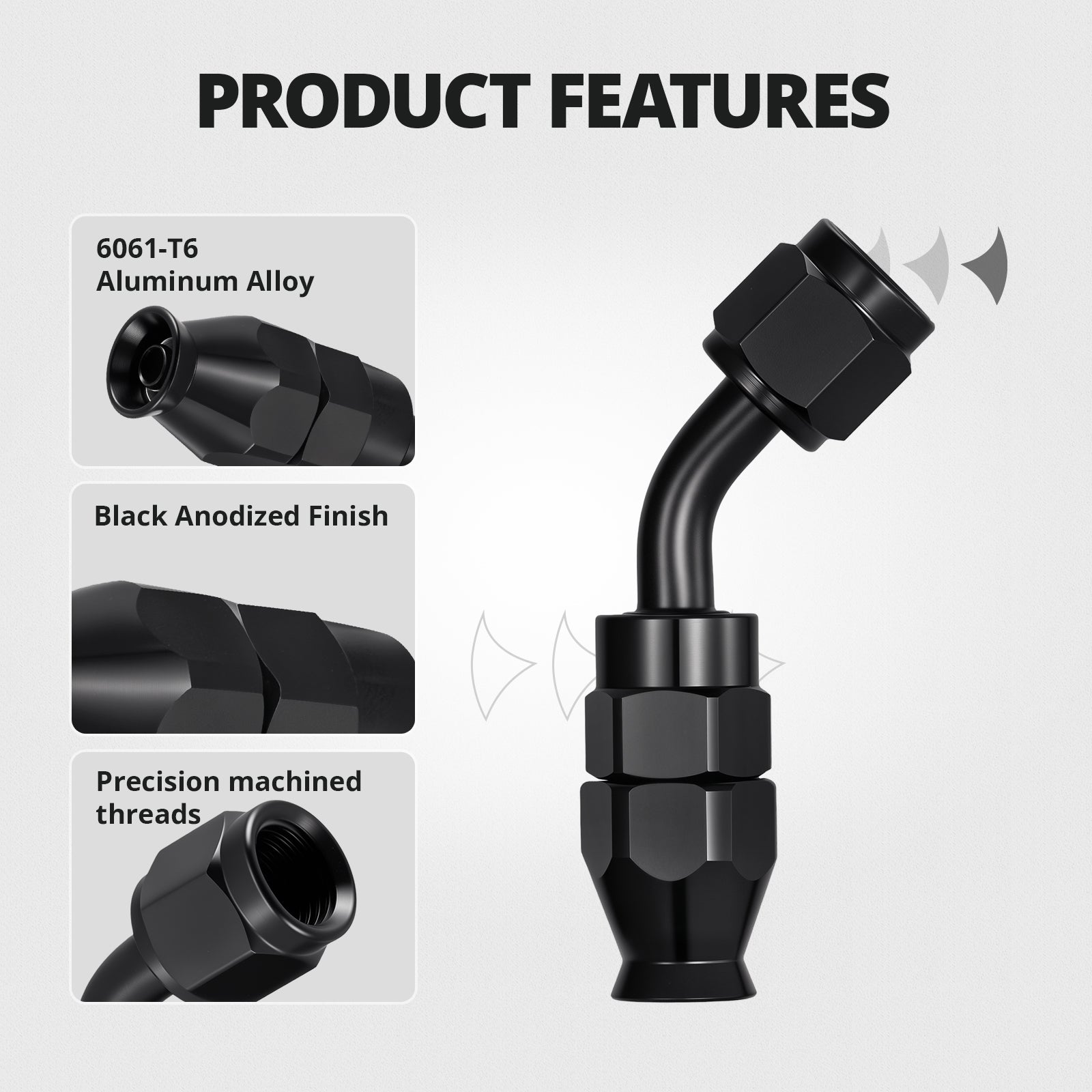

Material	6061-T6 Aluminum Alloy
Finish	Black Anodized

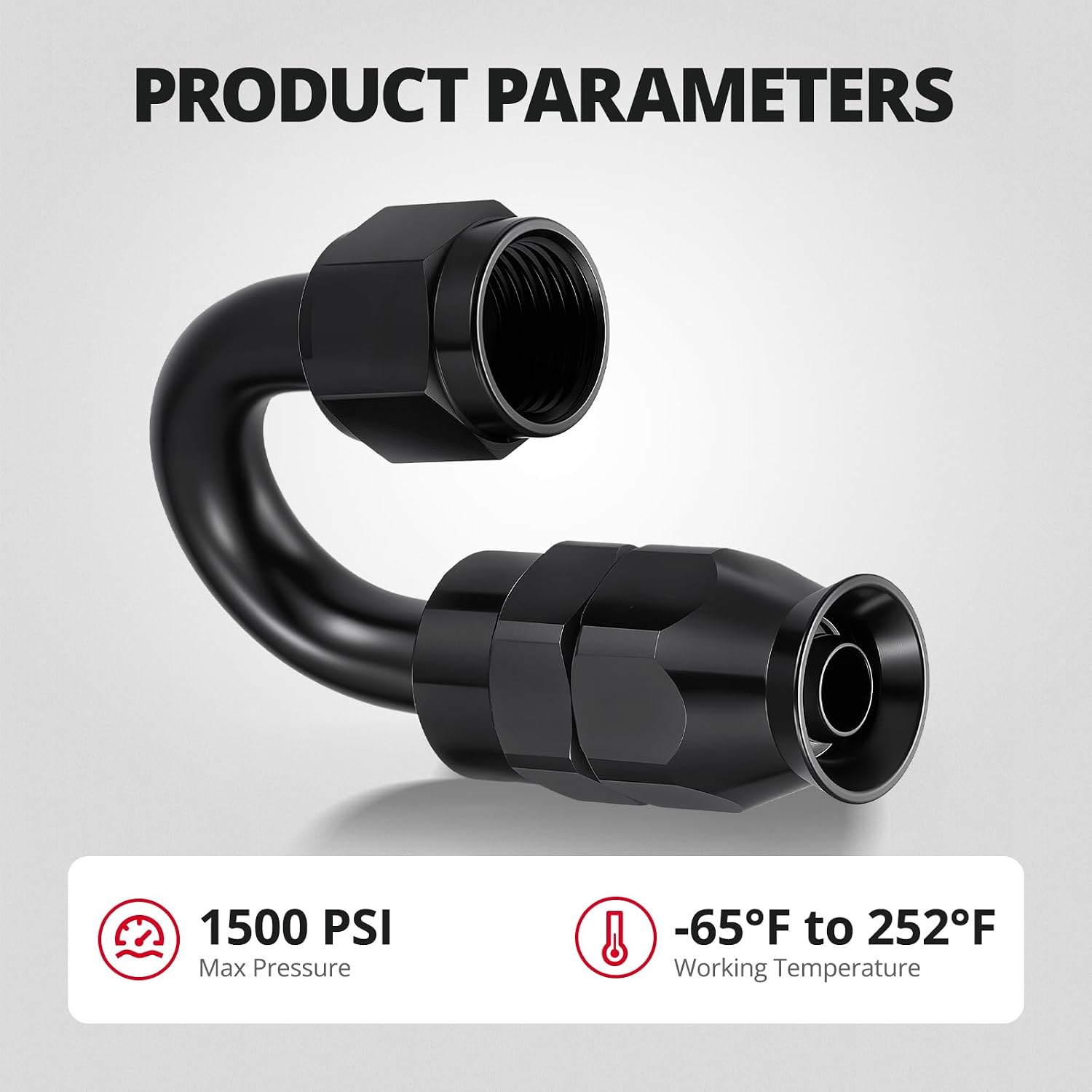

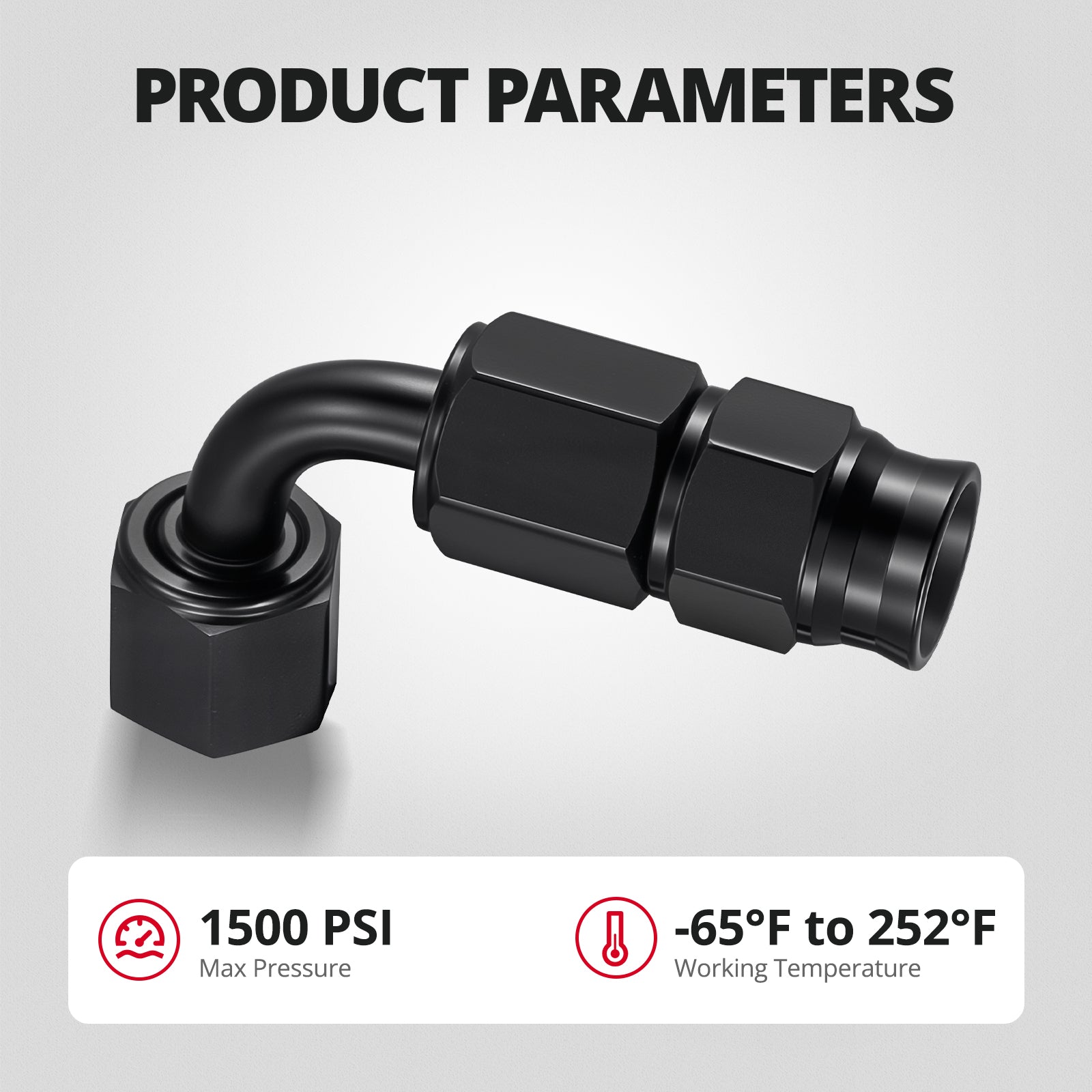

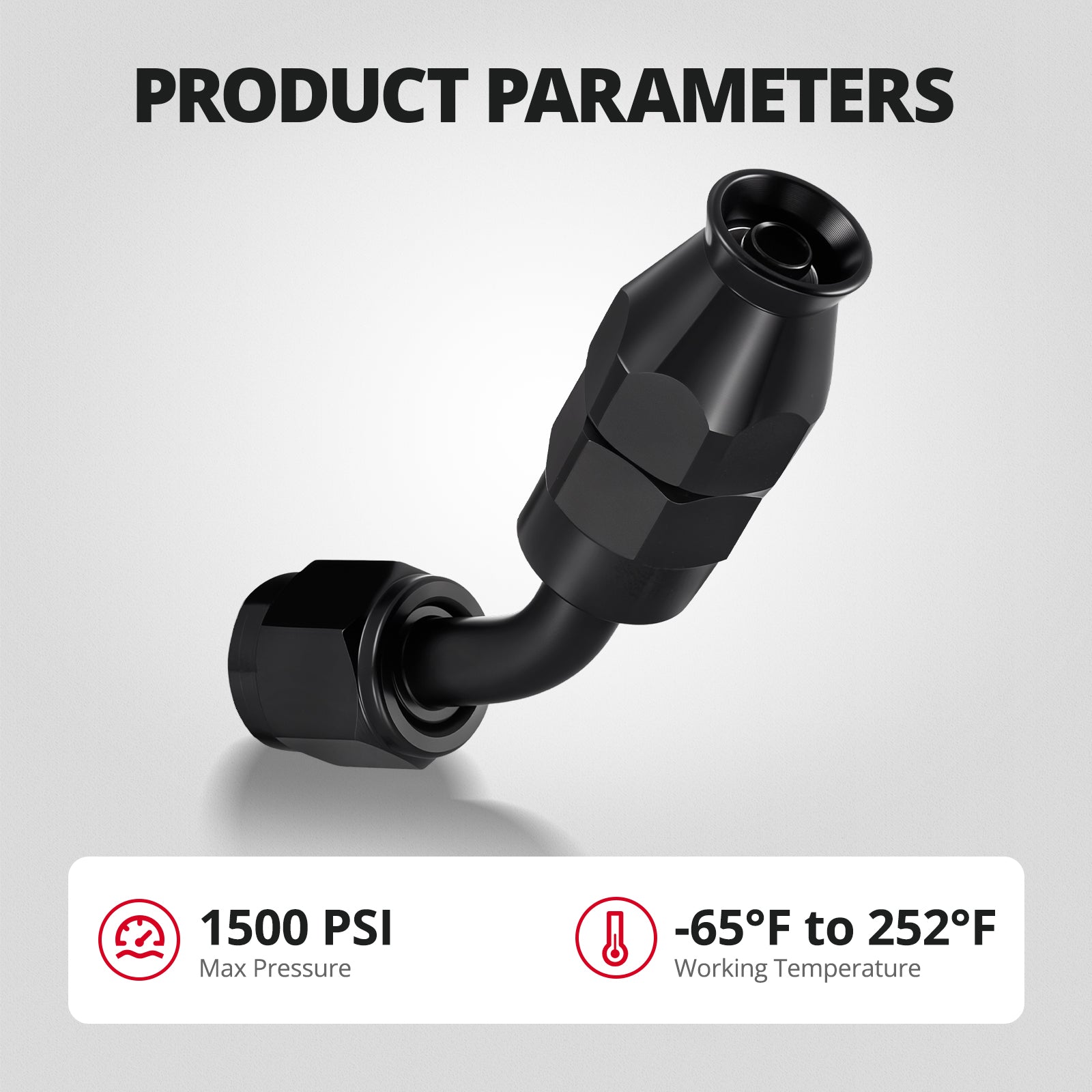

Working Pressure	1500 PSI
Temperature Range	-65°F to 252°F (-54°C to 122°C)
Seal Type	37° Flare Seal (AN Side)
Connector Type	Nipple Style PTFE Hose End
Compatibility	PTFE fuel line only (not for rubber hose)
Feature	360° Swivel for easier assembly and orientation

DESCRIPTION

EVIL ENERGY PTFE Hose End Fittings provide a secure, leak-free solution for high-pressure fuel systems, boosted engines, and ethanol-compatible builds. Designed exclusively for PTFE fuel lines, these fittings utilize a 37° flare seal and a 360° swivel body to simplify installation and ensure precise alignment. Built from 6061-T6 anodized aluminum, they withstand up to 1500 PSI and extreme temperatures, making them ideal for performance fuel systems, oil lines, transmission applications, and custom engine plumbing. Available in multiple angles to deliver flexible routing solutions for tight engine bays and custom layouts.

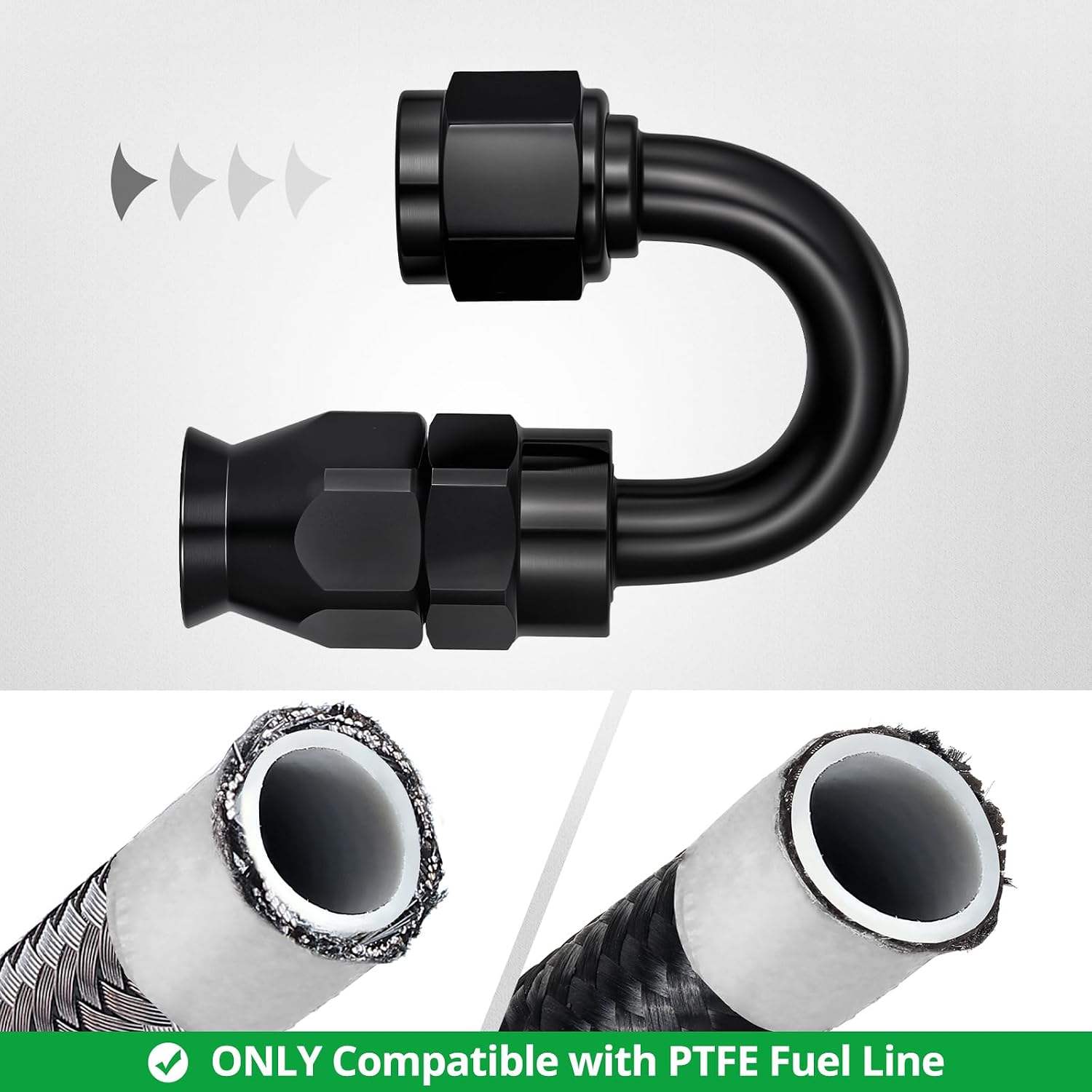

Confirm PTFE Hose Compatibility Before Purchase

This fitting is designed for the PTFE fuel line only. It is not for rubber hose, CPE braided hose, push-on hose, or standard braided rubber fuel hose. Before ordering, confirm that your hose type, AN size, thread size, and fitting angle match your fuel, oil, nitrous, or hydraulic line setup.

Which Angle Should You Choose

Fitting Angle	Best For	Purchase Note
Straight	Direct line runs with enough clearance	Best when the hose can route cleanly without turning near the connection.

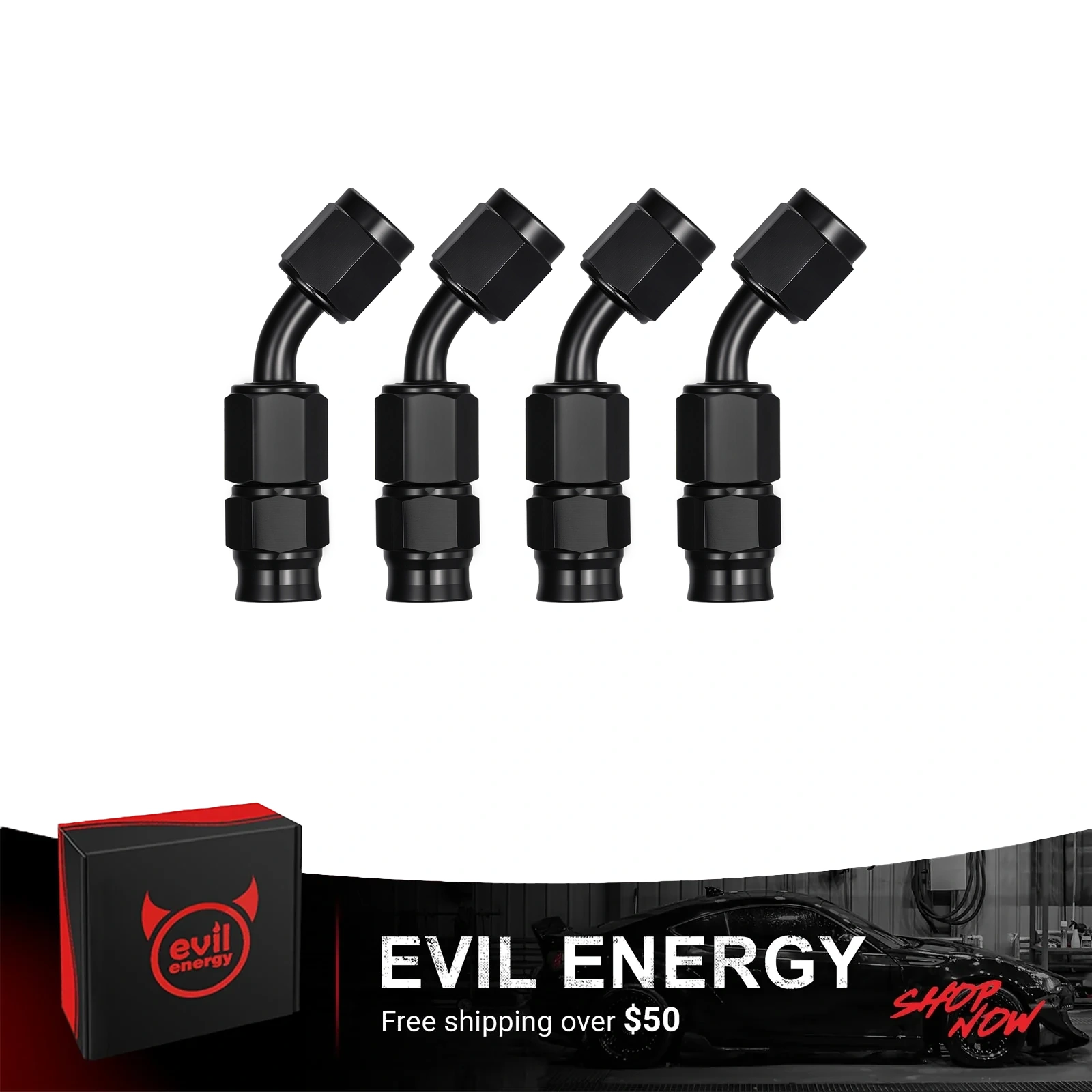

45 Degree	Slight direction changes in limited space	Useful when a straight fitting creates a mild bend or clearance issue.
90 Degree	Tight turns around fuel rails, filters, regulators, or brackets	Choose when the hose needs to leave the port at a sharp angle.

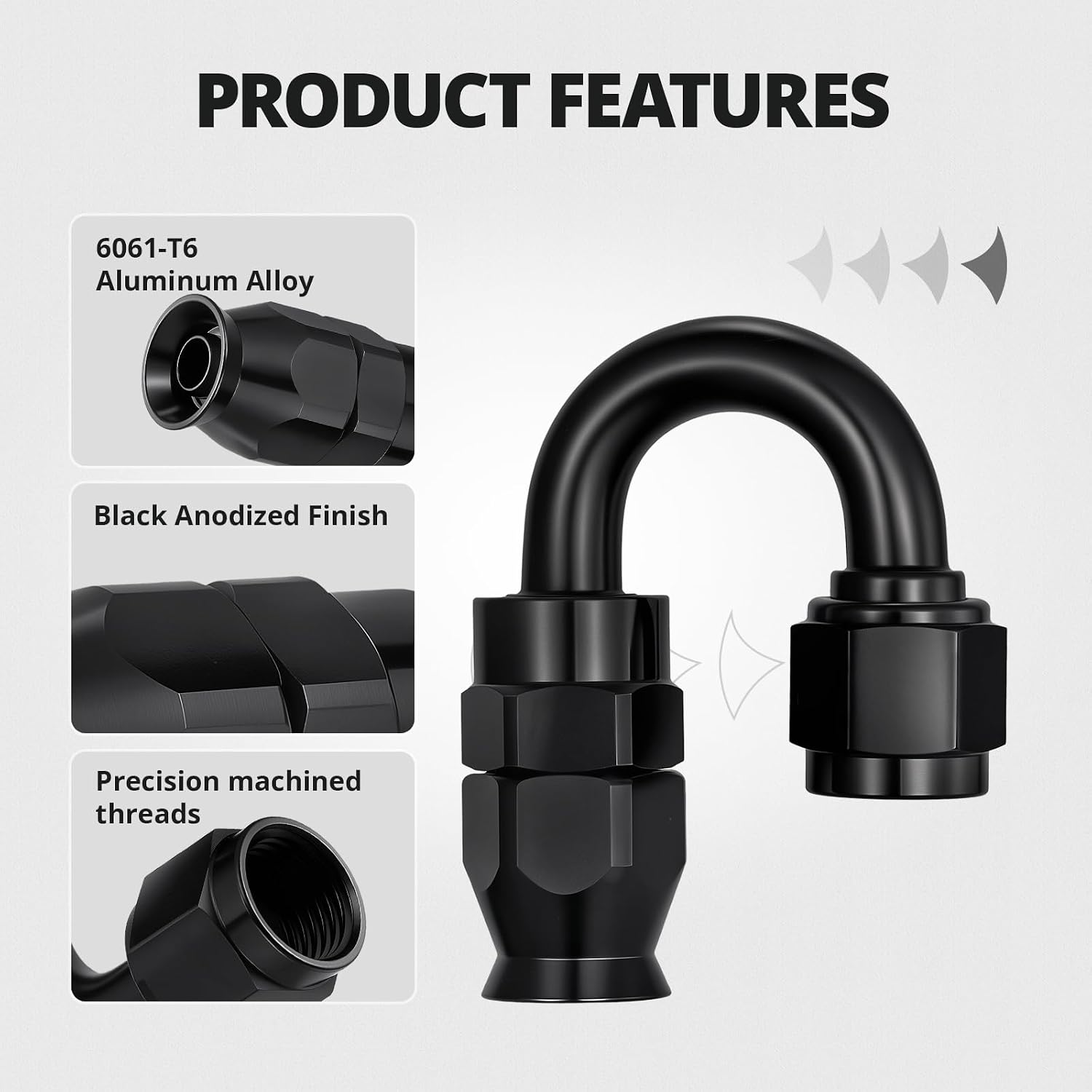

180 Degree	Returning the line in the opposite direction	Useful for compact layouts where the line needs to loop back cleanly.

PTFE FITTING

SHIPPING & RETURN

Brand Summary

Policy	Details
Cancellation Policy	Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy	Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items	Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing	If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

Quality Issues: Provide photos/videos; we cover return shipping.
Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
Change of Mind: Buyer covers return shipping; email within 30 days.
Shipping Damage: Inspect packages; do not sign for damaged items.
Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

VIDEOS & BLOGS

Product Videos

FAQS

Q: Can these PTFE hose end fittings be used with rubber hose?

A: No. These EVIL ENERGY PTFE hose end fittings are designed for PTFE hose only. They are not compatible with rubber hose, CPE braided hose, nylon braided rubber hose, or standard push-on fuel hose.

Q: What hose sizes are available for these AN PTFE fittings?

A: These AN PTFE hose end fittings are available in 3AN, 4AN, 6AN, 8AN, 10AN, and 12AN sizes. Choose the size that matches your PTFE fuel line, oil line, or fluid transfer line.

Q: What angle options are available?

A: Available angle options include straight, 45 degree, 90 degree, and 180 degree PTFE hose end fittings. These options help with fuel line routing, oil line routing, and custom engine bay plumbing in tight spaces.

Q: What seal type do these AN hose fittings use?

A: These fittings use a 37 degree flare seal on the AN side. The flare seat is designed to create a metal-to-metal seal when properly assembled with the correct AN fitting connection.

Q: Do I need sealant on the 37 degree flare seat?

A: No. Do not apply thread sealant, PTFE tape, or liquid sealant to the 37 degree flare sealing surface. The AN flare seat is the sealing point. Always confirm the assembly requirements for the rest of your fuel, oil, or hydraulic system before installation.

Q: What is included in the package?

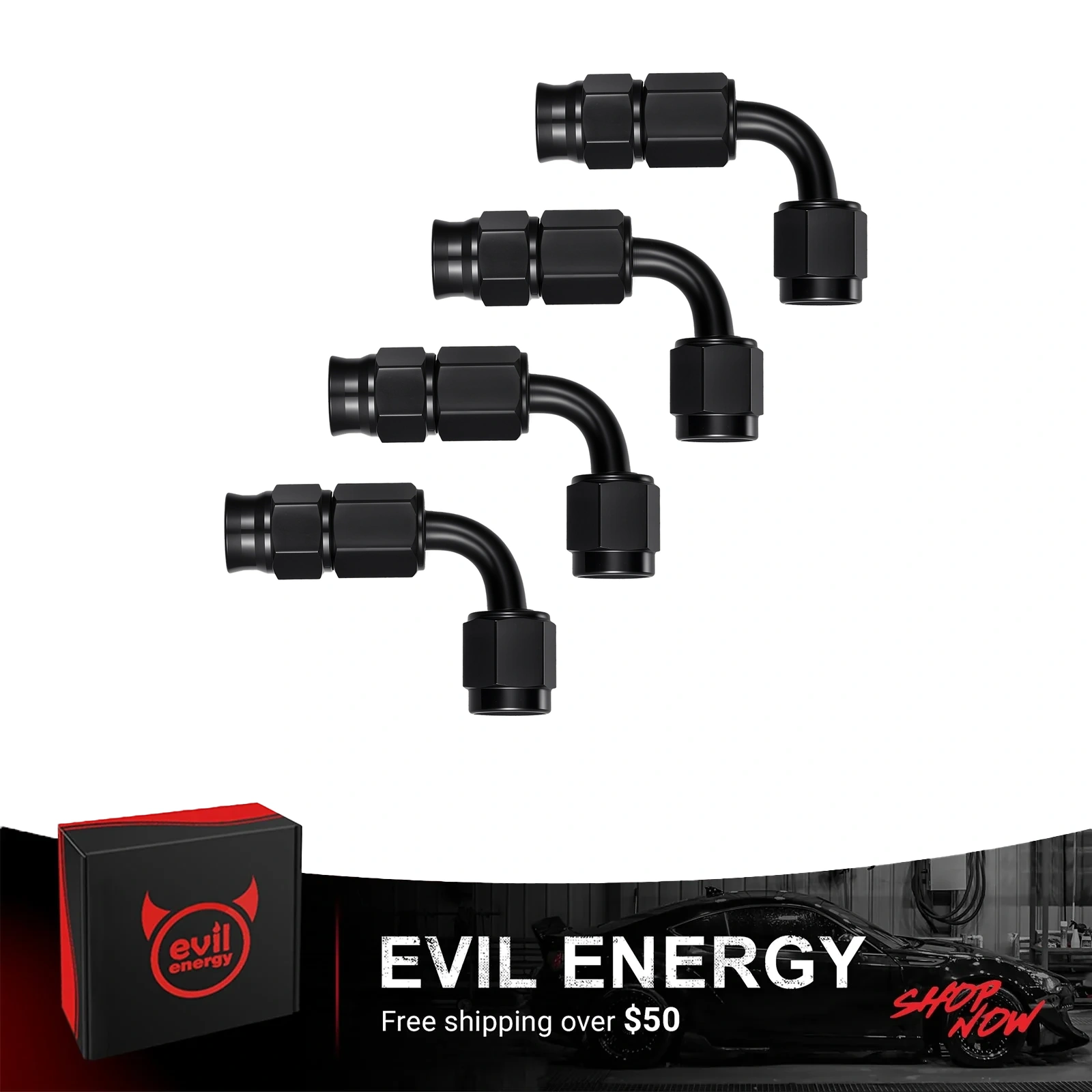

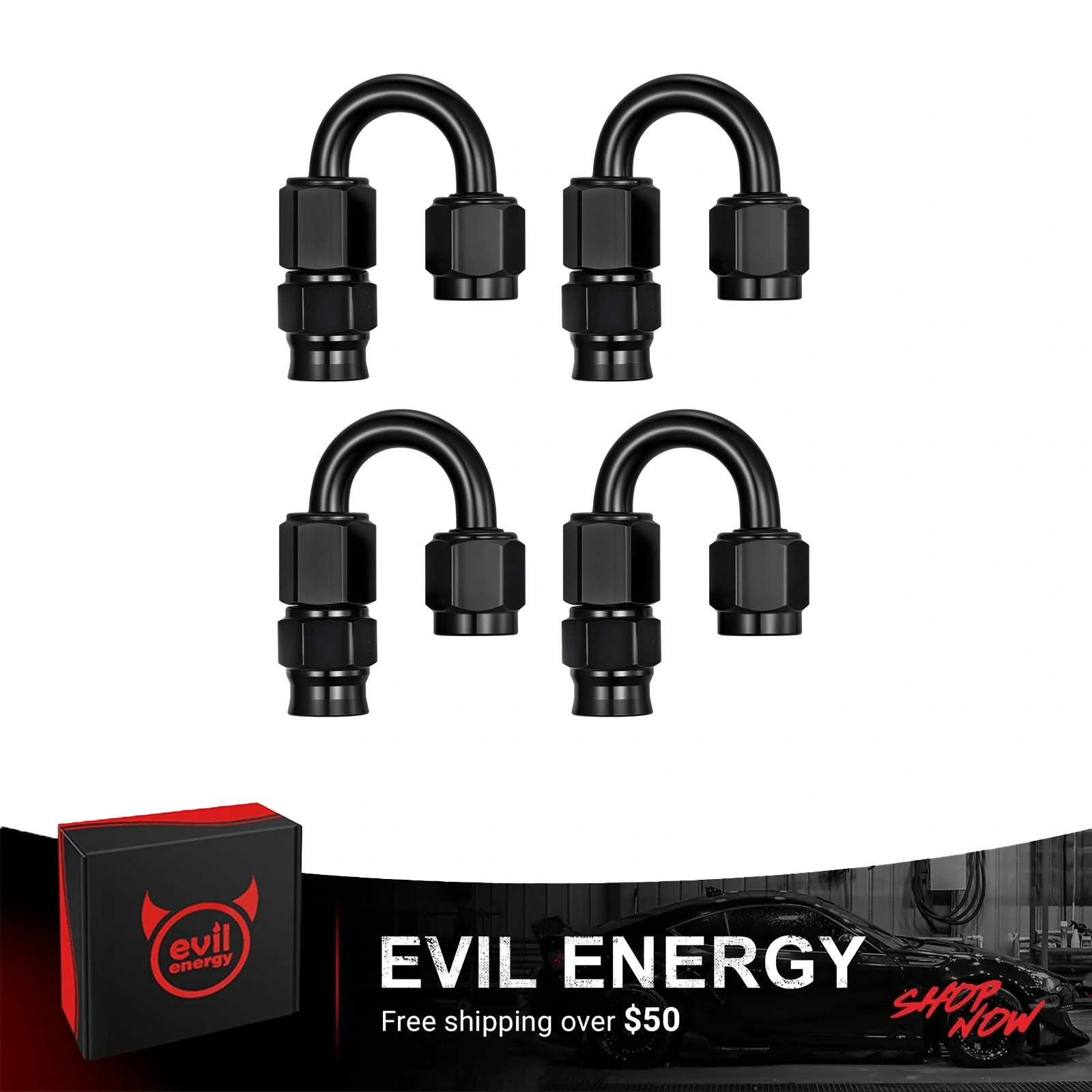

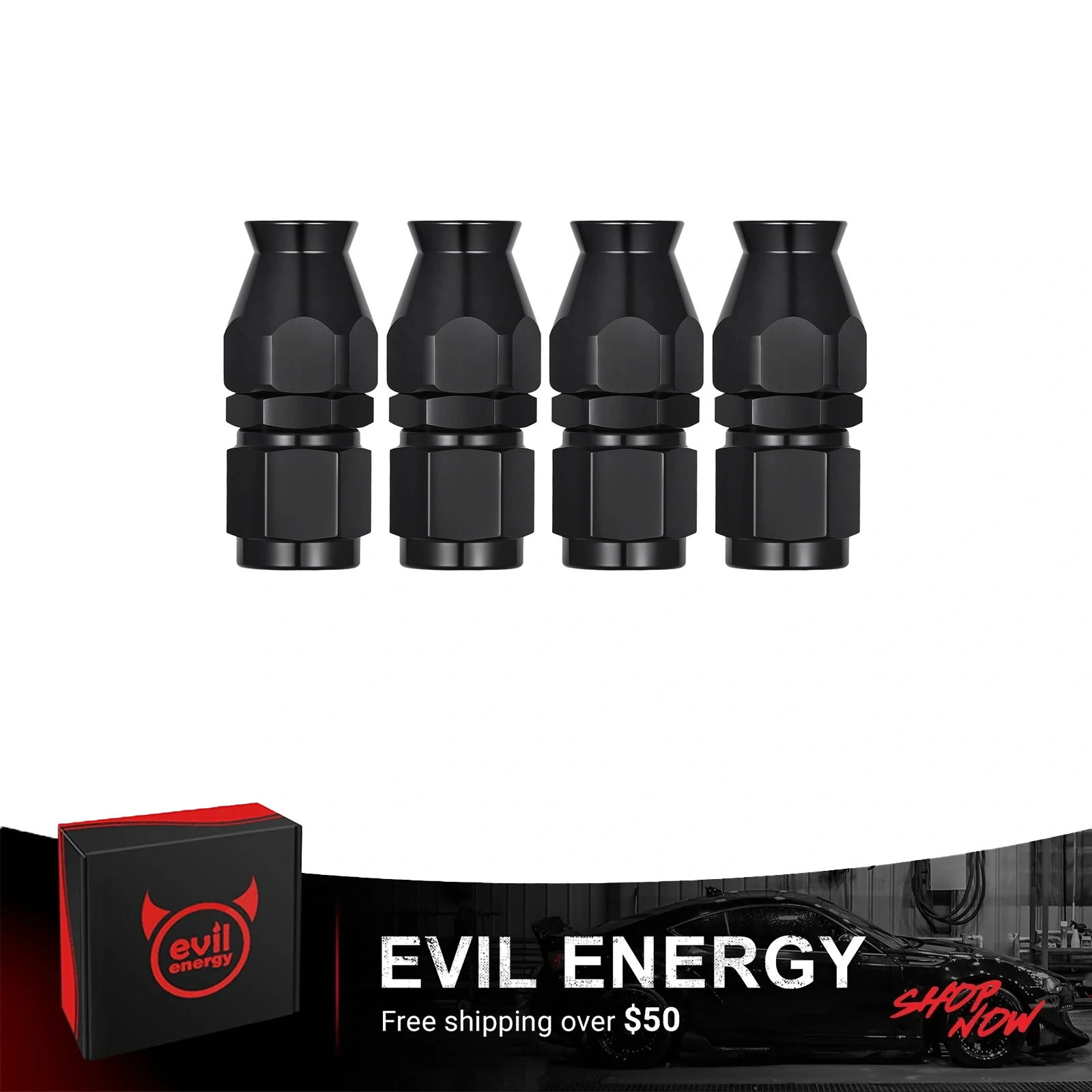

A: Each package includes 4 PTFE hose end fittings in the selected AN size and angle option. PTFE hose, adapters, clamps, and installation tools are not included unless separately listed on the product page.

Q: Are these PTFE hose fittings suitable for fuel and E85 systems?

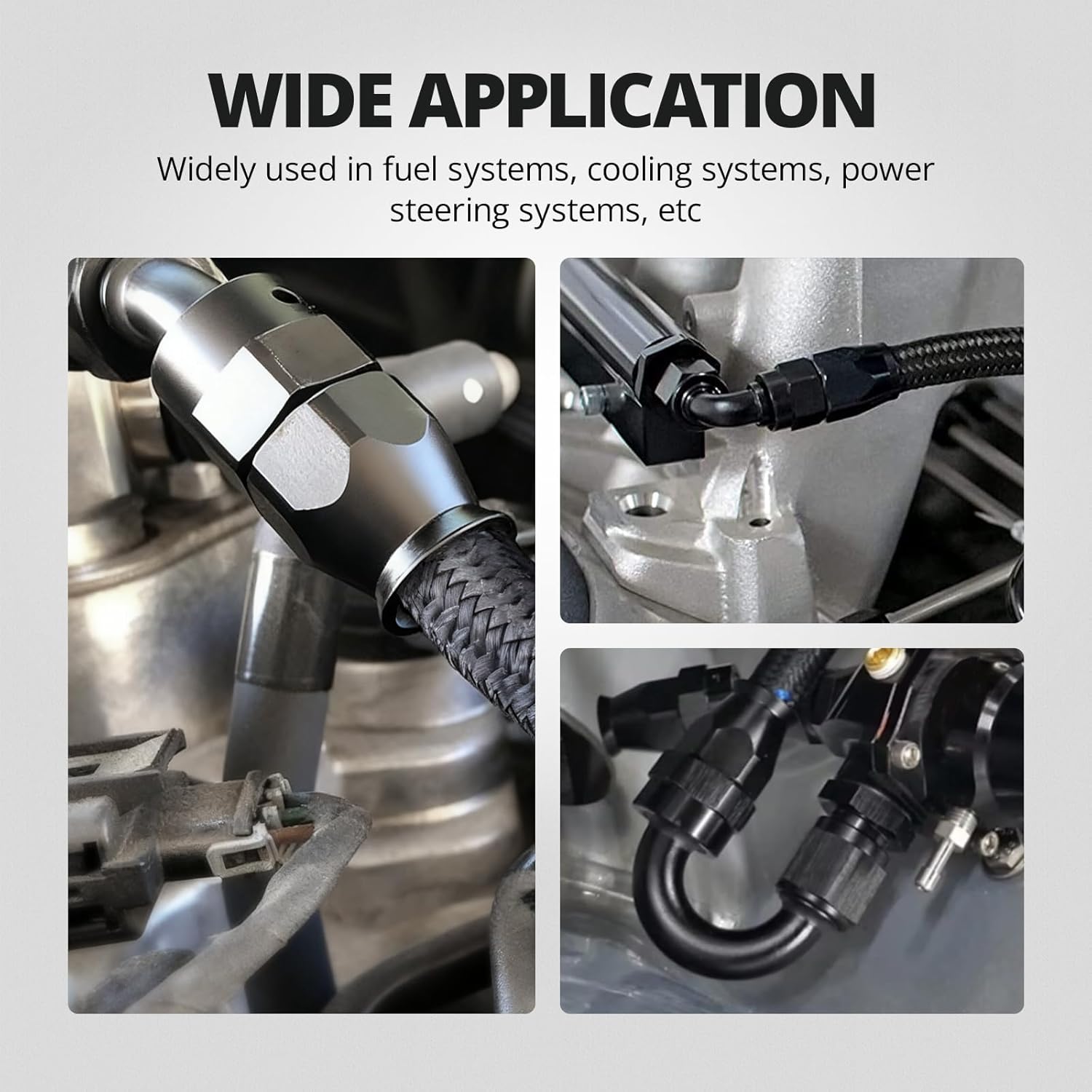

A: These PTFE hose end fittings are commonly used for fuel lines, E85 fuel systems, oil lines, nitrous lines, and other custom fluid transfer setups when paired with compatible PTFE hose. Always verify hose material, fluid compatibility, pressure requirements, and installation method before use.
