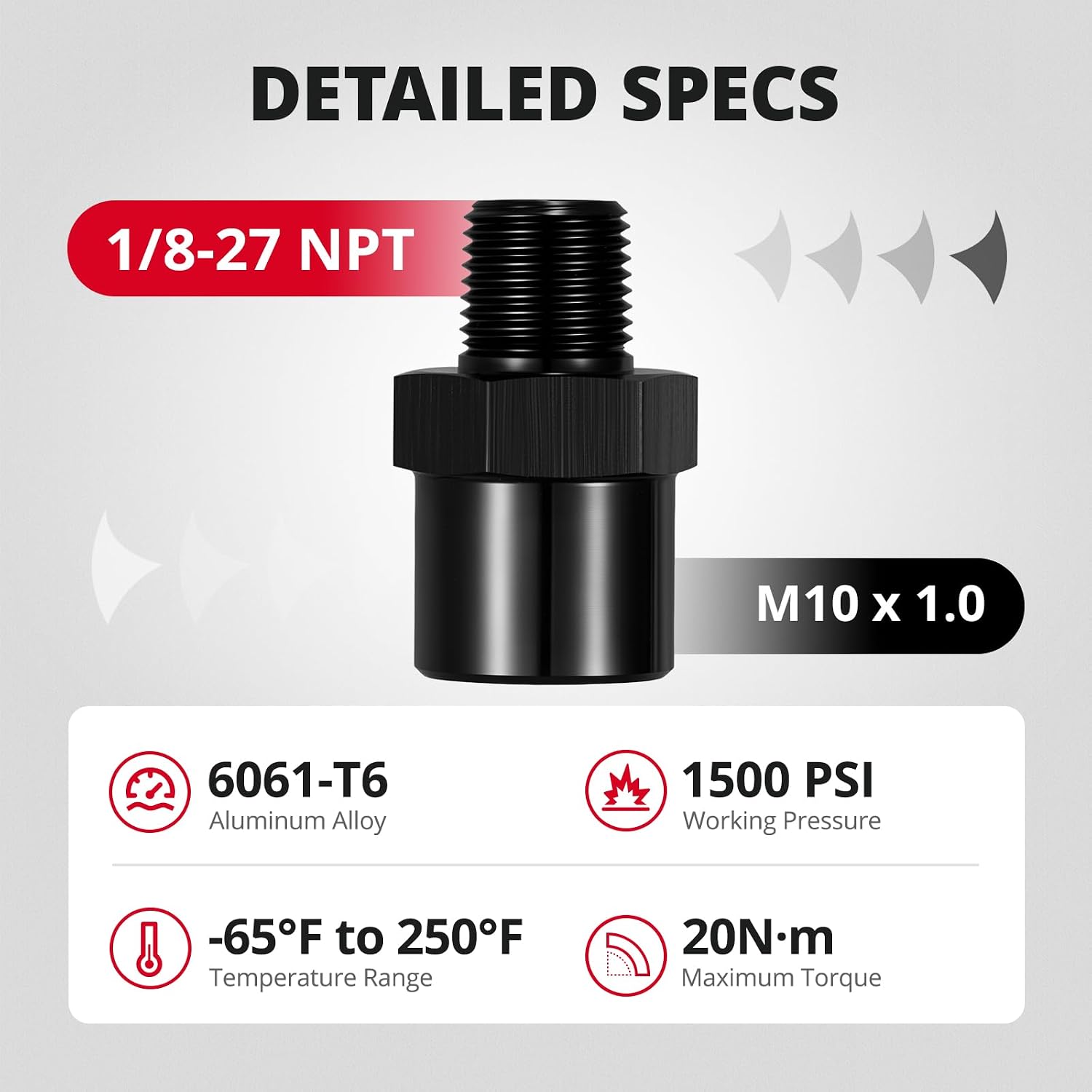

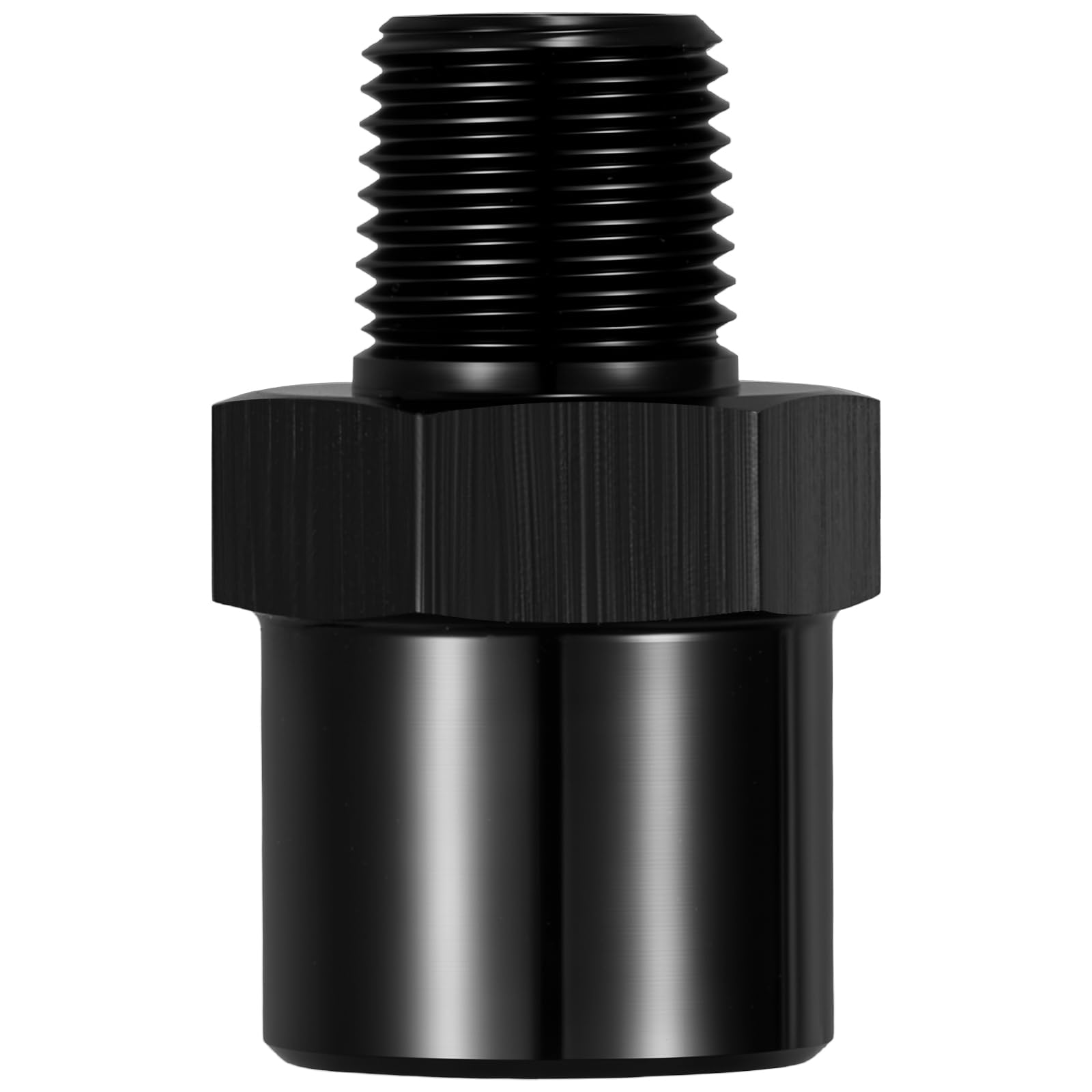

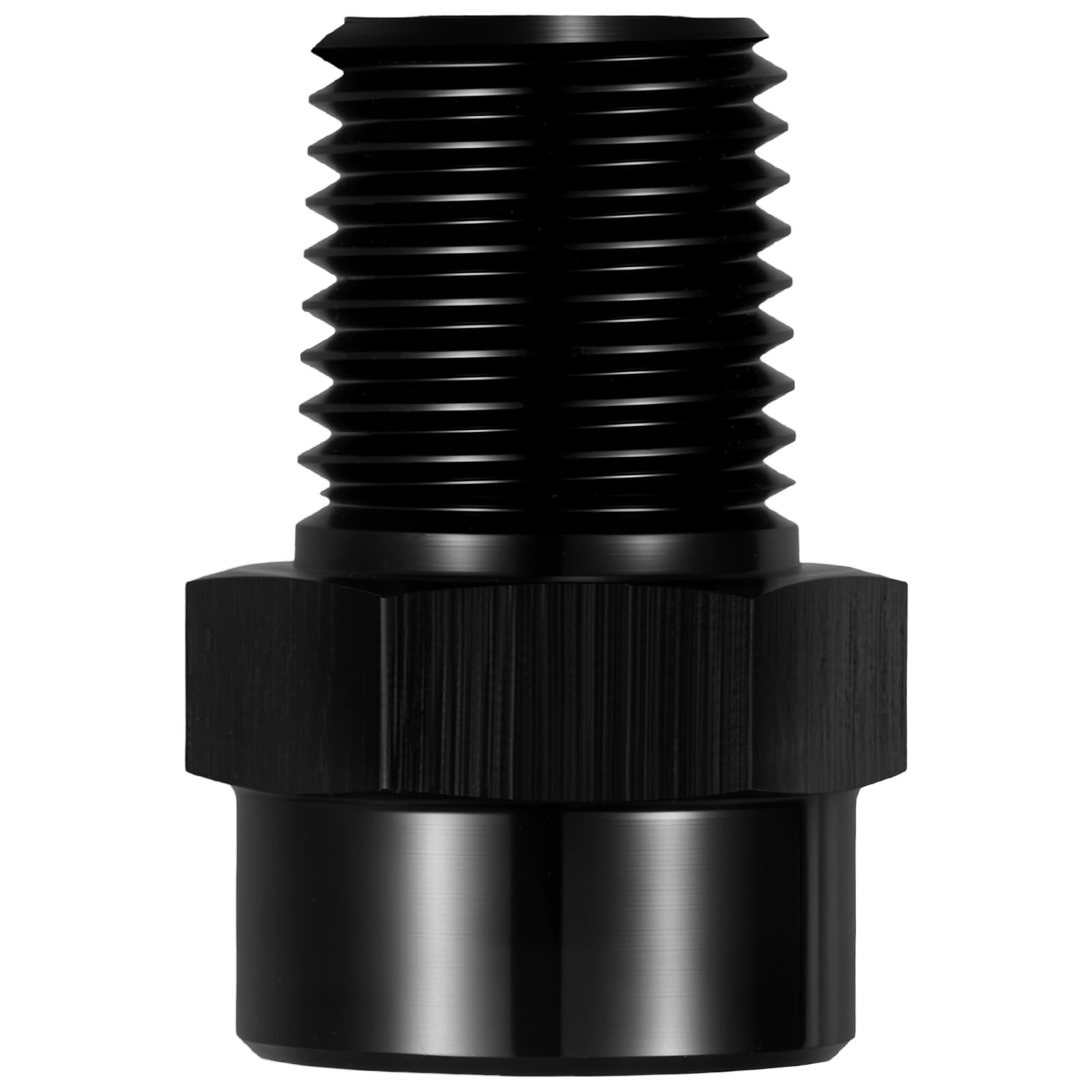

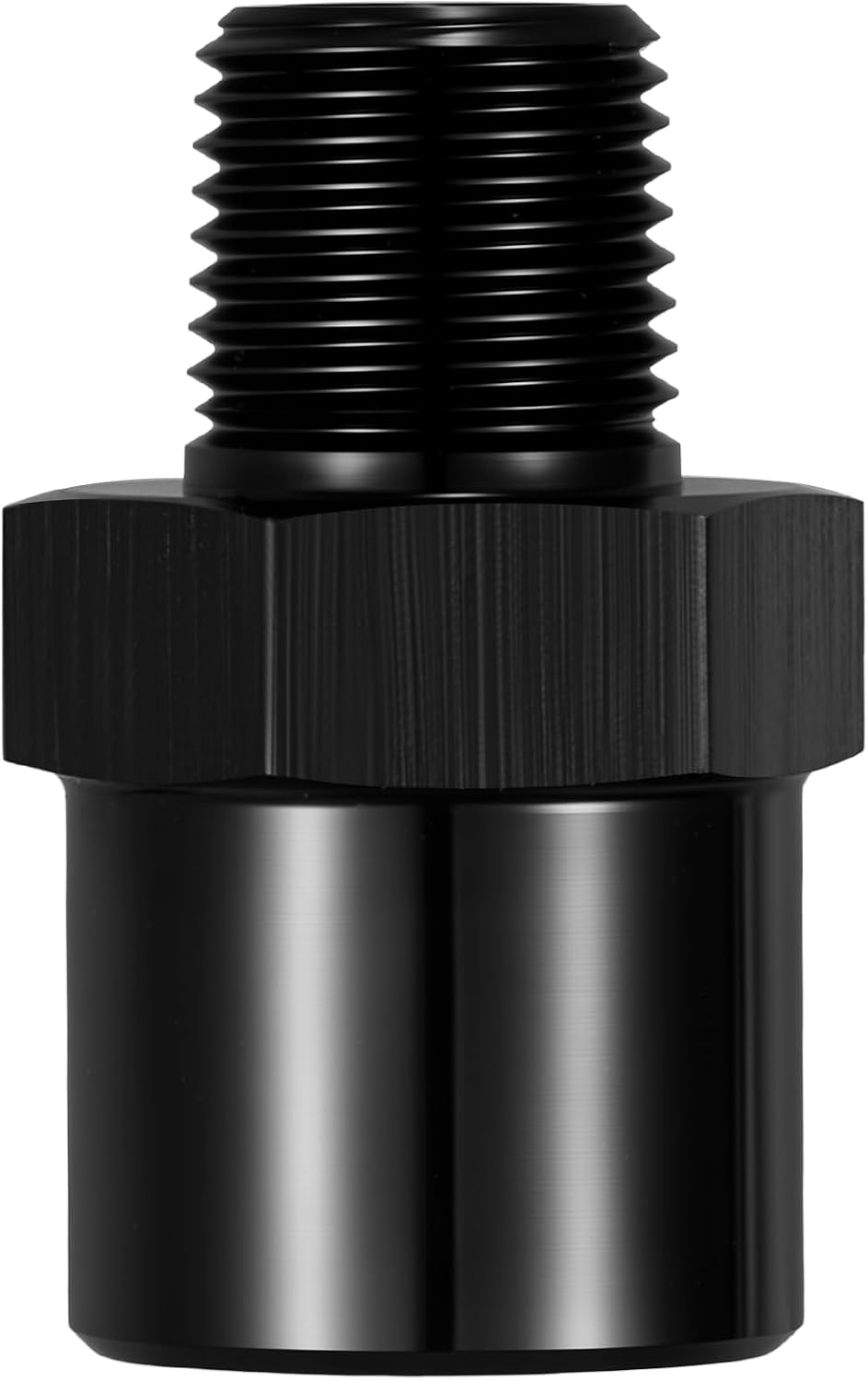

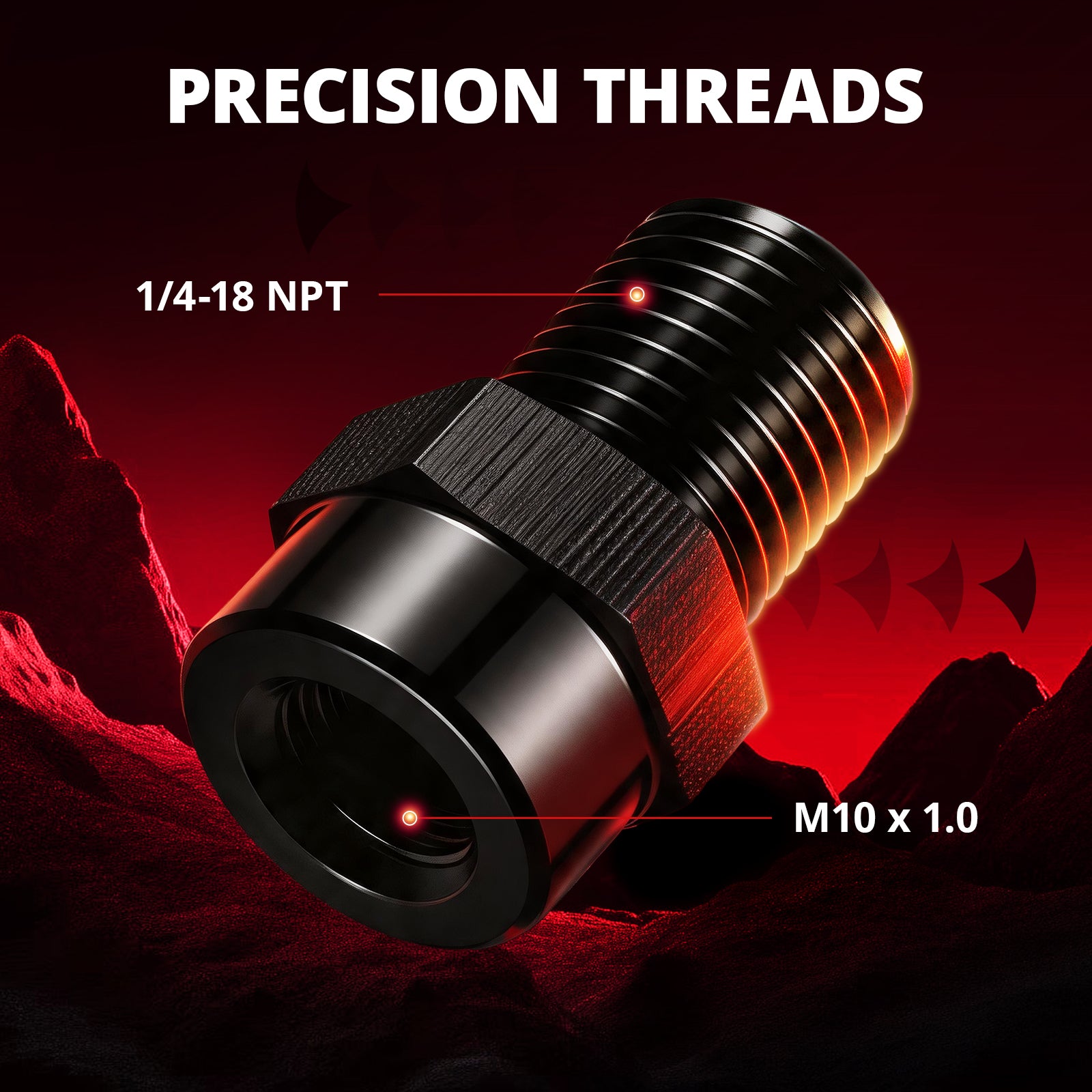

EVIL ENERGY 1/4 or 1/8 NPT Male to M10x1.0 Female Metric Straight Aluminum Fitting Black

Q: Will my temperature sensor actually fit through the adapter?

A: Check the probe length and diameter before ordering. Pressure senders pass through without issue, but many temperature sensors have a probe too long or too wide to clear the bore of a reducing adapter. The sensor bottoms out inside instead of seating, and no amount of tightening fixes it. This is a limitation of the category rather than any one brand, and it is the single most common reason a sender adapter gets returned. If your sender has a long probe, you need a test port extender in addition to this adapter.

Q: Where does the sealing washer come from?

A: From your sensor, not from this adapter. The M10x1.0 port has a flat seating face, and most metric senders ship with a crush washer or O-ring sized for it. If your sensor arrived without one, or you are reusing a sensor that has been installed before, source a fresh M10 washer separately. A reused crush washer is the most common cause of a slow weep on a joint that seemed fine on install.

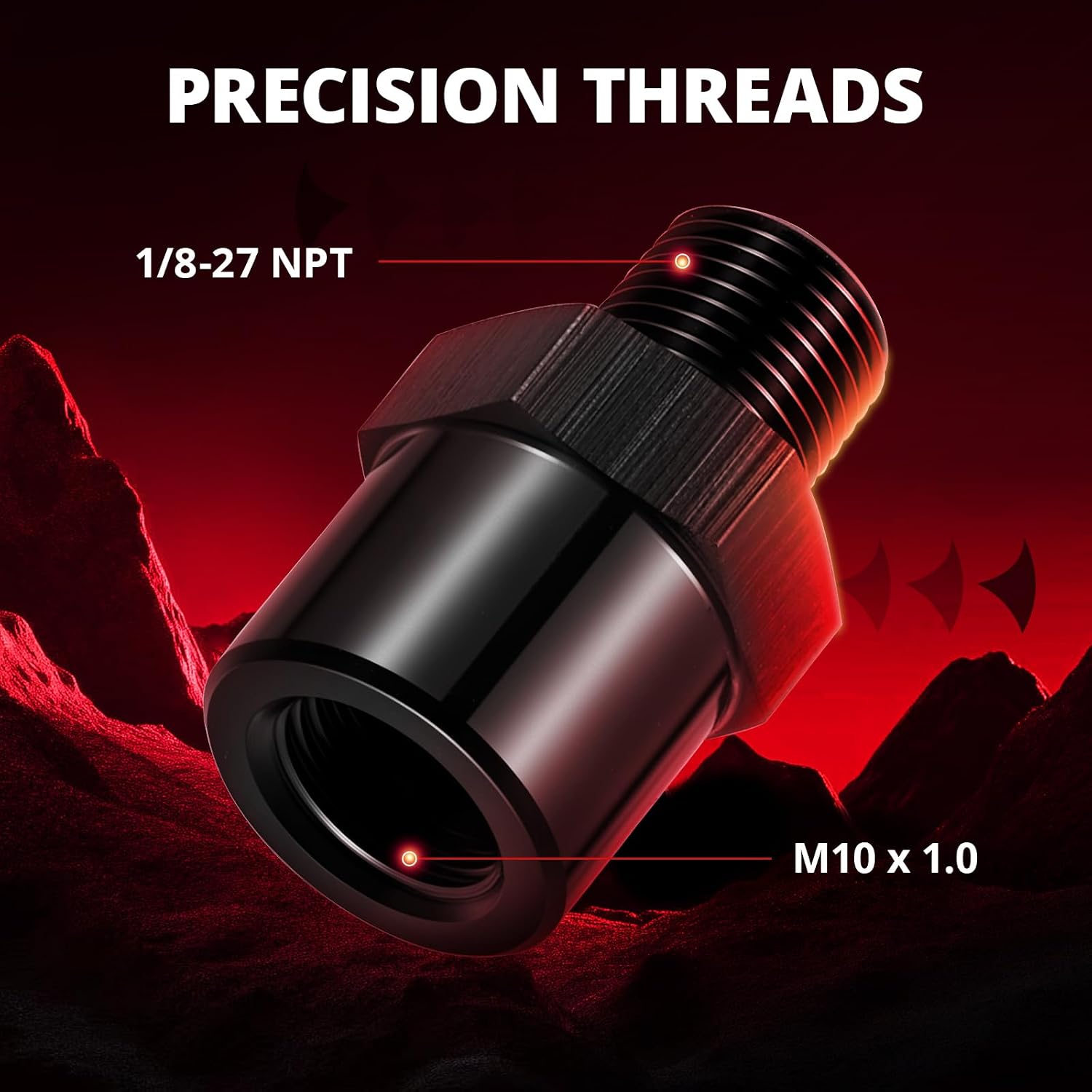

Q: Which way does this adapter go? I have seen the opposite version sold.

A: This one has NPT male and M10x1.0 female, so it threads into an NPT port and accepts a metric sensor. The opposite version exists and is more common: metric male into a metric port, accepting an NPT sensor. Check which half of your setup is metric before ordering. If your sensor is metric and your engine port is NPT, this is the correct direction.

Q: Will the adapter affect my gauge reading?

A: For pressure, no. Static pressure is identical throughout a connected volume, so the adapter does not change the number. For temperature, it can. Moving a probe further from the fluid by the length of an adapter puts it in a pocket rather than in flow, which introduces a small lag and usually reads slightly low. Normally a few degrees, but worth knowing before you chase a reading you think is wrong.

Q: Can I stack this with another adapter to reach the thread I need?

A: Physically yes, but keep the stack as short as possible. Every adapter moves the sensor further from the block and multiplies the leverage that engine vibration applies to it. Pressure senders crack at the body, not at the threads, and a sensor hanging off two stacked adapters is the usual way that happens. If you need two conversions, look for a single adapter that does both.

Q: How do I know which direction the sensor connector will face?

A: Wherever the NPT thread stops. A tapered thread cannot be clocked, so the sensor lands in whatever orientation correct tightening produces. If the connector has to clear a hood, a bracket or a heat shield, plan for a 90-degree elbow above the adapter or a remote mount. Never back a seated NPT joint off to aim it — loosening a tapered thread unloads the seal.

Q: Can I reuse it if I pull the sensor later?

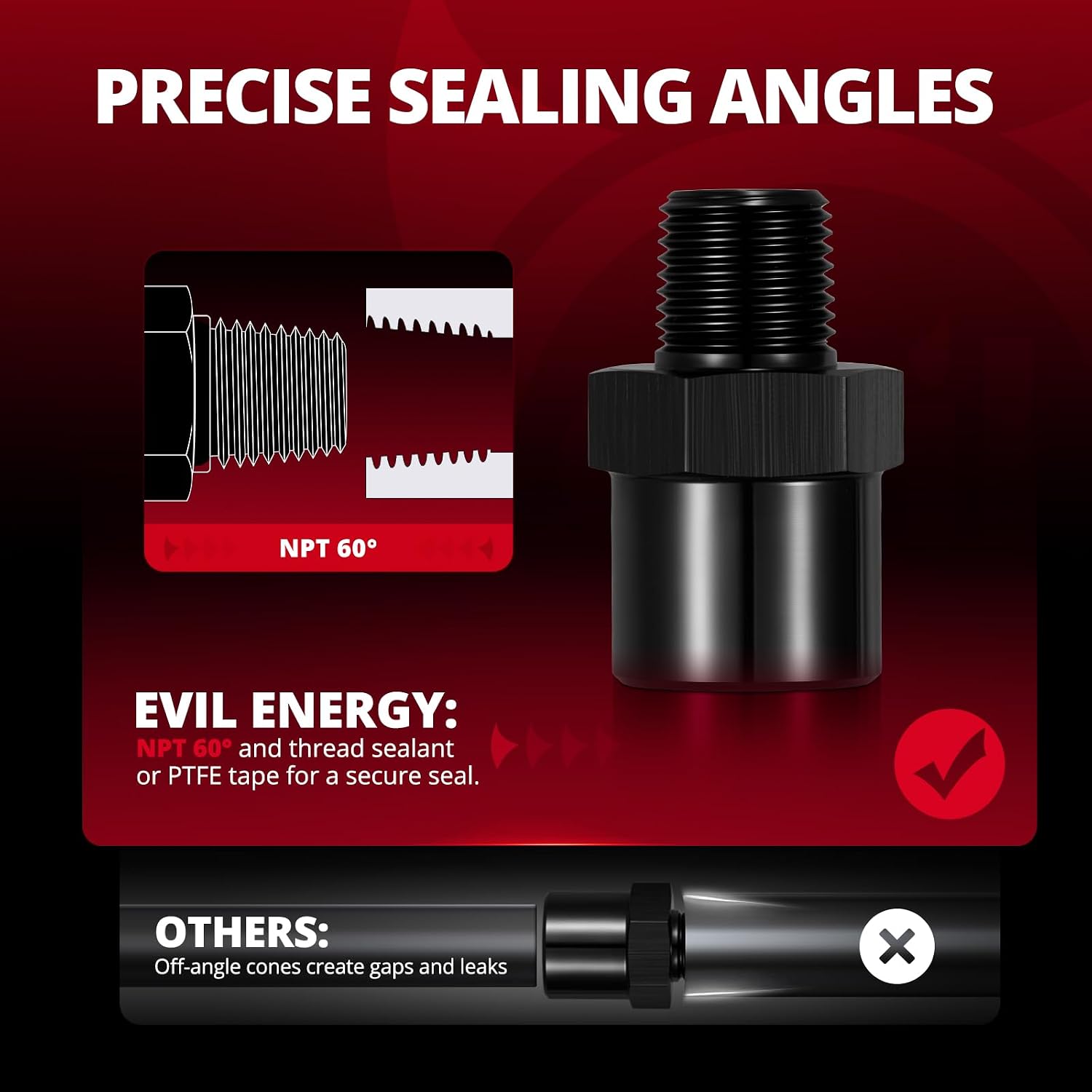

A: Yes, with fresh sealant. Nothing on this fitting is consumed by a single install. Clean the old sealant off the NPT threads completely before reinstalling, since cured residue holds the taper apart and prevents the joint from reaching depth. Inspect the M10 seating face for scoring while it is out.

Q: My sensor threads in but the joint still weeps. Where do I start?

A: Work outward from the most likely. First, confirm which end is leaking by wiping both dry and running the engine. Wetness at the NPT end means insufficient sealant or not enough thread engagement. Wetness at the sensor end means a missing, reused or wrong-size washer. If neither is obvious, check that your sensor is genuinely M10x1.0 and not M10x1.25, which will start threading and never seat.

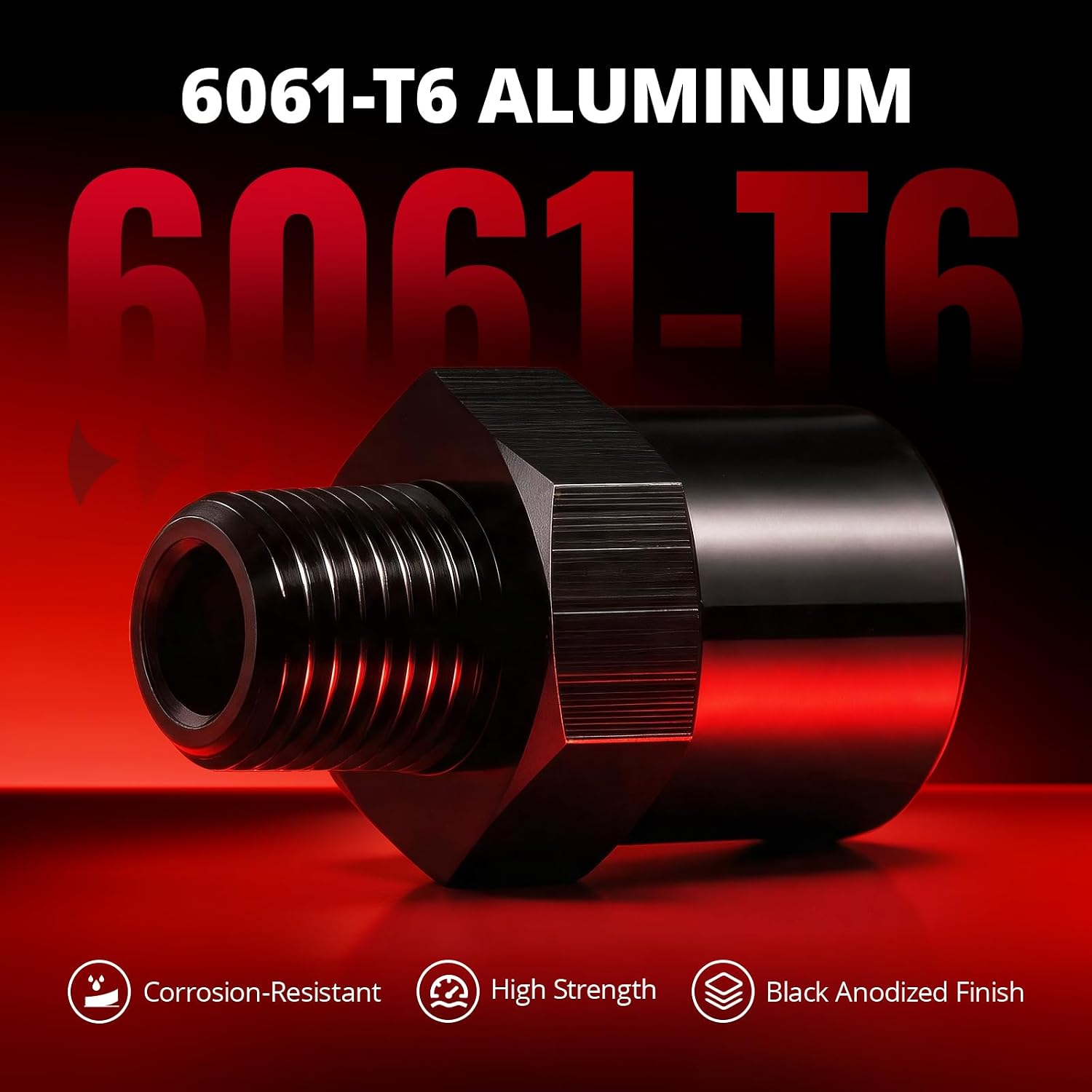

Q: Is aluminum a downside compared to the stainless and brass versions?

A: It is a trade, not a downside. Aluminum is lighter and cheaper, and on a thread joint a softer material on one side actually helps the two threads conform to each other. The trade is that aluminum is easier to damage: it galls if threaded dry into a steel port, and it strips if overtightened. Use assembly lube and stop at snug, and it will outlast the sensor. If the port is steel and the fitting will be removed regularly, stainless is the more forgiving choice.

Q: Can I use this on a methanol system?

A: No. Aluminum is not suitable for sustained methanol exposure, and methanol-fuelled builds use stainless plumbing throughout for this reason. Gasoline, diesel, engine oil, coolant and hydraulic fluid are all fine. For high ethanol blends, confirm that the sealing washer supplied with your sensor is ethanol-rated, since that elastomer is usually the weakest link rather than the metal.
