Product Manual

CPE Fuel Line Manual — Download

Brand	EVIL ENERGY

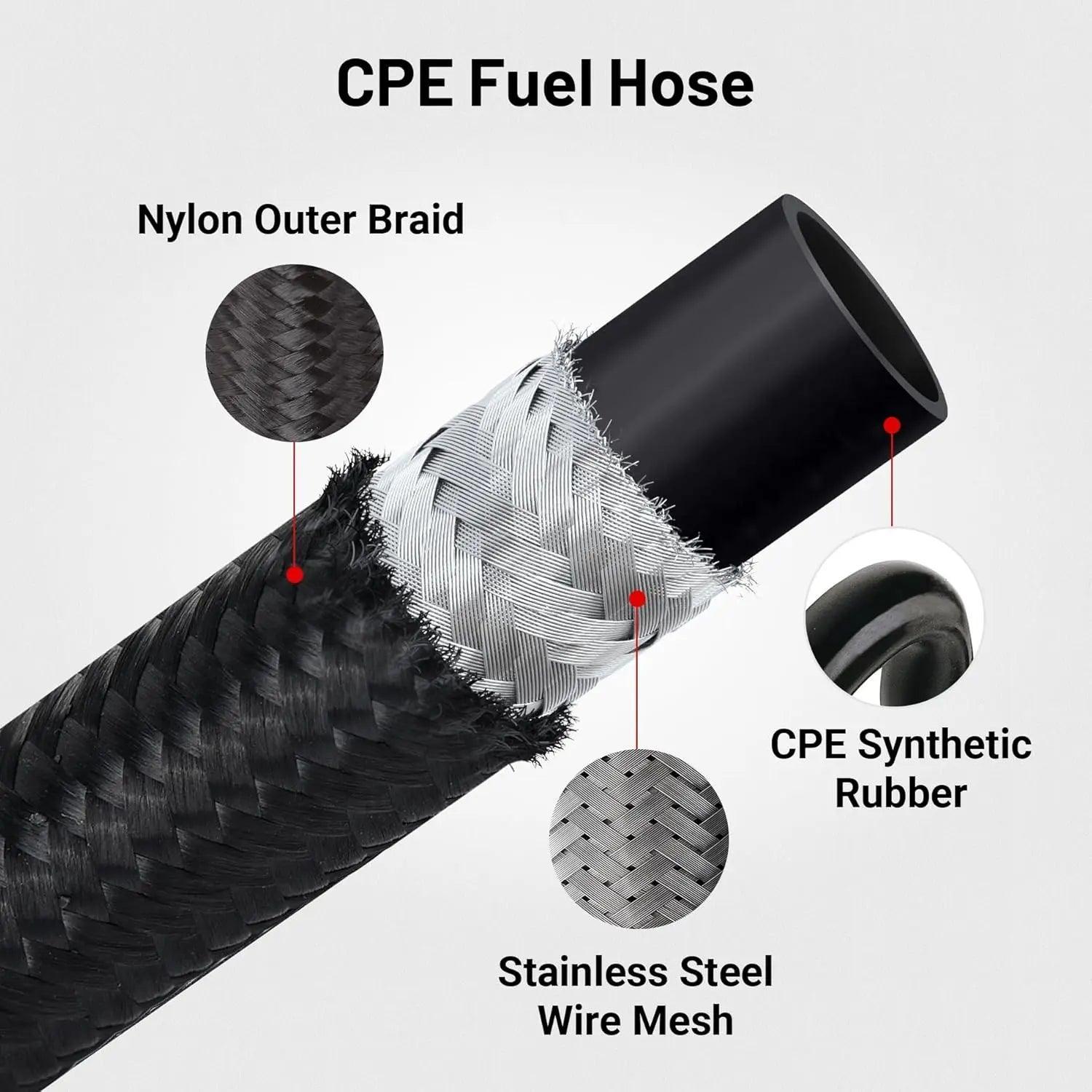

Hose Material	CPE rubber inner with 304 stainless steel wire and nylon outer braid
Hose Length	20 feet (4/6/8/10 AN size) 25 feet (6 AN size)
Hose ID	4AN: 0.22 inches/ 6AN: 0.31 inches/ 8AN: 0.41 inches/ 10AN: 0.53 inches
Hose OD	0.44 inches/ 6AN: 0.56 inches/ 8AN: 0.65 inches/ 10AN: 0.79 inches
Color	Black & Red
Maximum Working Pressure	6/8AN: 750 PSI 10AN: 625 PSI
Bursting Pressure	6/8AN: 2,250 PSI 10AN: 1875 PSI
Temperature Range	-22°F to 248°F (-30°C to 120°C)
Fitting Material	High-strength aluminum alloy
Fittings	12PCS, including: -4 x Straight fittings -2 x 45° fittings 2 x 90° fittings 2 x 180° fittings 2 x Hose separator clamps
Package Dimensions	7.87 x 7.48 x 3.15 inches

DESCRIPTION

Product Description:

The EVIL ENERGY Fuel Line Kit is a robust and versatile solution for car enthusiasts and professionals who require reliable and high-performance fuel system upgrades. Whether you’re working on a fuel supply line, transmission oil cooler, coolant fluid hose, or even vacuum lines, this fuel line kit ensures exceptional performance in a wide range of automotive applications.

Key Features:

Durable Construction: The hose is made from a CPE rubber inner layer, reinforced with 304 stainless steel wire and wrapped in a tough nylon braided exterior, offering superior resistance against high pressures, heat, and chemicals.
High-Performance Fittings: The kit includes 12 aluminum swivel hose ends in various configurations (straight, 45°, 90°, and 180°) to provide flexibility in installation, making it easier to route your hoses without kinks or leaks.
Maximum Pressure Resistance: With a burst pressure of 2250 PSI, this fuel line kit is engineered for high-pressure systems, ensuring that you can trust it to withstand the rigors of demanding automotive setups.
Wide Compatibility: The hose can handle various fluids, including fuel, transmission fluid, oil, race gas, vacuum, hydraulic fluid, and diesel, making it the perfect choice for a diverse range of vehicles, including street cars, race cars, and off-road trucks.
Easy to Install: Designed with user-friendliness in mind, the kit comes with everything you need to get your fuel system up and running, including hose separator clamps for secure mounting.
Ideal for both DIY enthusiasts and professional tuners, the EVIL ENERGY Fuel Line Kit offers both superior performance and aesthetics with its sleek black & red braided design, complementing any build with a clean and stylish look.

Why Choose Evil Energy?

We prioritize quality control, ensuring each component meets rigorous standards for perfect fitment and durability, effectively addressing common fuel system challenges faced by car enthusiasts.

Fast Shipping: Orders are processed within 1-2 business days for quick delivery.
Easy Returns: Enjoy a hassle-free 90-day return policy with free return shipping (Requires no use or installation; packaging intact). 90-180 days, a 15% operating fee will be charged.
Warranty: EVIL ENERGY provides a 1-year warranty on this kit. For questions, reach out to us via email.

For additional information, please contact us at support@ievilenergy.com.

More Related Products

INSTALLATION GUIDE

Moderate Estimated Time: 0.5-1 hour

Tools Required

AN wrench set
Bench vise
Hose cutter or fine-tooth hacksaw
Deburring tool
Marker
Assembly lubricant
Safety glasses
Fuel-resistant gloves

Pre-Installation Checklist

Confirm whether the supplied hose is CPE, PTFE, or antistatic PTFE and use the matching assembly method.
Plan the routing path away from exhaust heat, moving parts, sharp edges, and abrasion points.
Confirm the correct hose ends and AN fittings are available.
Wear safety glasses and fuel-resistant gloves and work away from ignition sources.

Installation Steps

Measure the hose along the intended routing path and allow enough length for bends without kinks or tension.
Wrap the cutting area with tape, make a square cut, then deburr and clean the hose end.
For CPE hose, secure the socket in a vise, thread the hose into it until snug, leave a 1-1.5 mm gap, and mark the hose position.
For PTFE hose, slide on the socket, flare back the outer braid, seat the ferrule fully on the PTFE liner with no gap, and push the assembly onto the nipple.
Apply assembly lubricant to the fitting threads, hold the socket securely, and tighten the fitting body until fully seated.
Clean and pressure-test the completed hose assembly before installing it.
Install the hose according to the system flow diagram and secure it away from heat, sharp edges, and moving parts.

Post-Installation Verification

Verify all hose ends are fully seated and fittings are secure without overtightening.
Confirm no hose is kinked, twisted, under tension, or exposed to abrasion or excessive heat.
Pressure-test the assembly and inspect every connection for leaks before starting the engine.
Reinspect after the road test and after 50-100 km.

Troubleshooting

Fuel leak: turn the ignition OFF immediately and replace damaged hose or fittings before operation.
Restricted flow or low pressure: inspect for kinks, incorrect routing, debris, or an incomplete hose-end assembly.
Air entering the system or fluctuating pressure: check all hose ends and fittings for loose connections or leaks.

Maintenance

Inspect hose routing, abrasion protection, and fittings periodically.
Replace any hose that is damaged, leaking, kinked, or heat-affected before operating the vehicle.

View Full Installation Guide →
