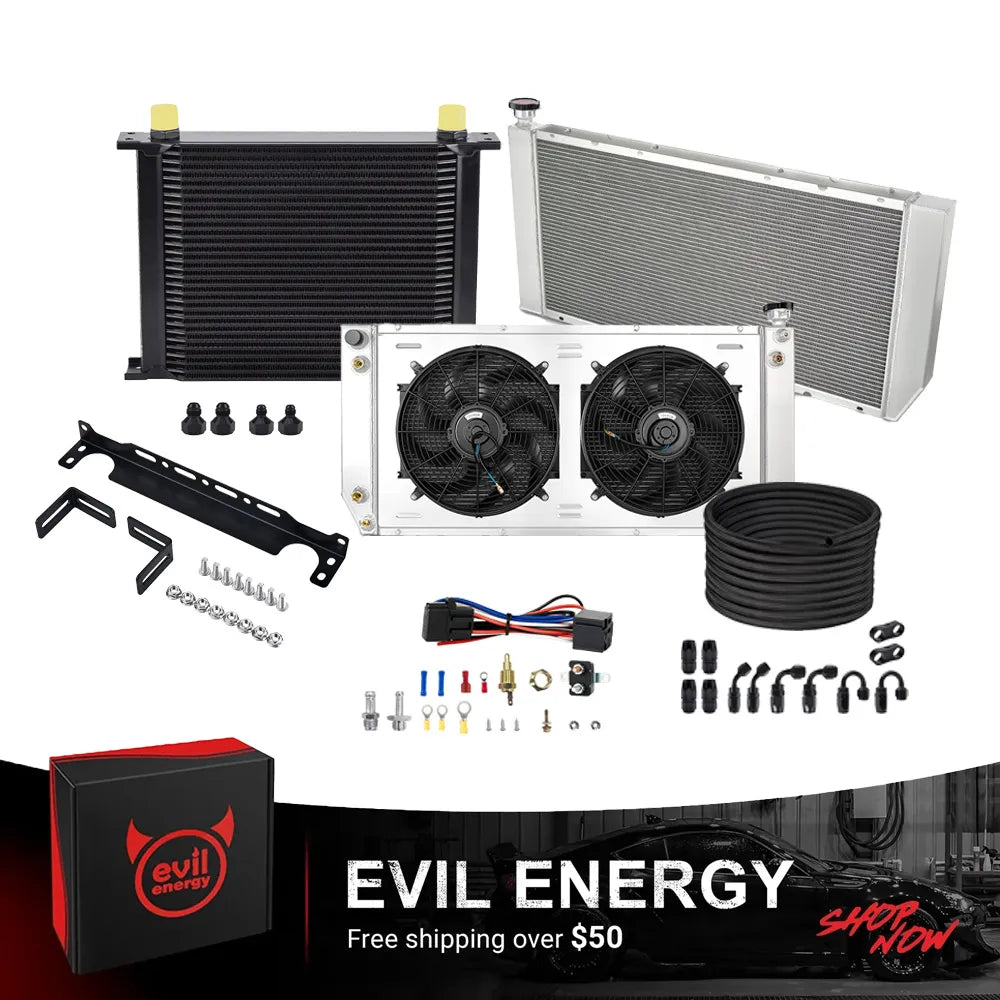

EVIL ENERGY Ultimate Cooling System Kit for Chevy C/K Truck, Chevy Suburban/Tahoe 1988 - 2000 5.7L - 7.4L V8
- $639.99
- $639.99
- Unit price
- per
SKU:
EVCS2100052SR4-KT30
Product Type:
Radiators
Product Manual
- Radiator — Download

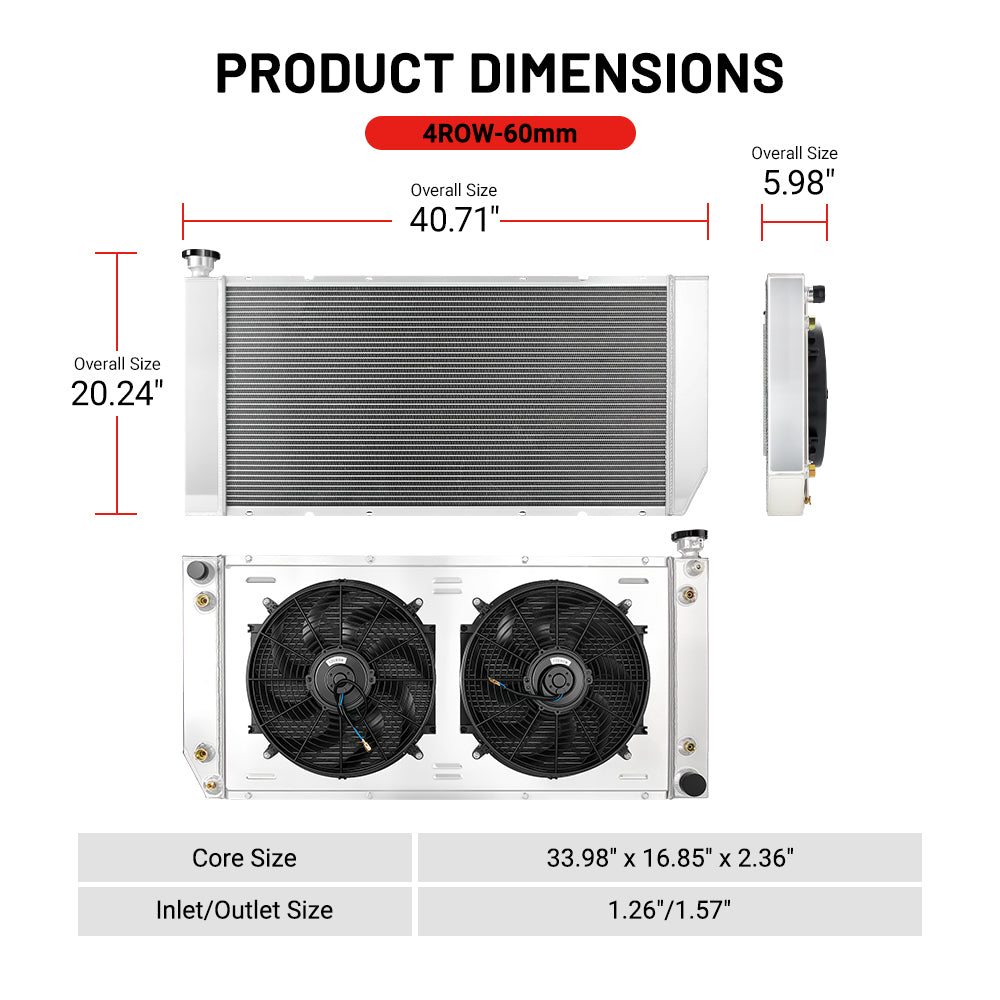

Radiator Parameters
| Brand | EVIL ENERGY |
| ROW | 4 |
| Overall Size | 20-1/4-inch(H) x 40-5/7-inch(W) x 6-inch(T) |
| Core Size | 16-6/7-inch(H) x 34-inch(W) x 2-3/8-inch(T) |
| Inlet/Outlet | 1.26 inch/1.57 inch |
| Fluid Capacity (L) |
7.13 |
| Drain Plug Thread Size |
NPT1/4 |
| Material | Aluminum |
Fan/Thermostatic Relay Parameters
| Blade Material |
reinforced nylon |
| Fan Diameter |
14.05 |
| Maximum Fan CFM |
1300 |
| Wattage |
80 |
| Thickness (in) |
2-3/4-inch(T) |
| Number of Blades |
8 S-Type blades |
| Maximum Fan RPM |
1800 |
| Amp Draw |
7.2 amps |
| turn-on temperature |
180'F |
| turn-off temperature |
165'F |
| Pressure sensor mounting interface |
3/8" NPT thread-in brass probe w/ 1/2-inch NPT adapter included. |

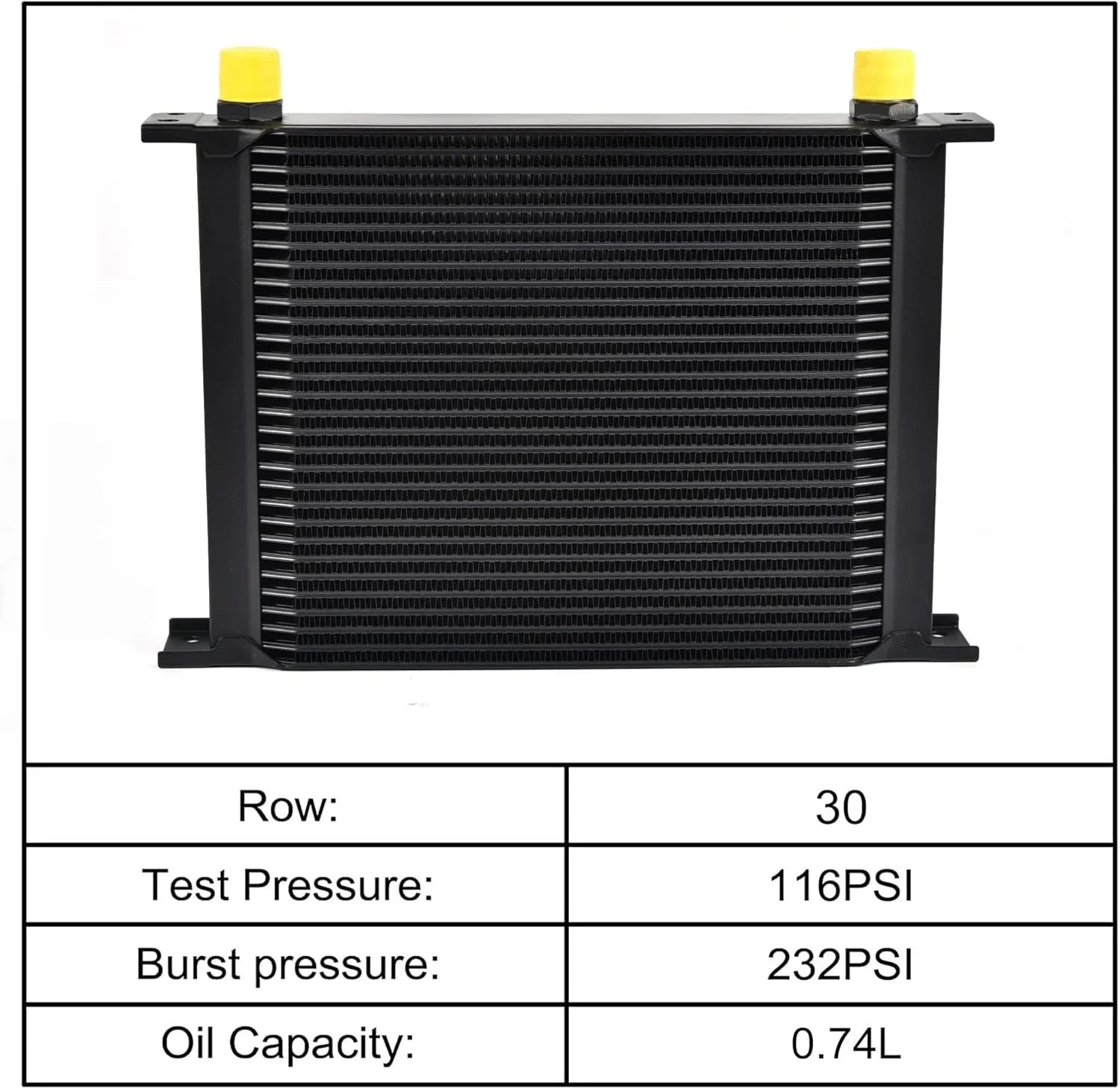

30-Row Oil Cooler
| Brand | EVIL ENERGY |
| Product Type | Stacked Plate Oil Cooler |
| Application | Most vehicles (engines, transmissions, rear differentials); may require additional accessories for specific setups |
| Cooler Styles (Row Options) |
30 Row |
| Fittings Included | 2×10AN to 8AN fittings, 2×10AN to 6AN fittings (for connecting 8AN/6AN braided fuel line hose ends) |

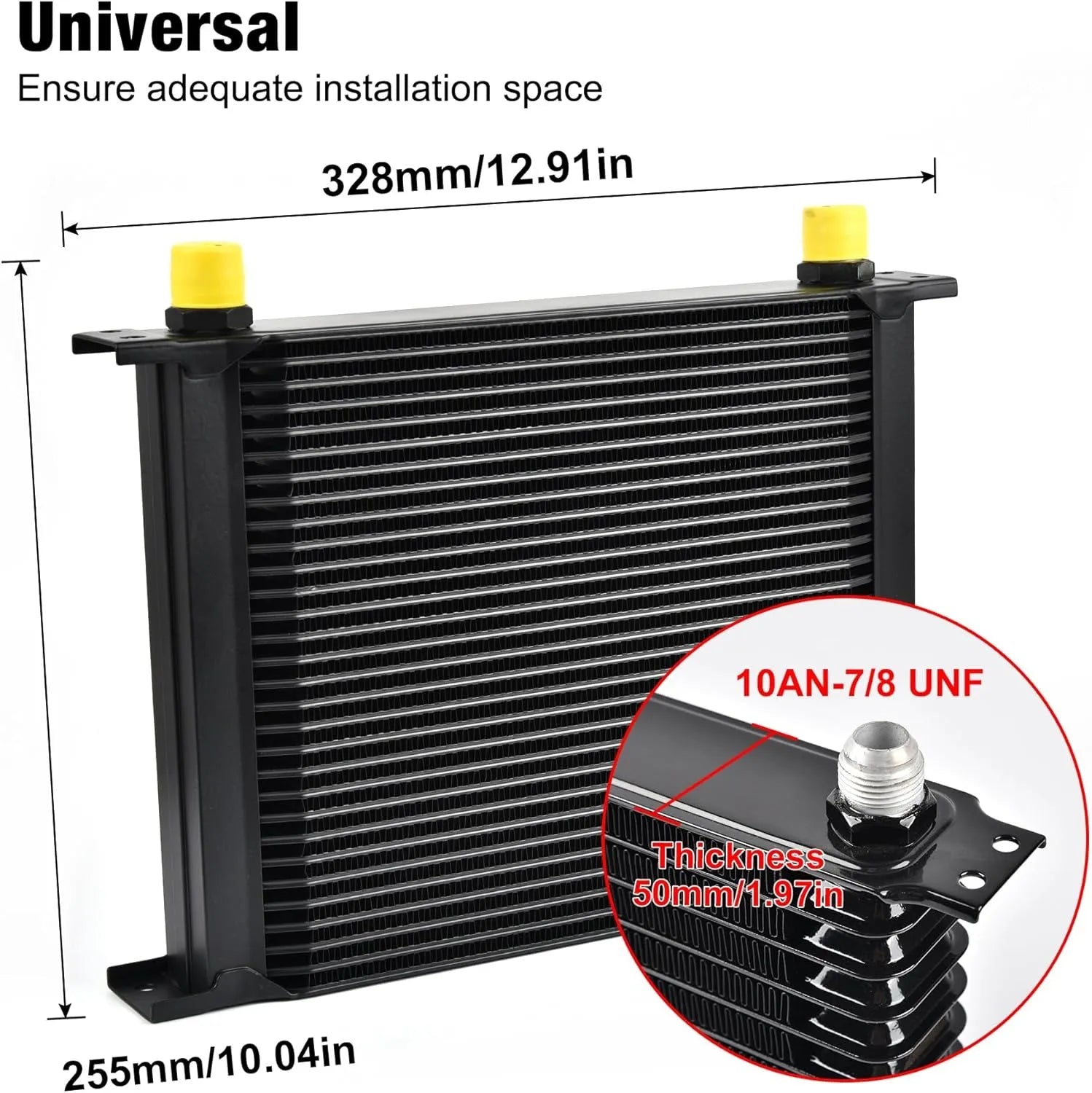

| Dimensions (L×W×H) | 30 Row: 12.91-inch × 10.04-inch × 1.97-inch |
| Oil Capacity |
30 Row : 0.74L |
| Pressure Ratings | Test pressure: 116psi; Burst pressure: 232psi |
| Material | Aluminum alloy (lightweight, corrosion-resistant) |

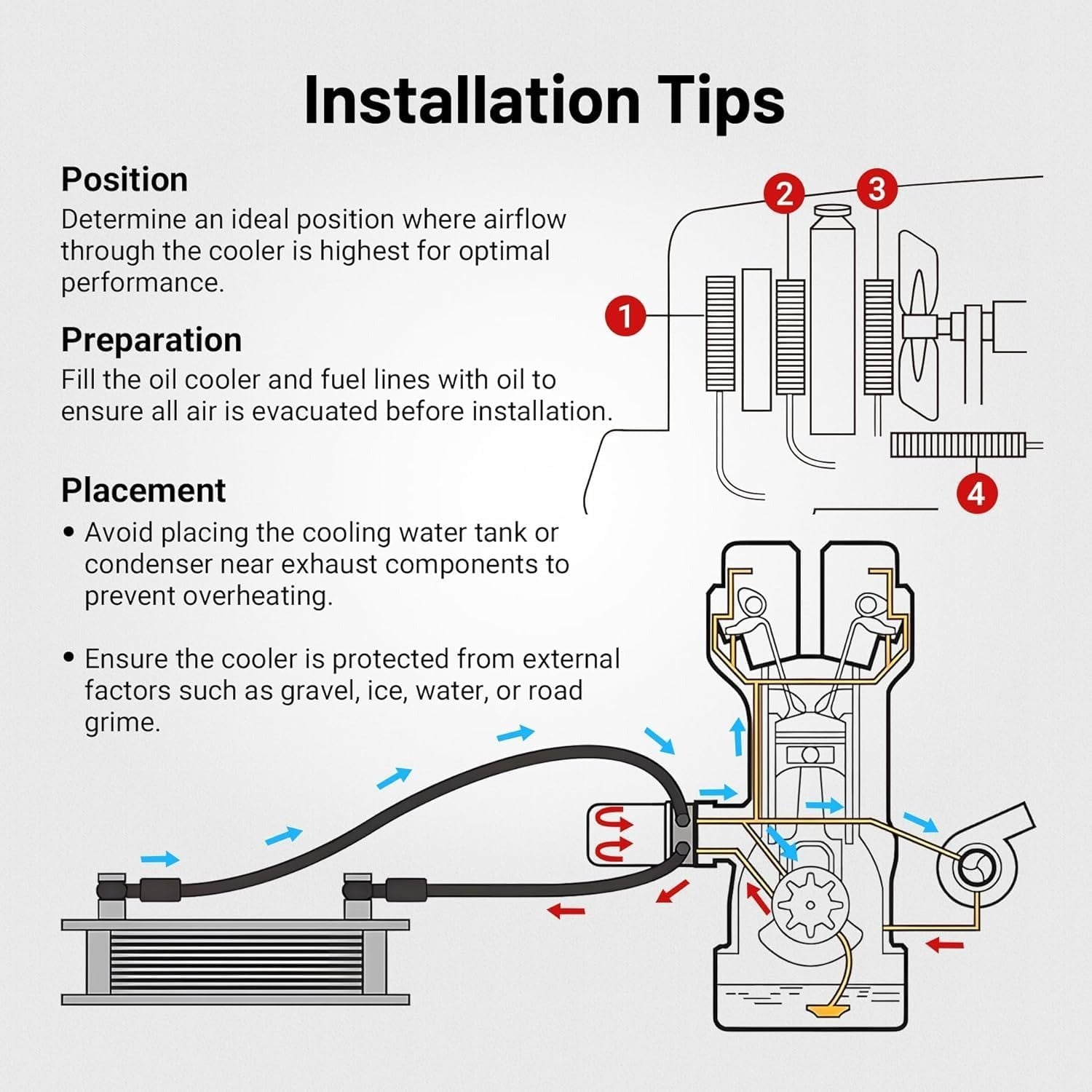

| Installation Note | Install in a location with good airflow; installation instruction included; ensure sufficient space for your chosen row size |
| Package Include | 1×30Row Transmission/Engine Oil Cooler 2×10AN to 8AN fittings 2×10AN to 6AN fittings 1×Installation Instruction 1×Mounting Bracket Kit |

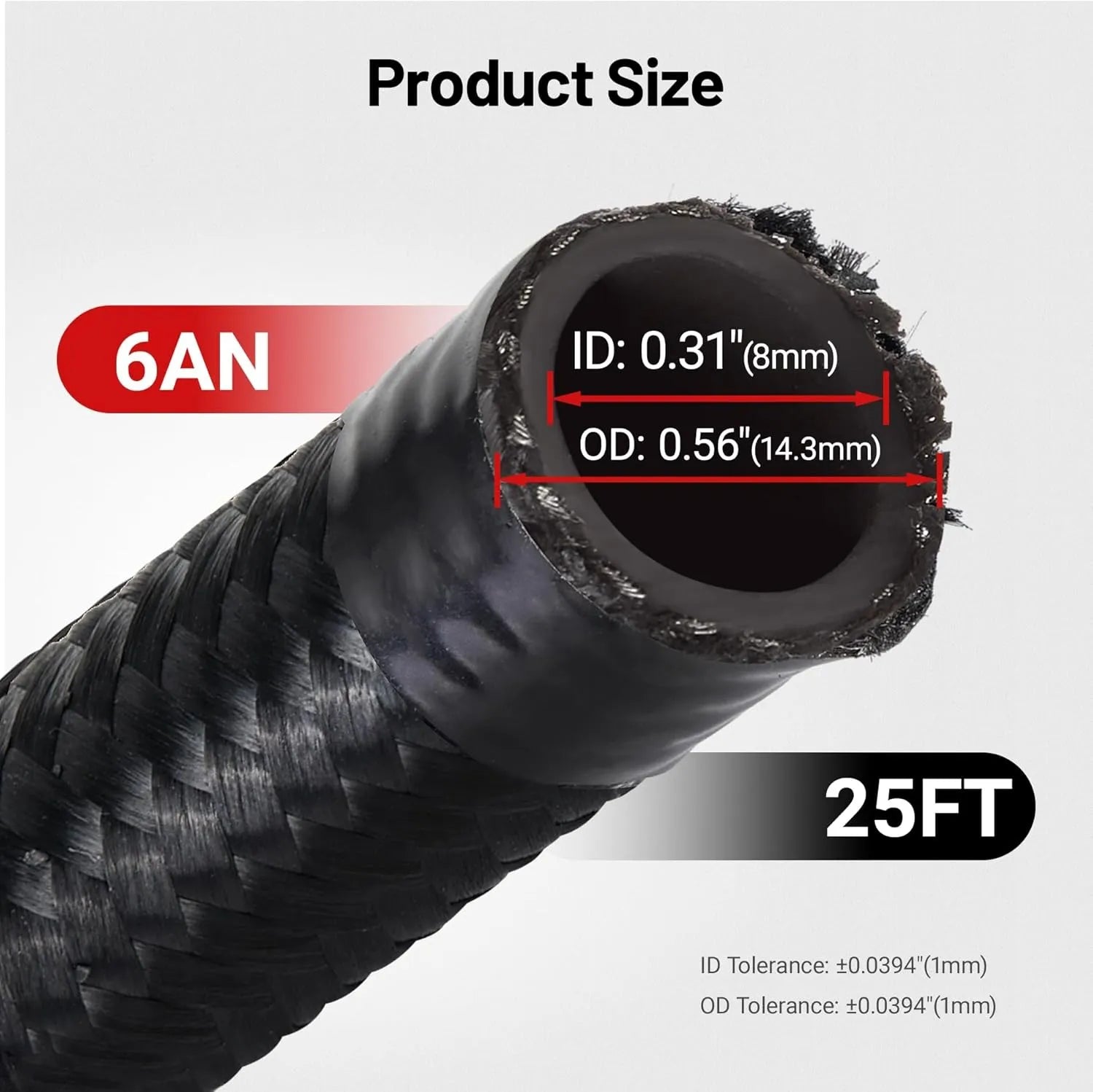

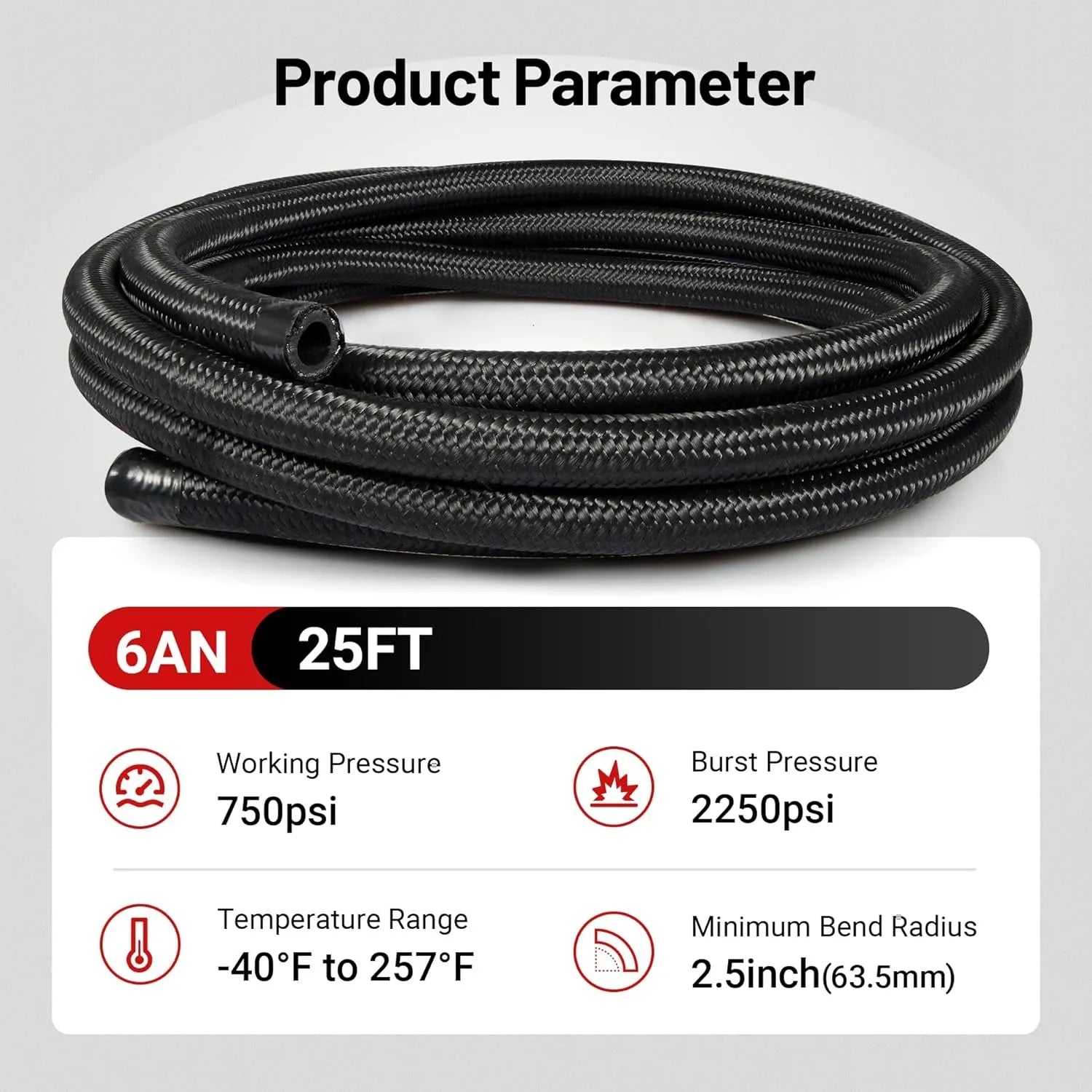

CPE Fuel Line Kits
| SIZE | 6AN |
| Length | 25FT |
| Hose ID | 0.343-inch(8.71mm) |
| Hose OD | 0.543-inch(13.79mm) |
| Min Bending Radius | 2.5"(63.5mm) |
| Package Include | 1×25FT CPE fuel line 4×swivel hose end straight 2×swivel hose end 45 degree 2×swivel hose end 90 degree 2×swivel hose end 180 degree 2×hose separator clamp |
Complete Thermal Management for High-Heat V8 Applications
Performance engines generate heat fast — especially during towing, aggressive driving, off-road use, racing, or hot weather operation. Factory cooling systems often struggle to maintain stable temperatures once horsepower, load, or ambient temperatures increase.
The EVIL ENERGY Cooling System Kit is designed to upgrade the three most critical parts of your thermal system:
- Engine coolant temperature control
- Engine/transmission oil cooling
- High-pressure fluid transfer and routing
At the center of the system is a high-capacity 4-row 60mm aluminum radiator engineered for improved heat dissipation and coolant flow. Paired with a 30-row oil cooler and high-strength CPE braided AN hose kit, this setup helps reduce heat soak, stabilize operating temperatures, and improve engine protection under load.
Performance Features & System Advantages
Heavy-Duty 4-Row 60MM Aluminum Radiator
The EVIL ENERGY 4-row aluminum radiator is built for significantly improved cooling performance compared to factory-style radiators.
Constructed from lightweight aluminum with a thick 60mm core, it increases cooling surface area and coolant capacity for better thermal efficiency during high-load operation.
Key Benefits:
- 4-row high-capacity core design
- 60mm thick aluminum construction
- Improved heat dissipation efficiency
- Helps reduce overheating during heavy use
- Supports high-horsepower and modified V8 engines
- Durable welded aluminum structure for long-term reliability
Perfect for performance builds where factory cooling systems are no longer enough.

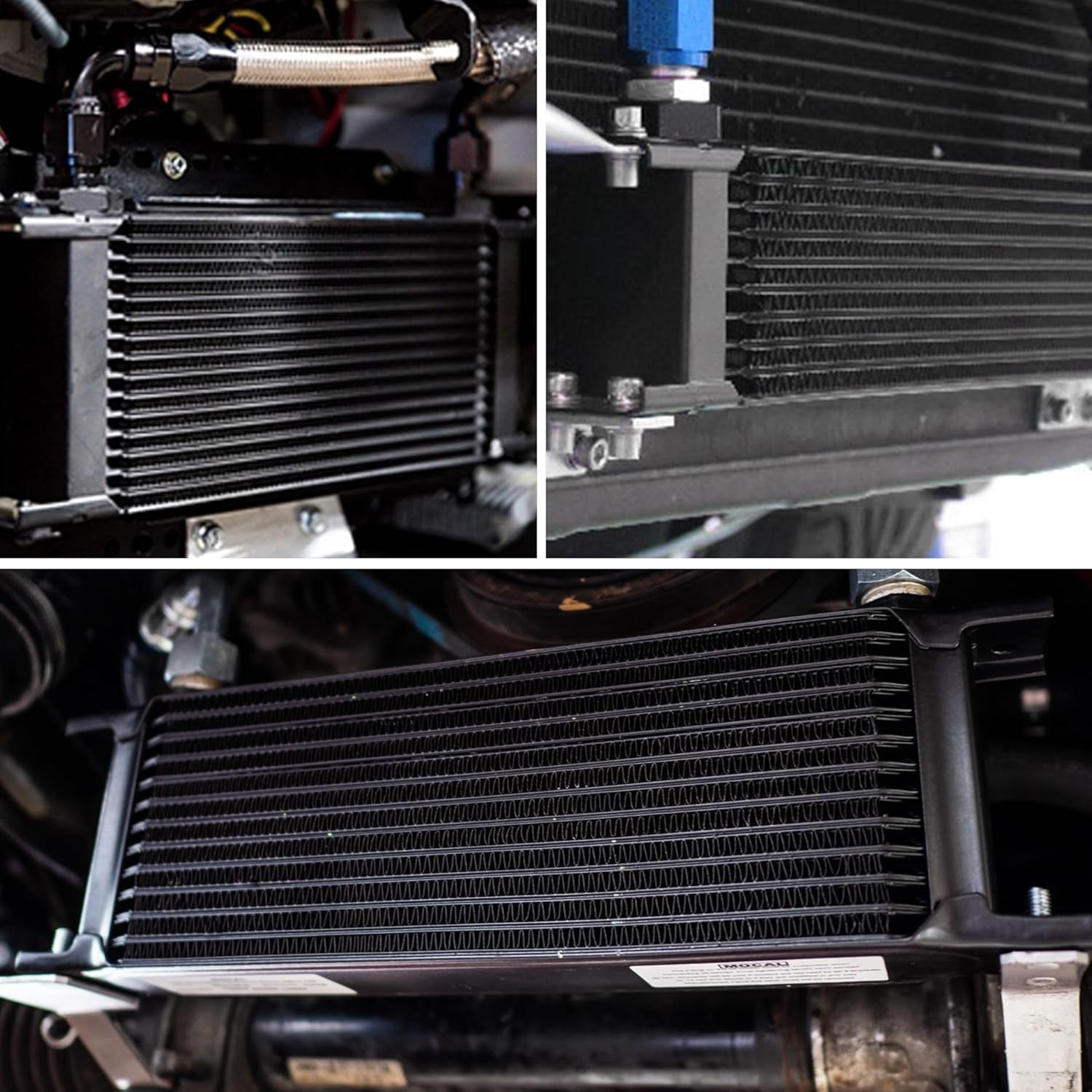

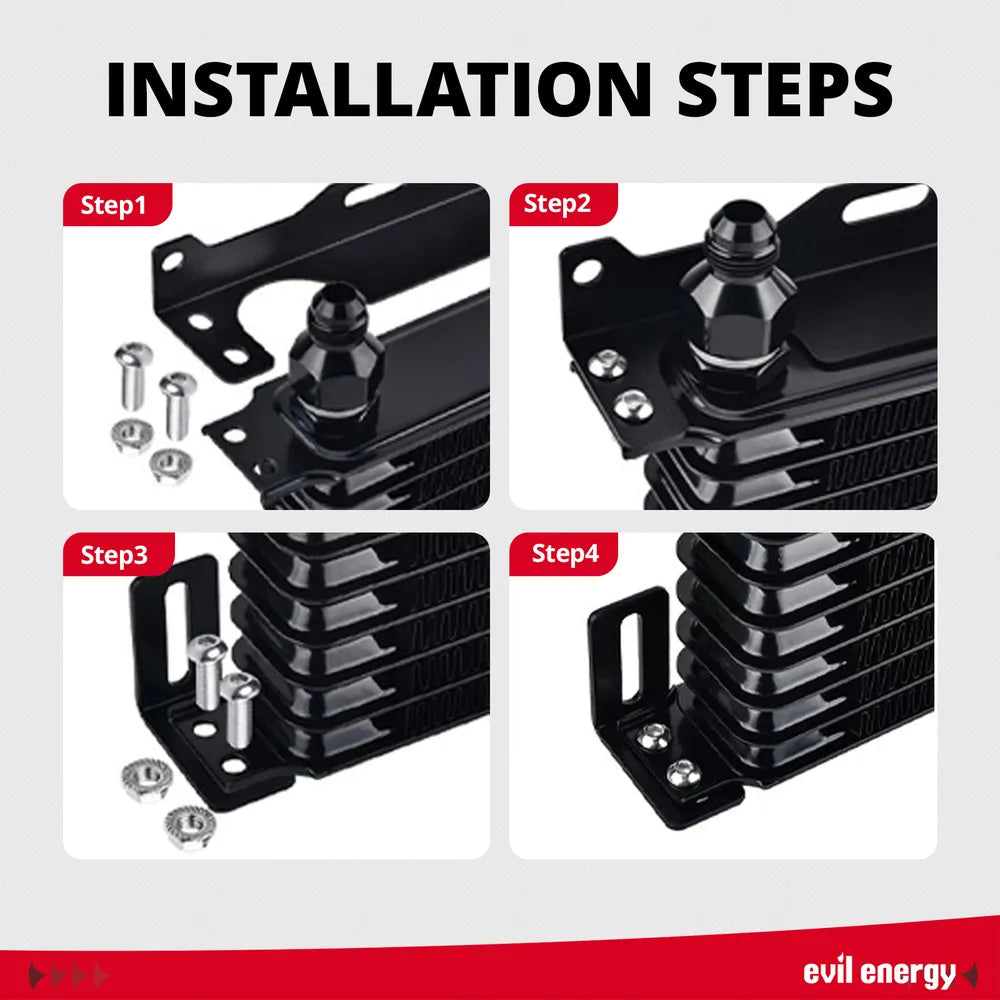

30-Row Stacked Plate Oil Cooler
Oil temperature plays a major role in engine protection and lubrication efficiency. The included 30-row stacked plate oil cooler is engineered to increase cooling surface area and maintain stable oil temperatures during:
- Off-road driving
- Towing
- High-RPM performance driving
- Hot climate operation
The stacked plate design provides higher cooling efficiency than traditional tube-and-fin coolers, while the aluminum alloy construction offers lightweight durability and corrosion resistance.

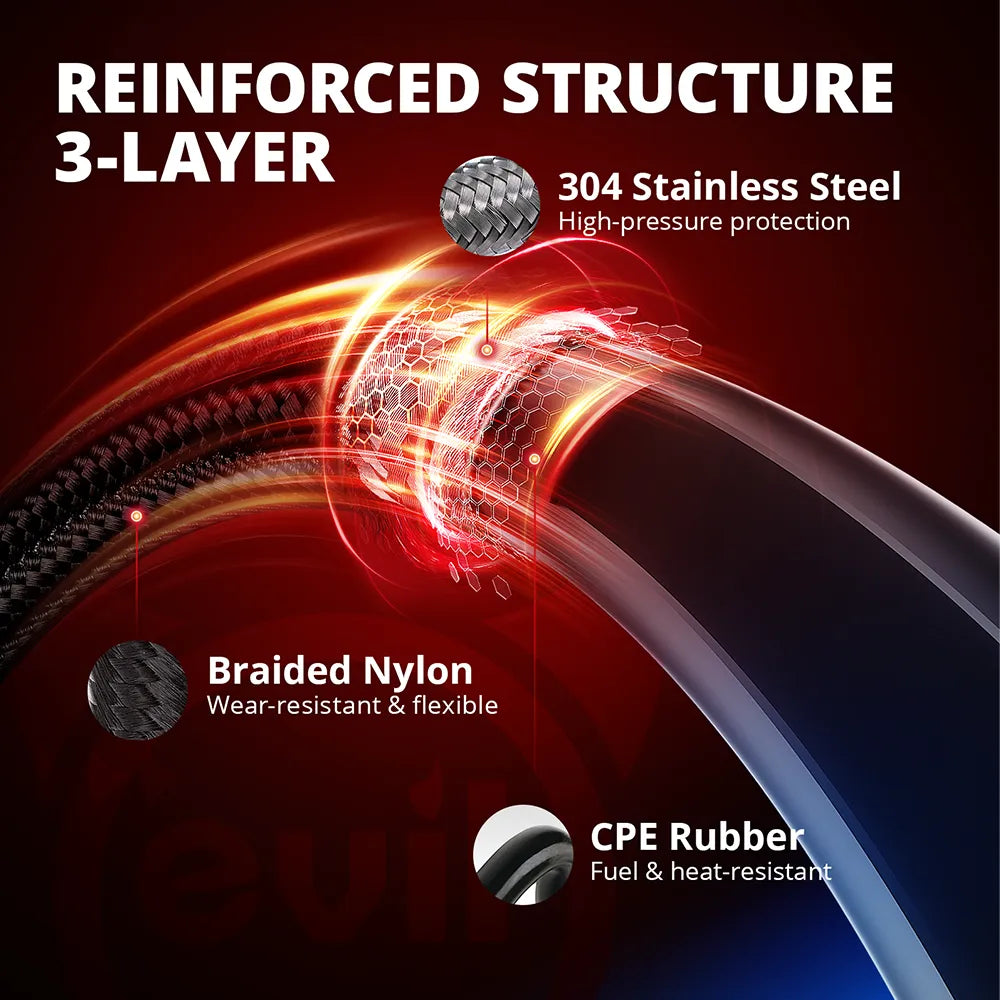

High-Pressure CPE Braided AN Hose System
A cooling system is only as reliable as the plumbing behind it.
This kit includes a 20FT EVIL ENERGY CPE nylon braided fuel/oil line system built with:
- CPE inner core
- 304 stainless steel reinforcement
- Nylon braided outer layer
Designed to withstand high temperatures, pressure, vibration, and abrasion commonly found in off-road and performance engine bays.
