EVIL ENERGY Baffled Oil Catch Can with 300ml Universal Breather Filter

SPECIFICATIONS
DESCRIPTION
SHIPPING & RETURN
VIDEOS & BLOGS
REVIEWS

Product Manual

Oil Catch Can Product Manual — Download

Brand	EVIL ENERGY
Product Type	Oil Catch Can Kit
Port Configuration	2-port (1 inlet / 1 outlet); breather filter optional
Single Vs Dual	Single catch can
Capacity	300 ml (10.1 fl oz)
Height In	• Can body: 4.27 in (108.46mm) • Breather filter: 1.51 in (38.35mm)
Diameter In	• Can body: 2.68 in (68.07mm) • Breather filter: 2.1 in (53.34mm)
Port Thread	M16 × 1.5 female
Material	Aluminum can body; NBR hose
Finish	Anodized aluminum
Color	Silver, Black, Blue or Red

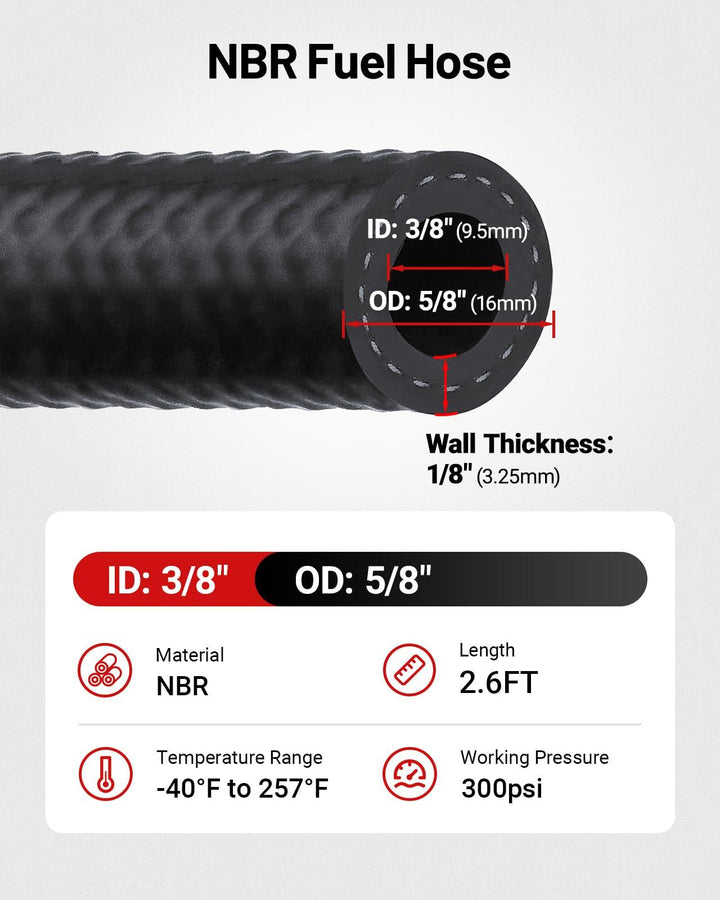

Hose Kit Included	• 2.6 ft (0.8m) or 5 ft (1.5m) NBR hose, per selected size • 3/8 in (9.5mm) ID, 5/8 in (16mm) OD, 1/8 in (3.25mm) wall
Hose Rating	300 psi working pressure; -40°F to 257°F (-40°C to 125°C)
Fittings Included	• 2 × M16 × 1.5 hose barb adapters, 3/8 in (9.52mm) OD, with O-rings • 2 × M16 × 1.5 hose barb adapters, 5/8 in (15.87mm) OD, with O-rings • 2 × M16 × 1.5 hose barb adapters, 1/2 in (12.7mm) OD, with O-rings (with Breather Filter options) • 2 × hose clamps (13–19mm)
Package Includes	• 1 × 300 ml baffled oil catch can • 1 × 3/8 in ID NBR hose, 2.6 ft or 5 ft • 2 × 3/8 in OD adapters with O-rings • 2 × 5/8 in OD adapters with O-rings • 2 × hose clamps (13–19mm) • 2 × M16 × 1.5 threads • 1 × O-ring • 1 × stainless steel wool • 1 × mounting bracket • 1 × breather filter with clamp and 2 × 1/2 in OD adapters (with Breather Filter options) • 1 × AN wrench (with Spanner options)
Spanner (Optional)	Aluminum AN wrench (3AN–16AN), 7.2 in (18.28cm) long, 2.7 in (6.9cm) max jaw opening, 0.53 in (1.35cm) jaw thickness, with 6 nylon jaw jackets, hex key and screws
Filter Type	Removable internal baffle with stainless steel wool media; clamp-on breather filter on filter options
Vent Type	Vented with the breather filter (pre-PCV) or closed-loop inline between PCV hoses

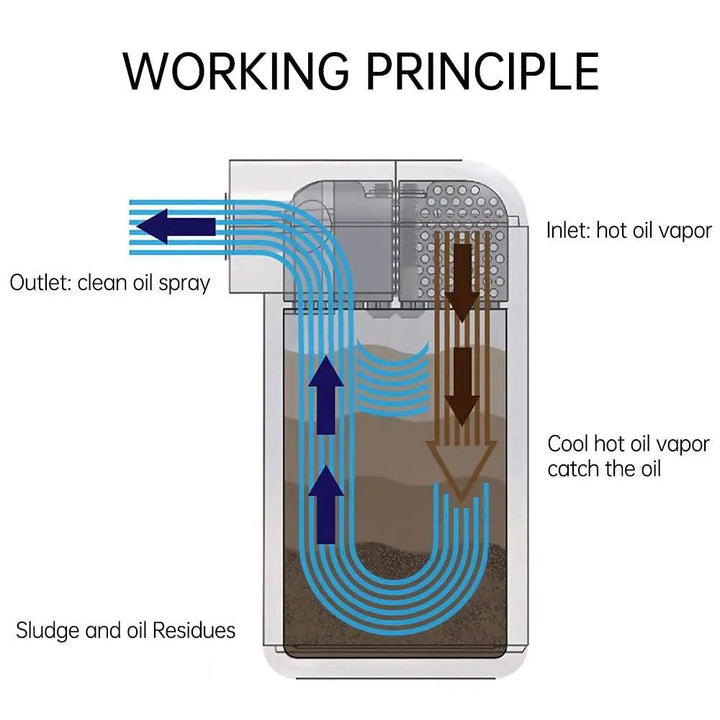

Separation Mechanism	Hot crankcase vapor cools across the removable baffle and steel wool; oil drops into the tank while cleaner air exits to the intake
Level Check	Top dipstick shows the oil level without opening the can

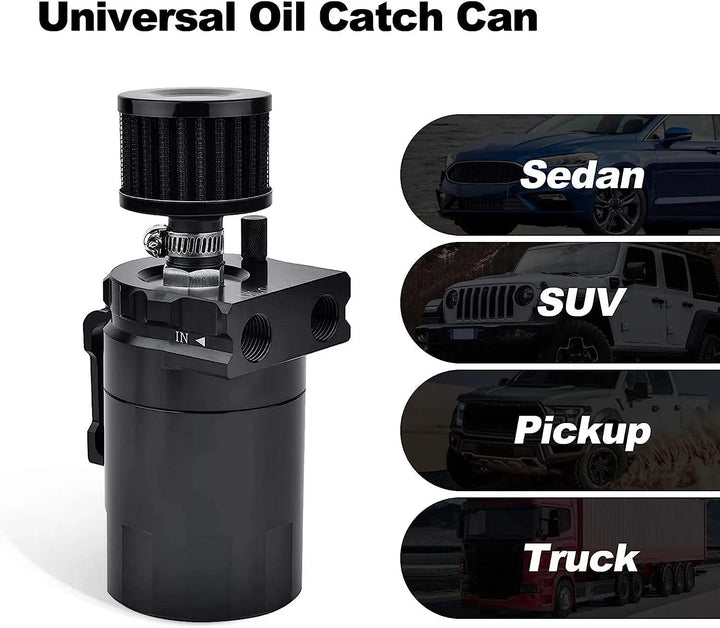

Fitment Type	Universal
Fitment Vehicle	• Sedans, SUVs, pickups and trucks with open space beside the PCV line • Pre-PCV engines run vented with the breather filter; PCV engines run sealed between the PCV hoses
Mounting Bracket	L-shaped bracket, 6.69 in (170mm) long, 0.98 in (25mm) wide, 0.15 in (4mm) thick, with a 1.57 in (40mm) mounting leg
Installation Difficulty	Easy

DESCRIPTION

EVIL ENERGY 300ml Baffled Oil Catch Can – Universal Fit for 90%+ Vehicles (Space-Saving & Hassle-Free!)

Universal Fit Guaranteed: No more worrying "Will it fit my car?" This oil catch can works for 90%+ common vehicles—daily drivers, performance cars, sedans, and SUVs included. The only requirement? Basic engine bay space to match its compact 300ml size. No model-specific limits, no extra adapters needed—true plug-and-play universality to solve your compatibility concerns.

EVIL ENERGY 300ml Baffled Oil Catch Can with Breather Filter (Front View)

Easy Installation & Warranty: Set up in 30 minutes with basic tools—includes 31.5in oil-resistant hose and M16*1.5 universal threads (no professional mechanic required). Backed by a 12-month manufacturer warranty to cover defects, ensuring a risk-free purchase.

Dual PCV System Compatibility: Supports all vehicle PCV setups:

Pre‑PCV vehicles: Install with the included breather filter as a vent system
Modern PCV vehicles: Install inline between PCV hoses as a sealed catch can

EVIL ENERGY Oil Catch Can Hose & Fitting Kit (Accessories Included)

Professional Engine Protection: Targets the root cause of premature engine wear and reduced efficiency: unfiltered crankcase gases. Its industry-proven baffled design traps oil vapor and moisture before they form carbon deposits on intake valves and pistons. Maintains smooth combustion, boosts engine efficiency, and extends lifespan—ideal for both daily commuting and high-performance driving.

EVIL ENERGY Oil Catch Can Dipstick (Oil Level Check)

Durable & Space-Saving Build: Crafted from high-grade aluminum to withstand engine bay heat (up to 200°C) and vibrations—no deformation or leakage. The 300ml capacity balances practical oil storage (fewer emptying trips) and compact dimensions (fits tight engine bays, even in small cars).

EVIL ENERGY 300ml Baffled Oil Catch Can (Side View)

Cold Weather Reminder: In below‑freezing conditions, moisture inside the crankcase may freeze and cause blockages. Clean the catch can weekly or reinstall the original PCV hose to avoid issues.

EVIL ENERGY Oil Catch Can Installation Tips & Guide
