BBC 396-454 Dual Plane Intake Manifold & 4-Barrel Carburetor Kit 750 CFM | Mechanical Secondary

BBC 396-454 Dual Plane Intake Manifold & 750 CFM Mechanical Secondary Carburetor Kit

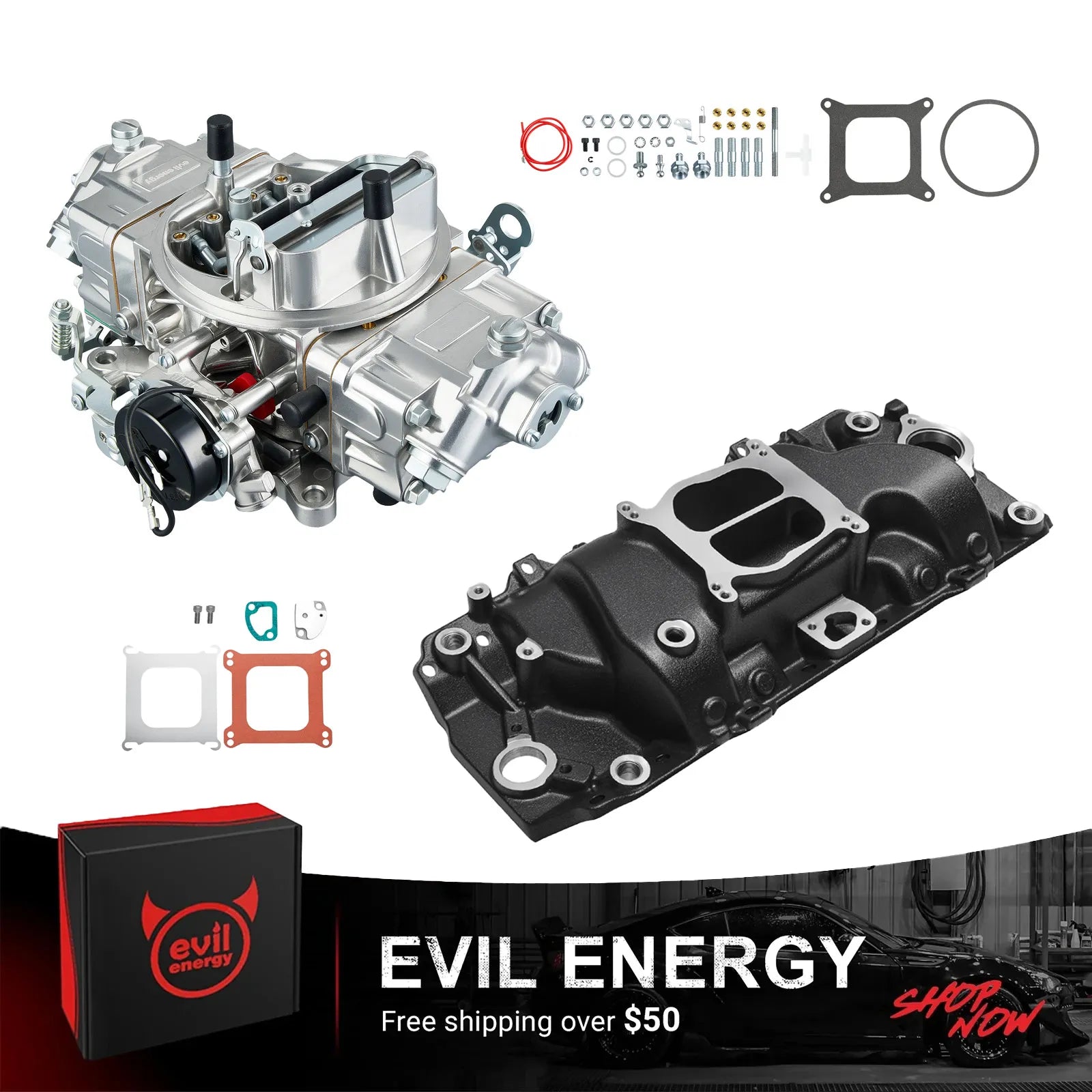

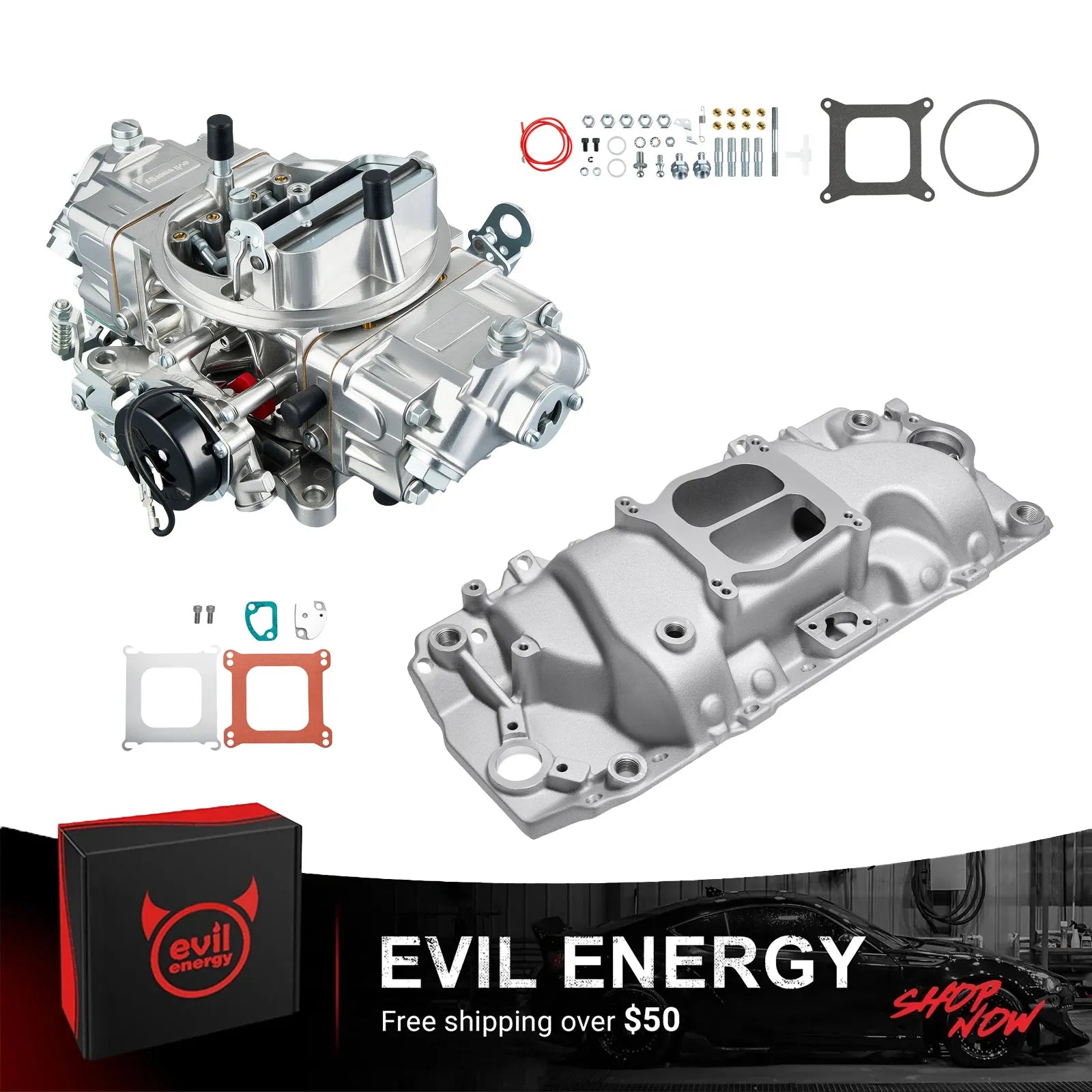

Matching a carburetor to a Big Block Chevy involves more than choosing the largest available CFM rating. This EVIL ENERGY combination pairs a dual plane intake manifold for compatible BBC 396, 402, 427, and 454 V8 engines with a 750 CFM carburetor using mechanical secondaries, electric choke, and dual fuel inlets. It is intended for naturally aspirated street and street-performance combinations where usable low-to-mid RPM response and direct secondary throttle operation are both priorities.

The intake manifold is designed around a 2,500-4,500 RPM operating range, while the mechanical-secondary carburetor responds directly to throttle movement. This pairing is better suited to engines with sufficient displacement, airflow, gearing, and supporting modifications than to a mild combination that spends most of its time under light throttle.

Before ordering: Confirm the actual Big Block Chevy engine and cylinder heads, carburetor mounting interface, required airflow, fuel pressure, dual-feed fuel plumbing, throttle and transmission linkage, electric choke wiring, air cleaner height, and hood clearance.

Is This Intake & Carburetor Kit Right for Your BBC?

Is a 750 CFM Carburetor Right for Your Big Block Chevy?

A 750 CFM carburetor should be matched to the actual airflow demand of the engine rather than selected from displacement alone. Engine size, maximum RPM, volumetric efficiency, camshaft profile, cylinder-head airflow, compression ratio, exhaust, gearing, vehicle weight, and intended use all affect carburetor sizing.

For many properly configured 427 and 454 performance combinations, 750 CFM can be a practical starting point. Modified 396 and 402 engines may also use this airflow level when the complete engine combination supports it. A stock or lightly modified engine operating primarily at lower RPM may not require the same airflow or secondary response.

The same applies when selecting a 454 big block carburetor: engine displacement is only one part of the calculation. A larger carburetor does not automatically improve throttle response or overall drivability when airflow demand is lower than the carburetor's available capacity.

Mechanical Secondaries: What They Mean for the Build

The included carburetor uses mechanical secondaries, so secondary throttle opening is linked directly to throttle movement. This creates a more immediate secondary response than an air valve- or vacuum-controlled arrangement when the throttle is opened aggressively.

That response can work well in performance-oriented applications, but it also places greater importance on correct carburetor sizing, accelerator-pump calibration, gearing, engine airflow, and throttle technique. A mechanical-secondary carburetor should therefore be selected as part of the complete engine and vehicle combination rather than from CFM alone.

The electric choke provides cold-start enrichment when properly wired and adjusted. Choke operation should be verified during initial setup along with idle speed, idle mixture, accelerator-pump response, and throttle linkage.

Why Pair It with a Dual Plane Intake?

The dual plane intake manifold is designed to maintain air velocity and carburetor signal through the low-to-mid RPM range. This gives the combination a different operating character from a high-RPM single plane intake.

The manifold's listed 2,500-4,500 RPM range makes the combination primarily relevant to street and street-performance BBC builds where usable torque and throttle response matter. The mechanical-secondary carburetor adds a more direct response under larger throttle inputs without changing the manifold's intended operating range.

The manifold RPM range is an intake-system specification, not a guarantee of engine performance. Actual operating characteristics depend on displacement, cylinder heads, camshaft, compression, exhaust, ignition, fuel delivery, transmission, gearing, and vehicle load.

Big Block Chevy Engine Fitment

This intake manifold and carburetor combination is intended for compatible carbureted 1965-2000 Chevrolet Big Block 396, 402, 427, and 454 V8 engine applications.

Reference applications may include Camaro, Chevelle, Impala, El Camino, Corvette, Monte Carlo, Caprice, Chevrolet and GMC C/K trucks, Suburban, Step-Van, and other vehicles equipped with a compatible Big Block Chevrolet engine.

Vehicle year, make, and model alone do not confirm fitment. Classic vehicles frequently have engine swaps, aftermarket cylinder heads, transmission changes, intake conversions, and other modifications. Confirm the engine and cylinder-head configuration actually installed before ordering.

This kit should not be assumed to fit Small Block Chevy, GM LS, Ford, Mopar, or unrelated engine families.

What Else Should Be Checked Before Installation?

The manifold and carburetor are only part of the complete induction and fuel system. The following interfaces should be verified before installation:

Package Contents

Additional Parts to Check Before Ordering

The exact installation parts depend on the engine and vehicle configuration. Check whether the build requires:

• Intake manifold gasket set
• Carburetor base gasket
• Carburetor studs or mounting hardware
• Dual-feed fuel line or suitable fuel fittings
• Fuel pressure regulator if required by the fuel-system configuration
• Fuel filter and suitable fuel hose or hard line
• Throttle cable bracket and return springs
• Transmission kickdown or TV cable components where applicable
• Vacuum and PCV fittings
• Air cleaner assembly
• Carburetor spacer or adapter if required

Before Installation

• Confirm the engine: Verify a compatible Chevrolet Big Block 396, 402, 427, or 454 V8.
• Verify the cylinder heads: Check intake-port alignment, bolt pattern, and gasket compatibility.
• Check the carburetor interface: Confirm the mounting pattern, gasket, hardware, and spacer or adapter requirements.
• Check the fuel system: Verify fuel pressure, fuel line size, filter, dual-inlet fittings, and routing before connecting the carburetor.
• Check throttle travel: Verify throttle linkage, return springs, and transmission linkage through the full range of motion.
• Wire the electric choke correctly: Confirm the electrical connection and full choke movement.
• Identify vacuum connections: Confirm PCV, brake-booster, distributor, and accessory vacuum requirements.
• Check total installed height: Include the intake manifold, carburetor, any spacer or adapter, and air cleaner when checking hood clearance.

Initial Setup & Carburetor Tuning

Do not begin by changing jets simply because the engine runs rich, lean, hesitates, or idles poorly. Verify the basic installation and supporting systems before changing carburetor calibration.

1. Inspect the intake manifold, carburetor base, vacuum ports, and fuel connections for leaks.
2. Verify fuel pressure and fuel delivery before startup.
3. Confirm ignition timing and ignition-system operation.
4. Check throttle linkage and verify that the primary and secondary throttles move correctly.
5. Verify accelerator-pump operation before evaluating throttle response.
6. Confirm electric choke operation during cold start and warm-up.
7. Set idle speed and idle mixture after the engine reaches normal operating temperature.
8. Evaluate acceleration and secondary operation before making jetting or accelerator-pump changes.
9. Change one calibration variable at a time and record the result.

Vacuum leaks, incorrect fuel pressure, restricted fuel delivery, float or needle-seat problems, accelerator-pump adjustment, ignition faults, and timing errors can produce symptoms that resemble incorrect carburetor calibration.
