EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line

$41.39
$41.39
$41.39
Size: 6AN
Length: 10FT
Add To Wish List
SKU: EVFS23-00099BK-000-L
Product Type: PTFE Fuel Lines

  • Static-Safe – Carbon-lined prevents spark fires
  • Extreme Fuel Resistance – Handles ethanol, methanol, race gas
  • Reinforced Construction – Smooth bends, no kinks
  • Long-Lasting – Outperforms rubber & standard PTFE

Note: Due to proprietary manufacturing processes and material specifications, our PTFE hoses may have slight outer diameter variations compared to standard market alternatives.Inner diameter remains consistent, ensuring full compatibility and no impact on performance.For custom dimensions, please contact our customer service team.

EVIL ENERGY checkout payment icons and shopping service
[10FT]

EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line

$41.39
$41.39
EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line
[20FT]
[10FT]
[10FT+10FT]
EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line
EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line
EVILENERGY EVIL ENERGY Conductive 6AN PTFE Fuel Hose Line 10FT, Antistatic AN6 Fuel Line E85 Nylon Braided 10FT Black 5/16 Inch ID
EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line
[10AN]
[8AN]
EVILENERGY EVIL ENERGY Conductive 6AN PTFE Fuel Hose Line 10FT, Antistatic AN6 Fuel Line E85 Nylon Braided 10FT Black 5/16 Inch ID
[6AN,20FT]
[6AN,10FT]
[8AN,10FT]
[8AN,20FT]
[10AN,10FT]
[10AN,20FT]
EVILENERGY EVIL ENERGY Conductive 6AN PTFE Fuel Hose Line 10FT, Antistatic AN6 Fuel Line E85 Nylon Braided 10FT Black 5/16 Inch ID

EVIL ENERGY Antistatic 6/8/10AN PTFE Fuel Hose Line | 10/20FT E85 Compatible Braided Fuel Line

$41.39
Size: 6AN
Length: 10FT

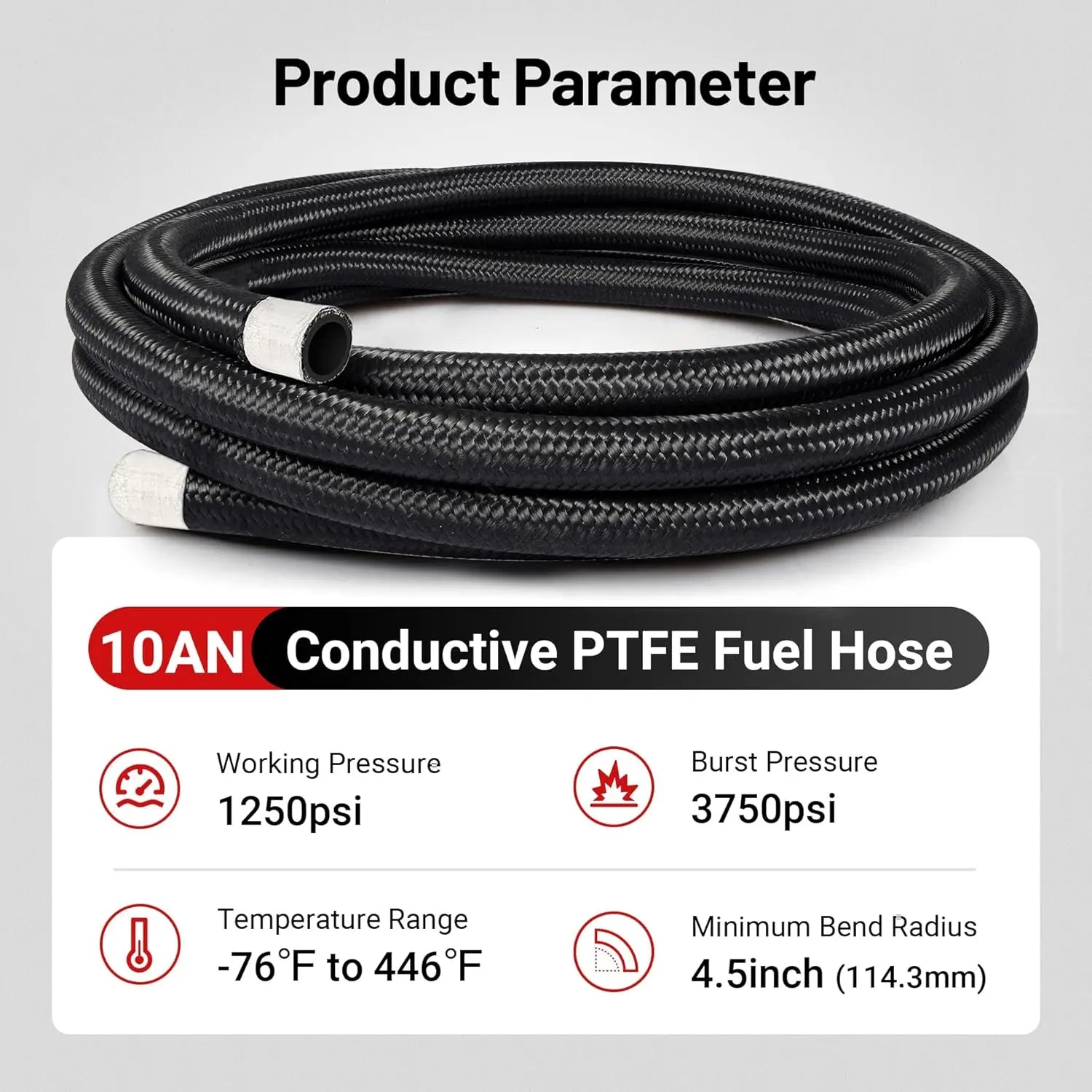

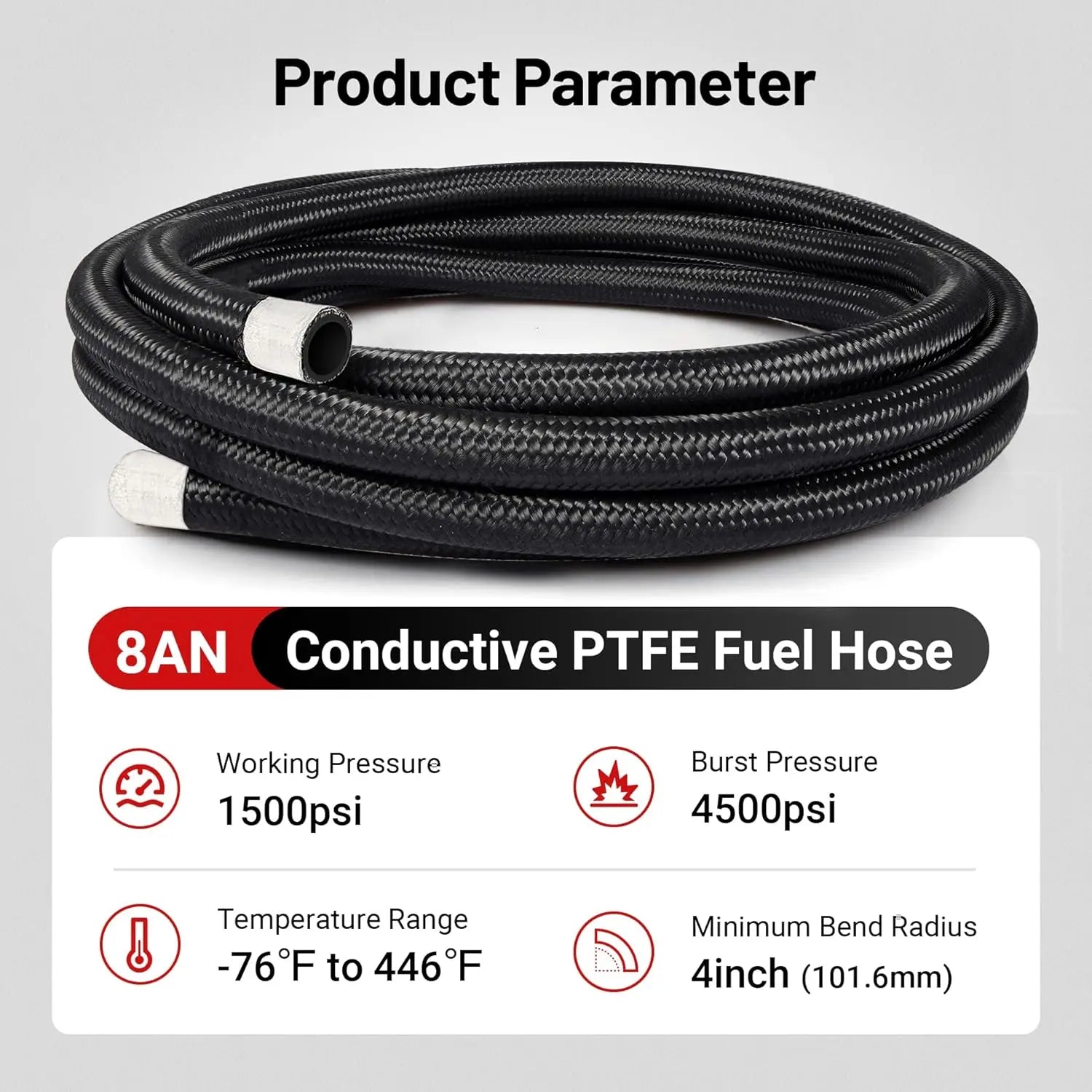

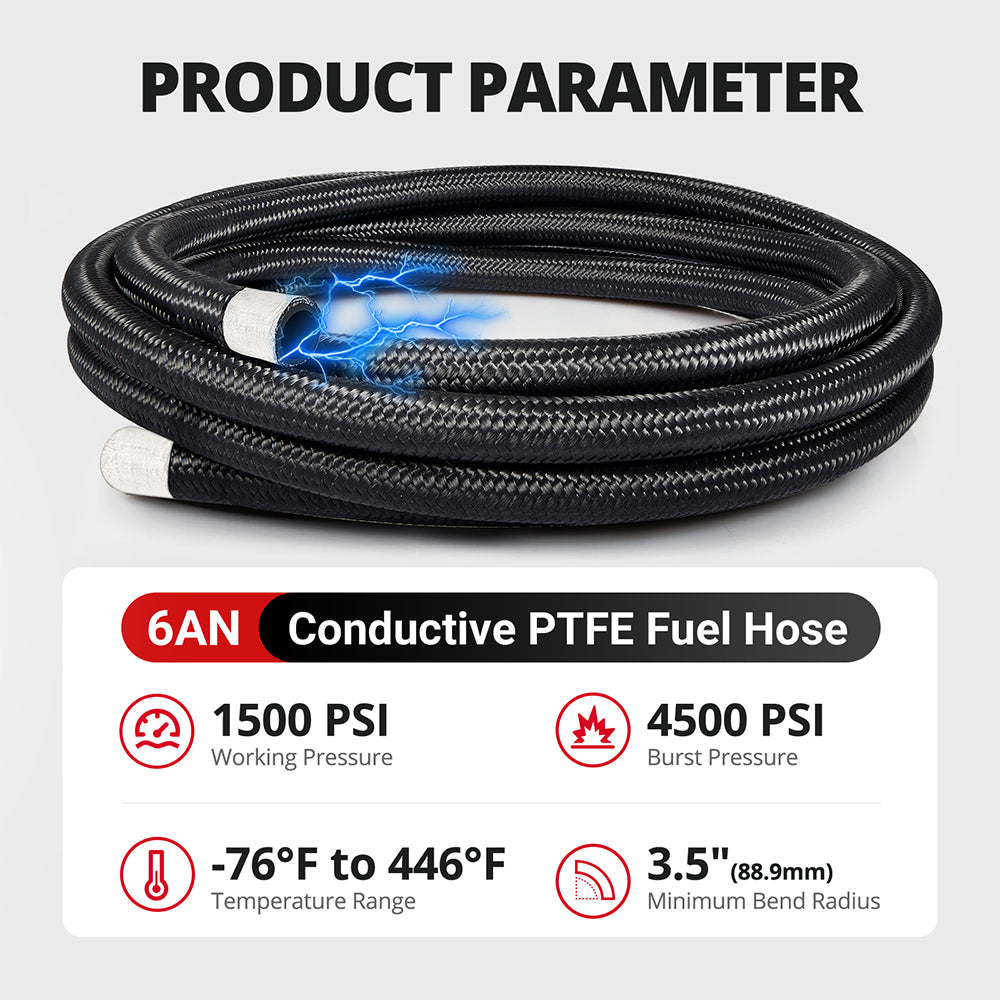

SPECIFICATIONS

Brand EVIL ENERGY
Type Conductive PTFE Fuel Hose
Length 10/20FT
Size 6/8/10AN

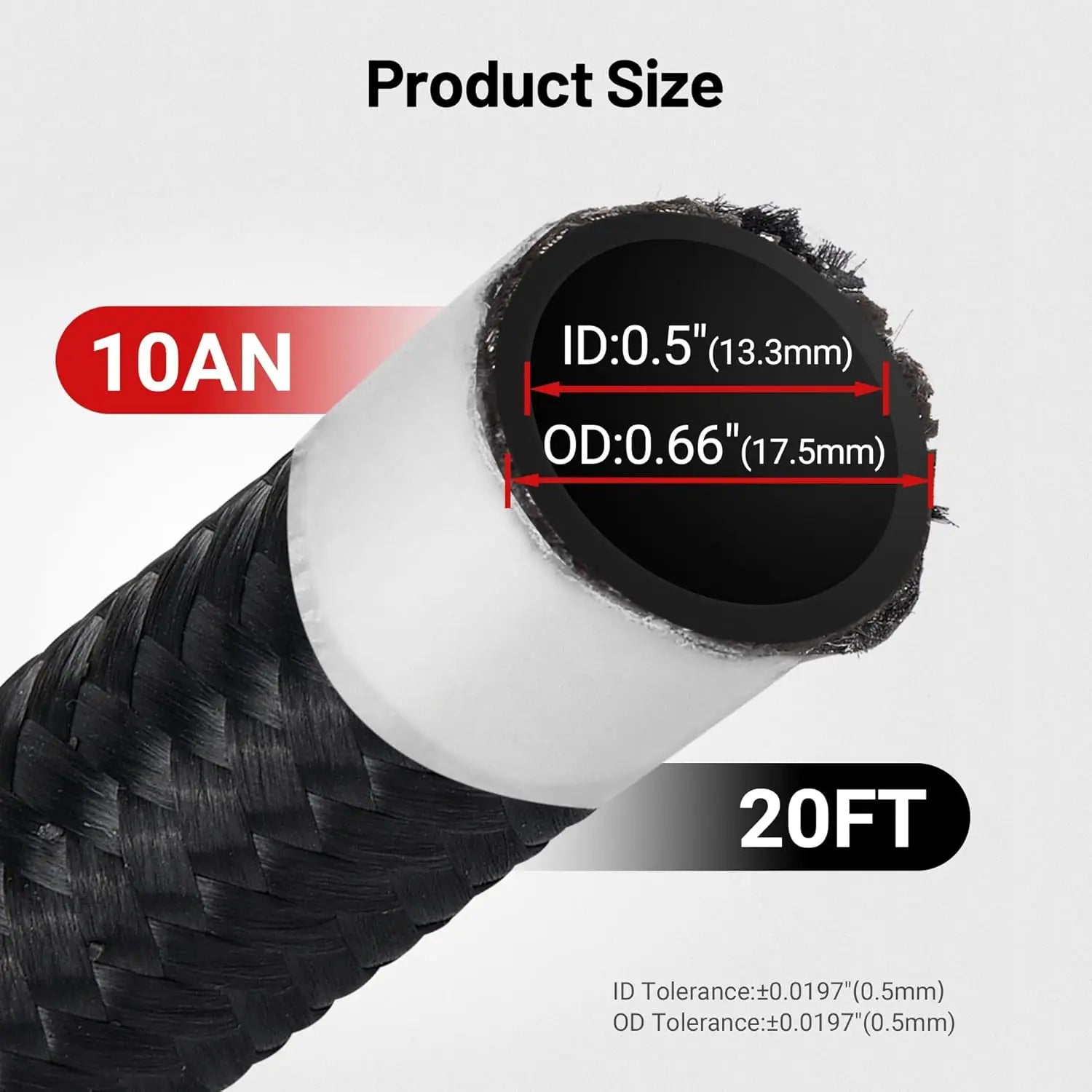

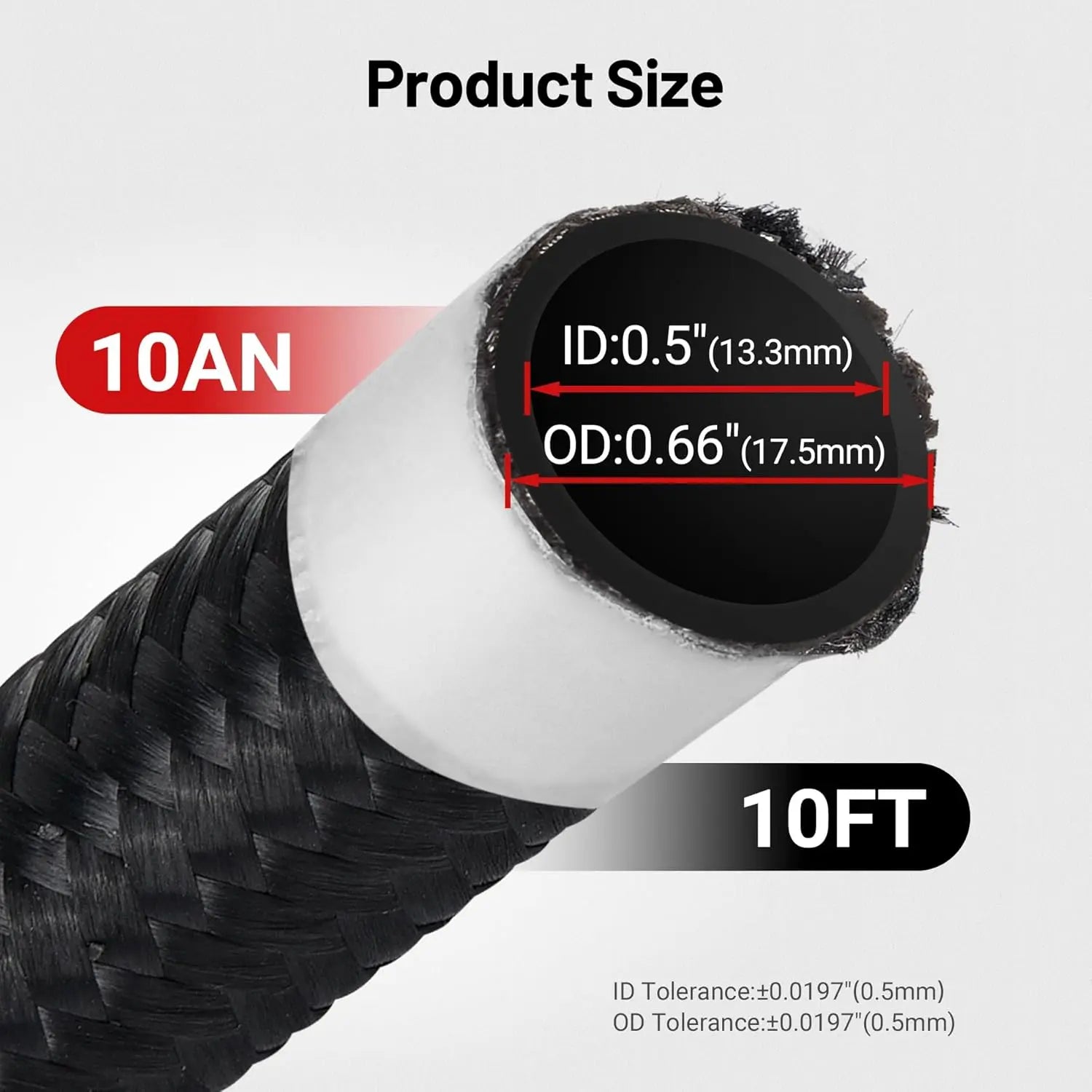

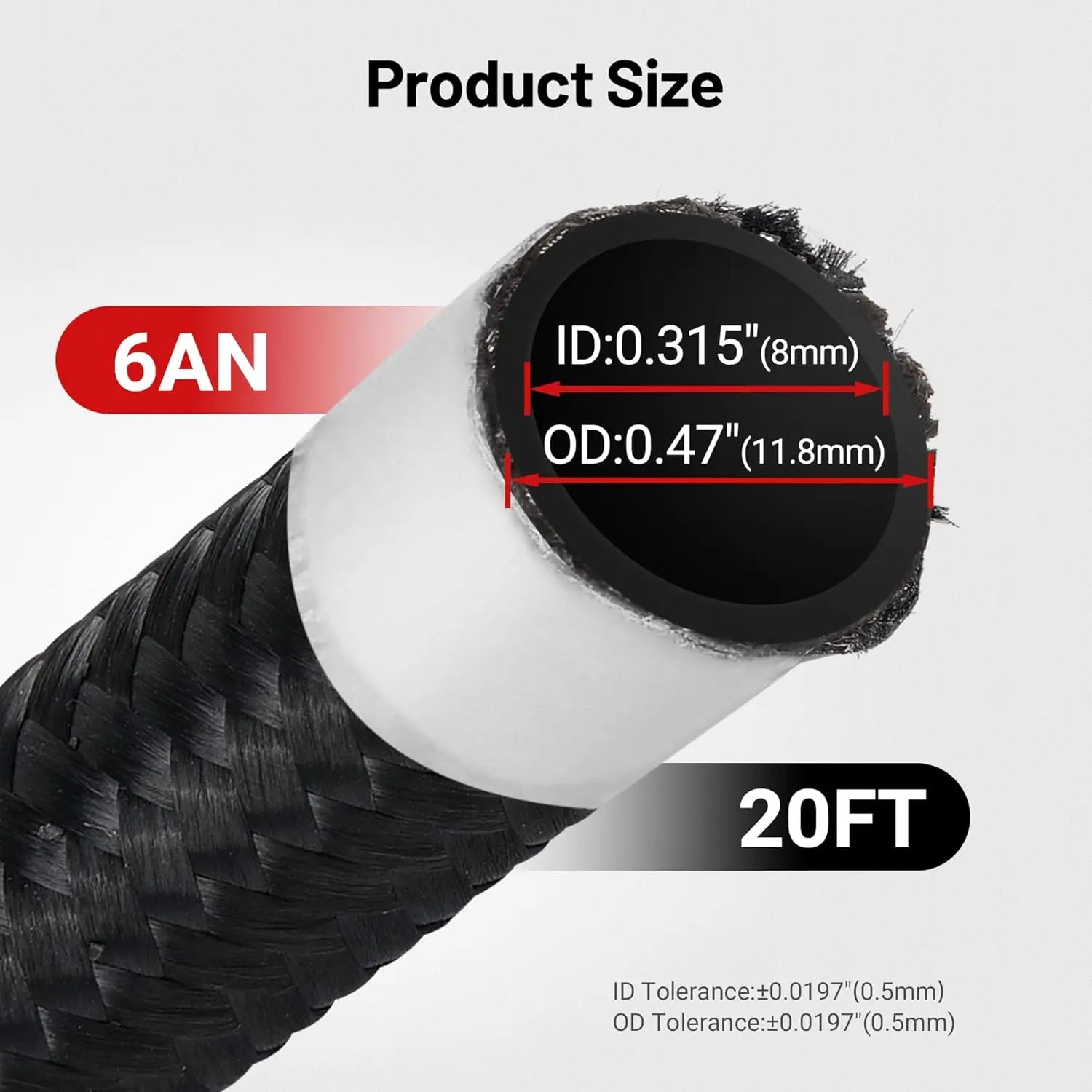

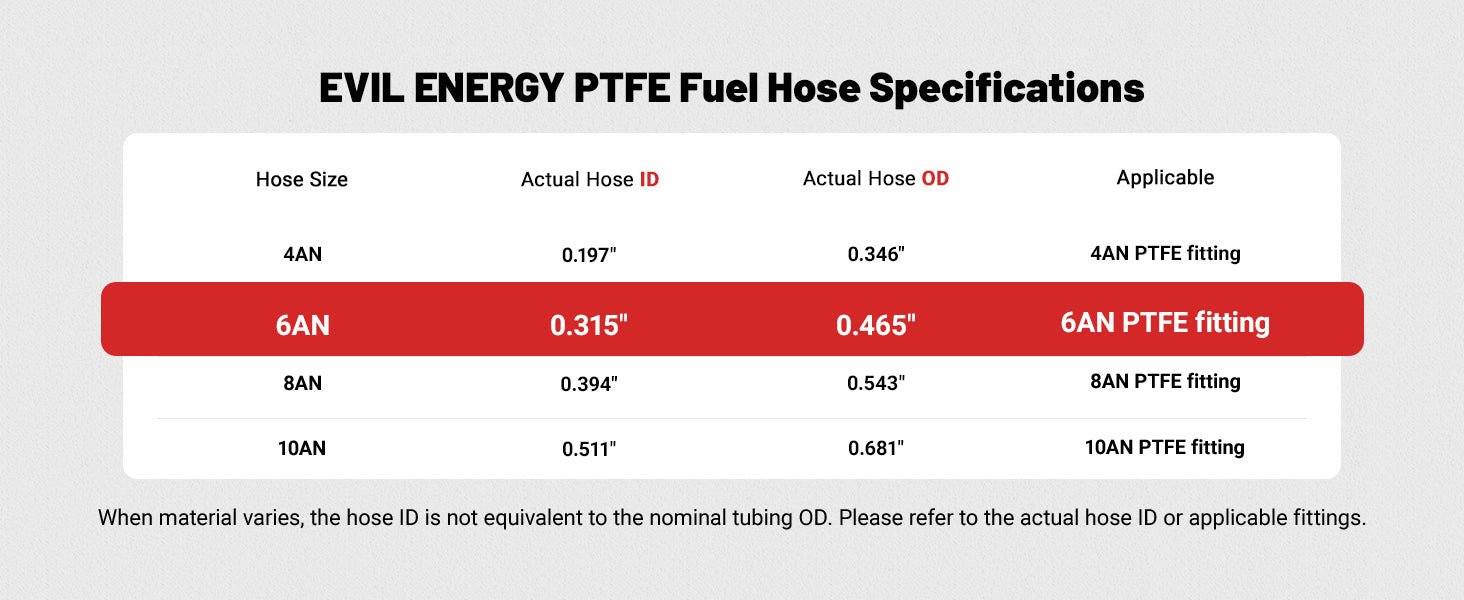

 hose ID/OD

6AN:0.3 inch(8mm)/0.47 inch(11.8mm)

8AN:0.39 inch(9.9mm)/0.55 inch(13.9mm)

10AN:0.5 inch(13.3mm)/0.66 inch(17.5mm)
working temperature range

-76℉ to 446℉ (-60℃ to 230℃)
Max working pressure

6/8AN:1500 psi

10AN:1250 psi
Bursting pressure

6/8AN:4500 psi

10AN:3750 psi
Minimum bend radius

6AN:88.9mm(3.5inch)

8AN:101.6mm(4inch)

10AN:114.3mm(4.5inch)



 Product Compare

DESCRIPTION

🔥 Upgrade to EVILENERGY Conductive PTFE Fuel Hose – The Smarter, Safer Choice!

Tired of risking engine fires from static buildup? Our carbon-lined conductive PTFE hose eliminates dangerous spark discharge, while delivering superior fuel resistance against ethanol, methanol, and race fuels. Reinforced for smooth bends and built to last, it outperforms rubber and standard PTFE—without the crazy cost. Don’t gamble with cheap hoses; secure your setup with EVILENERGY. Performance. Safety. Value.

Product Details

  • [Size and Installation] Installation instructions are included. Please measure before purchase!
  • [Temperature and Pressure Range]: 6/8/10AN fuel line working temperature range: -76℉ to 446℉ (-60℃ to 230℃).

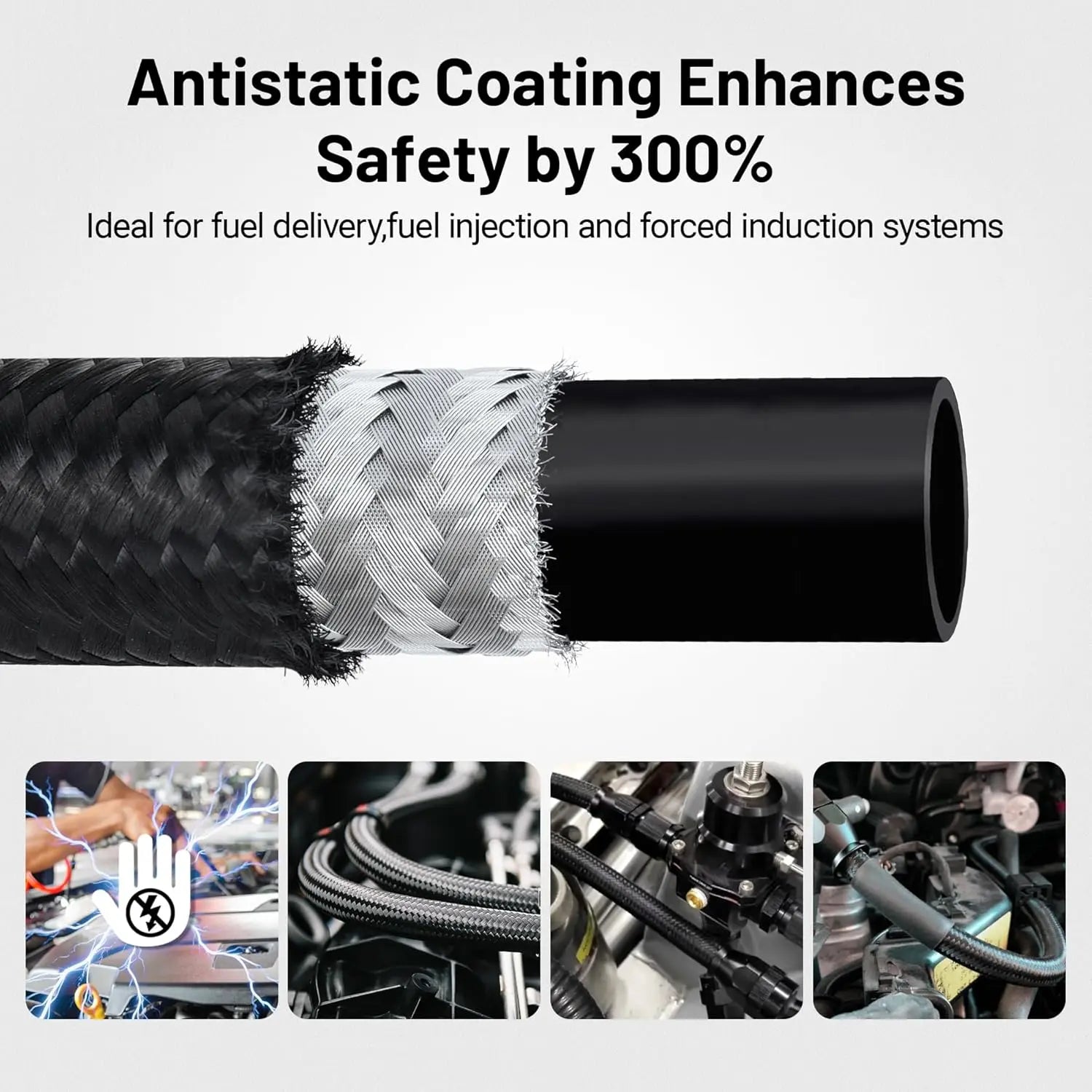

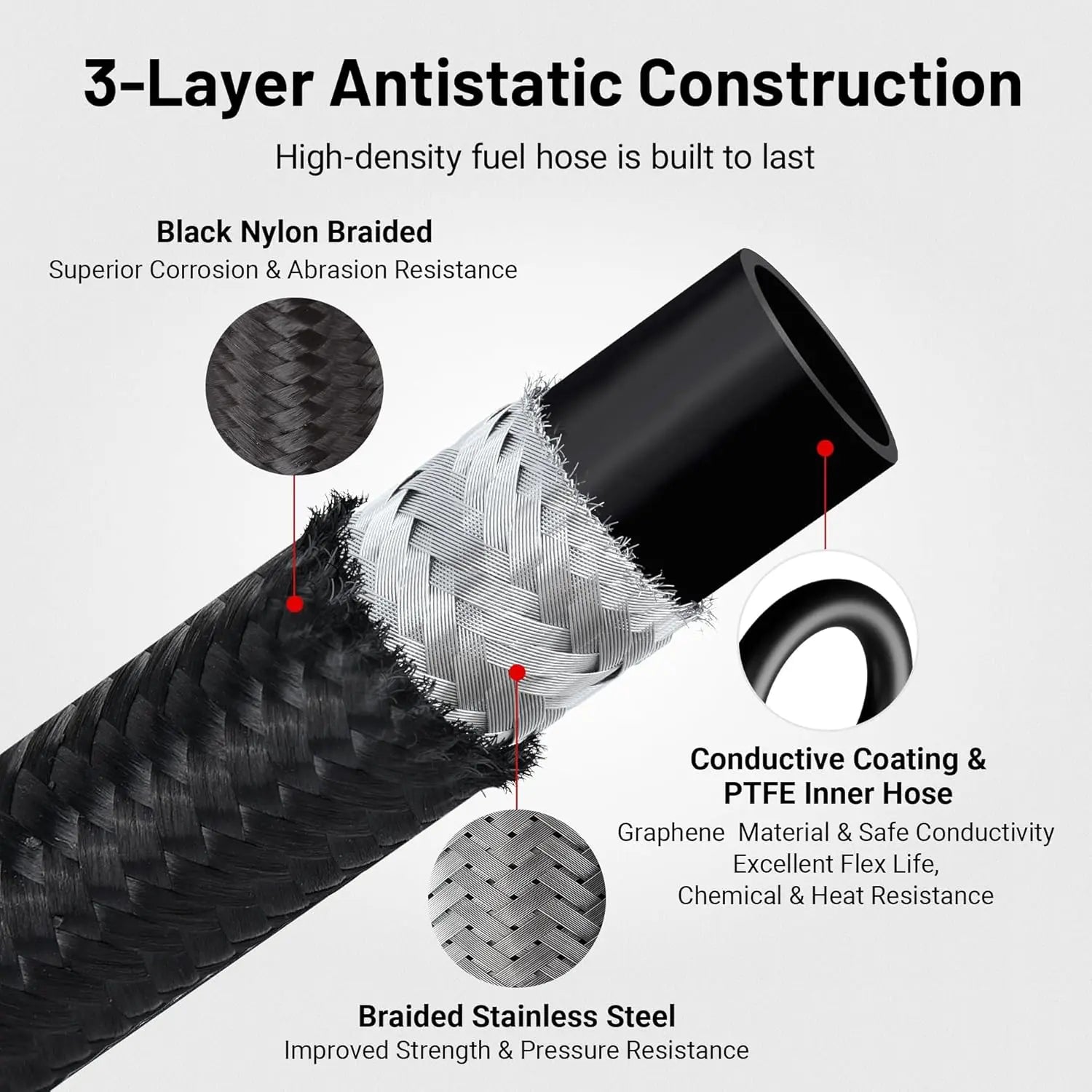

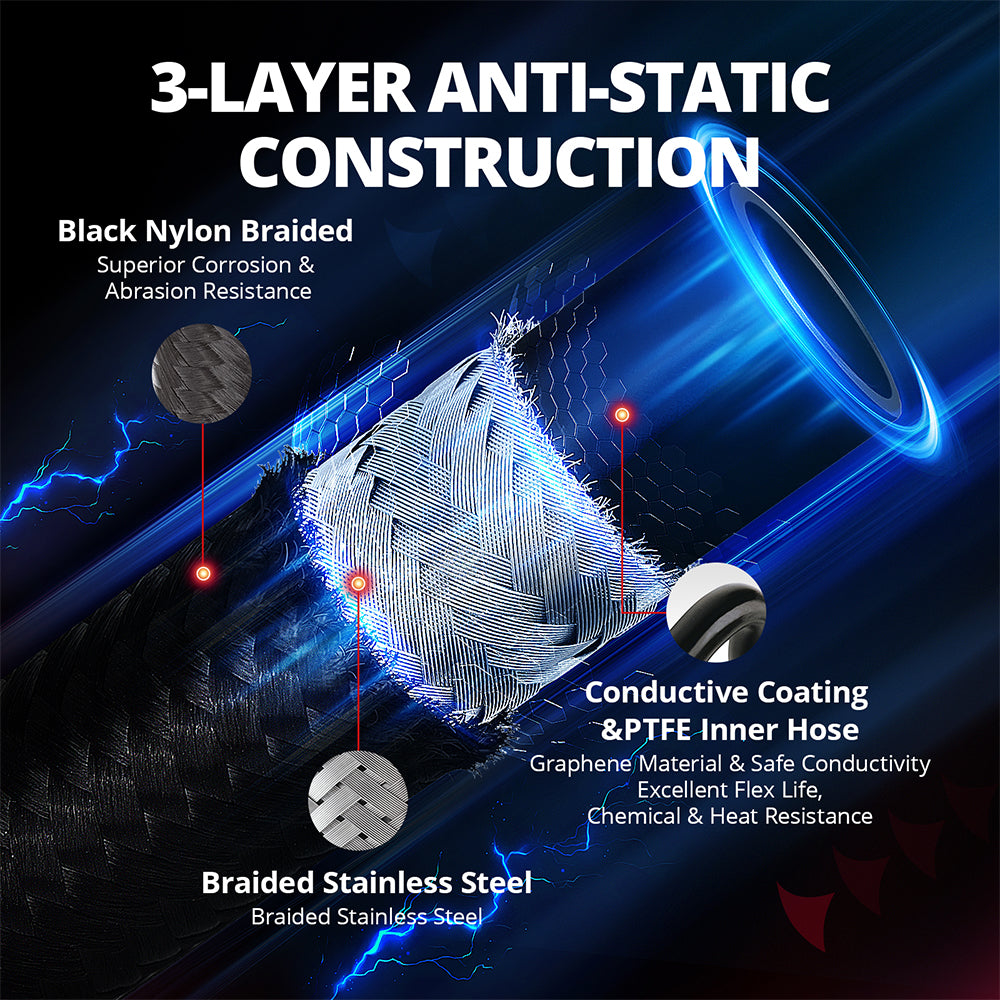

  • [Static-Safe Design] The fuel line incorporates a graphene-blended PTFE inner layer to help reduce static accumulation and minimize spark potential. This design enhances safety performance for use in flammable environments.

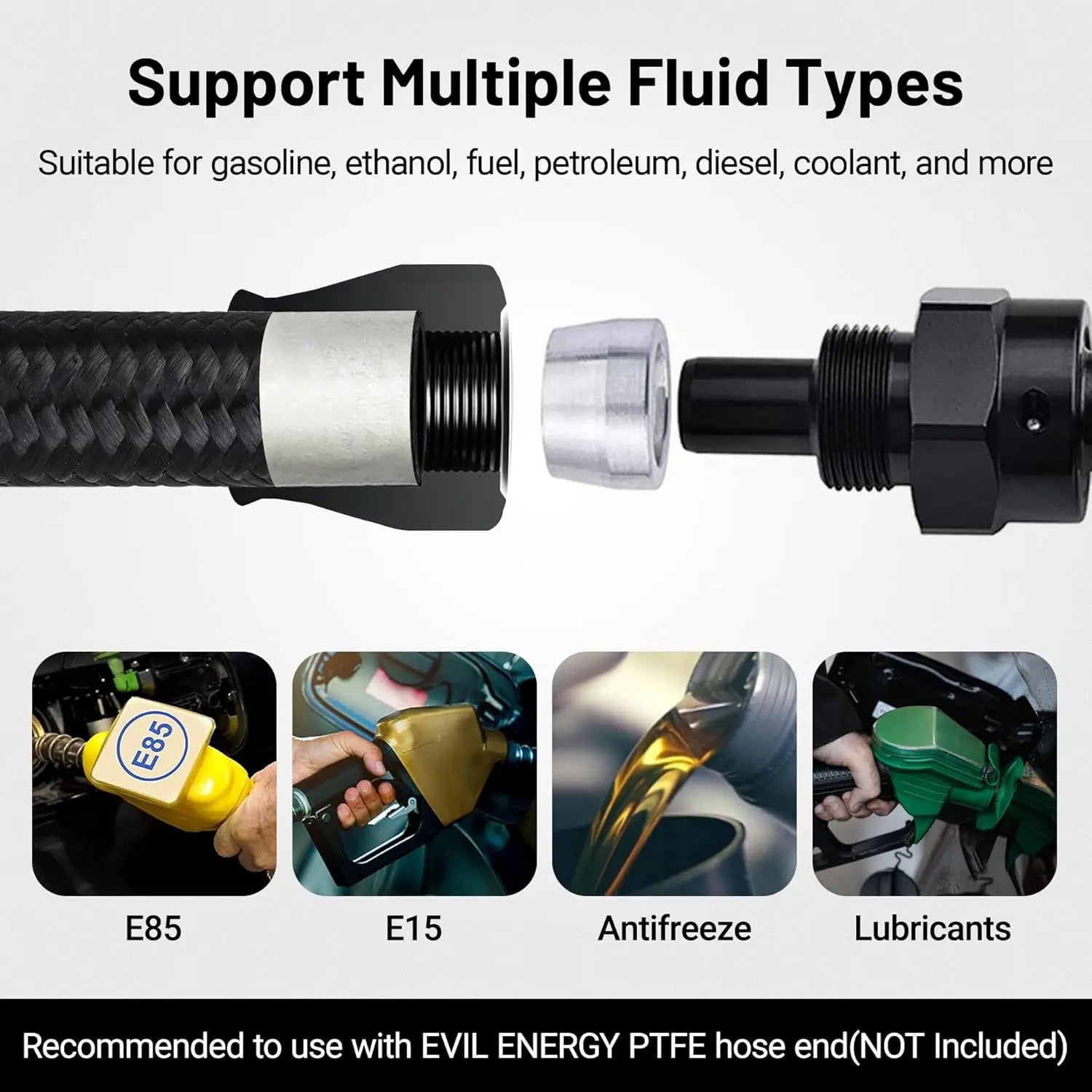

  • [Universal Compatibility]: This conductive PTFE braided fuel hose is compatible with transmission fluid, diesel, biodiesel, engine oil, E85 gasoline, methanol, water, diesel, and fuel. For flammable or explosive environments, we recommend using conductive PTFE fuel lines (anti-static, spark-proof for safety).

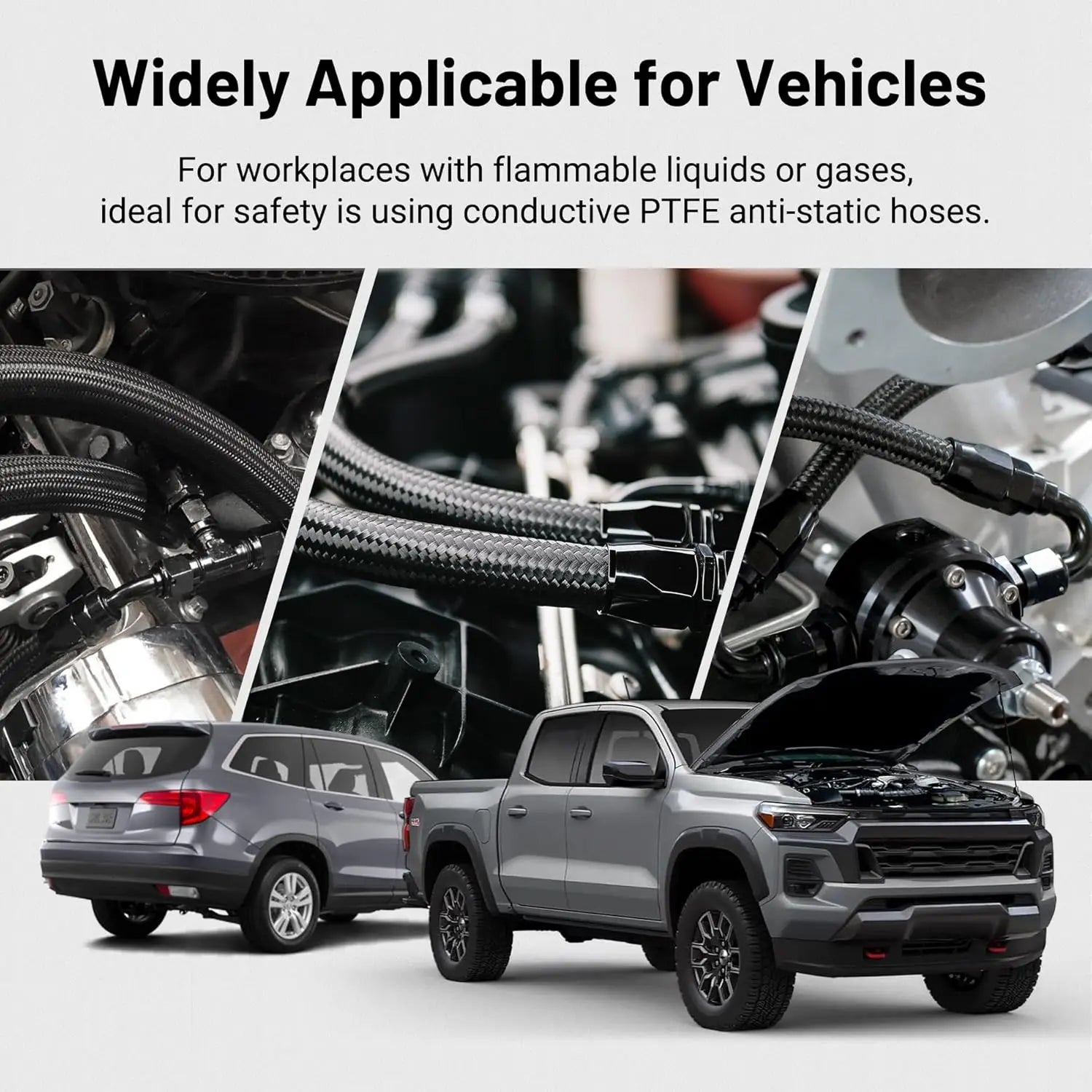

  • [Suitable for Widely Usage]: The PTFE hose can be used as fuel injection hose, boost line,carb fuel line, ls engine swap fuel line, fuel return line, vapor return line,vacuum line, fuel supply line, etc. braided fuel hose relatively hard, it can't be bend and folding in half. Professional installation is highly recommended.For optimal performance, we recommend using Evil Energy's PTFE fittings.

INSTALLATION GUIDE
Moderate Estimated Time: 0.5-1 hour

Tools Required

  • AN wrench set
  • Bench vise
  • Hose cutter or fine-tooth hacksaw
  • Deburring tool
  • Marker
  • Assembly lubricant
  • Safety glasses
  • Fuel-resistant gloves

Pre-Installation Checklist

  • Confirm whether the supplied hose is CPE, PTFE, or antistatic PTFE and use the matching assembly method.
  • Plan the routing path away from exhaust heat, moving parts, sharp edges, and abrasion points.
  • Confirm the correct hose ends and AN fittings are available.
  • Wear safety glasses and fuel-resistant gloves and work away from ignition sources.

Installation Steps

  1. Measure the hose along the intended routing path and allow enough length for bends without kinks or tension.
  2. Wrap the cutting area with tape, make a square cut, then deburr and clean the hose end.
  3. For CPE hose, secure the socket in a vise, thread the hose into it until snug, leave a 1-1.5 mm gap, and mark the hose position.
  4. For PTFE hose, slide on the socket, flare back the outer braid, seat the ferrule fully on the PTFE liner with no gap, and push the assembly onto the nipple.
  5. Apply assembly lubricant to the fitting threads, hold the socket securely, and tighten the fitting body until fully seated.
  6. Clean and pressure-test the completed hose assembly before installing it.
  7. Install the hose according to the system flow diagram and secure it away from heat, sharp edges, and moving parts.

Post-Installation Verification

  • Verify all hose ends are fully seated and fittings are secure without overtightening.
  • Confirm no hose is kinked, twisted, under tension, or exposed to abrasion or excessive heat.
  • Pressure-test the assembly and inspect every connection for leaks before starting the engine.
  • Reinspect after the road test and after 50-100 km.

Troubleshooting

  • Fuel leak: turn the ignition OFF immediately and replace damaged hose or fittings before operation.
  • Restricted flow or low pressure: inspect for kinks, incorrect routing, debris, or an incomplete hose-end assembly.
  • Air entering the system or fluctuating pressure: check all hose ends and fittings for loose connections or leaks.

Maintenance

  • Inspect hose routing, abrasion protection, and fittings periodically.
  • Replace any hose that is damaged, leaking, kinked, or heat-affected before operating the vehicle.
View Full Installation Guide →
