About this item
Struggling to build pressure and return lines around mismatched steering ports or limited engine-bay clearance? The EVIL ENERGY AN6 AN10 PTFE power steering hose kit combines two AN6 pressure lines, one larger AN10 return line and six adapter sizes in one package. It suits DIY builders, restoration shops, and professional technicians plumbing compatible GM steering boxes or Ford-type racks in custom street cars, performance builds, and engine-swap projects.
EVIL ENERGY AN6 AN10 Power Steering Hose Kit Fitment
-
GM steering compatibility: Designed for popular GM steering boxes when their pressure and return ports match one or more supplied adapters.
-
Ford steering compatibility: Designed for compatible Ford-type steering racks with supported SAE or metric connections.
-
Pressure-line configuration: Uses the two 3FT AN6 PTFE hoses between compatible pump and steering-unit pressure ports.
-
Return-line configuration: Uses the larger 3FT AN10 PTFE hose for a compatible low-pressure return route.
-
Adapter coverage: Supports documented 5/8-18 UNF, 11/16-18 UNF, 1/2-20 UNF, M14 × 1.5, M16 × 1.5, and M18 × 1.5 ports.
Fitment notice: "GM steering box" and "Ford-type rack" describe product families rather than one universal port configuration. Steering components may also have been replaced or modified. Identify every pressure and return port, sealing surface and thread specification before ordering.
Key Features of the EVIL ENERGY AN6 AN10 Power Steering Hose Kit
-
Purpose-sized pressure and return lines: Two AN6 hoses support compact pressure routing while the larger AN10 hose provides a dedicated return-line option.
-

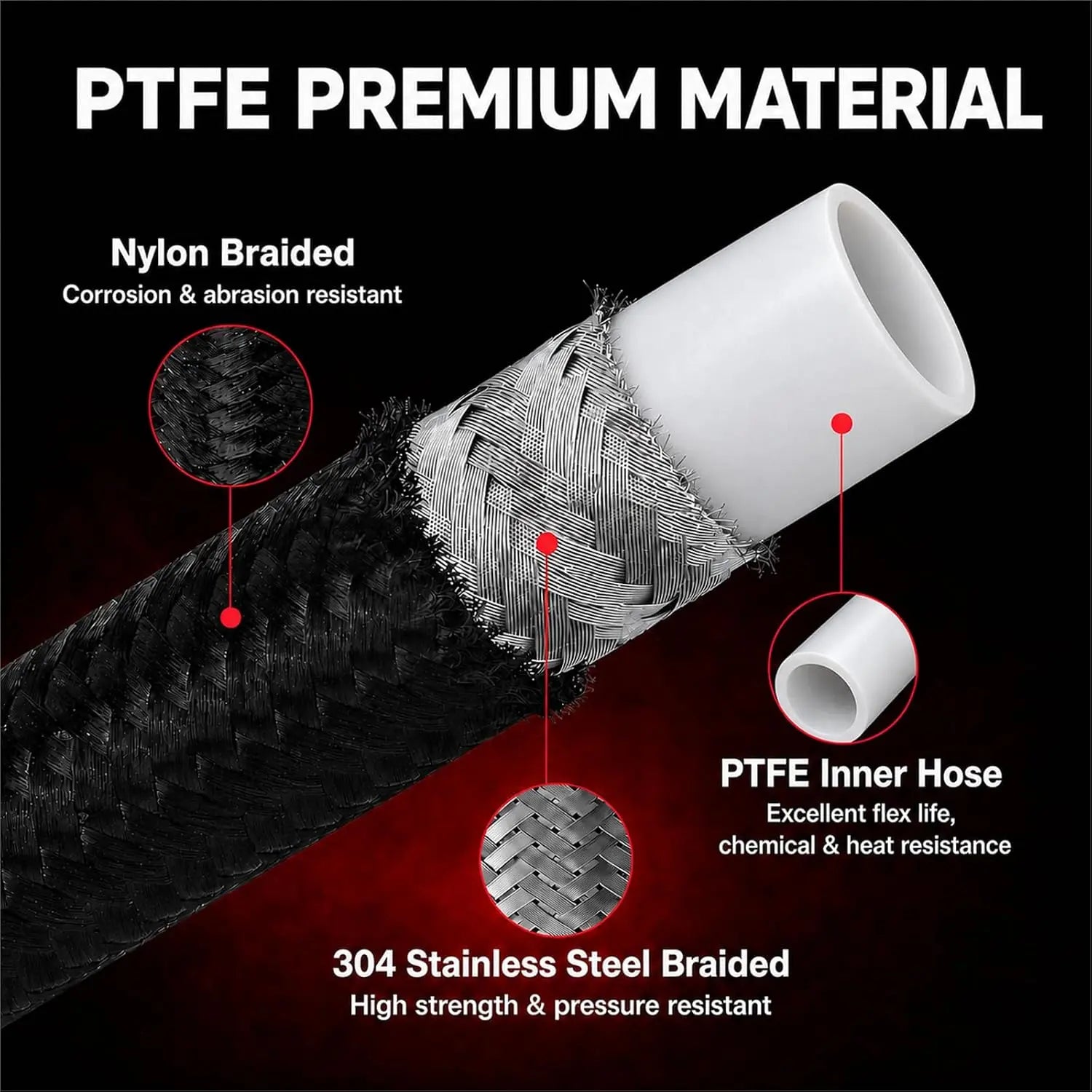

Heat-resistant PTFE construction: All three hoses use PTFE inner tubes with stainless-steel reinforcement and nylon outer braid for demanding engine-bay conditions.
-
Six steering adapter sizes: The kit covers three SAE and three metric threads to support a broader range of compatible steering boxes, pumps and racks.
-
Straight and 90-degree hose ends: Six reusable hose ends allow the installer to choose direct or angled routing around accessory drives, frames and steering components.
-
Complete black finish: Black braided hoses, adapters and reusable fittings create a consistent appearance across the finished pressure and return system.

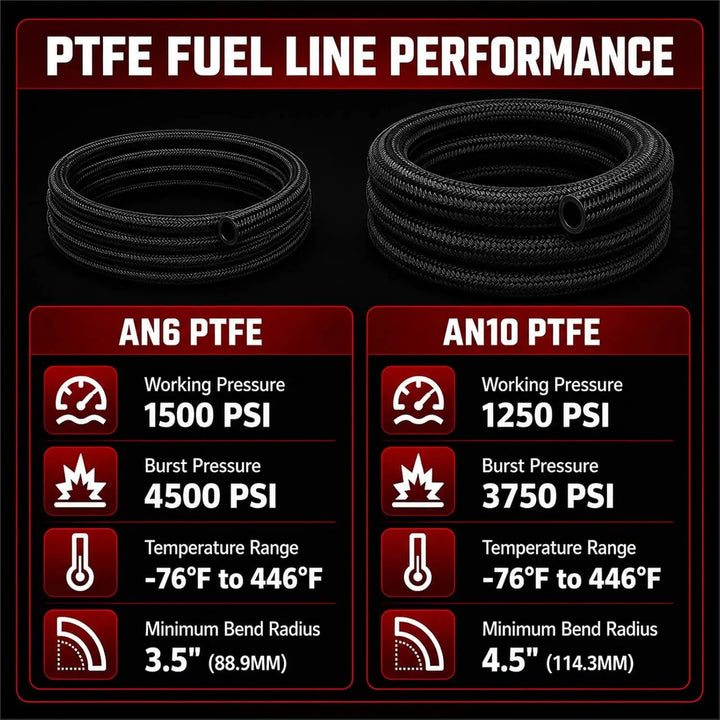

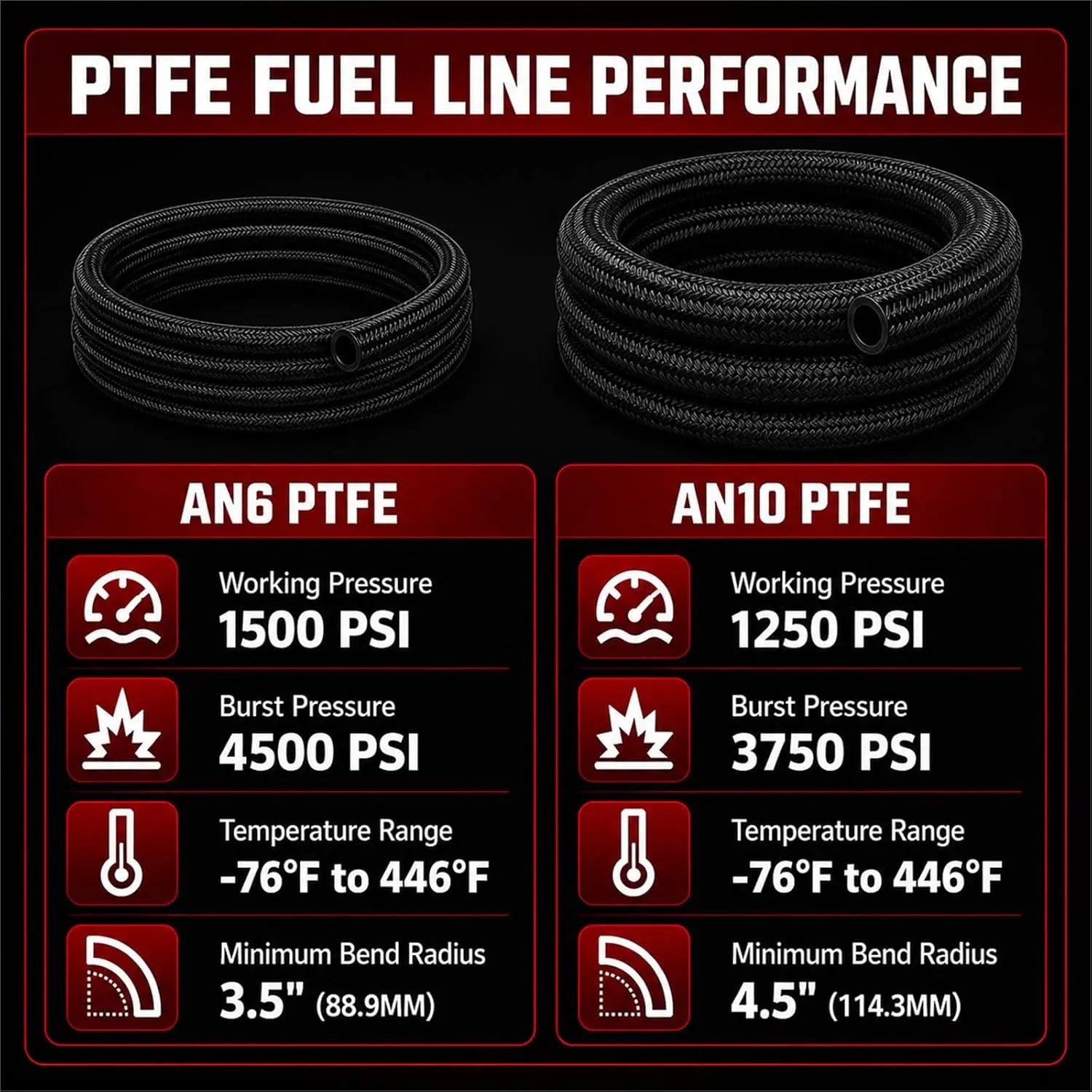

AN6 PTFE Hoses for Power Steering Pressure Lines
The two AN6 hoses are intended for the pressure side of a compatible power steering system. Their compact diameter makes them easier to route around the pump, engine and steering gear, while the PTFE core and stainless reinforcement support high-pressure operation. Maintain the specified bend radius and prevent either hose from contacting exhaust components, belts or pulleys.
AN10 PTFE Hose for the Power Steering Return Line
The larger AN10 hose provides additional internal area for the return side of the steering circuit. It includes dedicated straight and 90-degree AN10 hose ends, allowing the installer to select the routing direction that best matches the reservoir and steering components. The hose should not be forced into a bend tighter than 4.5 inches.
Six AN6 Adapters for GM Steering Boxes and Ford-Type Racks
The adapter group covers 5/8-18 UNF, 11/16-18 UNF, 1/2-20 UNF, M14 × 1.5, M16 × 1.5 and M18 × 1.5 connections. Each size is supplied once. Select an adapter by its complete thread specification and required sealing method rather than by appearance, because similarly sized metric and SAE threads are not interchangeable.

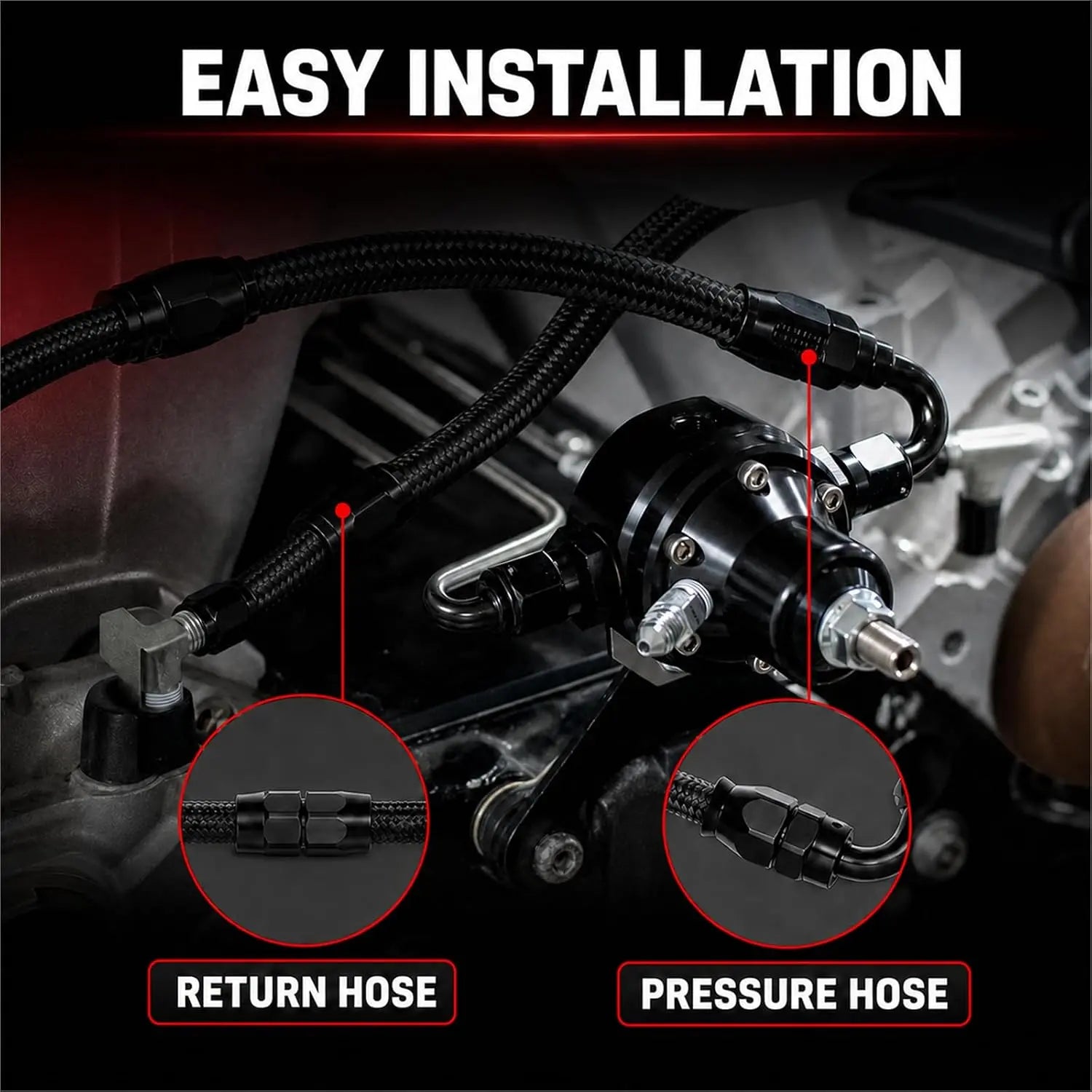

Installing the AN6 AN10 PTFE Power Steering Hose Kit
Plan the complete system before cutting any hose. Identify the pressure, return and reservoir connections; measure each route; and allow for suspension, engine and accessory movement. Cut PTFE hose squarely with a suitable tool, prevent braid and cutting debris from entering the inner tube, and assemble the reusable fittings according to the supplied instructions.
After installation, fill the system with fluid approved by the pump and steering-unit manufacturers. Bleed trapped air, inspect every connection under operating pressure and recheck the fluid level before driving. Professional installation is recommended for users unfamiliar with reusable PTFE fittings or hydraulic steering circuits.

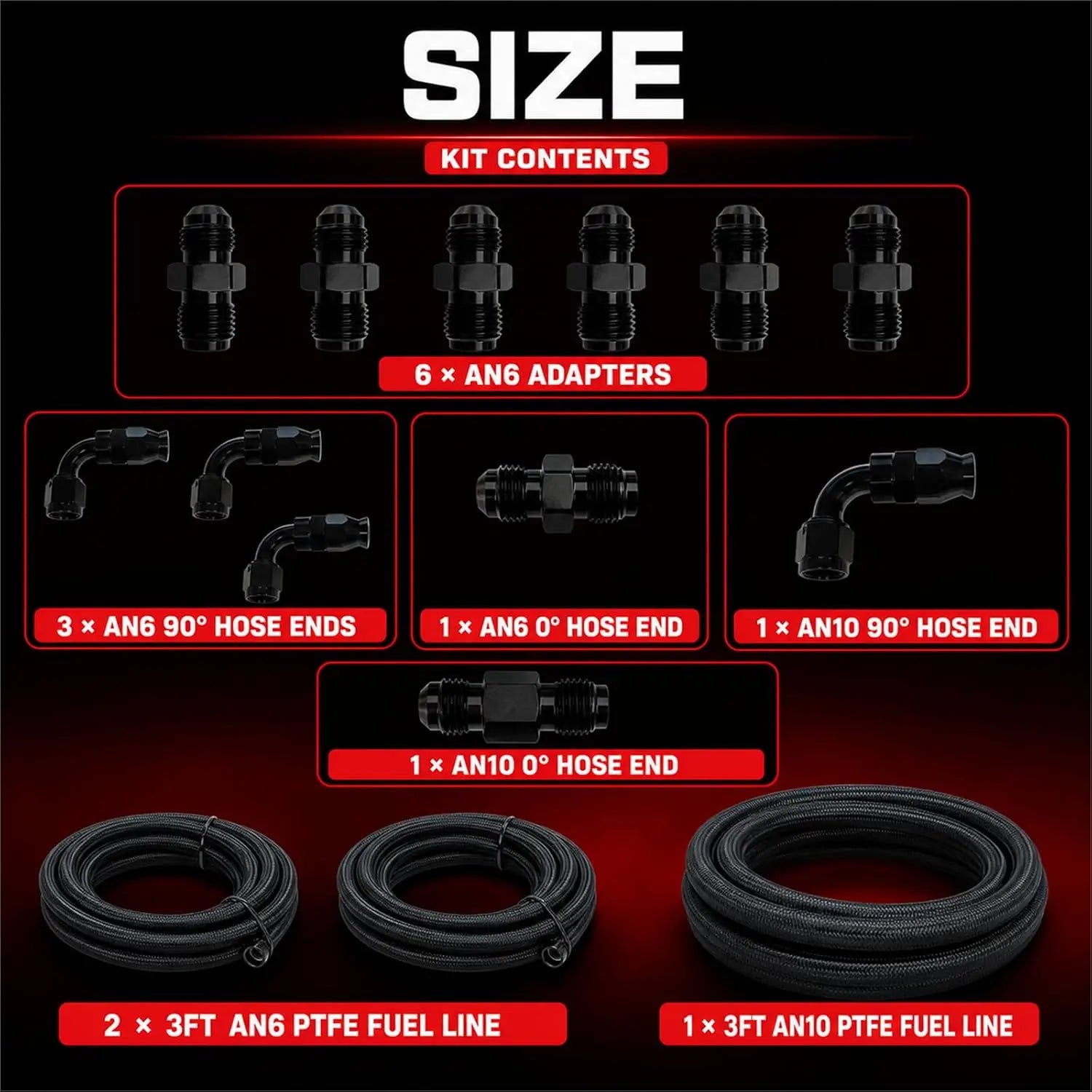

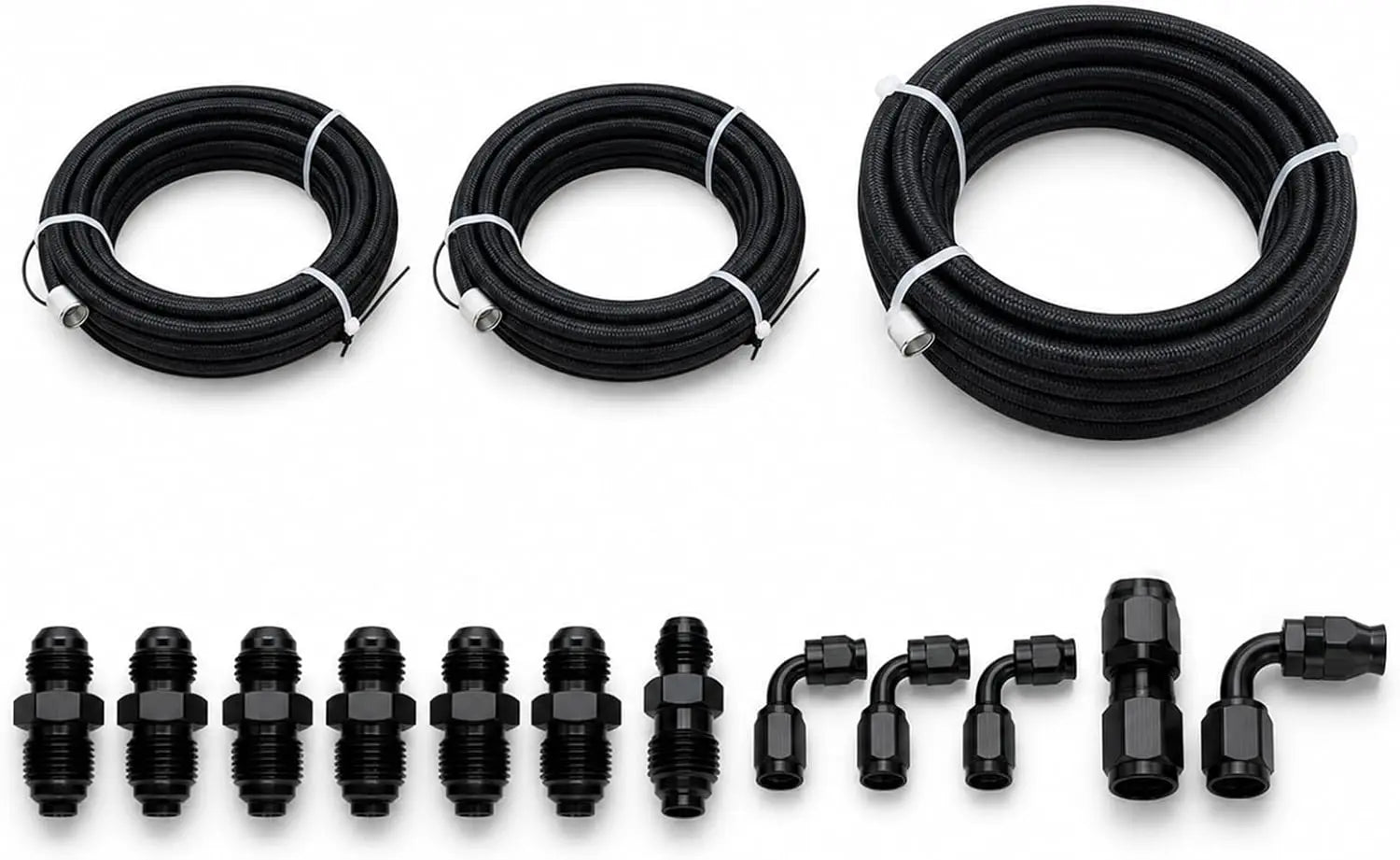

What Is Included with the EVIL ENERGY AN6 AN10 Power Steering Hose Kit?
- EVIL ENERGY 3FT black nylon-braided AN6 PTFE pressure hose × 2
- EVIL ENERGY 3FT black nylon-braided AN10 PTFE return hose × 1
- EVIL ENERGY black straight AN6 PTFE reusable hose end × 1
- EVIL ENERGY black 90-degree AN6 PTFE reusable hose ends × 3
- EVIL ENERGY black straight AN10 PTFE reusable hose end × 1
- EVIL ENERGY black 90-degree AN10 PTFE reusable hose end × 1
- EVIL ENERGY black AN6 to 5/8-18 UNF adapter × 1
- EVIL ENERGY black AN6 to 11/16-18 UNF adapter × 1
- EVIL ENERGY black AN6 to 1/2-20 UNF adapter × 1
- EVIL ENERGY black AN6 to M14 × 1.5 adapter × 1
- EVIL ENERGY black AN6 to M16 × 1.5 adapter × 1
- EVIL ENERGY black AN6 to M18 × 1.5 adapter × 1
- EVIL ENERGY installation manual × 1
- EVIL ENERGY logo sticker × 1
Package verification: Current product images confirm six AN6 adapters, four AN6 hose ends, and two AN10 hose ends. Internal links remain pending because corresponding EVIL ENERGY Shopify single-product URLs were not supplied or independently verified.
Why Choose EVIL ENERGY AN6 AN10 PTFE Power Steering Hose Kit?
-
Separate line sizes by function: AN6 pressure hoses simplify compact high-pressure routing, while the larger AN10 hose supports the return side of the system.
-
Plan a complete steering circuit: Three hose sections and twelve connection fittings cover the principal pressure and return plumbing components in one package.
-
Handle demanding engine-bay conditions: PTFE inner tubes and braided reinforcement provide heat, chemical and pressure resistance for custom steering installations.
-
Adapt metric and SAE components: Six adapter standards help builders connect compatible pumps, GM steering boxes and Ford-type racks without assuming one universal thread.
-
Free technical support: Contact EVIL ENERGY for assistance with specifications, adapter identification and installation questions.
