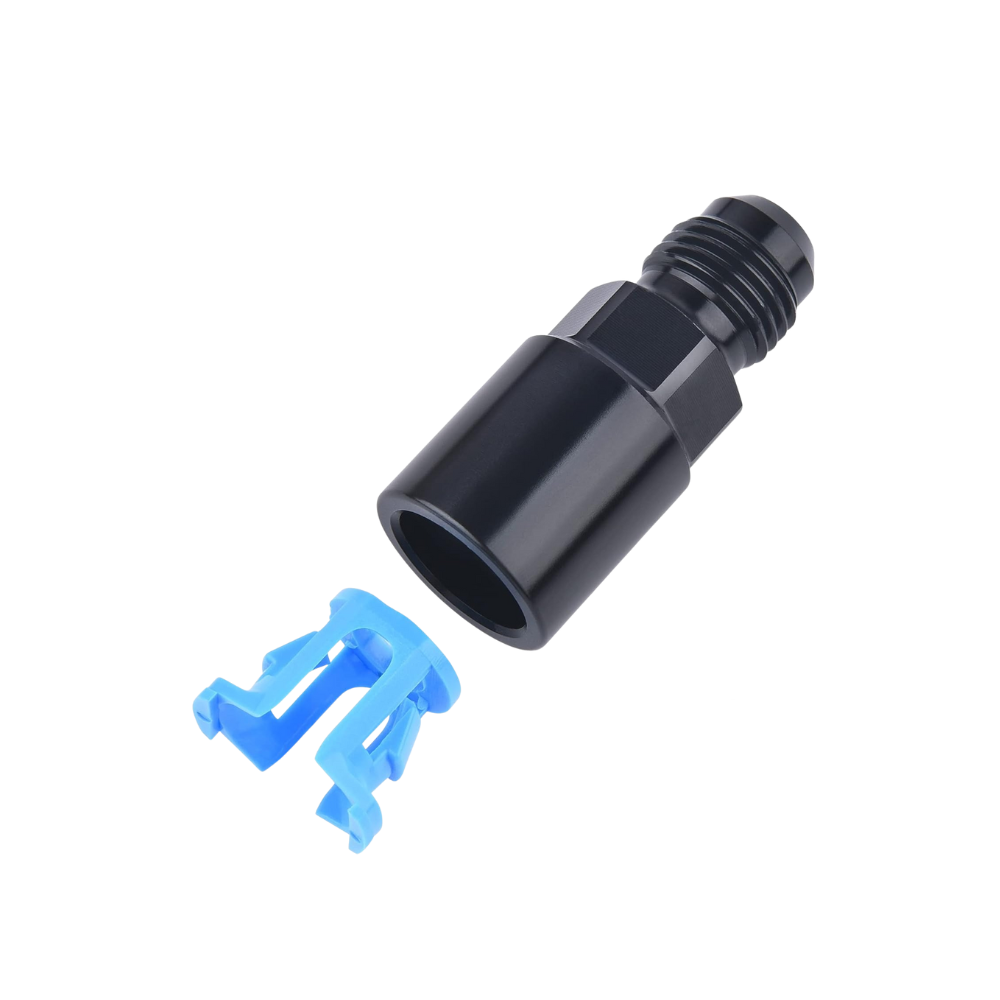

EVIL ENERGY 6/8AN Male to SAE Quick-Disconnect Fittings Female Push-On EFI Ls Swap Fitting

Name: EVIL ENERGY 6/8AN Male to SAE Quick-Disconnect Fittings Female Push-On EFI Ls Swap Fitting
Brand: evilenergy
SKU: EVKT01390AN6BK-AMZ1
Price: 10.09 USD
Availability: InStock

$10.09 USD

Shipping calculated at checkout.

size

6AN to 3/8 inch 6AN to 5/16 inch 8AN to 3/8 inch 8AN to 5/16 inch

Quantity

1PC 2PCS

Product variants

Product Brief

Description

Product details

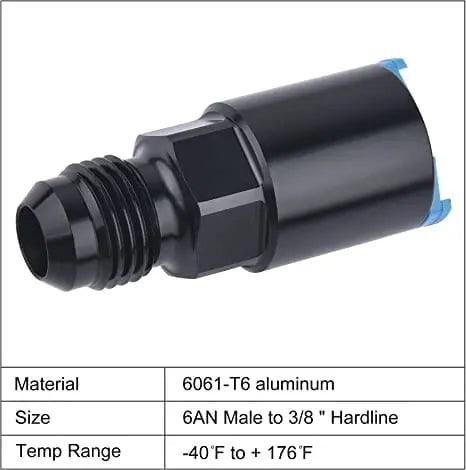

Size	6AN to 3/8",6AN to 5/16", 8AN to 3/8",8AN to 5/16" .
Material	Aluminum
Brand	EVIL ENERGY
Color	Blackblue-Straight
Connector Type	Flare
Exterior	Aluminum
Thread Type	EPA

About this item

[Size]

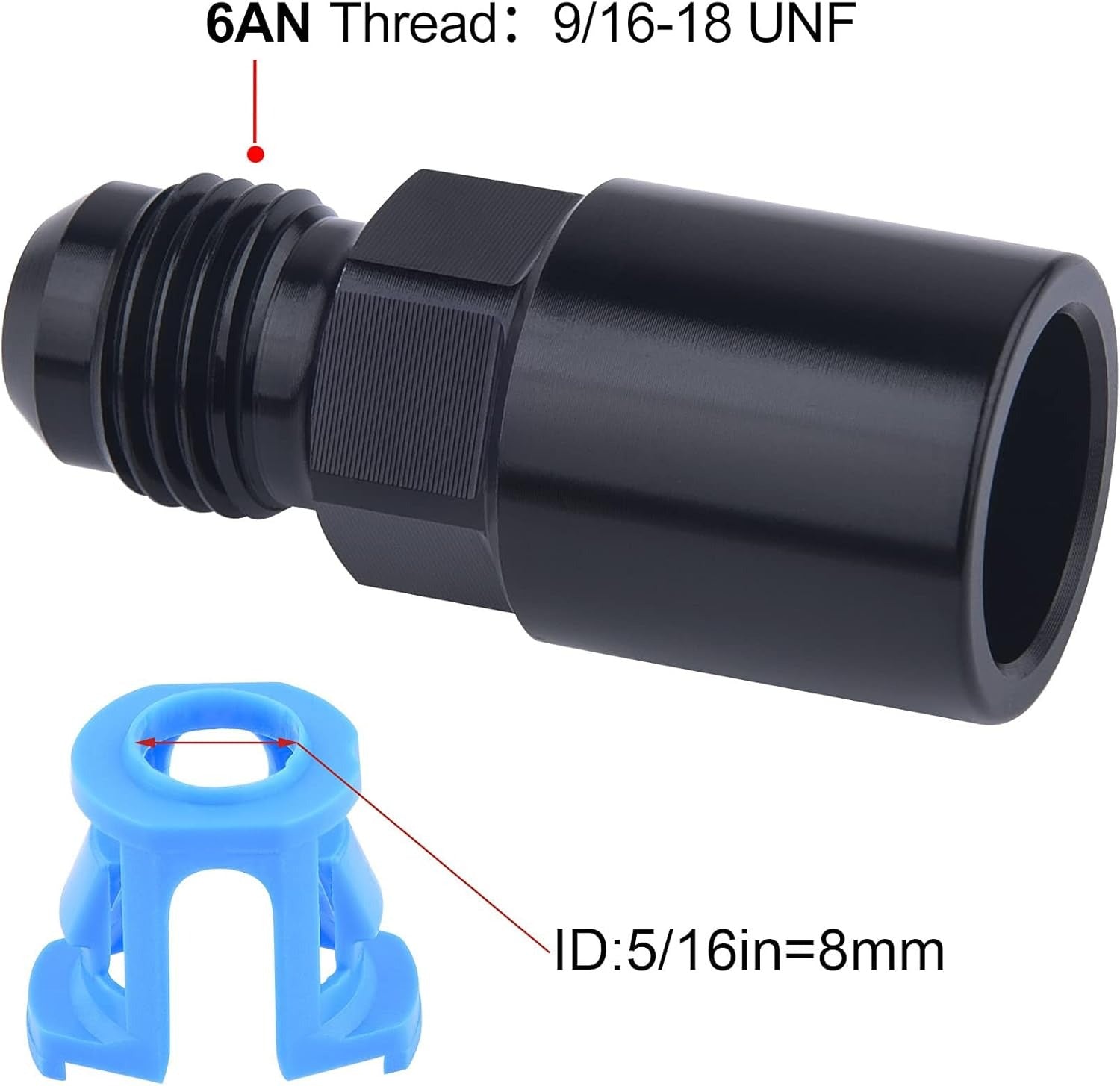

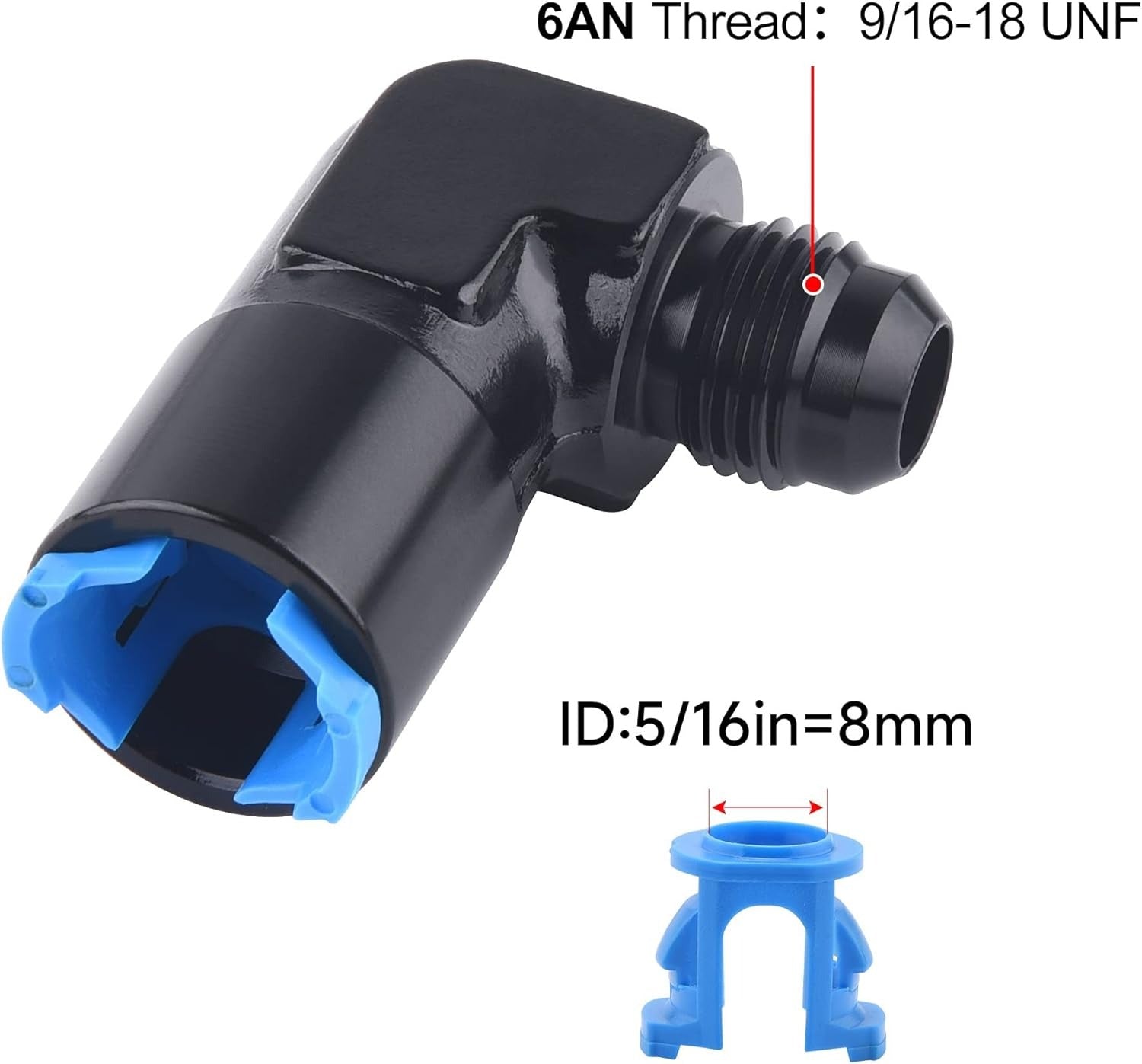

The thread size of 6an is 9/16-18UNF. The ID of spring lock is 3/8 inch and 5/16 inch.

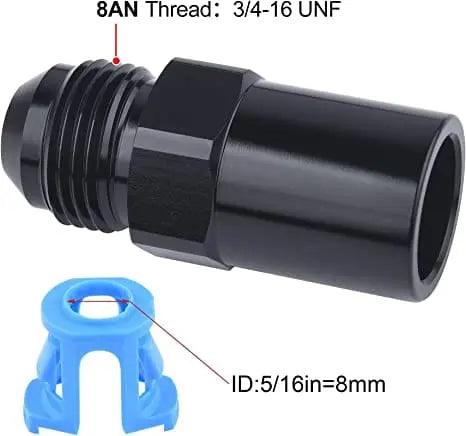

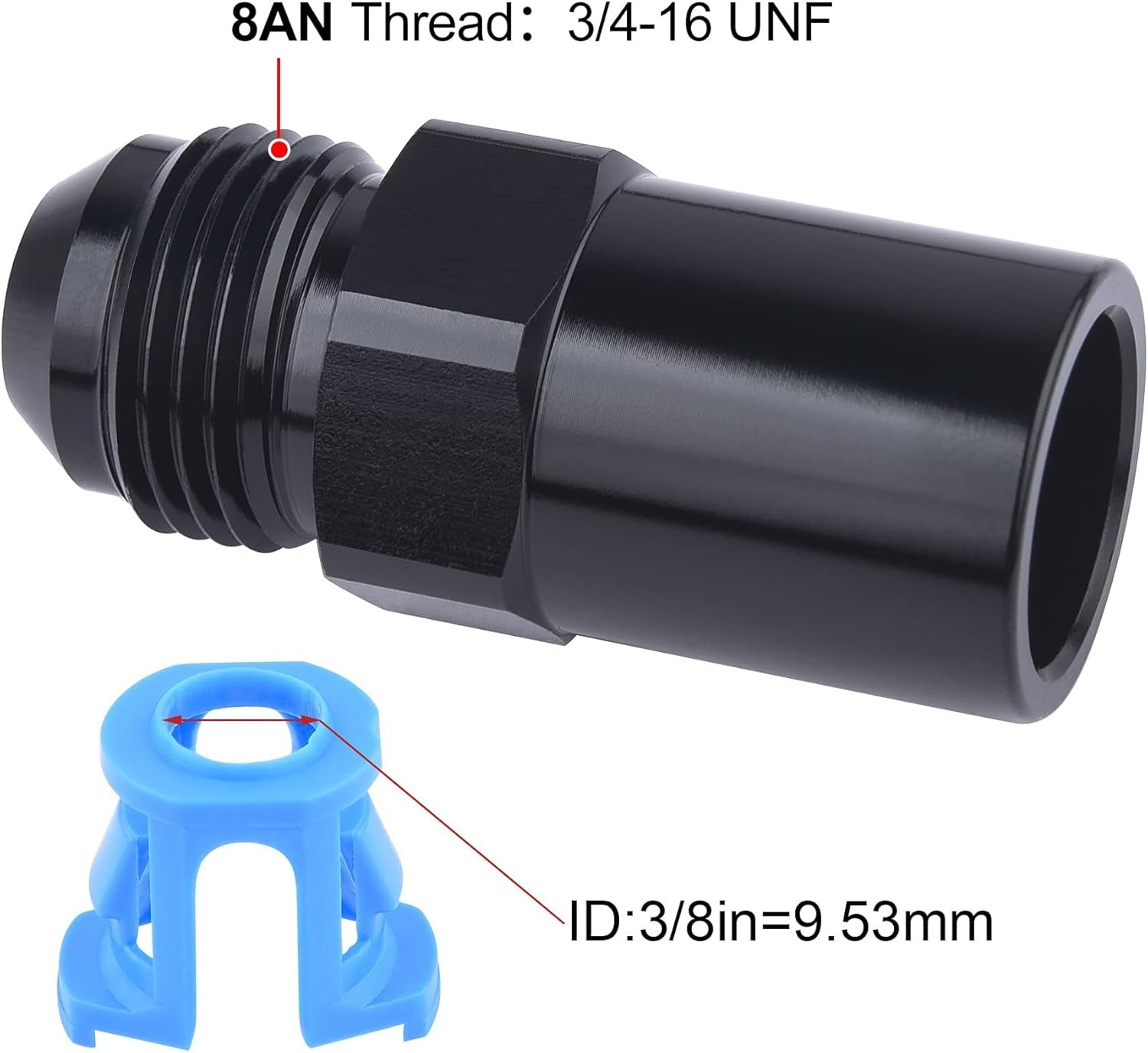

The thread size of 8an is 3/4-16 UNF. The ID of spring lock is 3/8 inch and 5/16 inch.
[Seal] The 6/8an flare efi fitting is sealed at 37 degree angle to avoid leakage.
[Parameter] Working pressure: 1500psi, Temperature range: -40°F to 176°F.

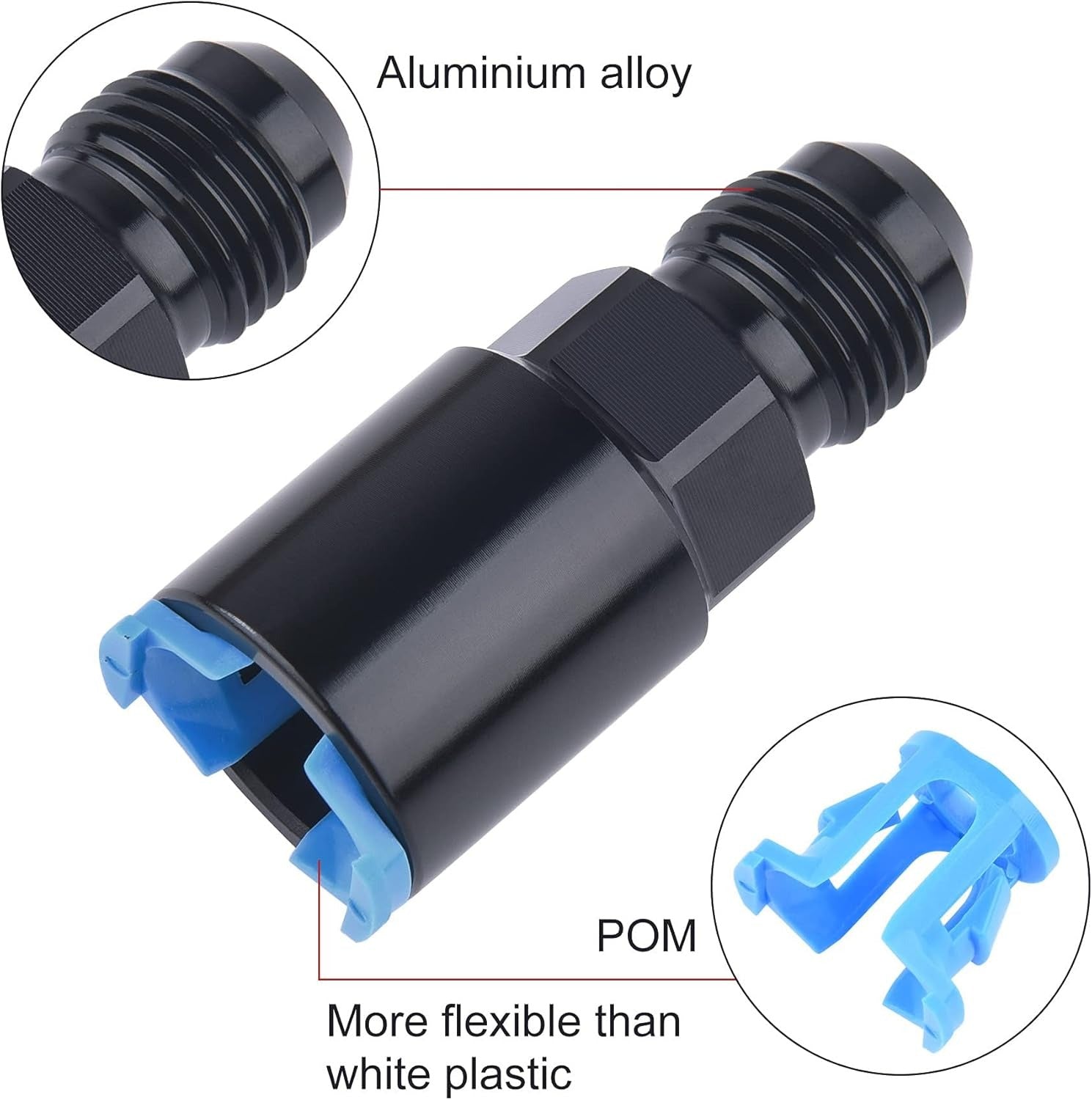

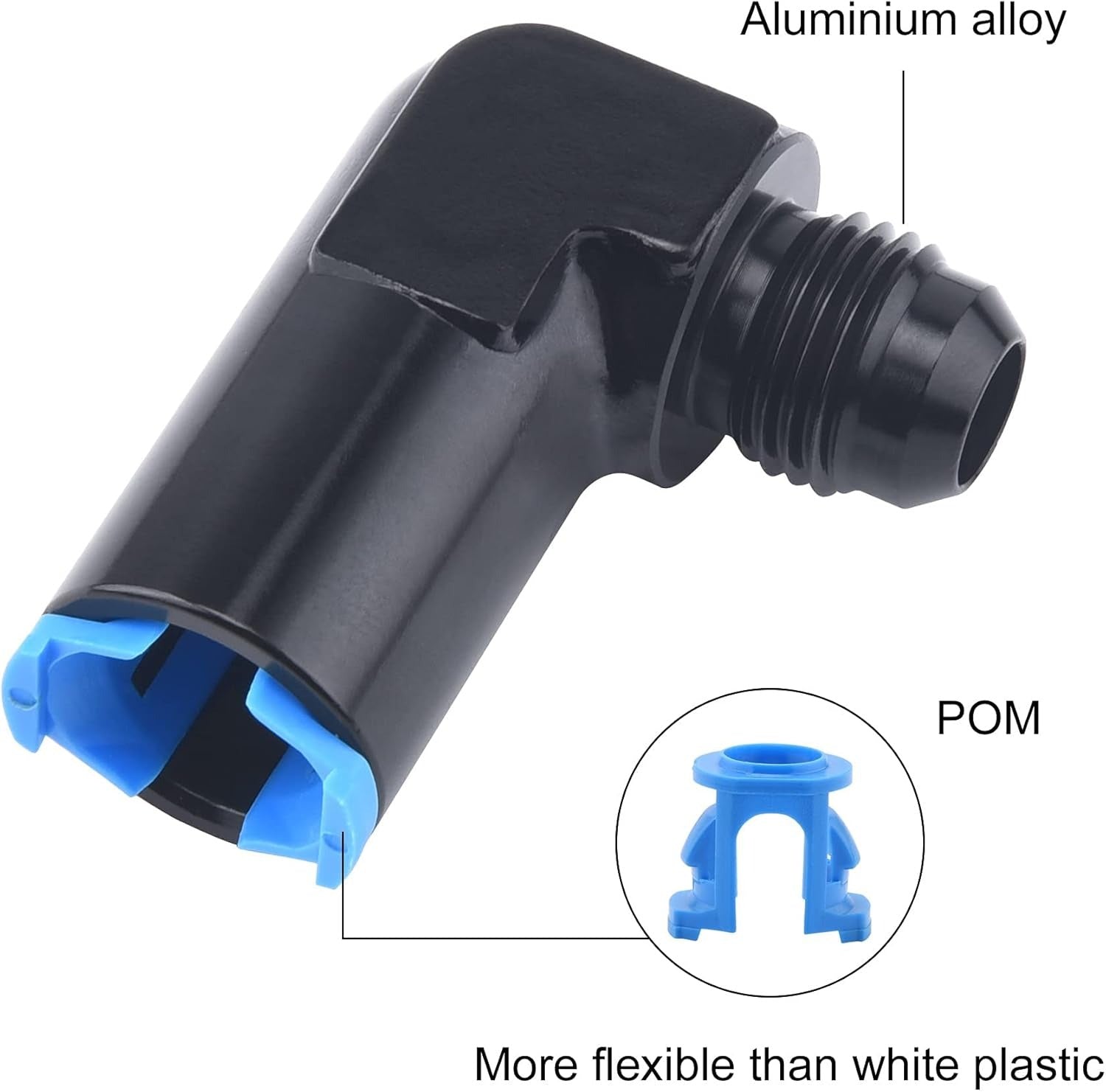

[Material] Made of aluminum alloy 6061-T6.Spring lock is made of plastic.

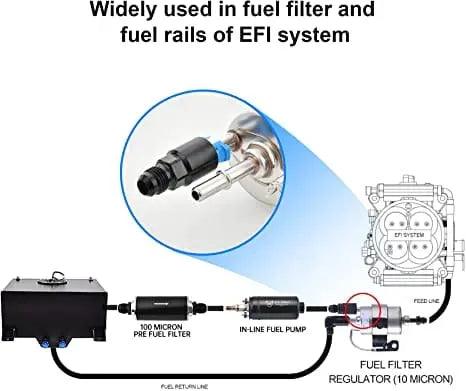

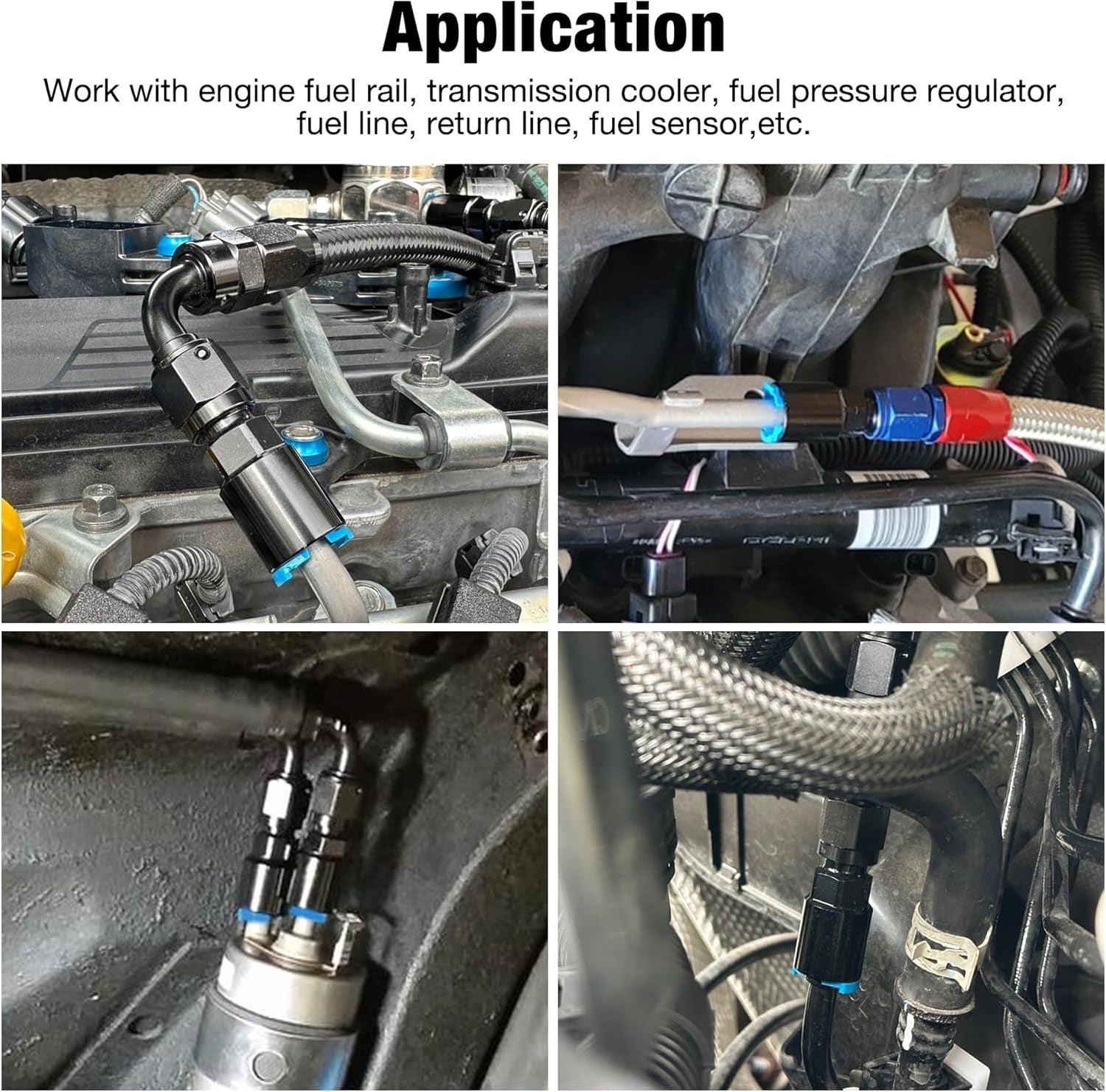

[Application] Widely used in engine fuel rail, ls swap, transmission cooler, return line, fuel sensor, etc.
