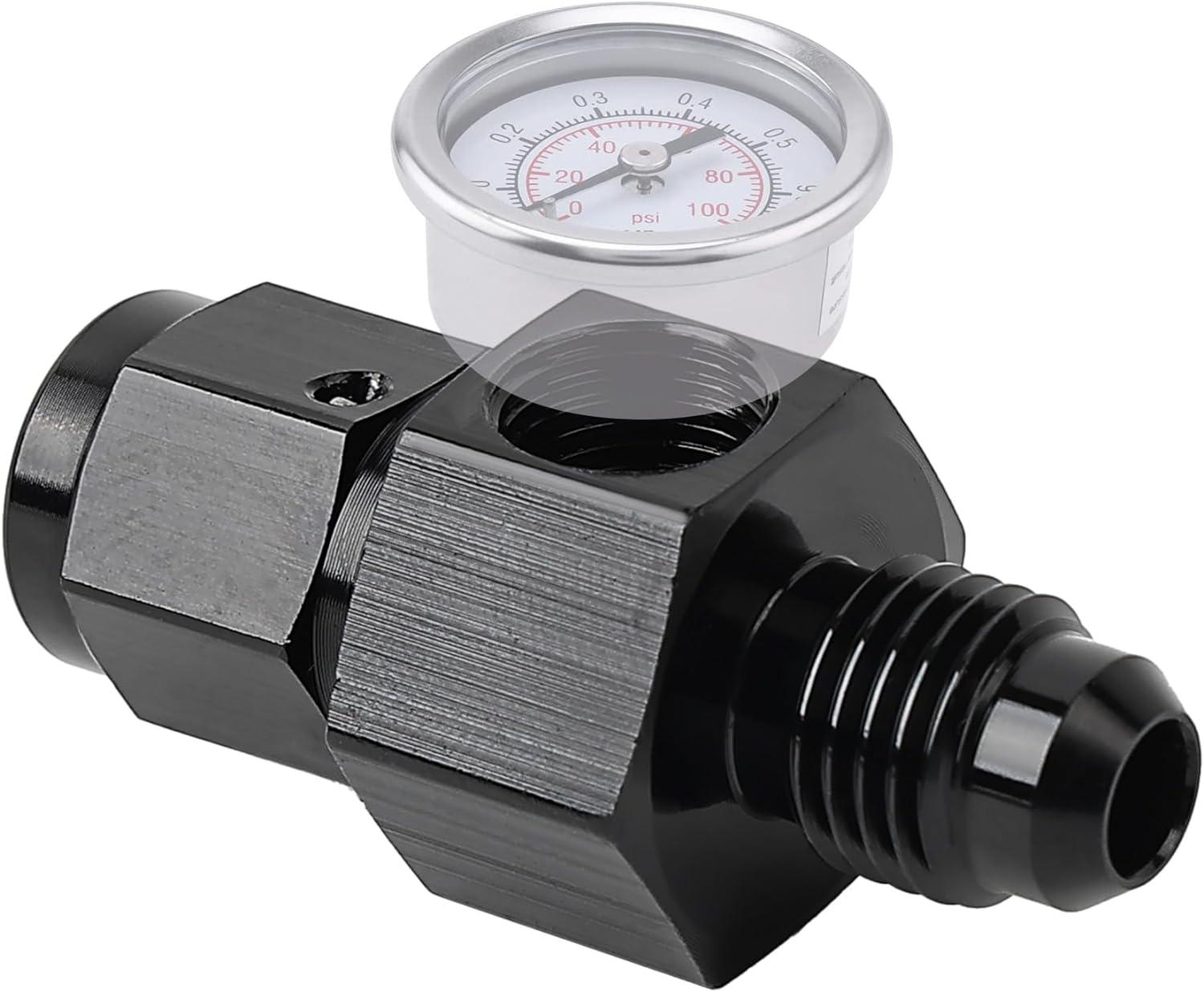

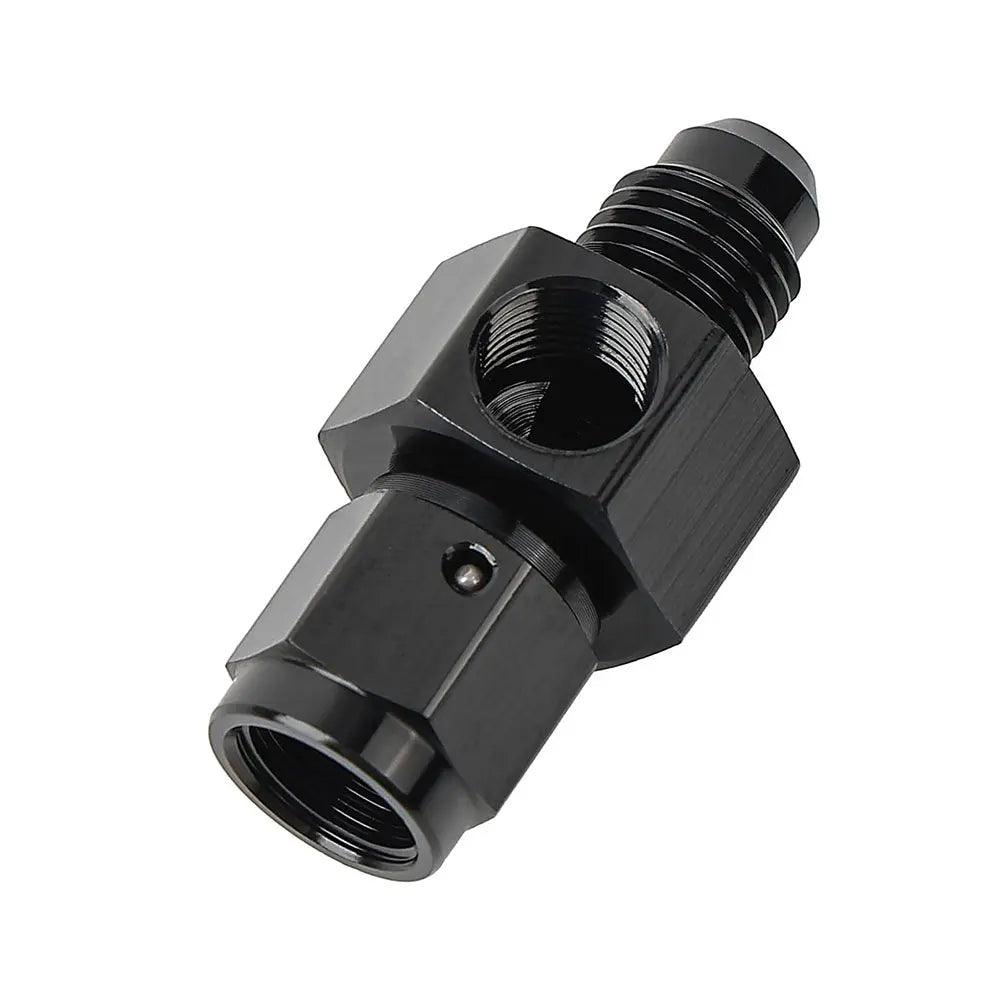

EVIL ENERGY AN Male Flare to Female Swivel with NPT Gauge Port Fuel Pressure Take Off Fitting Adapter
SKU: | Size | Price | Stock | Qty |
---|---|---|---|---|
EVKT01842AN3-AMZ1 | AN3 with 1/8 NPT Port | $15.30 | ✔ | |
EVKT01842AN4-AMZ1 | AN4 with 1/8 NPT Port | $15.30 | ✔ | |
EVKT01842AN6-AMZ1 | AN6 with 1/8 NPT Port | $14.99 | ✔ | |
EVKT01842AN8-AMZ1 | AN8 with 1/8 NPT Port | $15.49 | ✔ | |
EVKT01842AN10-AMZ1 | AN10 with 1/8 NPT Port | $16.49 | ✔ | |
EVKT01842AN12-AMZ1 | AN12 with 1/8 NPT Port | $20.09 | ✔ |
More payment options
Description
Description
Brand | EVIL ENERGY |
Size |
AN3 with 1/8 NPT Port, thread size of the 3AN is 3/8-24 UNF. AN4 with 1/8 NPT Port, thread size of the 4AN is 7/16-20 UNF. AN6 with 1/8 NPT Port, thread size of the 6AN is 9/16-18UNF. AN8 with 1/8 NPT Port, thread size of the 8AN is 3/4-16UNF. AN10 with 1/8 NPT Port, thread size of the 10AN is 7/8-14UNF. AN12 with 1/8 NPT Port, thread size of the 12AN is 1-1/16-12 UNF. |
Max Working Pressure |
1500 PSI |
Working Temperature Range |
-40°F to 250°F |
Color | Black |
Connector Type | Flare |
Thread Type | NPT |
Exterior | Aluminum |
Number of Pieces | 1 |
ABOUT THIS ITEM
- Sealing: The AN thread of the flare is sealed by a 37 degree angle and the NPT is sealed with a 60 degree tapered.It is highly recommended to use sealant or PTFE (polytetrafluoroethylene tape) at the NPT port.

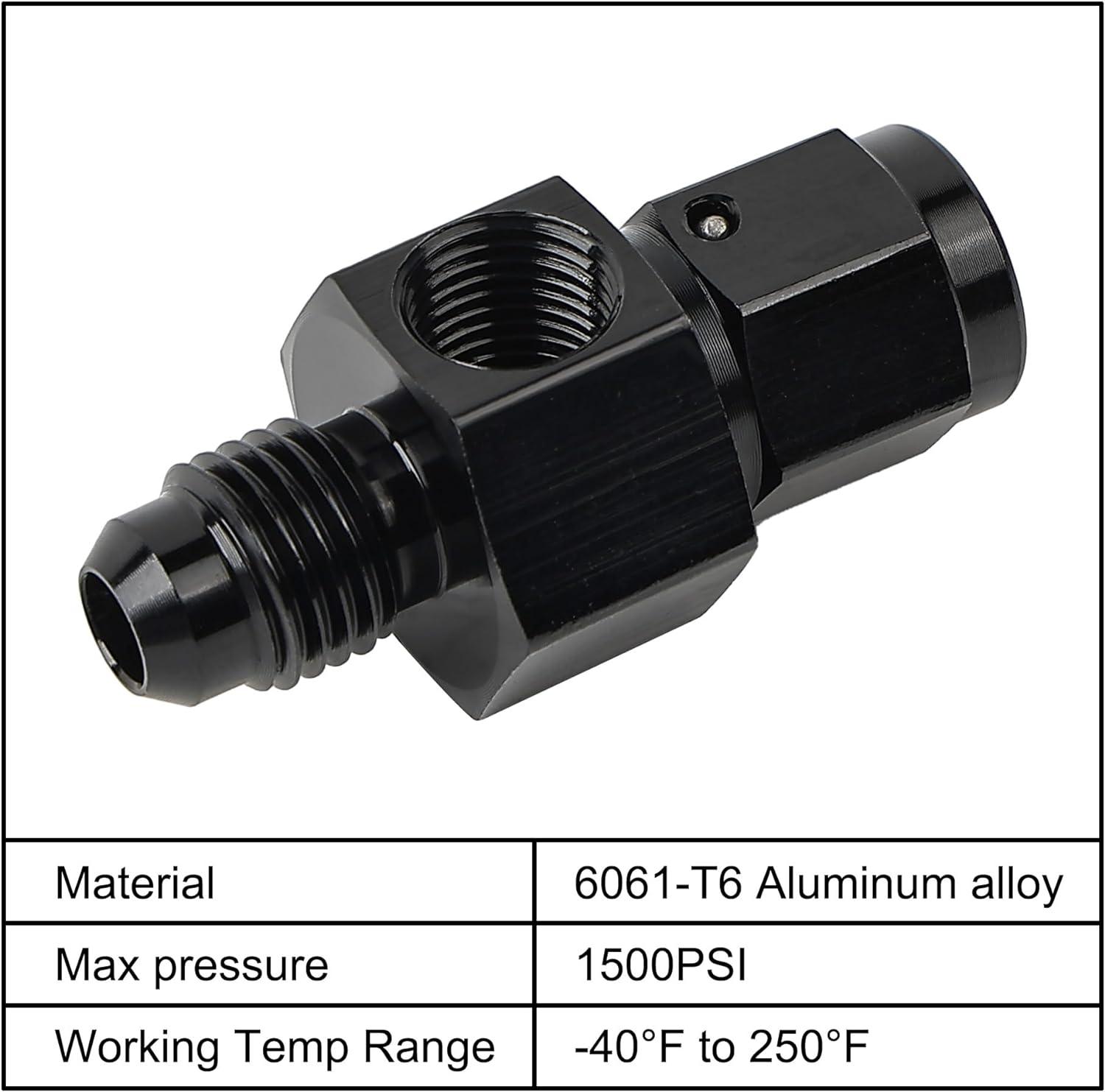

- Material: Made of 6061-T6 aluminium alloy.
- Max working pressure: 1500PSI,working temperature: -40°F to 250°F.
- EVIL ENERGY provide fuel pressure gauge fitting 3-month warranty. Any problem you might have,please feel free to contact us via Amazon message.
