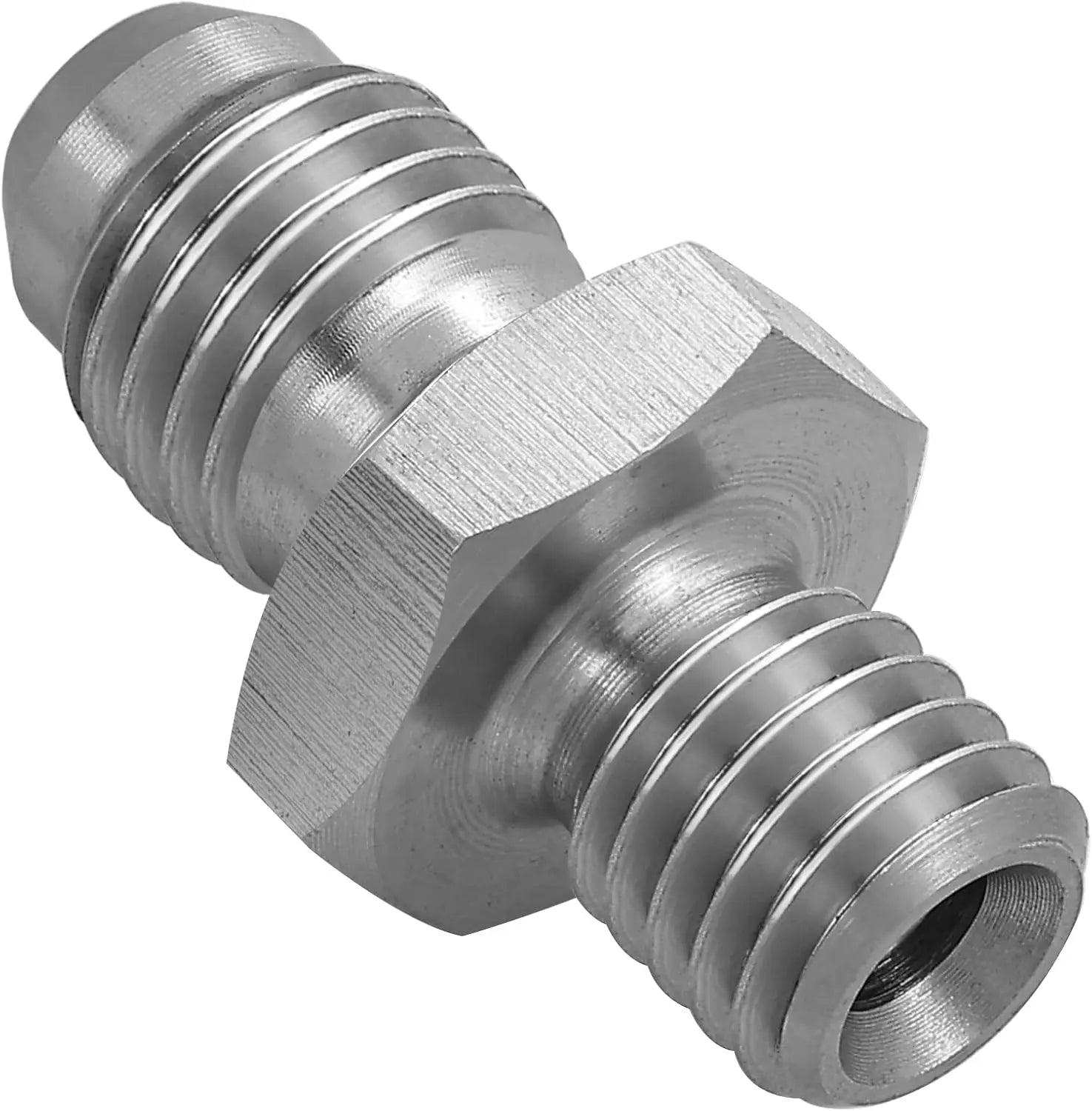

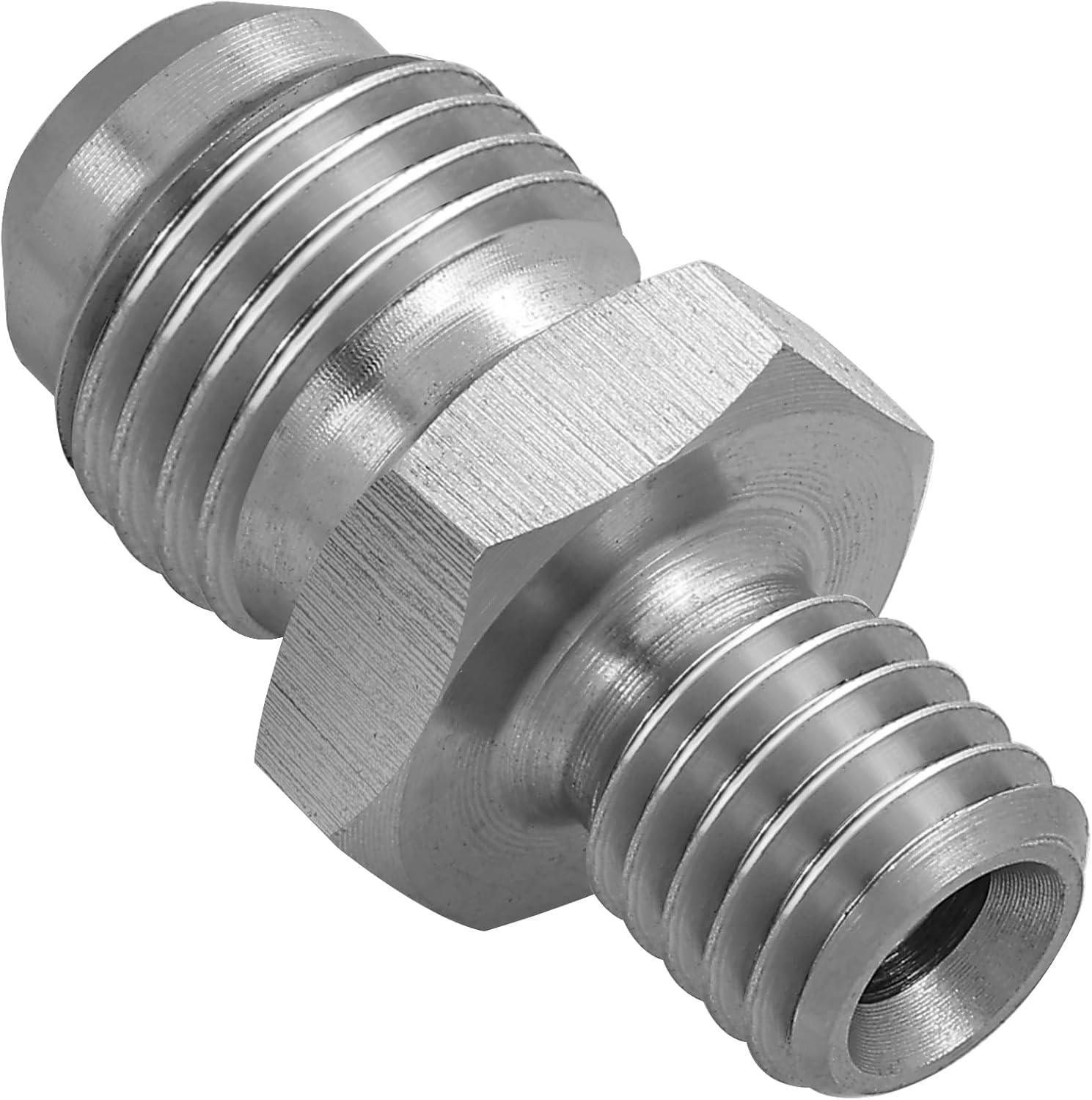

EVIL ENERGY AN Male Flare to Male Metric Thread Brake Fitting Stainless Steel Adapter
- $14.99
- $14.99
$14.99- Unit price
- per
SKU:
EVKT10183S1SR-AMZ1
Product Type:
AN to M Fittings
AN Fitting Dimensions: Metric Connections
| Properties | Details |
|---|---|
| Size | AN3 to M10*1.0 |
| Material | Stainless Steel |
| Brand | EVIL ENERGY |
| Connector Type | Flare |

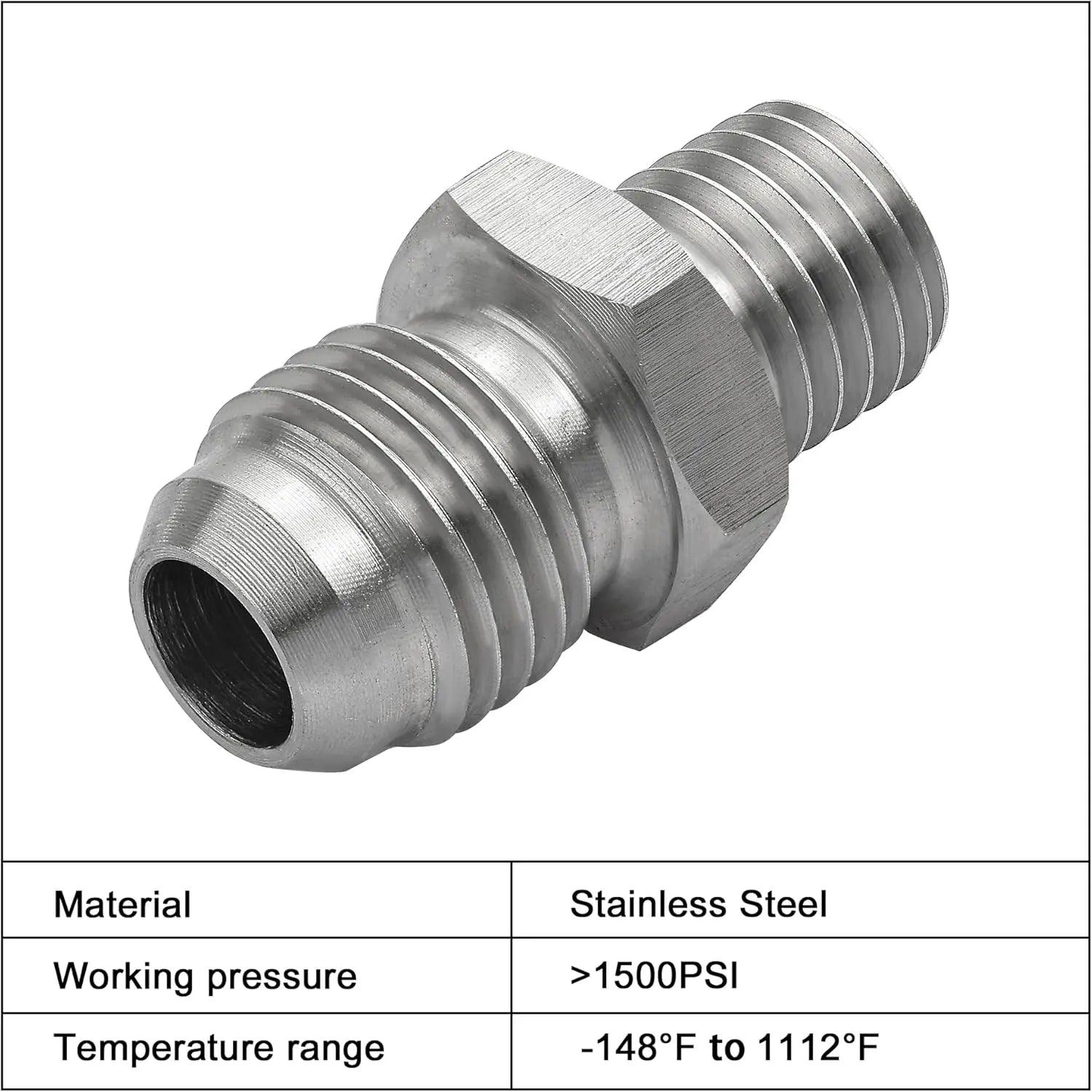

| Body material | 304 stainless steel |

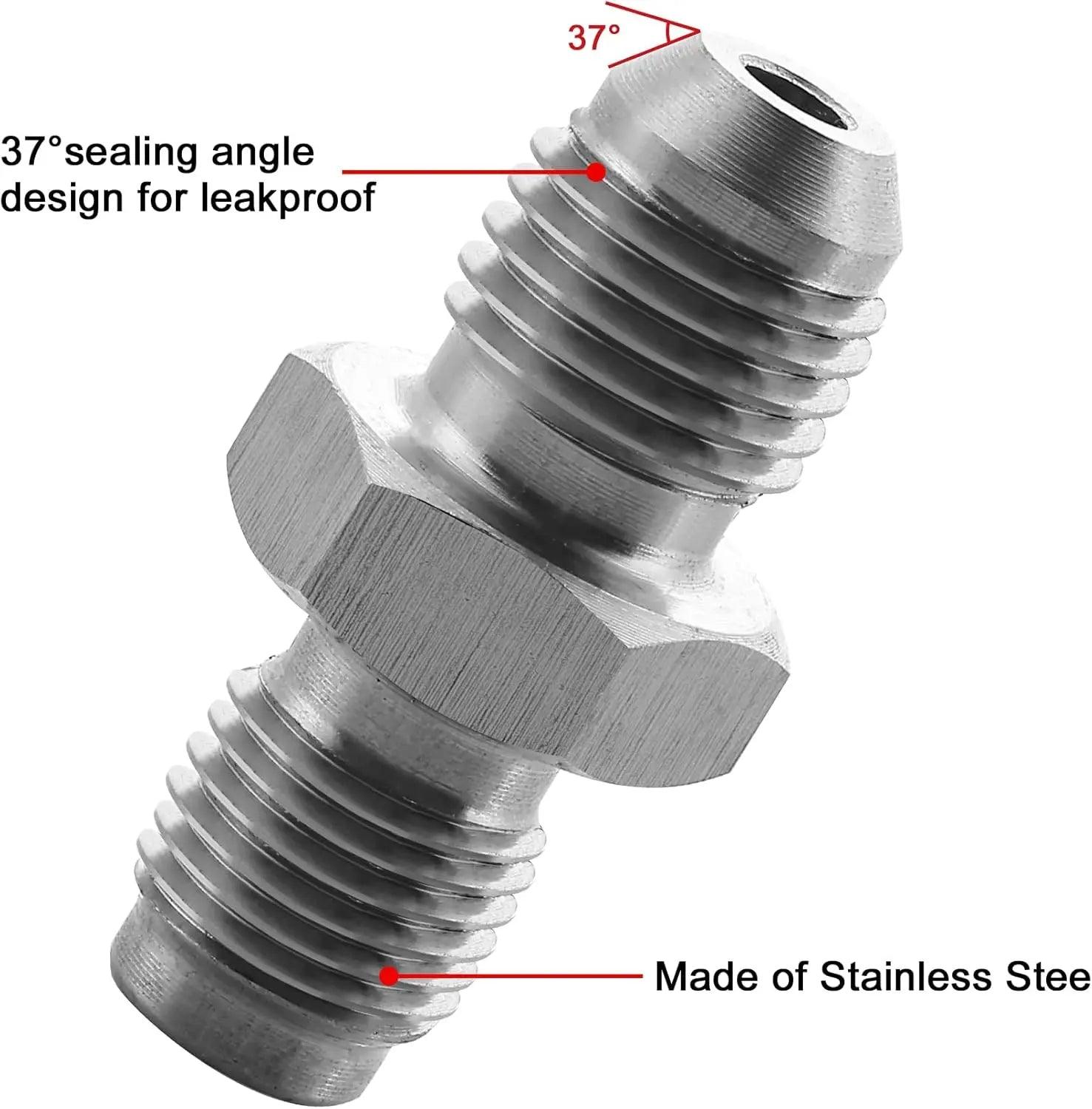

| AN seal | 37-degree flare |

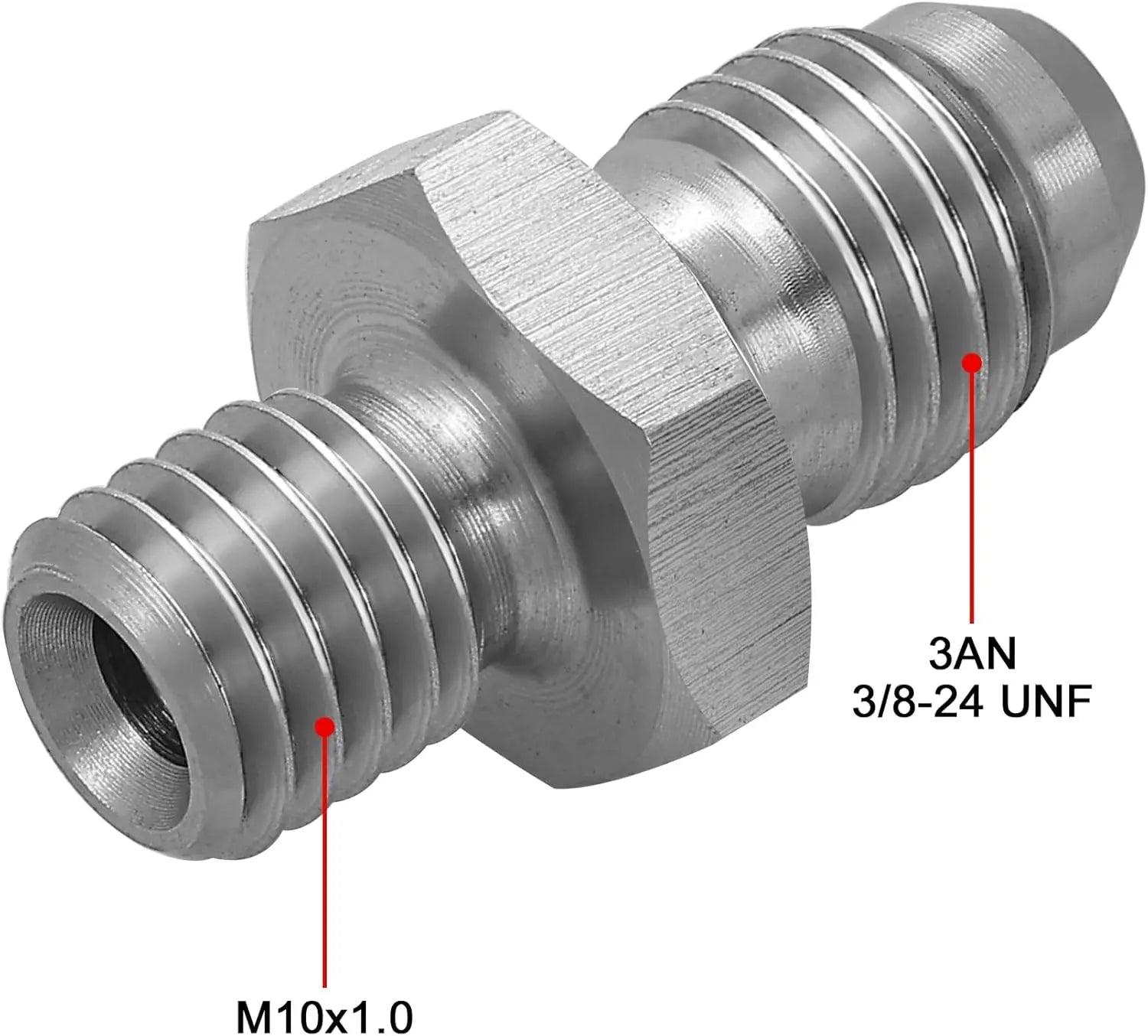

| Actual 3AN choices | M10x1.0, M10x1.25, M10x1.5 |
| Actual 4AN choices | M10x1.0, M10x1.25 |
| Actual 6AN choices | M10x1.5, M12x1.5 |
AN Fittings for Metric Brake Ports
A metric brake component will not accept an AN line merely because the threaded ends look similar. This EVIL ENERGY adapter joins a male AN flare interface to a male metric thread, letting you bridge the two connection types when both mating components and their sealing geometry match.
Check the exact metric diameter and pitch first, then the required AN size. The 3AN options include M10x1.0, M10x1.25 and M10x1.5. Those three M10 threads are different selections; diameter alone is not enough to choose the adapter.
Choose AN Fittings by Pitch
- For a 3AN line: choose the complete AN3-to-M10 pitch required by the metric component.
- For a 4AN line: actual options include M10x1.0 and M10x1.25.
- For a 6AN line: actual options include M10x1.5 and M12x1.5.
- Check both seats: the AN side uses a 37-degree flare. Confirm the metric component's intended sealing arrangement separately.
Use the offered complete pair rather than combining independent size mentions into an unlisted configuration. A thread that starts to engage does not prove that its pitch or sealing seat is correct.
Why Choose These AN Fittings?

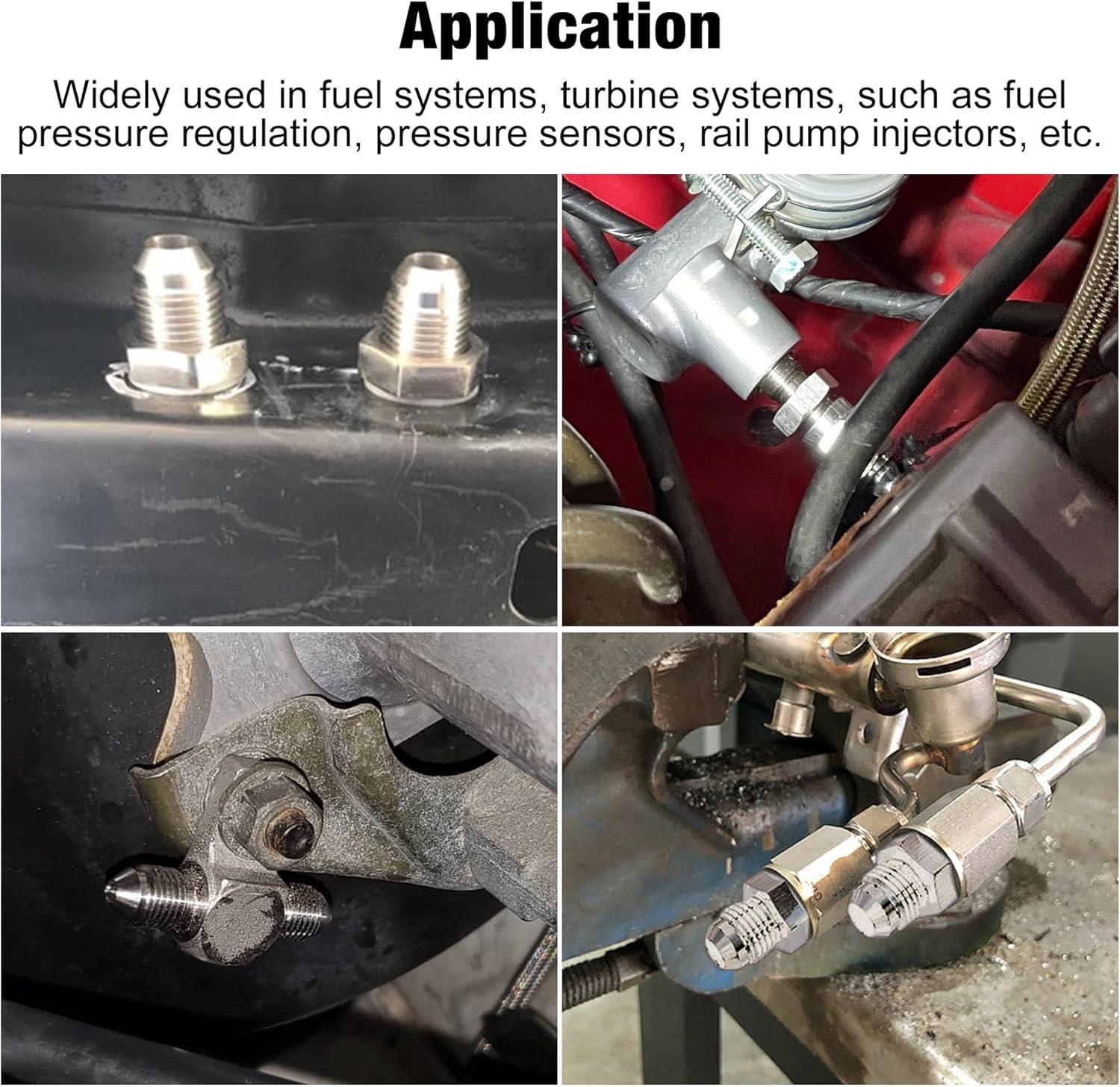

The 304 stainless-steel body provides the specified AN-to-metric transition in a straight adapter. Choose it when the connection needs that exact interface pair, including the described brake-line, coolant or fuel-system assembly with matching component requirements.
Material does not compensate for an incorrect pitch or seat. Identify the metric port and AN line end before deciding which option to order, and allow space for the adapter and both adjoining components.
Installing AN Fittings Without Cross-Threading

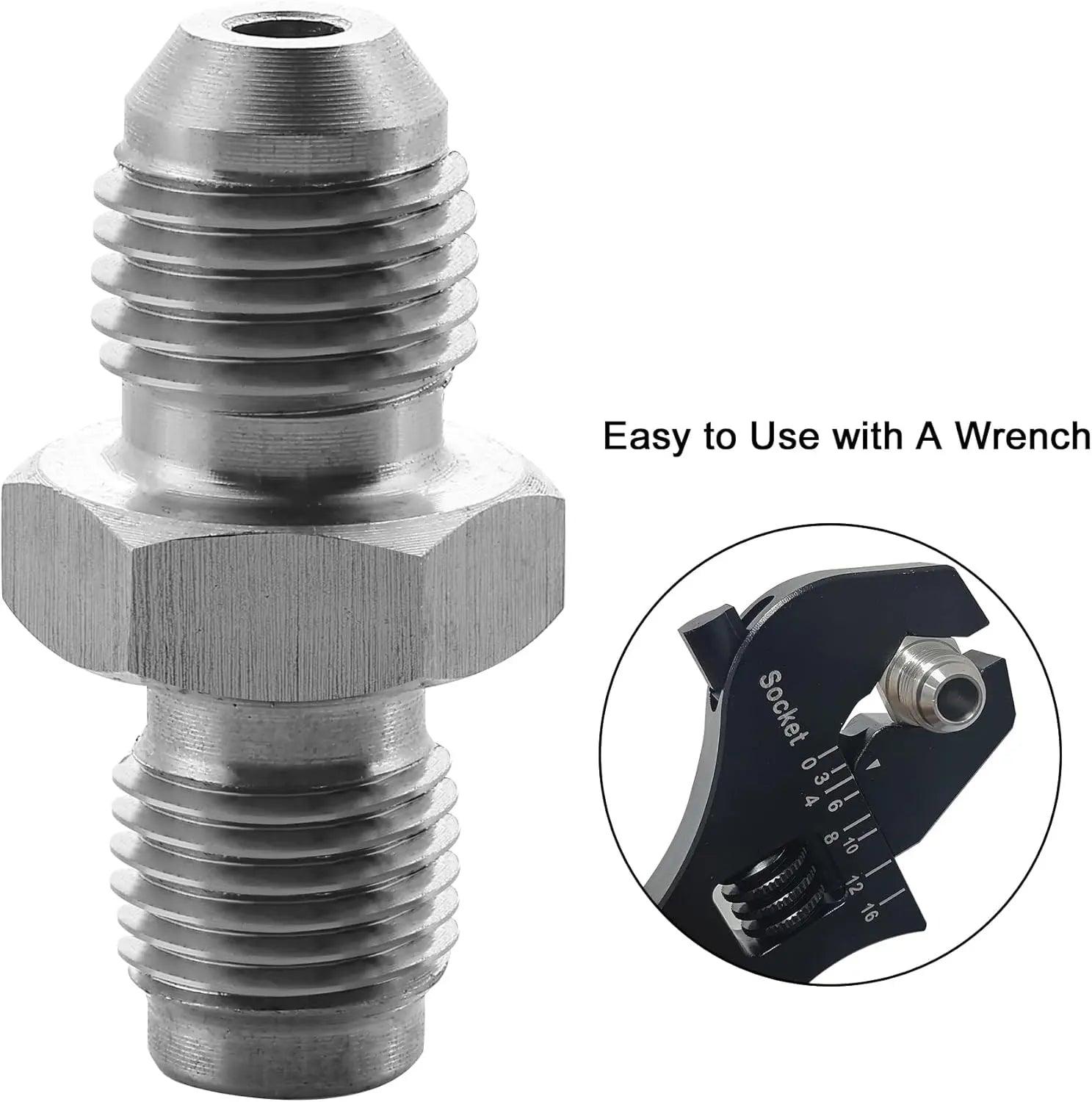

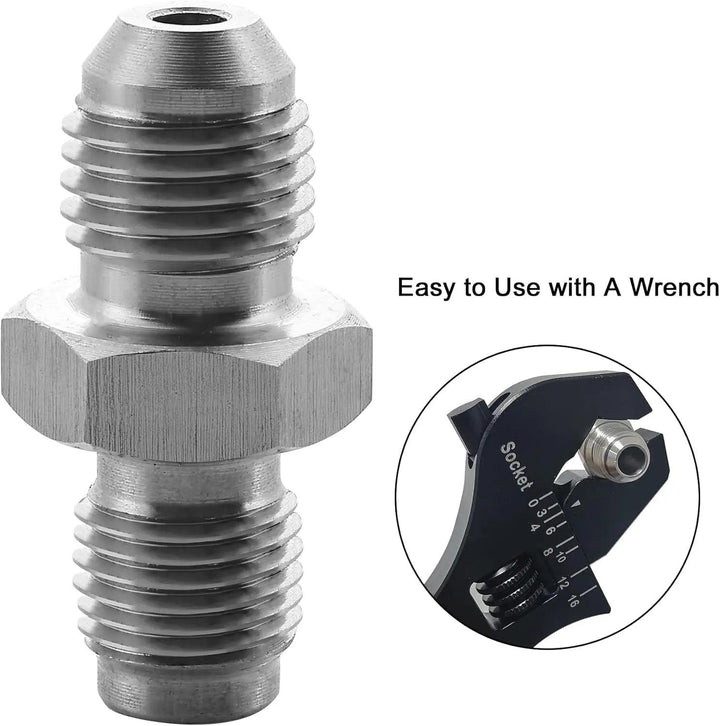

Align the adapter with the component before engaging the threads. Stop if it does not start squarely or the pitch does not match; forcing a different M10 pitch can damage the connection and create a leak path. Check cleanliness and condition at both sealing interfaces.
If fluid appears after assembly, inspect the AN flare joint separately from the metric joint. Locate and correct the mismatch, damage or alignment problem before using the system. Follow the actual component procedure rather than applying an assumed torque or number of turns.
