EVIL ENERGY AN to Carburetor Fuel Inlet Fitting Adapter

Q: What are the connections on the 6AN to 5\/8-20 option?

This one-piece option connects a 6AN male flare with a 9\/16-18 UNF thread to a 5\/8-20 UNF male carburetor inlet thread.

SPECIFICATIONS
DESCRIPTION
SHIPPING & RETURN
VIDEOS & BLOGS
FAQS
REVIEWS

SPECIFICATIONS

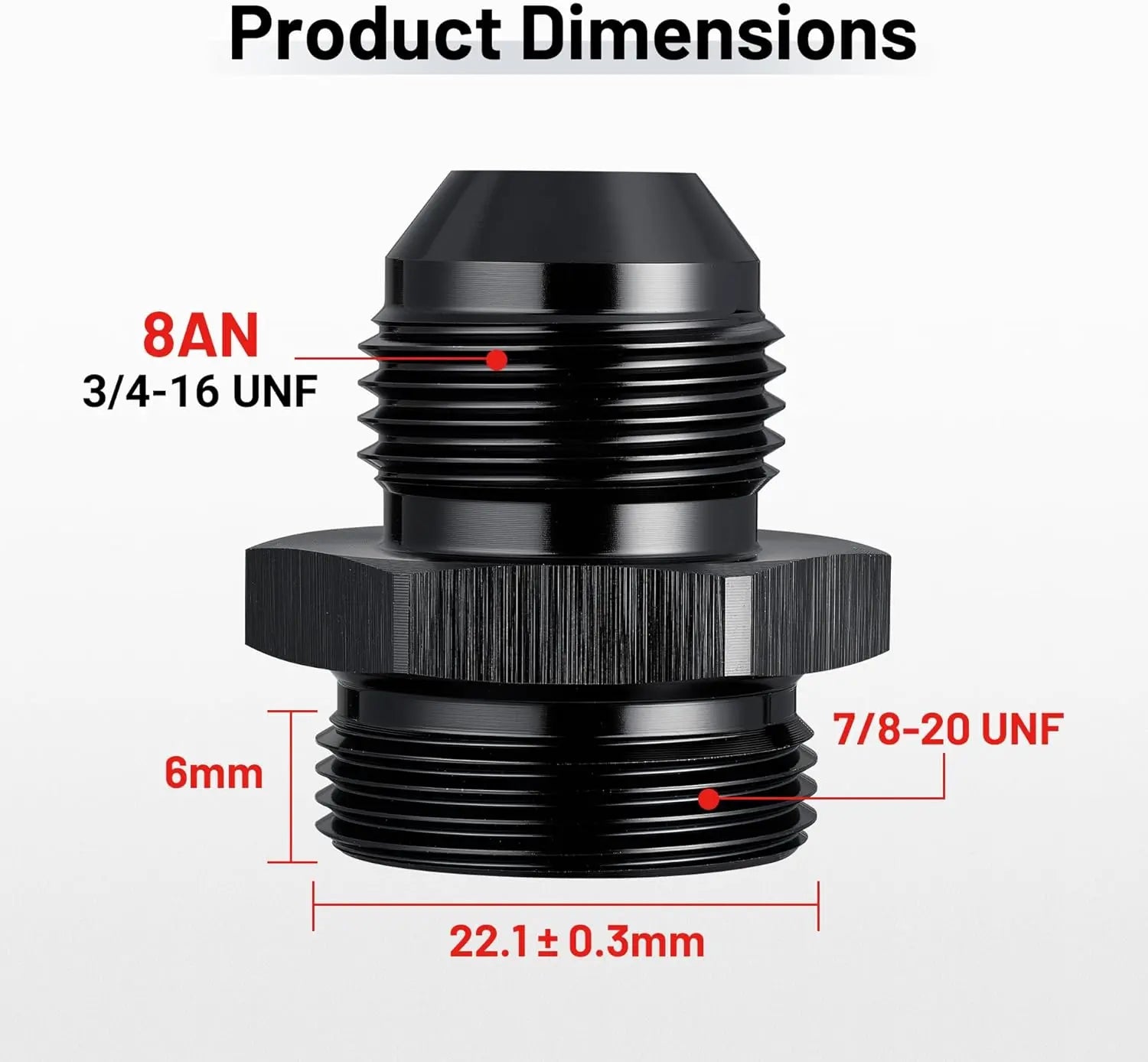

Connection options	6AN or 8AN male flare to 5/8-20 or 7/8-20 male thread
Adapter style	Straight

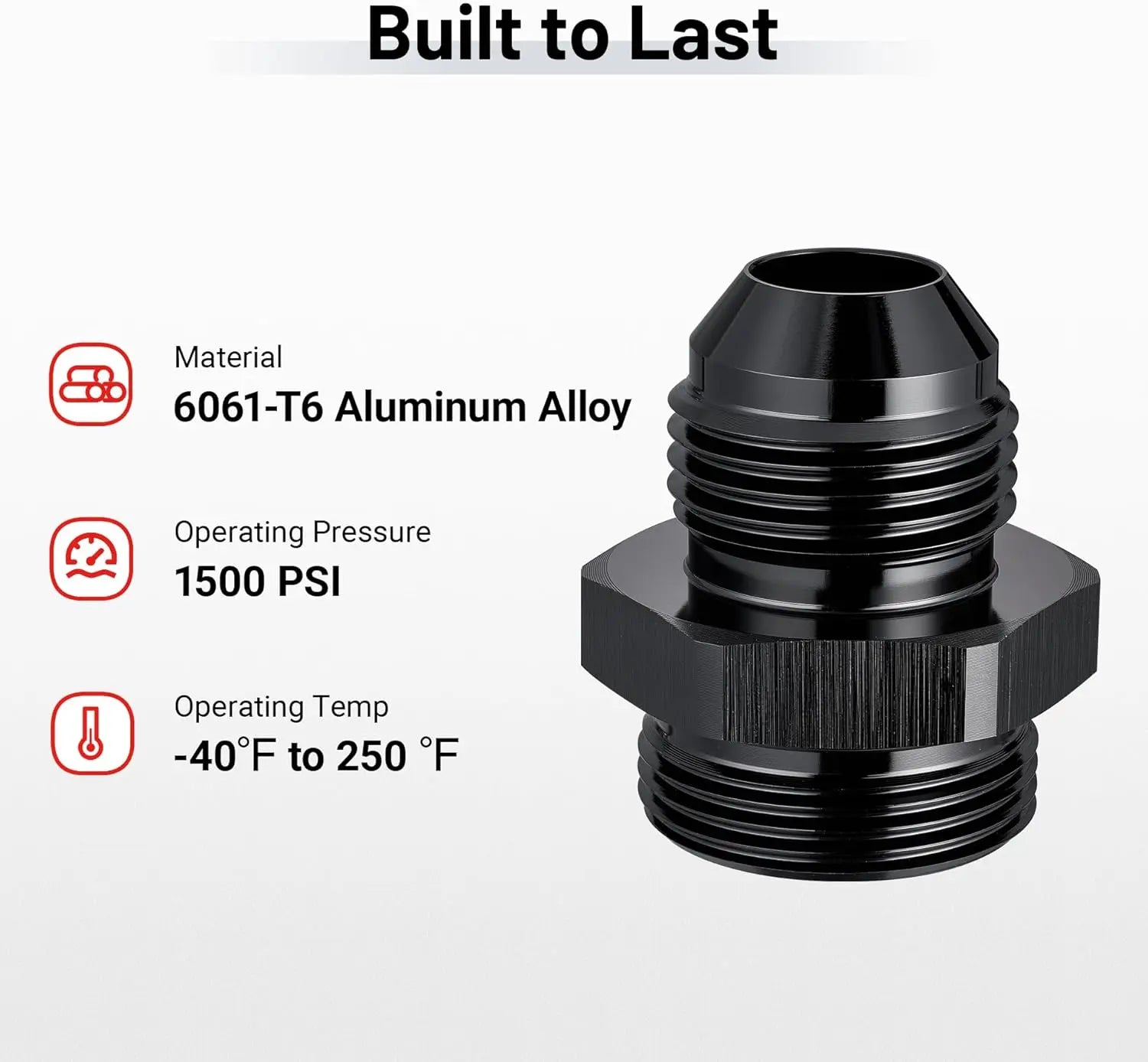

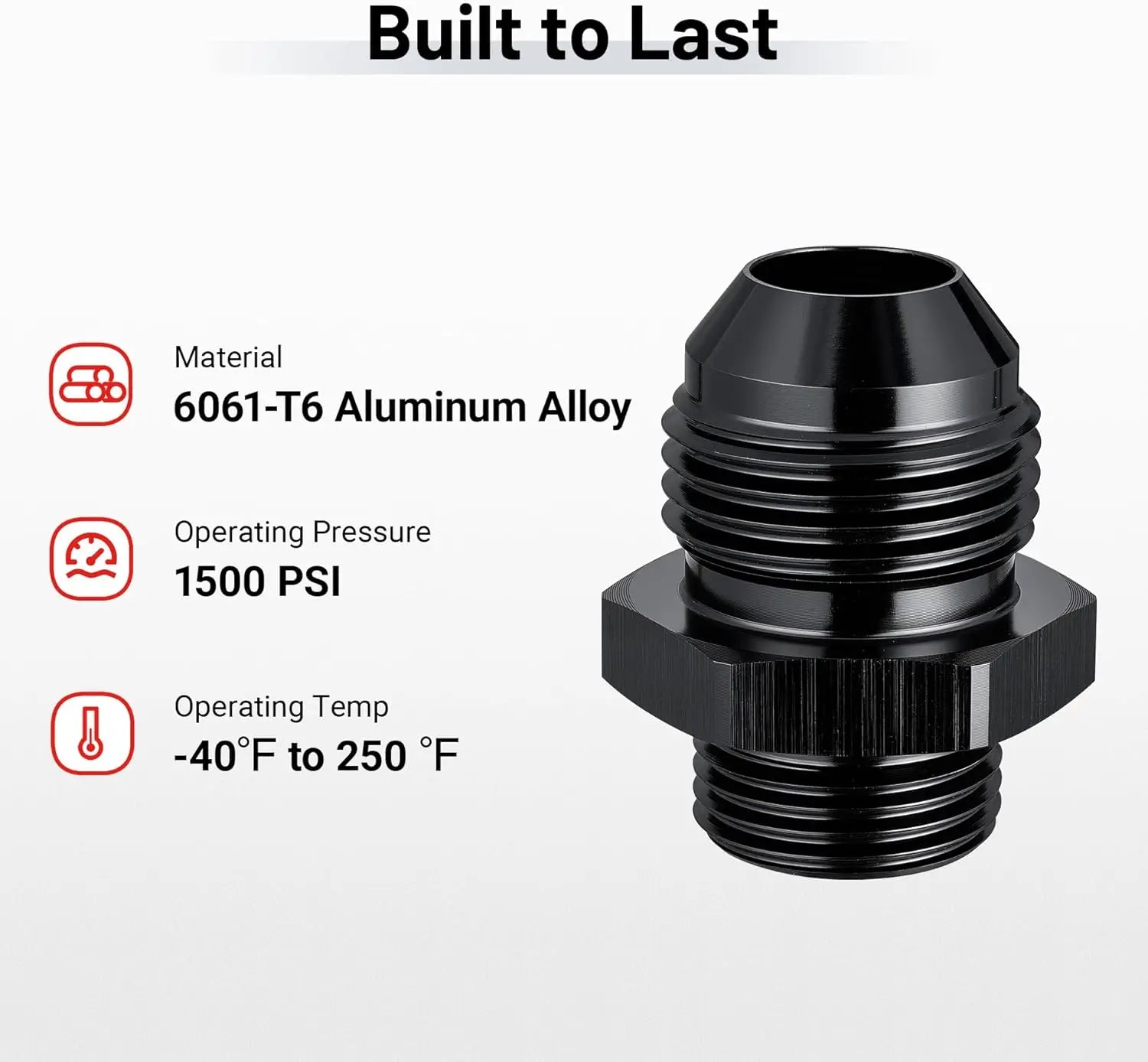

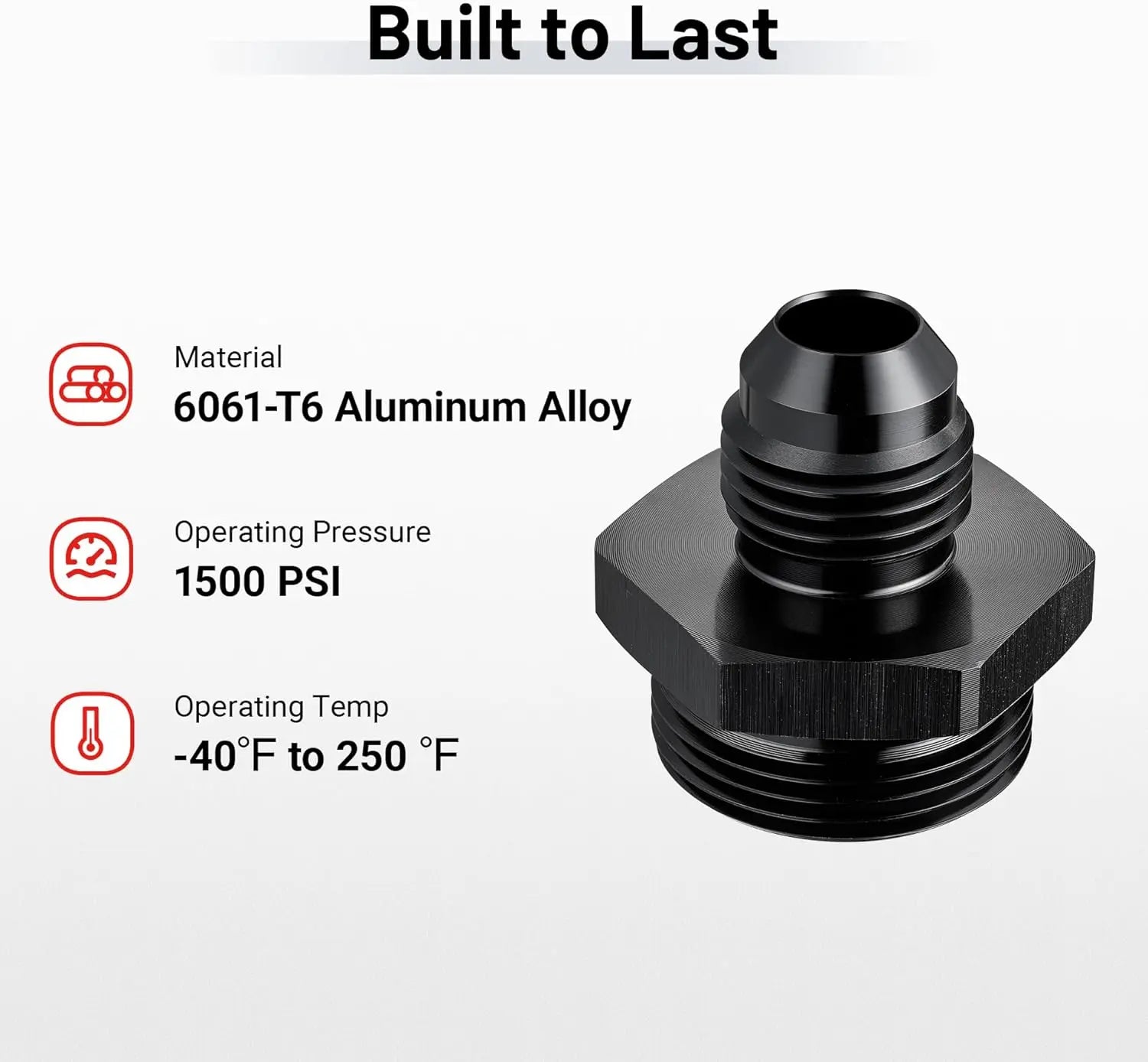

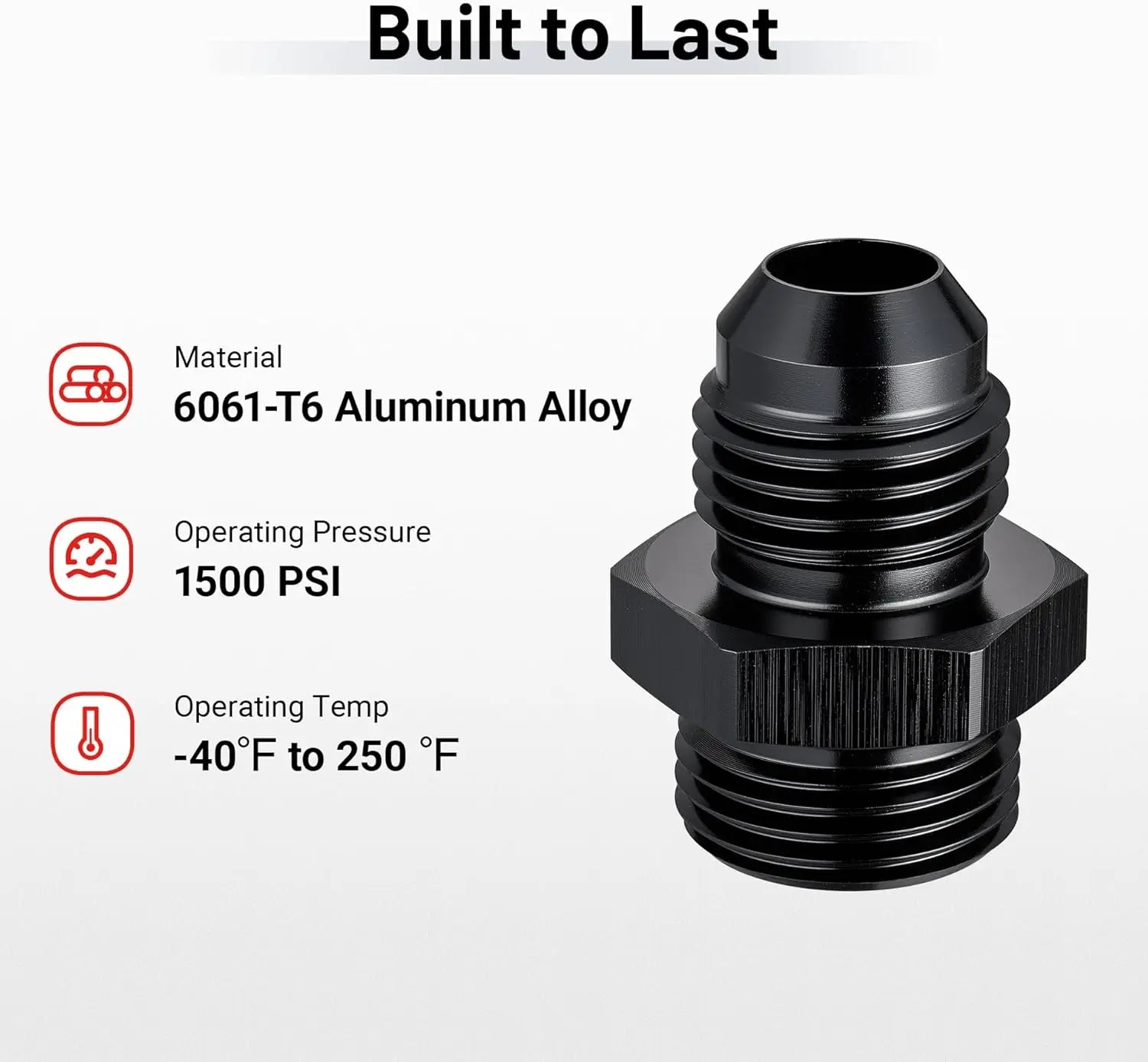

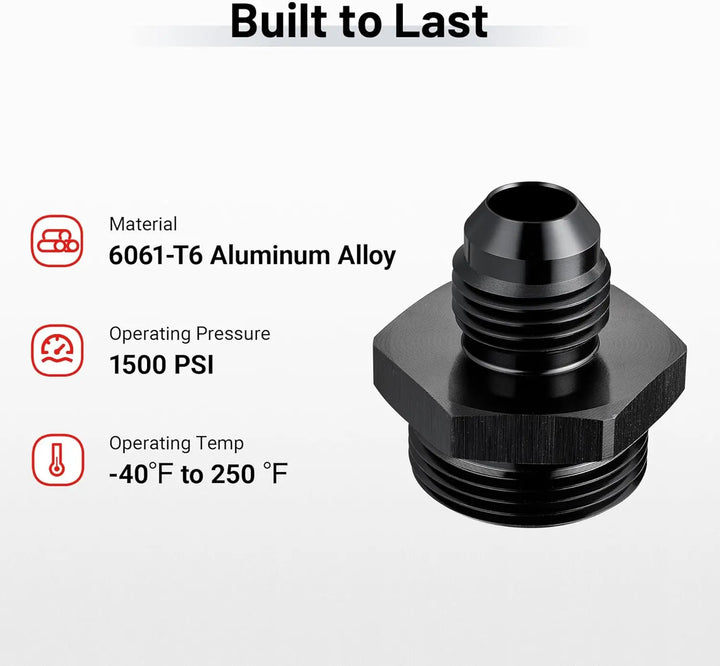

Material	6061-T6 aluminum alloy
Finish	Black
AN sealing surface	37-degree flare
Maximum working pressure	1,500 psi
Working temperature	-40°F to 250°F
Package options	1 or 2 adapters with matching aluminum sealing washer(s)

DESCRIPTION

AN to Carburetor Fuel Inlet Adapter

Connect a 6AN or 8AN fuel line hose end to a compatible 5/8-20 or 7/8-20 carburetor inlet. The straight aluminum body is designed for fuel-system layouts with enough clearance for the hose to approach the inlet without a tight bend or side load.

Fuel System Applications

Straight Fuel-Line Routing

Use the straight adapter when the fuel hose can run directly toward the carburetor inlet. Check the space around the fuel bowl, linkage, air cleaner, and nearby engine components before choosing the hose route.

Single and Dual Inlet Layouts

Select one adapter for a single compatible inlet. Choose two matching adapters when the fuel-system layout uses two inlets with the same thread size. Confirm both ports before ordering because inlet sizes can differ between carburetor configurations.

6AN and 8AN Fuel-Line Connections

Match the AN side to the hose end already used in the fuel system. Choose 6AN for a 6AN hose end or 8AN for an 8AN hose end, then match the opposite side to the carburetor inlet thread.

Choose the Correct Connection

AN Size	Carburetor Thread	Package Quantity
6AN	5/8-20	1 or 2 pieces
6AN	7/8-20	1 or 2 pieces
8AN	5/8-20	1 or 2 pieces
8AN	7/8-20	1 or 2 pieces

Installation and Sealing

AN Flare Connection

The AN side seals at the 37-degree flare surface. Keep the flare clean and correctly aligned; the threads provide clamping force and are not the sealing surface.

Carburetor Inlet Connection

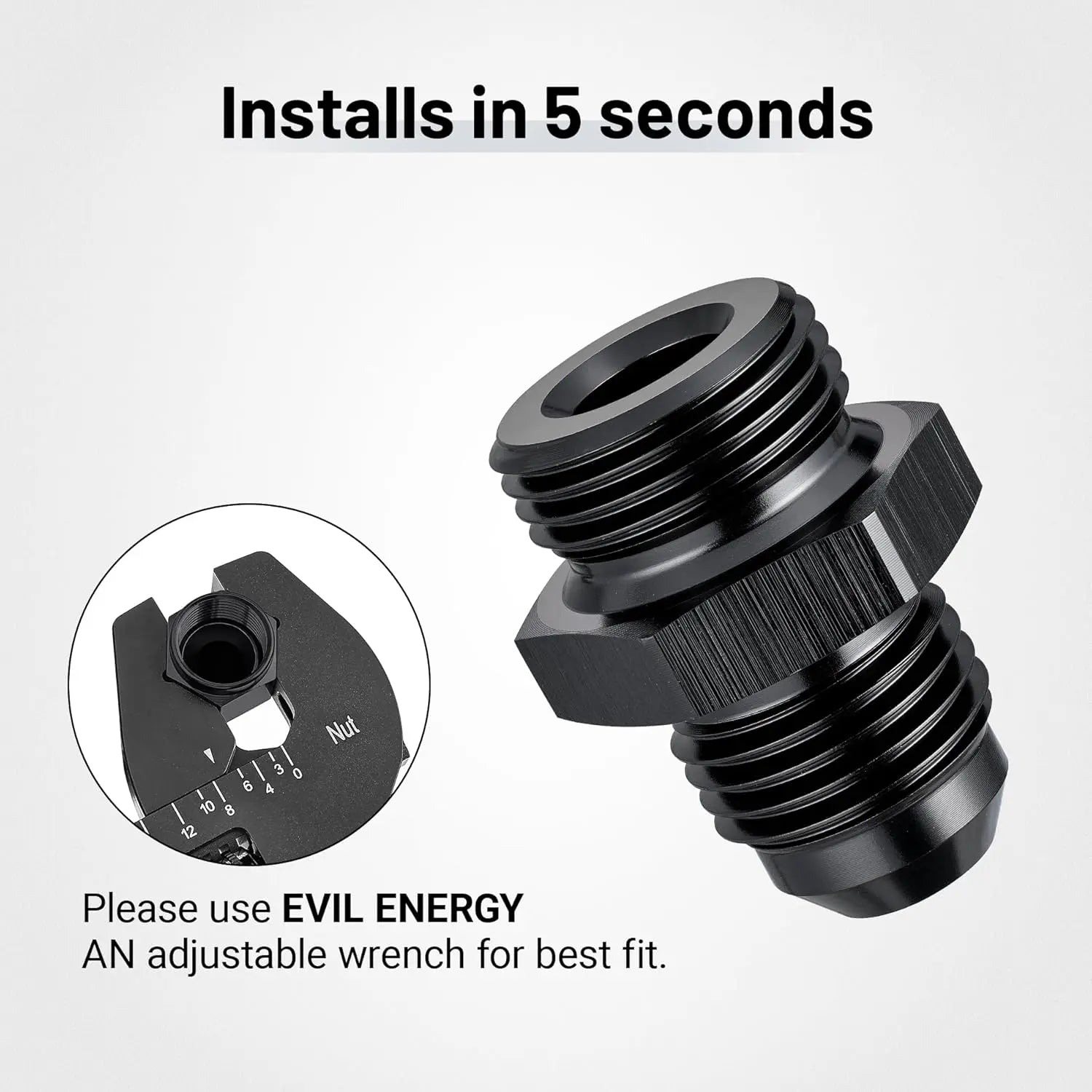

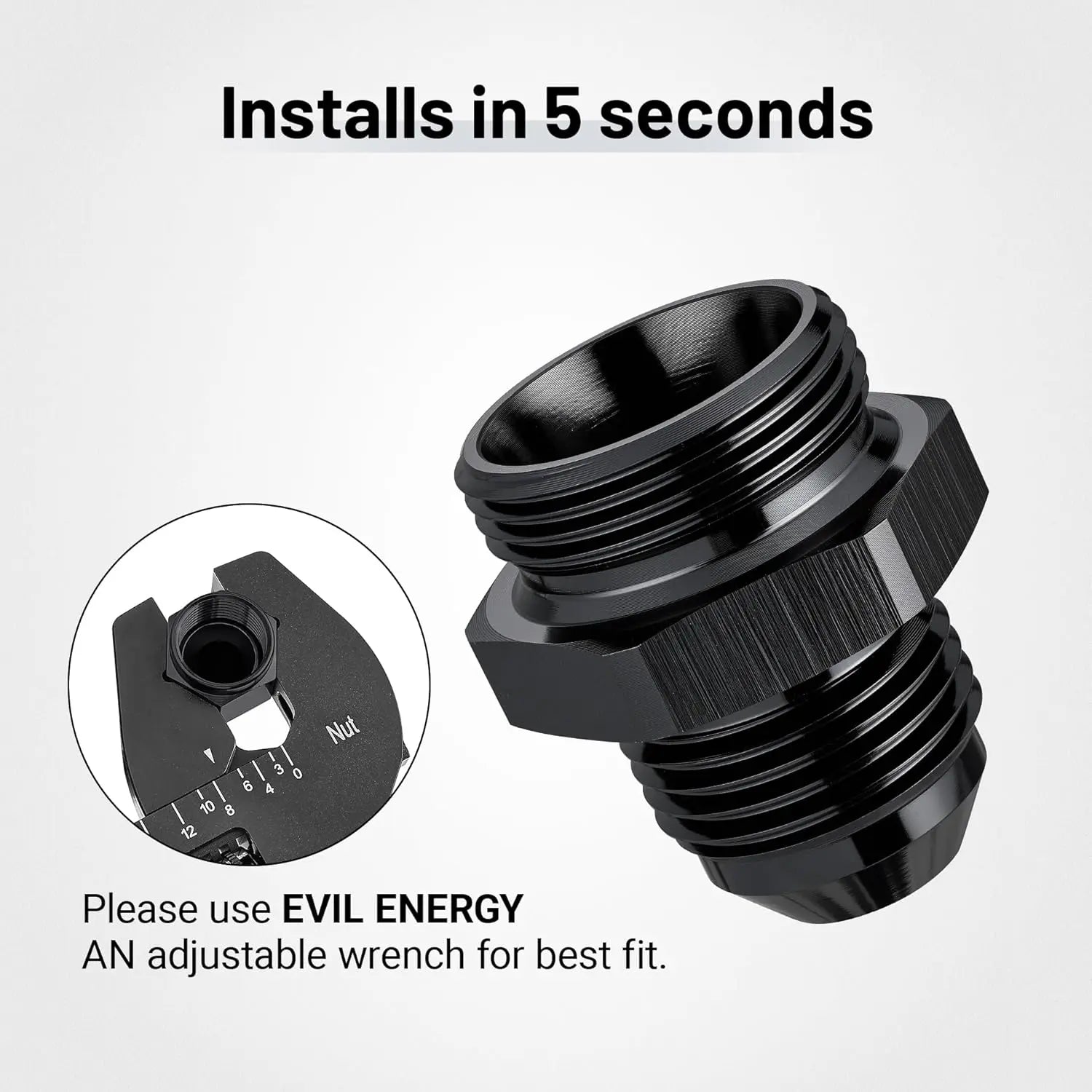

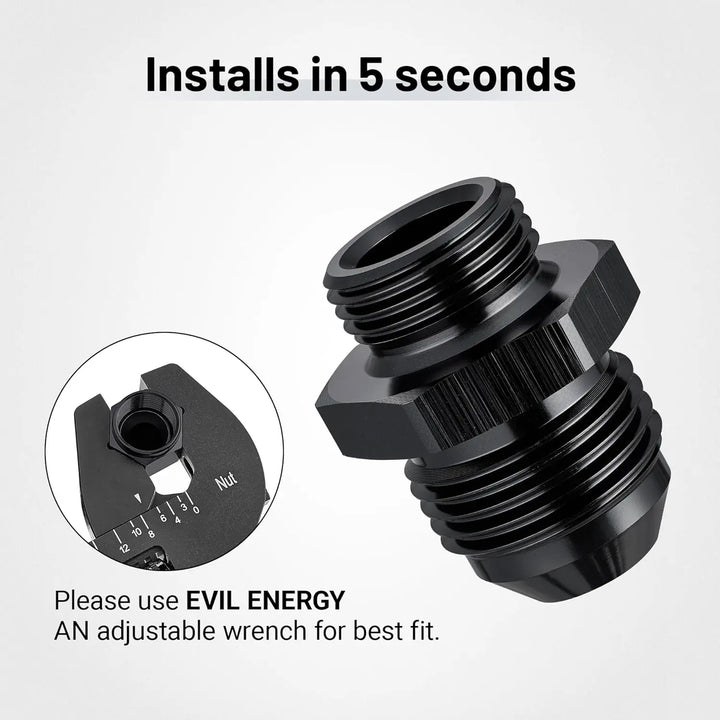

Use the matching aluminum sealing washer on the carburetor side. Start the fitting by hand, keep it square to the port, and stop if the threads bind or do not engage smoothly.

Leak Check Before Operation

After assembly, inspect the connection under the intended operating conditions before driving. If fuel appears around the joint, stop operation, depressurize the system, and inspect the thread size, flare seat, sealing washer, alignment, and threads before reassembly.

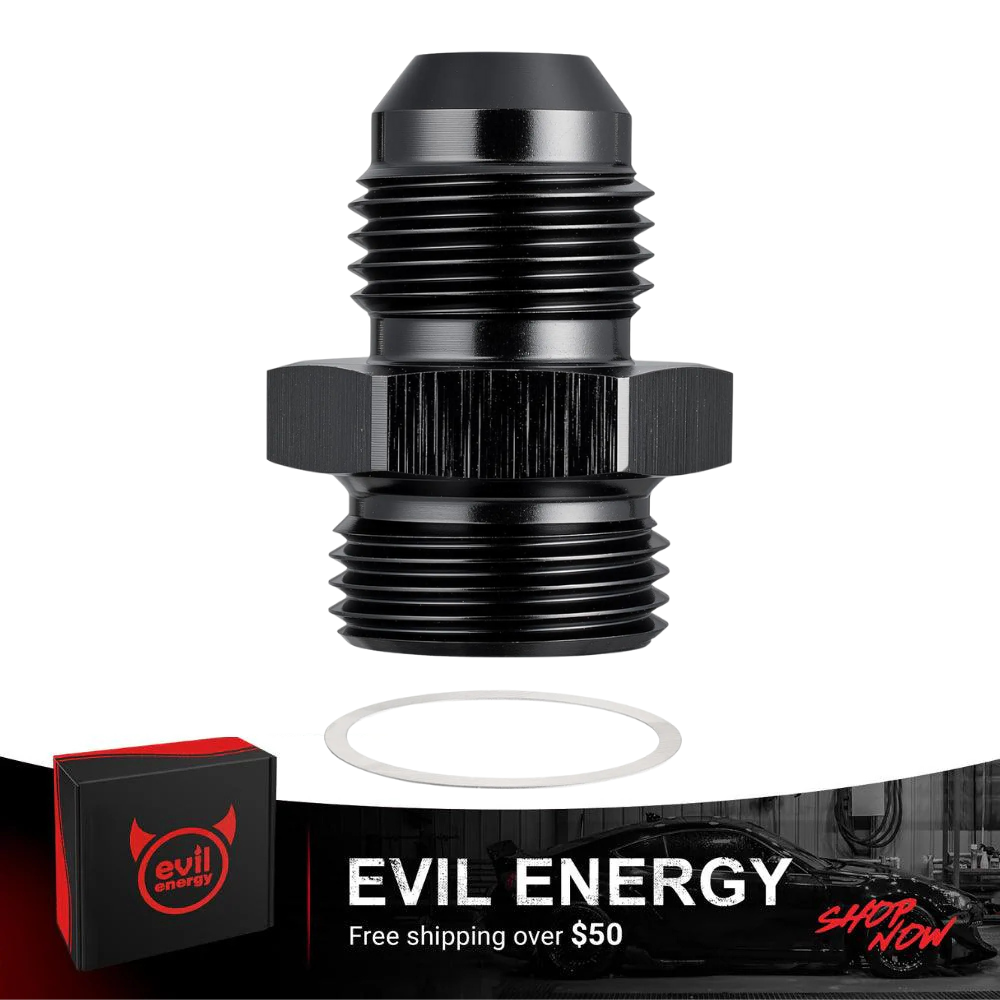

Straight black AN to carburetor fuel inlet adapter connection options

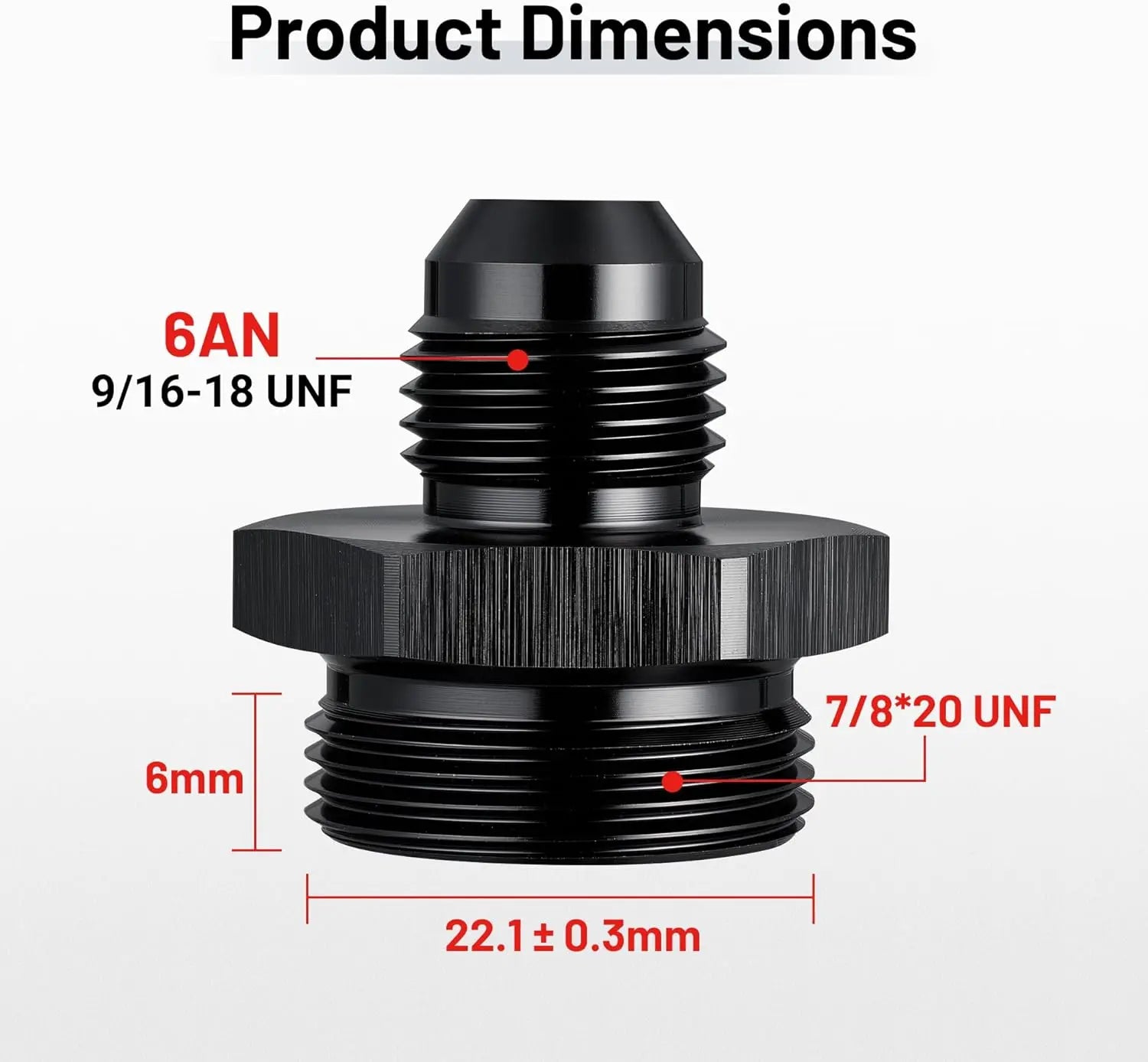

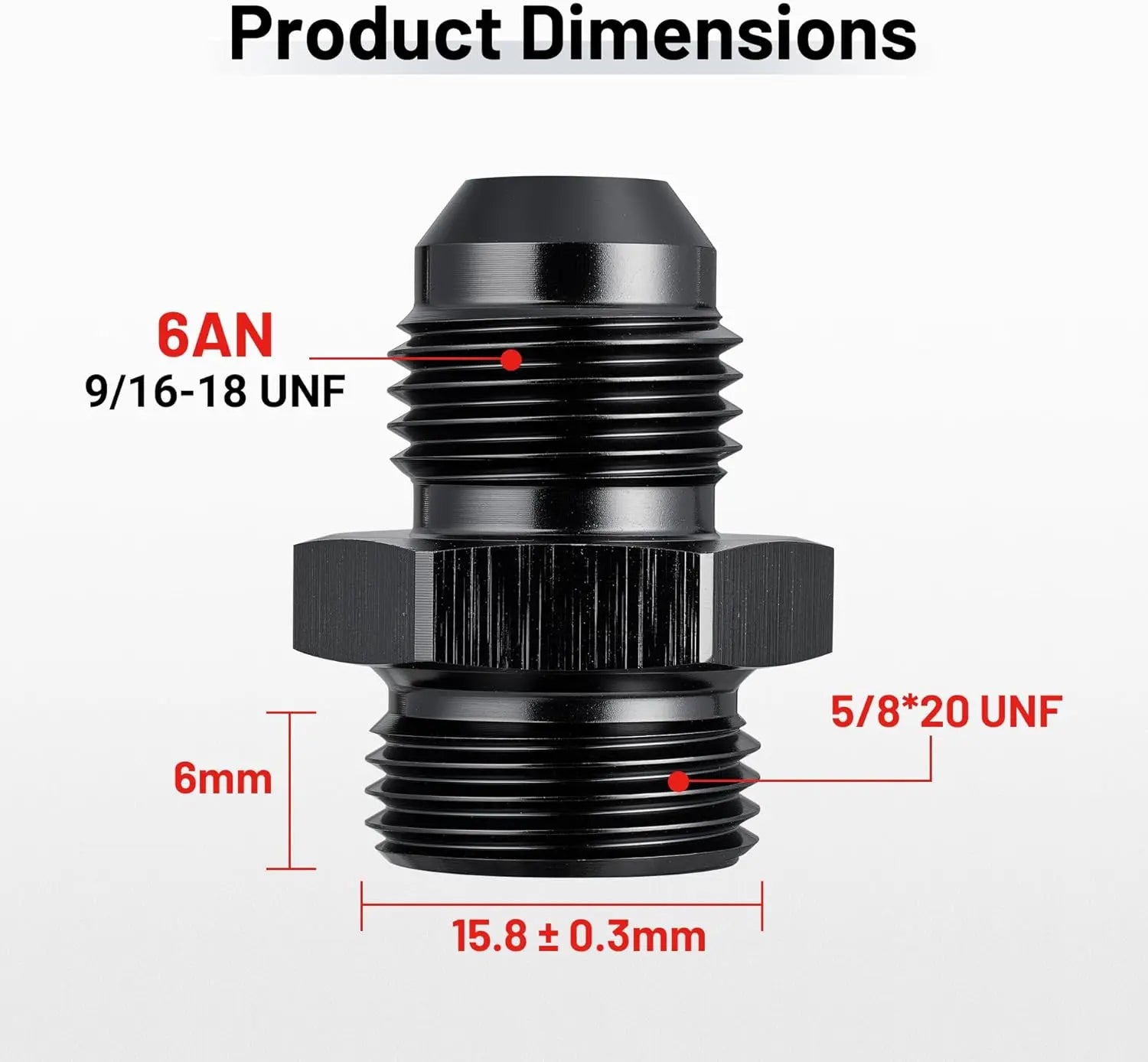

6AN male flare dimensions for the carburetor fuel inlet adapter

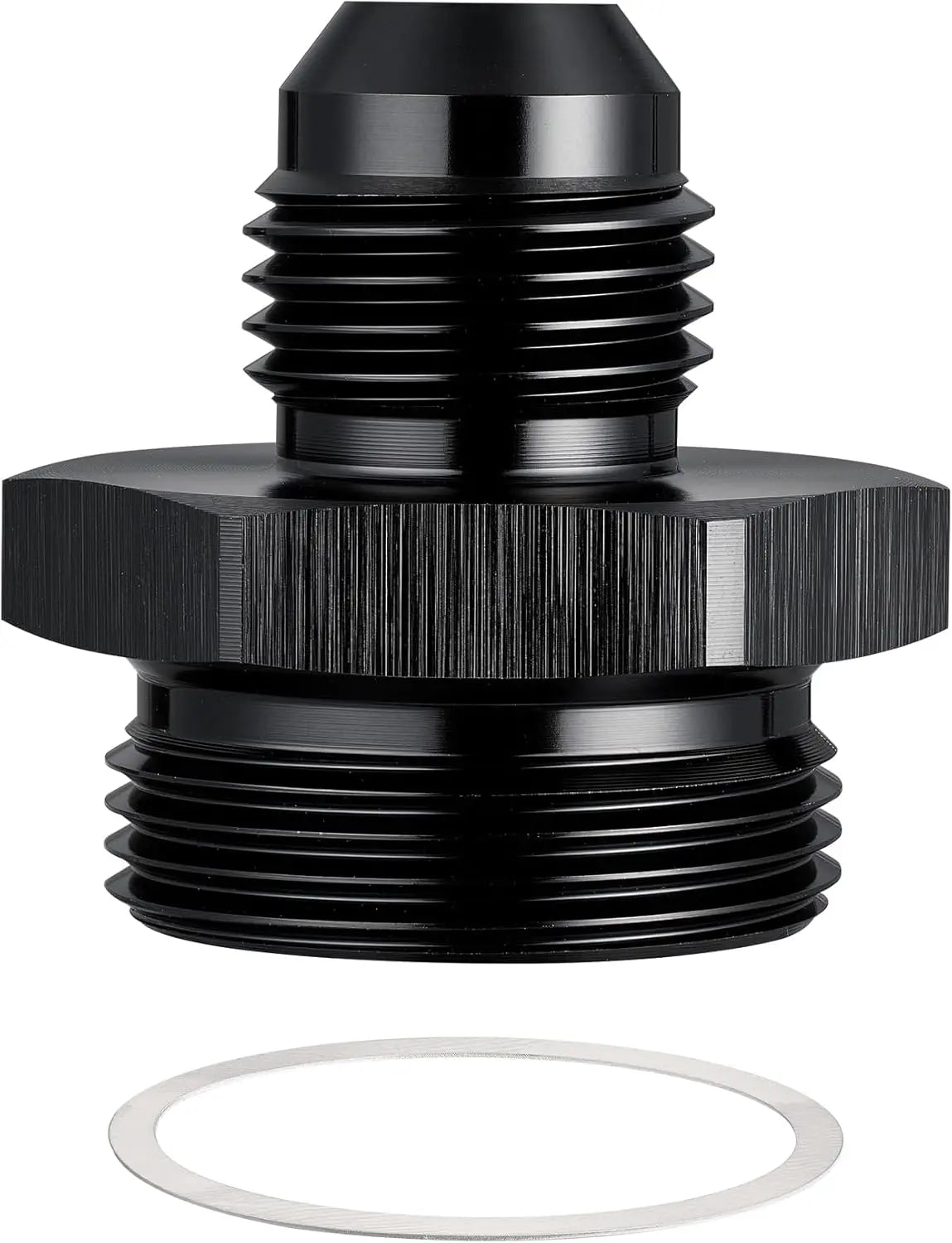

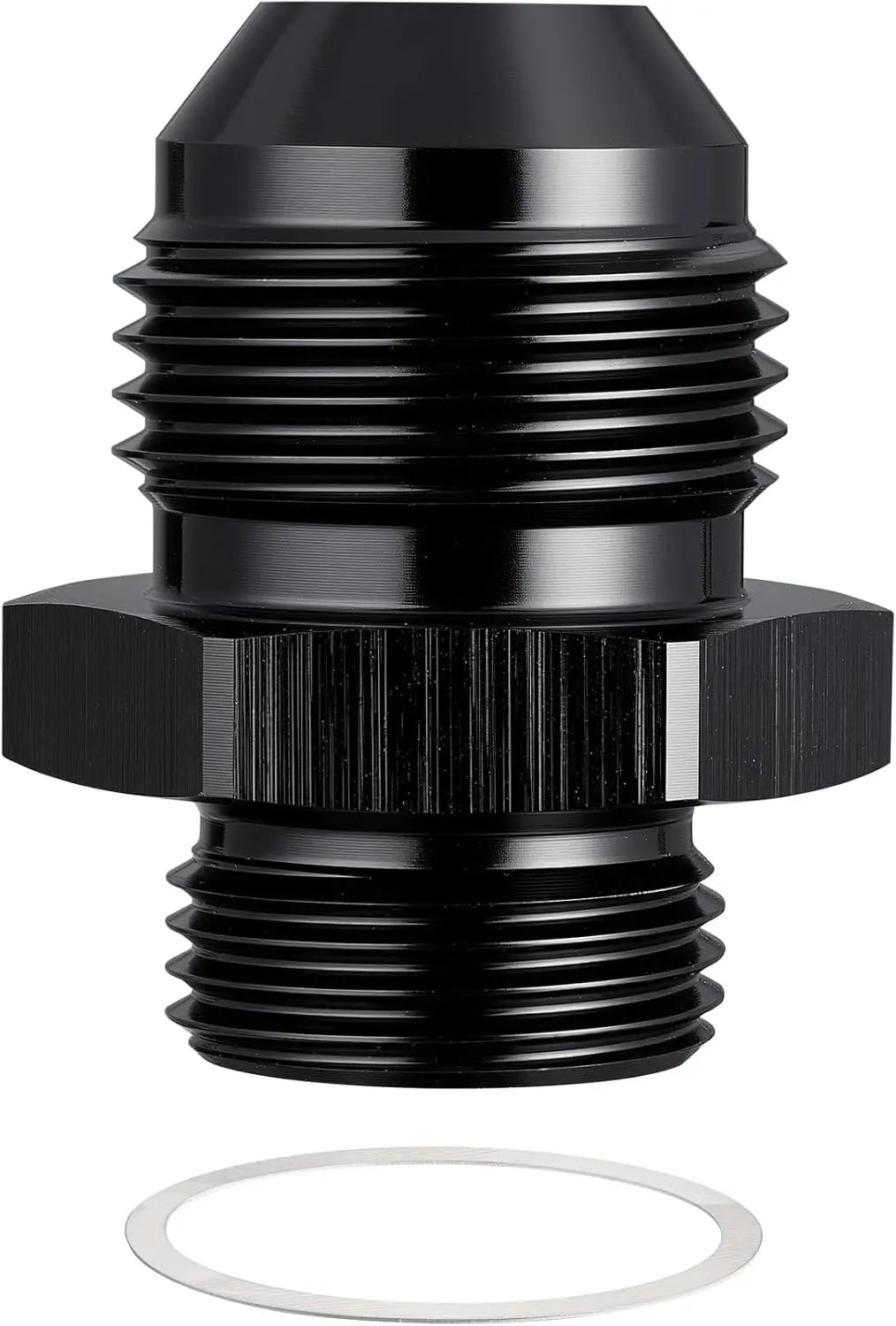

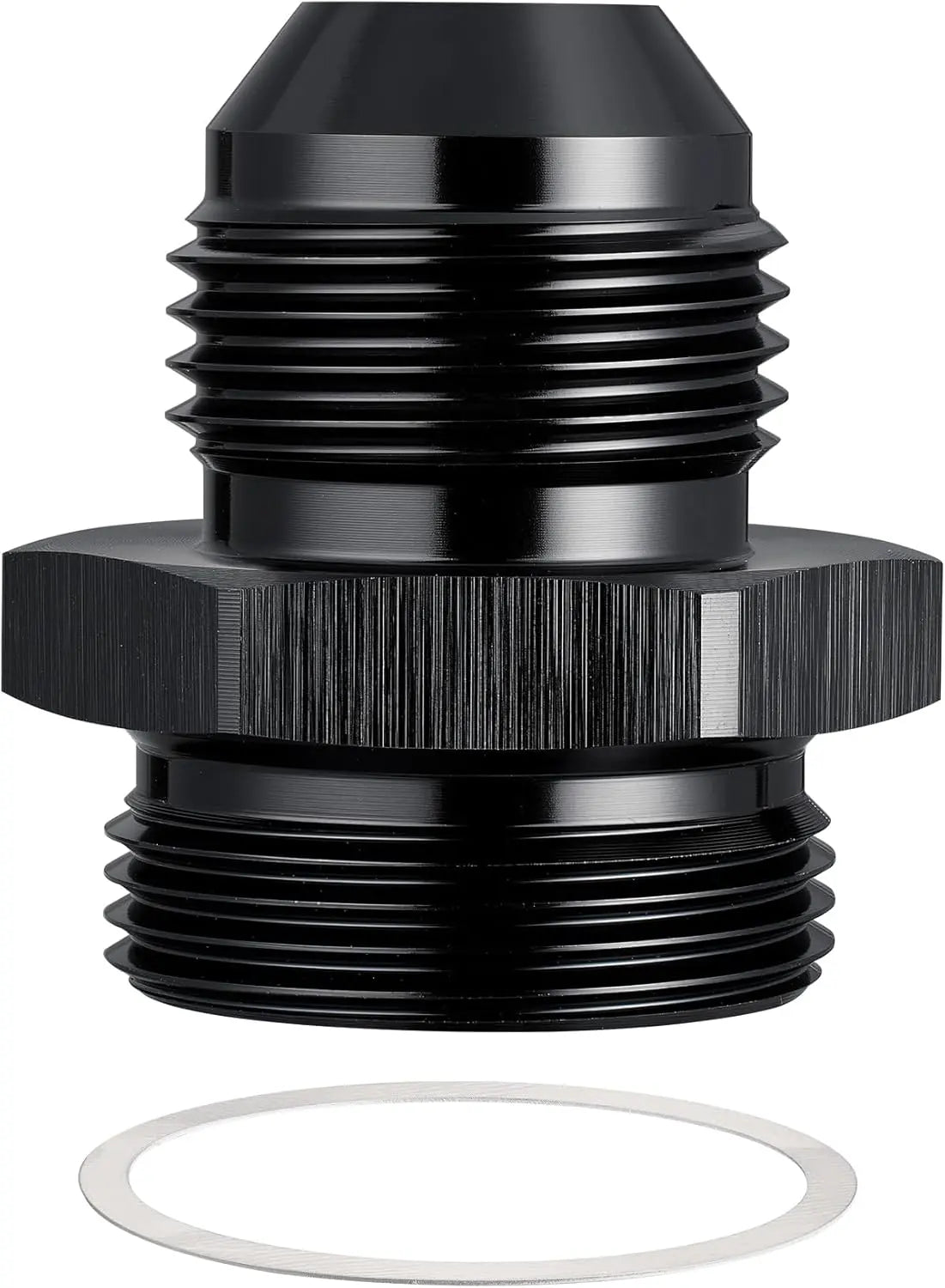

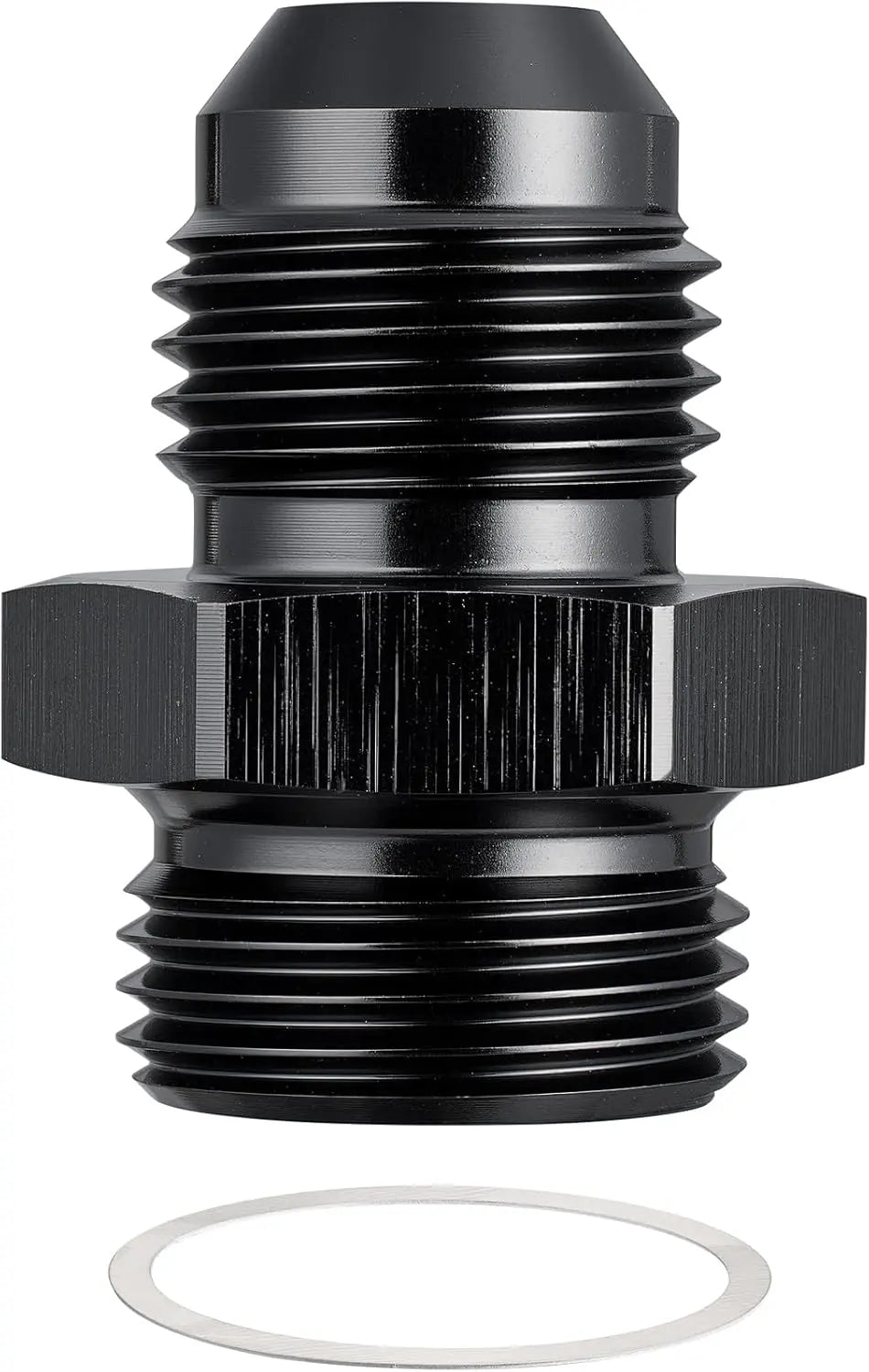

Black aluminum fuel inlet adapter body and sealing surfaces

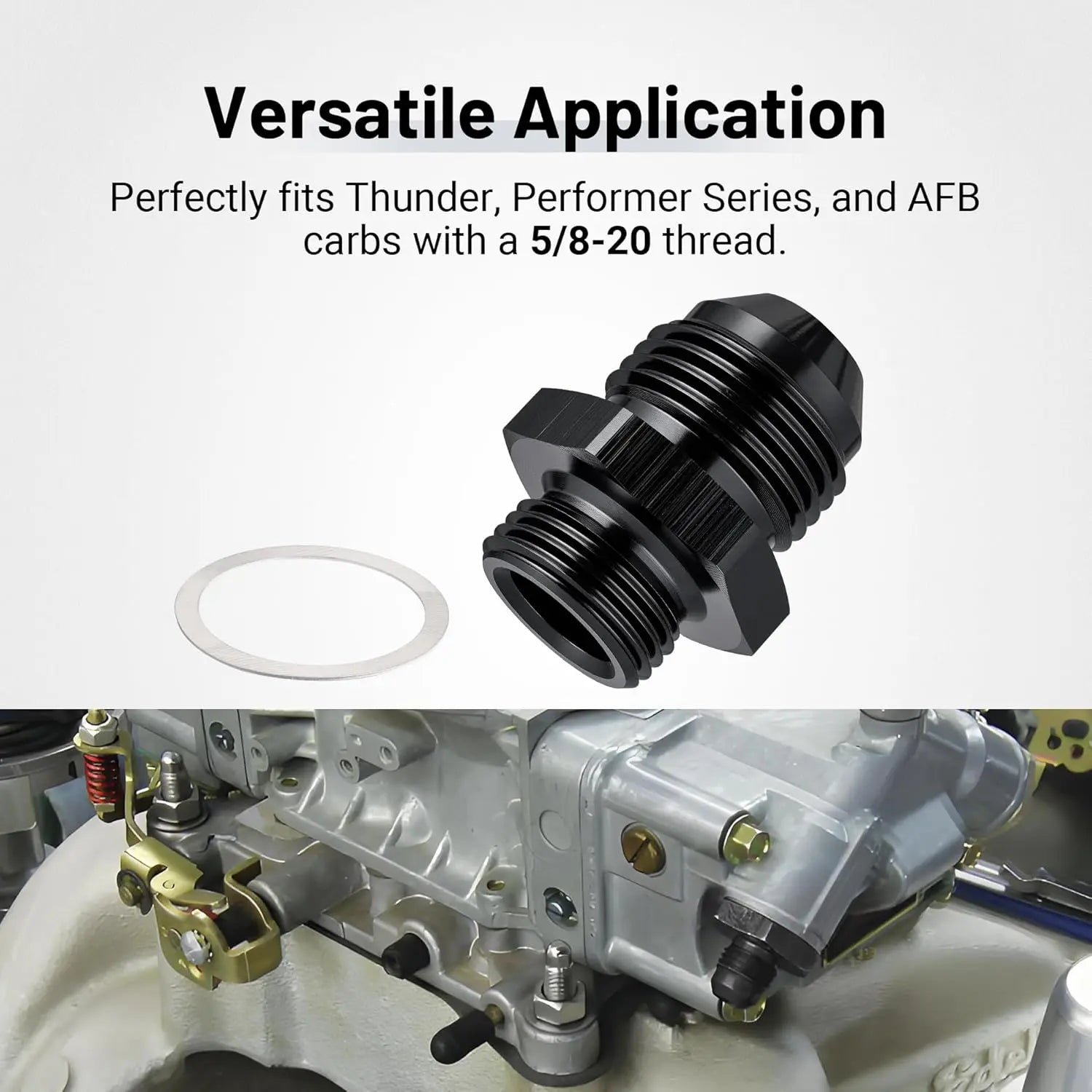

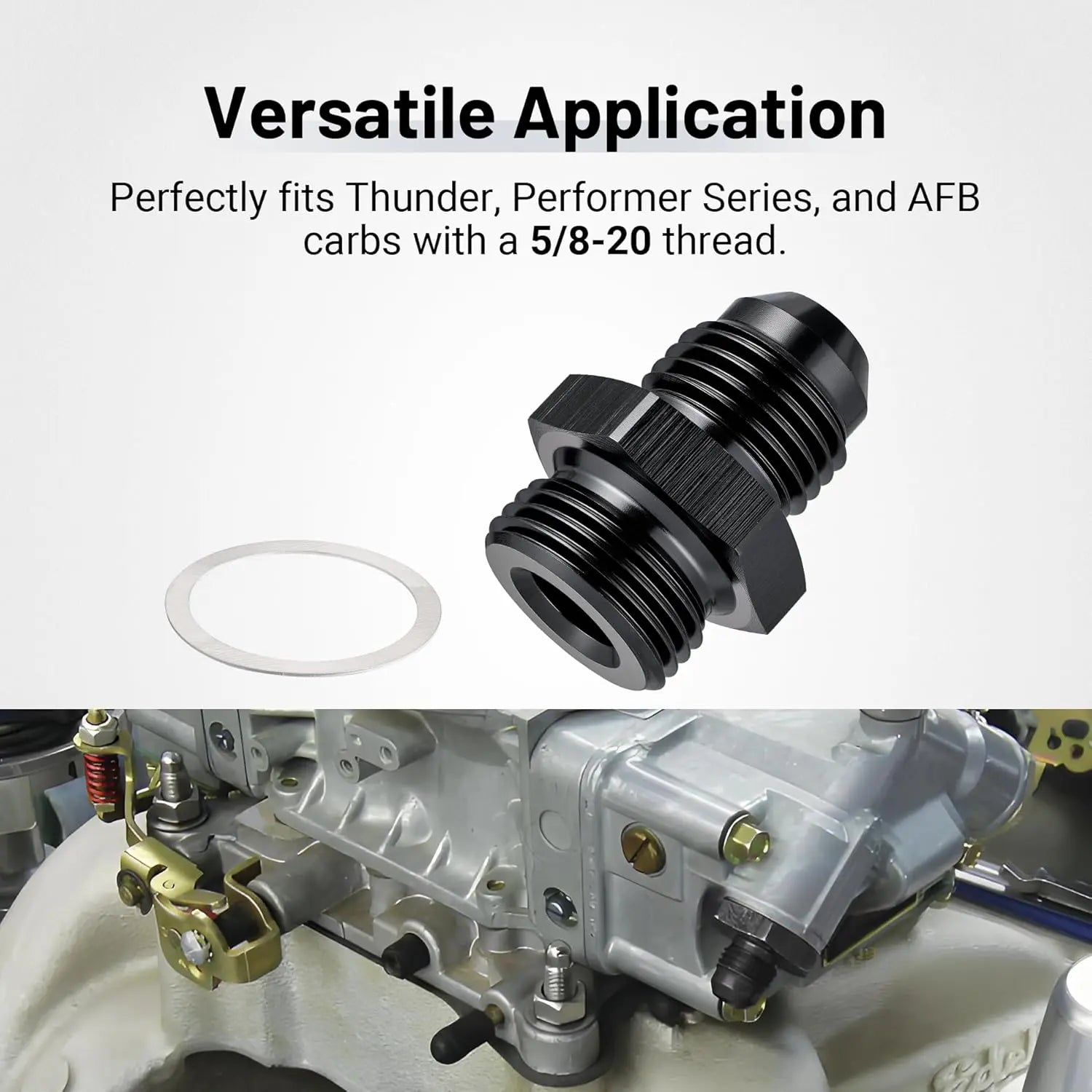

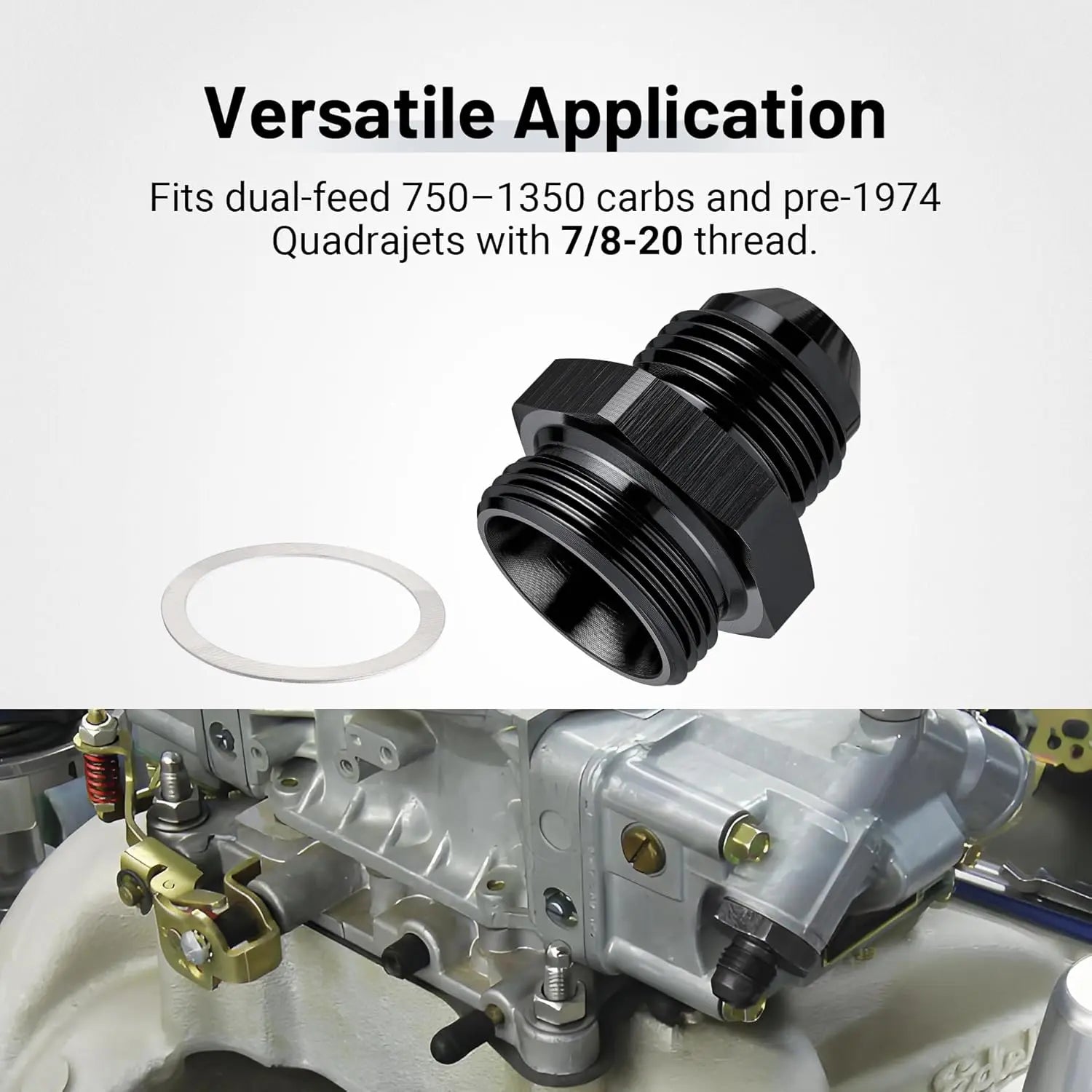

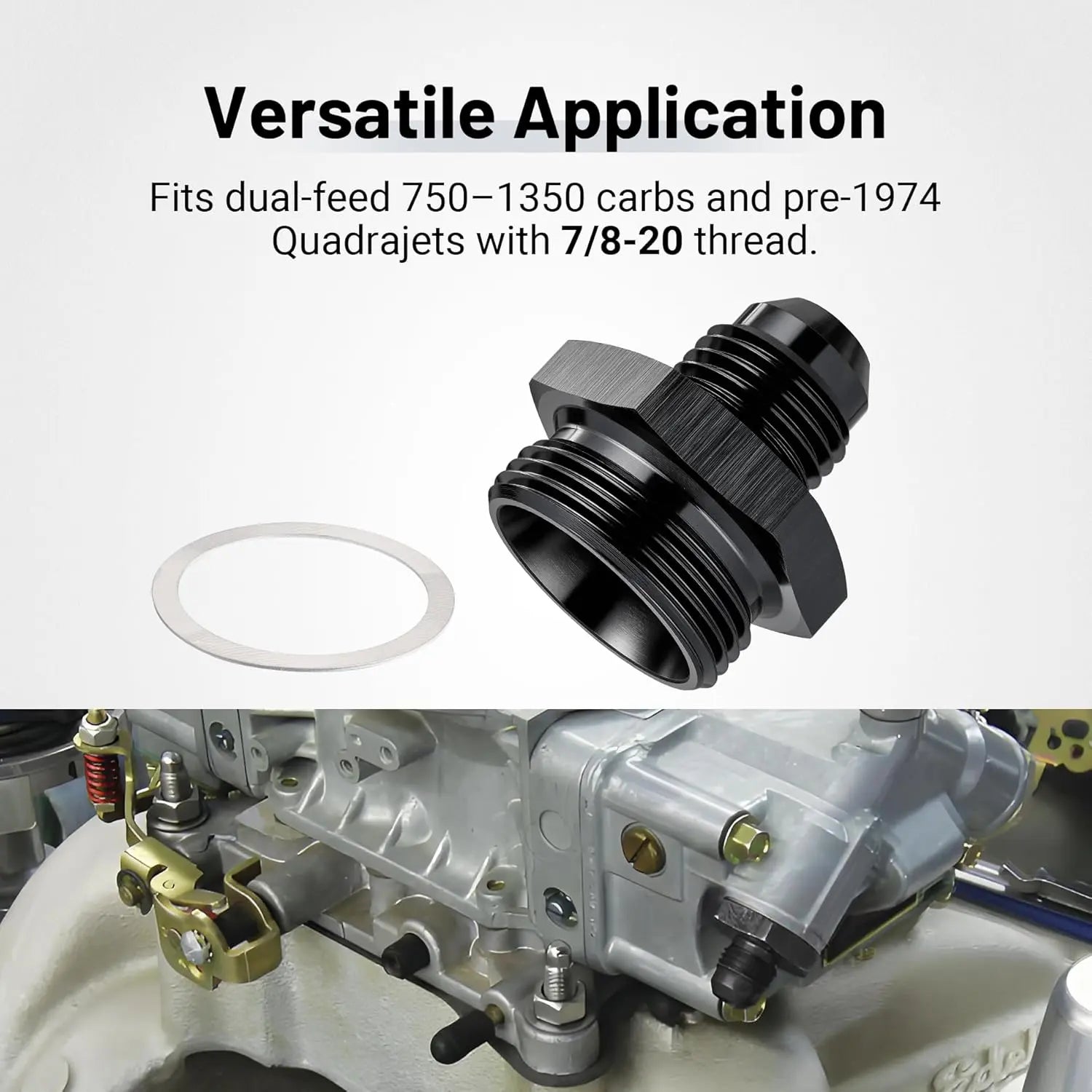

Straight AN fuel line adapter connected to a compatible carburetor inlet

SHIPPING & RETURN

Brand Summary

Policy	Details
Cancellation Policy	Orders can be canceled within 48 hours of placement. Refund processed in 3-5 business days.
Returns Policy	Returns accepted within 180 days. Full refund within 90 days; 15% fee for 90-180 days.
Non-Returnable Items	Only regular-priced items are eligible for refunds; sale items are non-refundable.
Refund Processing	If no refund received, check your bank/credit card. For ongoing issues, contact support@ievilenergy.com.

Return Reasons

Quality Issues: Provide photos/videos; we cover return shipping.
Wrong Item Ordered: Buyer covers return shipping; email within 30 days.
Change of Mind: Buyer covers return shipping; email within 30 days.
Shipping Damage: Inspect packages; do not sign for damaged items.
Incorrect Item Shipped: Contact within 7 days.

Price Protection Policy

Effective from August 25, 2024. Price drops within 7 days of purchase can be claimed.

Disclaimer

EVIL ENERGY reserves the right to interpret, modify, or terminate this policy in accordance with applicable laws and regulations.

If you need further information or assistance, feel free to ask!

VIDEOS & BLOGS

Product Videos

FAQS

Q: What are the connections on the 6AN to 5/8-20 option?

A: This one-piece option connects a 6AN male flare with a 9/16-18 UNF thread to a 5/8-20 UNF male carburetor inlet thread.

Q: How do I choose the correct AN to carburetor adapter?

A: Match the AN size to the hose end, then confirm the carburetor port is 5/8-20 or 7/8-20. Do not select by carburetor brand alone; verify the actual port thread.

Q: Will this adapter fit every carburetor?

A: No. Carburetor inlet sizes and sealing arrangements vary by model and configuration. Confirm the port thread and available clearance before ordering.

Q: Where does the AN side seal?

A: The AN connection seals at the 37-degree flare surface. The threads provide clamping force, so thread sealant is not the sealing method at the AN flare.

Q: How does the carburetor side seal?

A: Install the matching aluminum sealing washer supplied with the adapter, keep both contact surfaces clean, and follow the carburetor manufacturer's installation guidance.

Q: What is included with the one-piece option?

A: The one-piece option includes one straight black aluminum adapter and one matching aluminum sealing washer.

Q: What should I check if the connection leaks?

A: Stop operation and depressurize the fuel system. Check the selected thread size, flare seat, sealing washer, alignment, and threads for damage or cross-threading. Replace damaged sealing parts before testing again.
