Evilenergy | SKU: KT01373AN4BK

EVIL ENERGY 4/6/8/10/12AN Female to Female 90 Degree Swivel Coupler Union Fitting Adapter Aluminum

$11.40 USD

Shipping calculated at checkout.

SKU:	Style	Size	Price	Stock
KT01373AN4BK	90 Degree	4AN	$11.40	✔
KT01373AN6BK	90 Degree	6AN	$11.90	✔
KT01373AN8BK	90 Degree	8AN	$13.09	✔
KT01373AN10BK	90 Degree	10AN	$15.10	✔
KT01373AN12BK	90 Degree	12AN	$16.15	✔

Description

Product details

Size	4/6/8/10/12AN
Material	Aluminum
Brand	EVIL ENERGY
Angle	90 degree
Connector Type	Elbow, Union
Exterior	Aluminum
Thread Type	NPT

About this item

Size: Female AN4 to Female AN4, the thread size is 7/16-20 UNF,

Female AN6 to Female AN6, the thread size is 9/16-18 UNF.

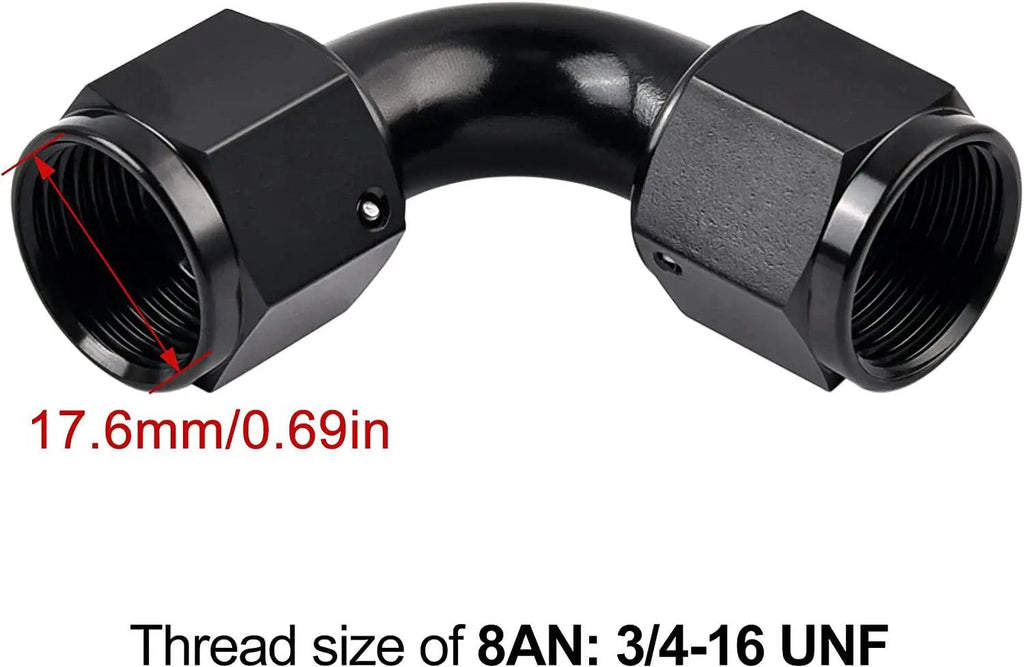

Female AN8 to Female AN8, the thread size is 3/4-16 UNF.

Female AN10 to Female AN10, the thread size is 7/8-14 UNF.

Female AN12 to Female AN12, the thread size is 1-1/16-12 UNF.

All are 90 point elbows.

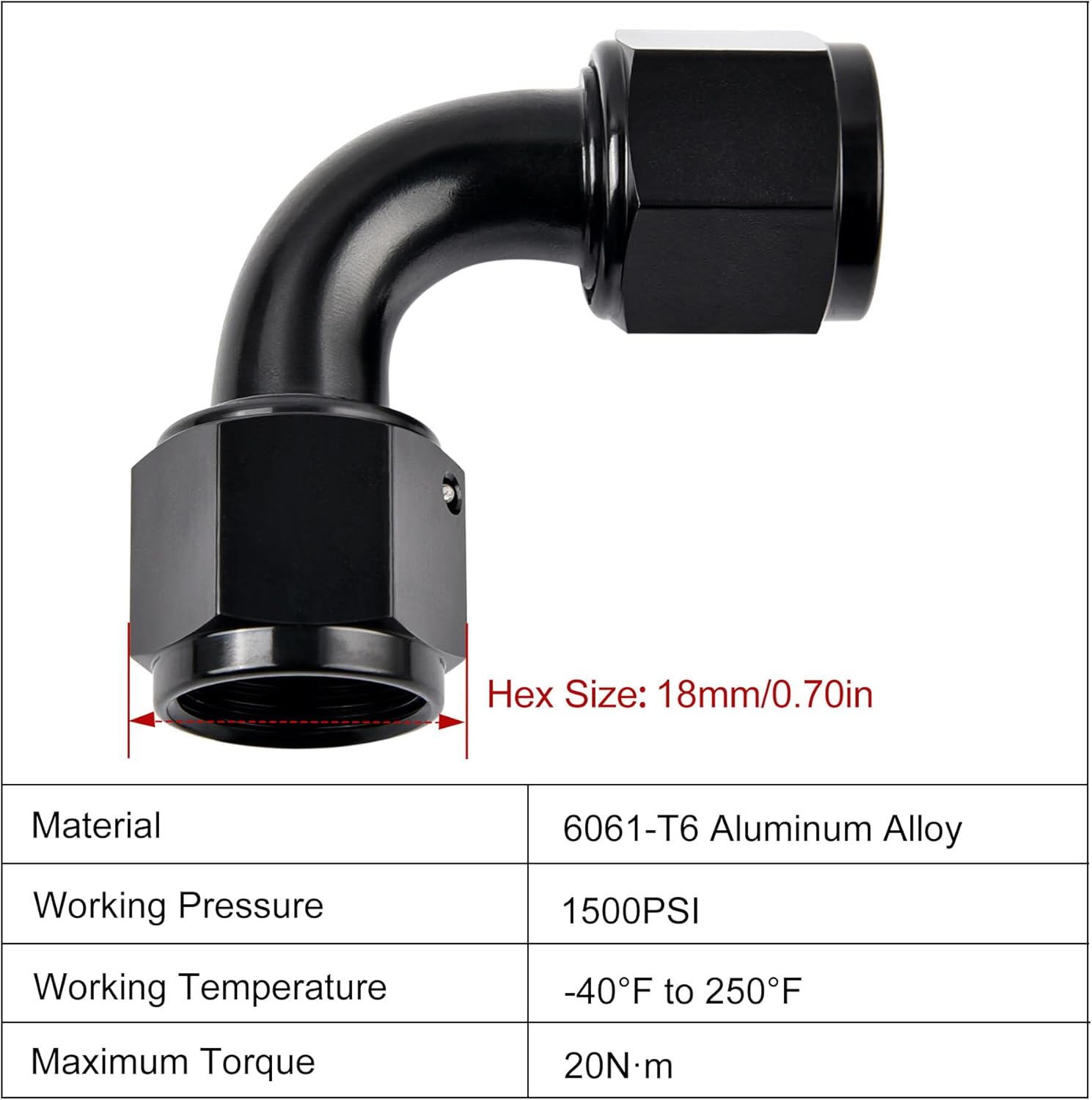

Parameter: Max Working Pressure: 1500PSI. Working Temperature Range: -65℉ to 252℉.
Sealing: The AN side of the flare is sealed by a 37 degree angle.
Material: Made of aluminum alloy 6061-T6, anodized black surface.
Feature: Designed by 360° Swivel for easy assembly. It can be reused and recycle.
