Evil Energy 8 Inch Electric Radiator Cooling Fan 12V 80W 10 Blades Mount Kit High-Performance Cooling Upgrade

8-Inch Electric Radiator Cooling Fan for Cars and Custom Builds

This compact Evil Energy 8-inch electric radiator cooling fan features a low-profile round housing, protective grille, and 10-blade design. At only 2.56 inches thick, its lightweight construction takes up less space in tight engine bays and custom cooling layouts.

The fan delivers up to 315 CFM of airflow at a maximum speed of 2,600 RPM, helping increase air movement through a compatible radiator or oil cooler. Its slim design is easy to position, while the complete electric radiator fan kit includes a relay wiring kit, 30A fuse, mounting hardware, foam pads, and installation instructions.

Designed for universal and custom applications, this auto electric fan is suitable for classic cars, modified vehicles, off-road builds, and other projects that need targeted auxiliary airflow. It can help support cooling during idling and low-speed driving, when natural airflow through the radiator is limited.

The fan may also be used with an aftermarket radiator, oil cooler, engine swap, or electric-fan conversion when the available space and required airflow match. For track, high-horsepower, towing, or heavy-duty applications, calculate the vehicle’s total airflow requirement before relying on this 315 CFM fan as the primary cooling fan.

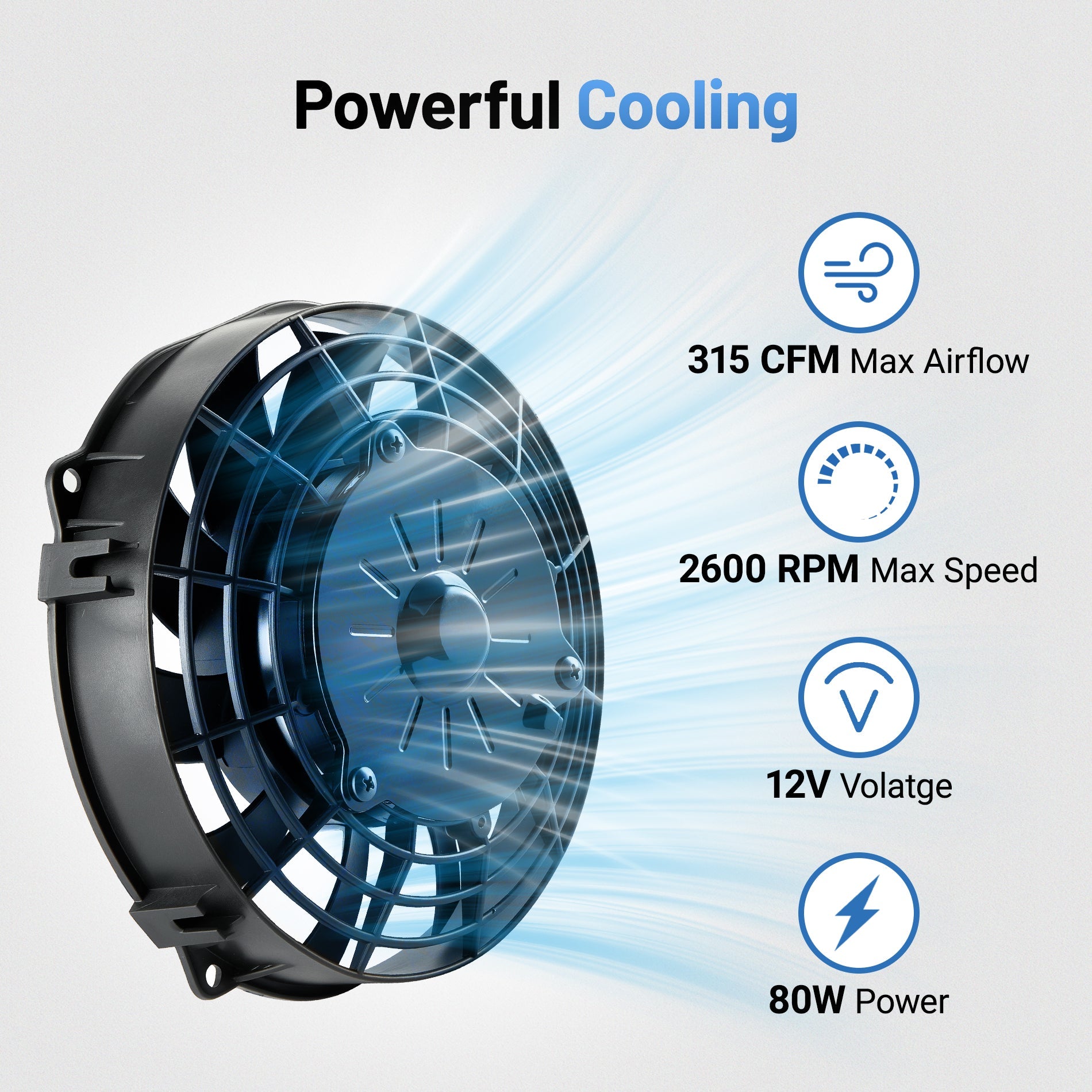

10-Blade Performance with 315 CFM Airflow

The 10-blade electric cooling fan delivers up to 315 CFM at a maximum speed of 2,600 RPM. It directs forced airflow through the cooling fins to support heat transfer from the radiator or oil cooler.

This added airflow is especially useful when the vehicle is:

• Idling for extended periods
• Moving through stop-and-go traffic
• Traveling at low speeds
• Operating with limited natural airflow
• Using a compact auxiliary radiator or oil cooler

Unlike larger electric cooling fans, this 8-inch model is intended for compact spaces and targeted cooling. Actual performance depends on radiator size, core restriction, fan placement, airflow direction, shrouding, and overall engine cooling demand.

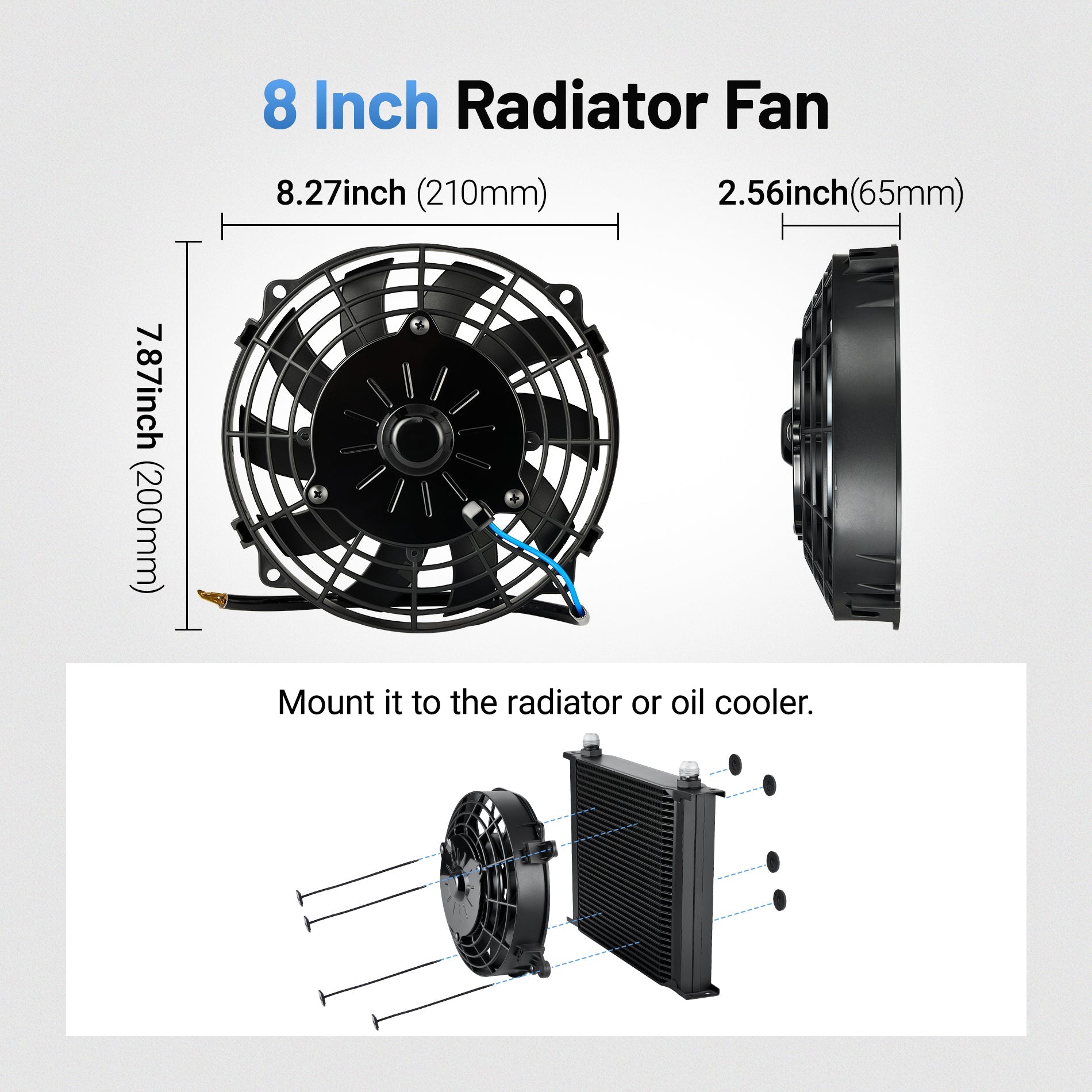

Slim 2.56-Inch Profile for Tight Engine Bays

The fan’s 2.56-inch-thick housing makes it easier to install where a full-size factory fan assembly may not fit. Its lightweight design is well suited to compact engine bays, custom radiator layouts, oil cooler installations, and engine-swap projects with limited clearance.

When selecting an electric fan for car cooling applications, measure the narrowest space between the radiator and nearby hoses, belts, pulleys, or engine accessories. Leave enough clearance for the fan motor, mounting hardware, and wiring.

How to Match the Fan to Your Radiator

Follow these steps before ordering:

1. Measure the usable height and width of the radiator or oil cooler core, excluding tanks, hoses, fittings, and brackets.
2. Compare those measurements with the fan’s complete outside dimensions, not only the nominal 8-inch blade size.
3. Choose a fan smaller than the usable core area and leave enough room for the mounting hardware, motor, and wiring.

Correct sizing helps the car electric fan mount securely and direct airflow through the intended section of the core. Choosing a fan by blade diameter alone may result in poor fitment, limited core coverage, or interference with nearby components.

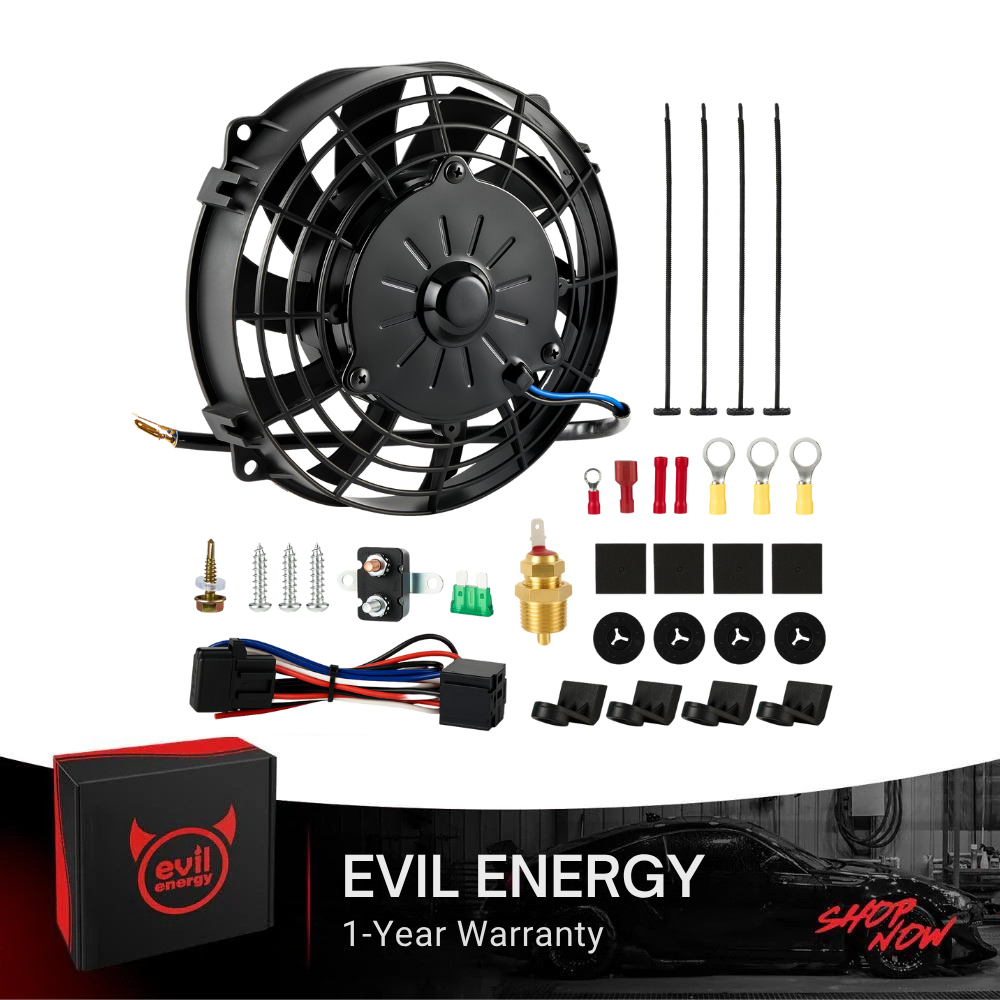

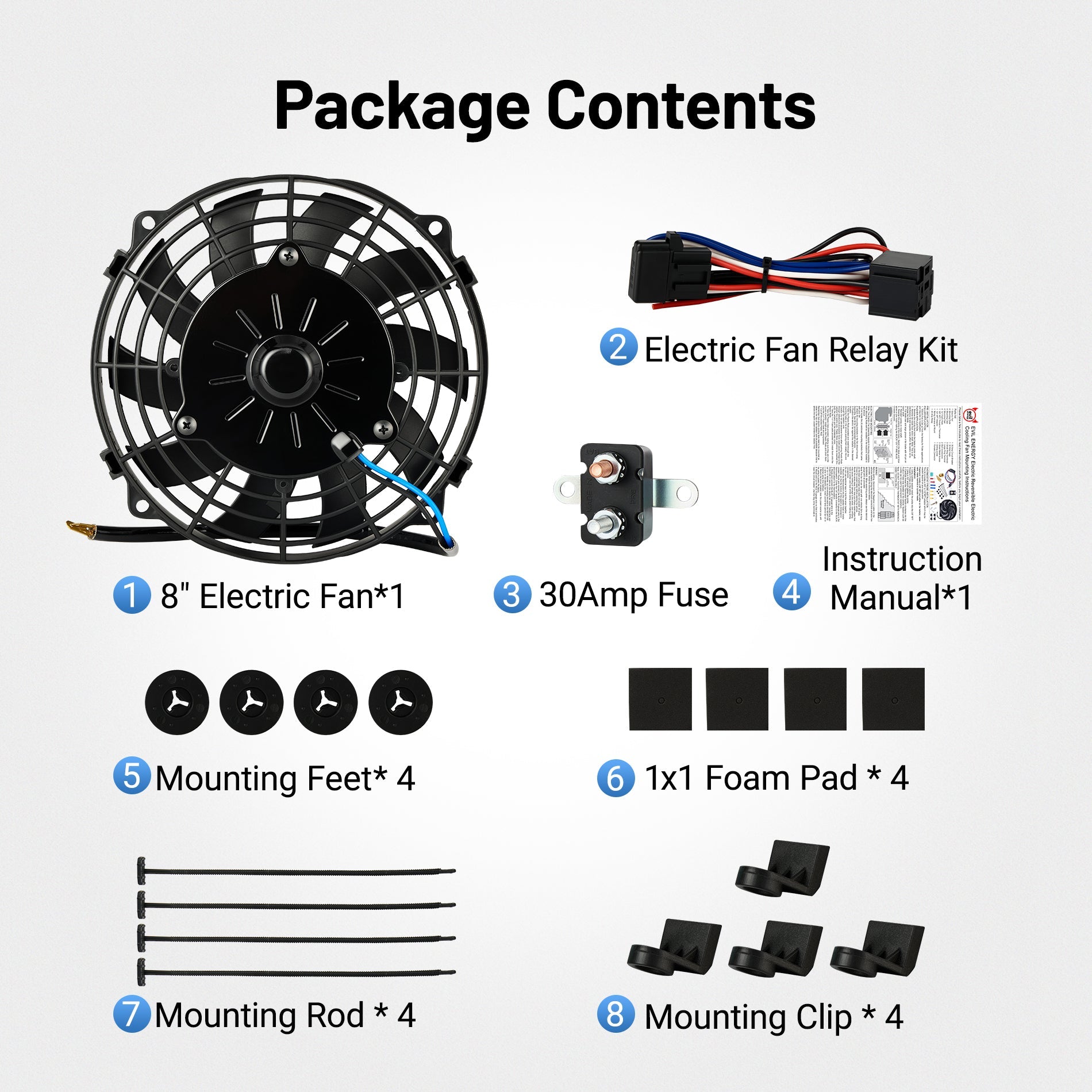

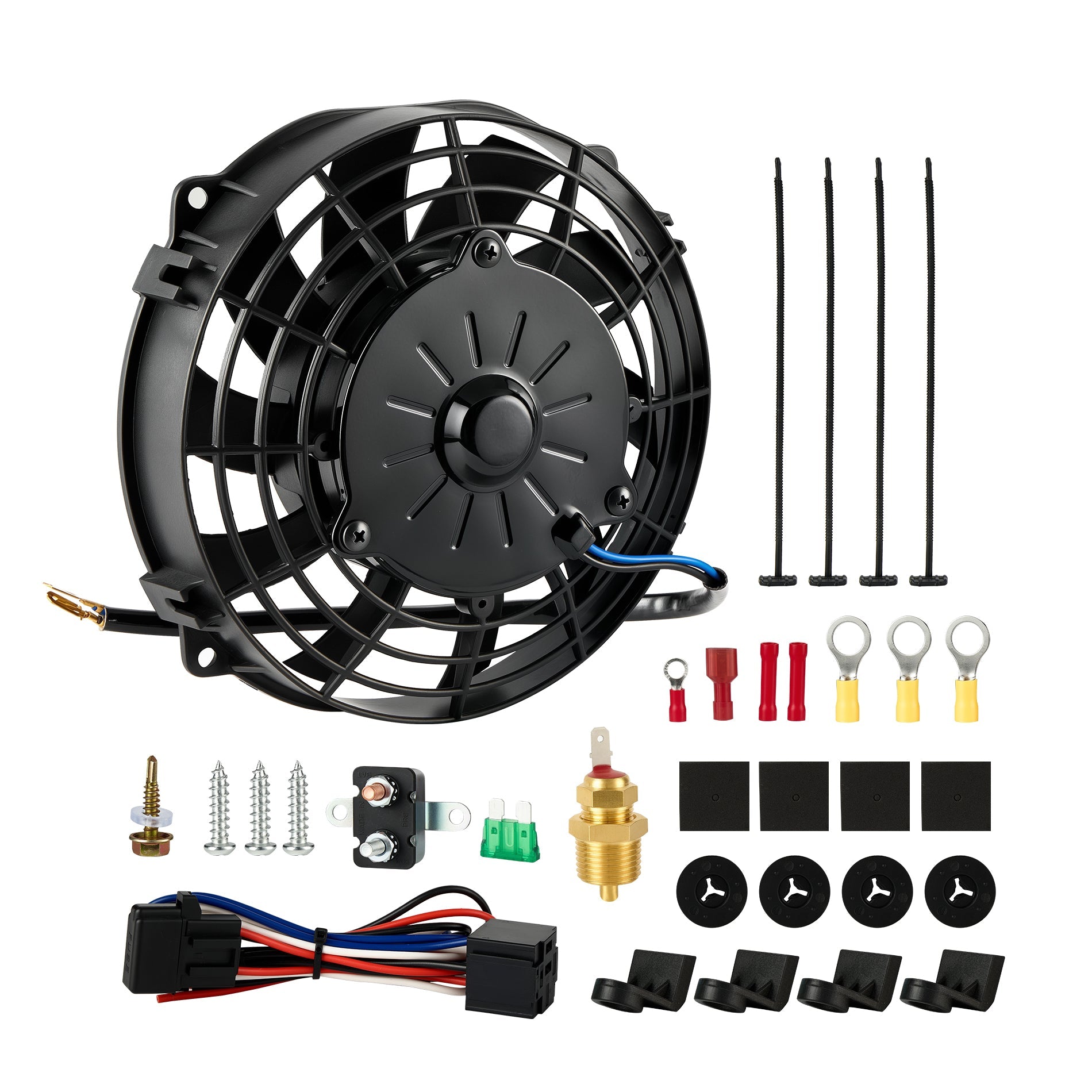

Complete Electric Radiator Fan Kit

The 8 inch Electric Radiator Cooling Fan 12V 80W 10 Blades Mount Kit package includes:

• 1 × 8-inch electric cooling fan
• 1 × relay wiring kit
• 1 × 30A fuse
• 1 × installation manual
• 4 × mounting feet
• 4 × mounting rods
• 4 × locking clips
• 4 × foam cushioning pads

The foam pads help protect the radiator fins at the mounting points while reducing vibration and rattling. The relay allows a low-current control signal to switch the higher-current fan circuit, while the 30A fuse helps protect the fan and vehicle wiring from an electrical overload.

The essential mounting and electrical components are included for a standard universal installation. However, some vehicles may still require additional wiring, connectors, brackets, or professional installation.

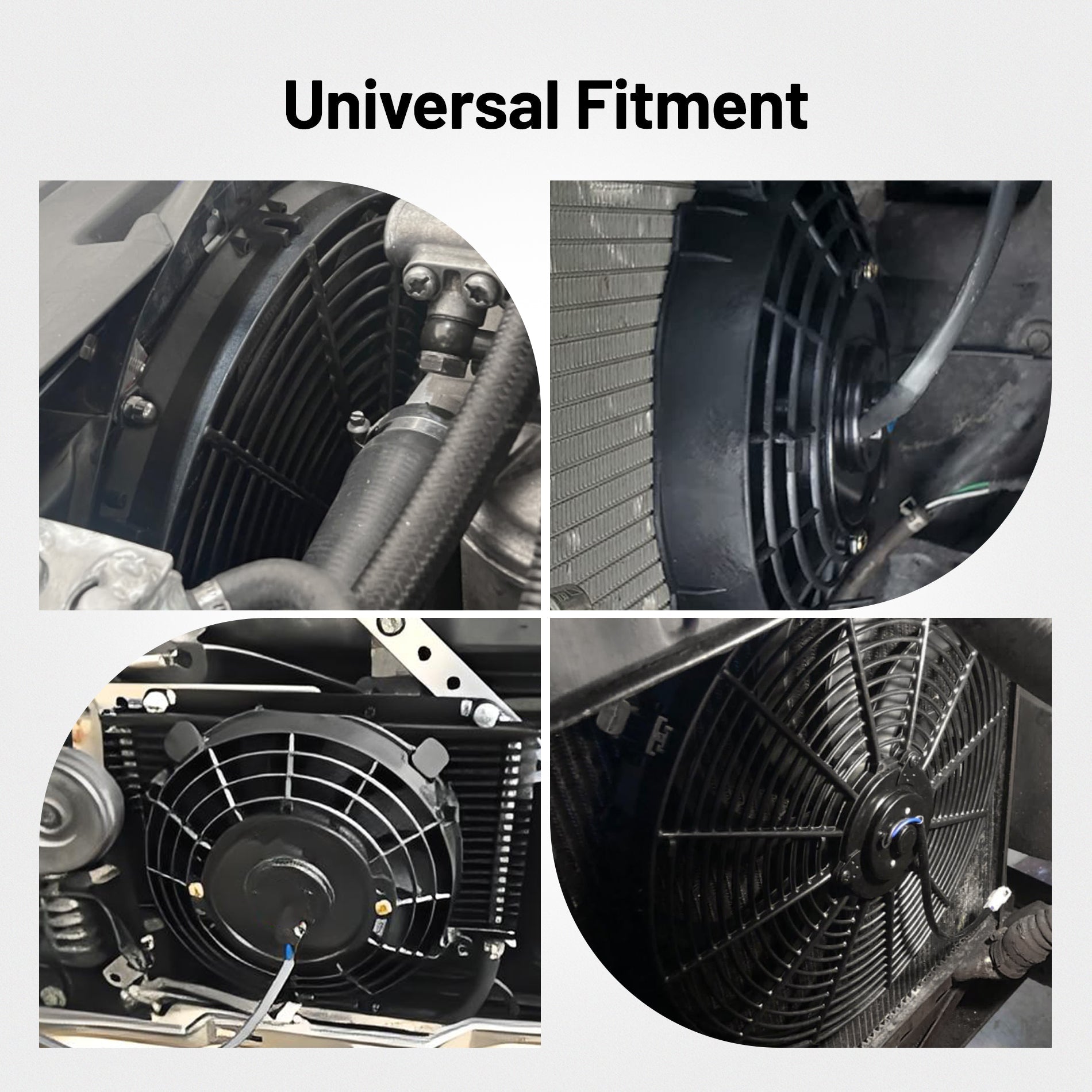

Universal Applications for Cars, Trucks, and Custom Projects

This fan is a universal component rather than a vehicle-specific, plug-and-play replacement. It can be used as an auxiliary fan or as part of a properly planned electric-fan conversion for:

• Classic and restored vehicles
• Street and custom builds
• Off-road vehicles
• Engine-swap projects
• Compact radiators
• Engine or transmission oil coolers
• Vehicles needing additional low-speed airflow

For buyers comparing electric fans for cars or automotive electric cooling fans, confirm the voltage, mounting dimensions, airflow direction, and required CFM before ordering.
