EVIL ENERGY 6AN PTFE Fuel Line Kit 70inch Transmission Fluid Oil Cooler Hose Line kit for 4L60E 4L80E,AN6 Stainless Steel Braided PTFE Fuel Hose Kit for TH350 TH400 700R4 TR6060 4R70W Ford C5 5.8FT

Premium EVIL ENERGY 6AN PTFE Fuel Line Kit for High-Performance Cooling

Upgrade your vehicle's transmission and fuel system with the high-performance EVIL ENERGY 6AN PTFE fuel line kit. Specifically engineered for high-temperature and high-pressure environments, this PTFE fuel line provides an unbeatable barrier against heat and corrosive fluids. Whether you are building a custom fuel system or upgrading a transmission cooler, using a dedicated Oil Cooler Hose ensures long-term reliability where standard rubber hoses fail.

The Ultimate E85 Fuel Line Solution

Modern fuels require modern materials. This kit is a true E85 fuel line solution, featuring a chemically resistant PTFE inner core that prevents the degradation typically caused by ethanol-blended fuels. As an E85 fuel line hose, it offers zero vapor permeation, keeping your garage free of fuel odors while maintaining maximum flow.

Key Features: EVIL ENERGY 6AN PTFE Fuel Line Kit

• Precision Engineering & Size: This 6AN PTFE fuel line is designed for a perfect fit, featuring an Inner Diameter (ID) of 5/16 inch (0.31 inch) and an Outer Diameter (OD) of 0.45 inch. The total length of the 6AN fuel hose is 5.8ft (70 inches). Notice: Please measure your clearance before purchase! (Includes all components as shown in the picture).
• Extreme Performance Parameters: Our 6AN PTFE fuel line kit is built to withstand extreme environments. The Oil Cooler Hose core supports a working temperature range of -76℉ to 500℉ (-60℃ to 260℃). With a maximum working pressure of 3000 PSI and a bursting pressure of 10000 PSI, it is the most reliable 6AN fuel line hose for high-pressure applications.
• Extensive Vehicle & Transmission Fitment: Specifically engineered as a 6AN 70inches transmission cooler fuel line, this kit is a direct fit for TH350, TH400, 4L60E, 4L80E, 700R4, 200-4R, and TR6060 transmissions. It also perfectly fits Ford AOD 4R100, 4R70W, and C5 models, making it a versatile 6AN fuel hose for GM and Ford series.
• Ultimate E85 Fuel Line Compatibility: Designed for modern performance, this is a true E85 fuel line solution. The high-grade PTFE inner layer makes this E85 fuel line hose resistant to the corrosive properties of ethanol and methanol, ensuring your AN fuel line system remains leak-free and durable over time.
• Professional Connector Specifications: Every EVIL ENERGY 6AN PTFE fuel line kit comes with precision-machined fittings: 9/16-18 UNF (AN6), 3/8inch-18 NPT, and 1/4inch-18 NPT. These AN fuel line connectors utilize 37° flare and 60° taper sealing technology to provide a secure, high-pressure bond.
• Multi-Layer Durability for Wide Usage: This 6AN fuel line hose features a heavy-duty 304 stainless steel braided exterior that protects the PTFE fuel line from abrasion and environmental damage. It is ideal for transmission fluid, oil cooling, gasoline, and diesel applications.
• Important Handling Notice: The PTFE fuel hose is engineered for high-pressure integrity, meaning it is relatively rigid and cannot be bent or folded in half. To ensure the longevity of your 6AN PTFE fuel line kit, professional installation is highly recommended.


Engineered for Extreme Performance

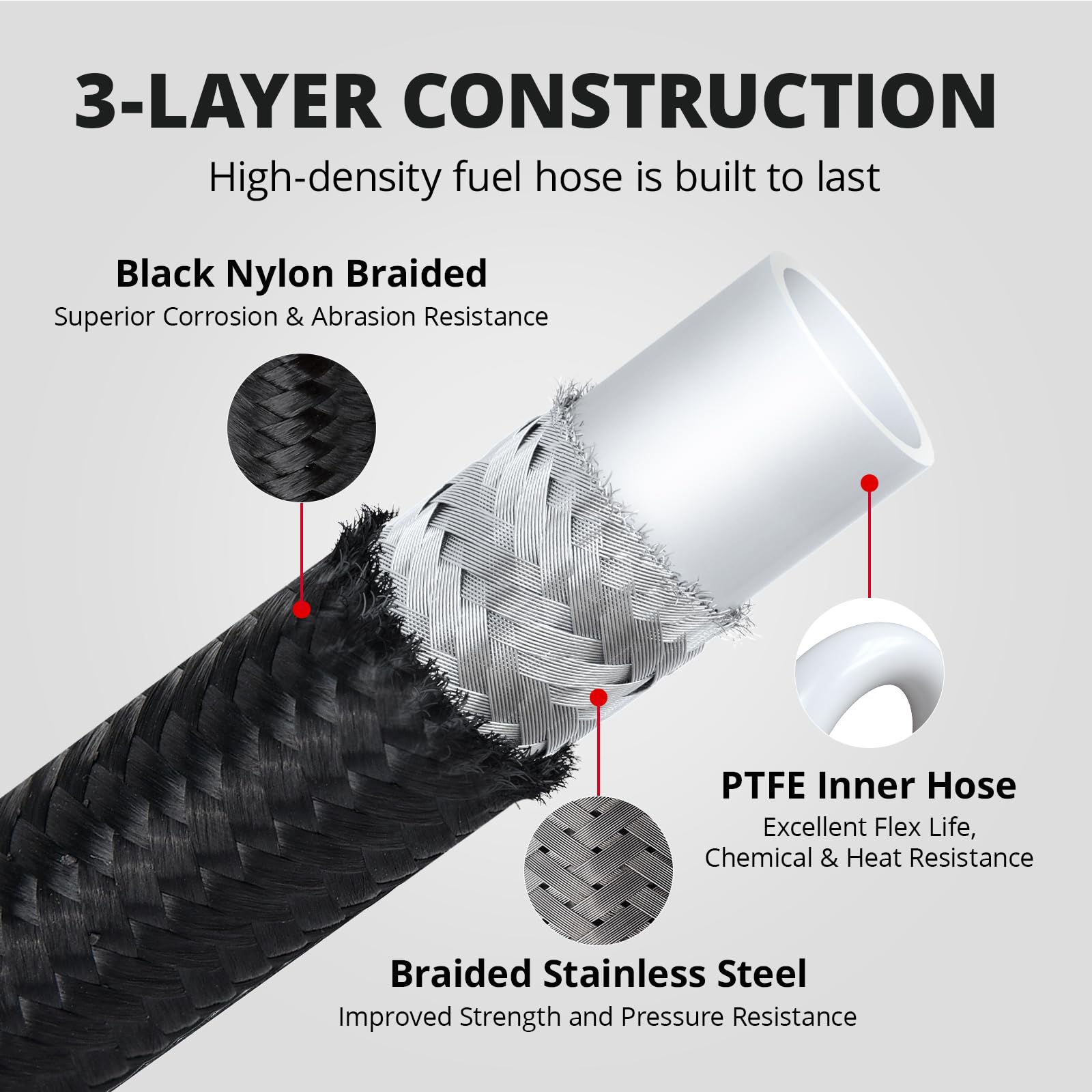

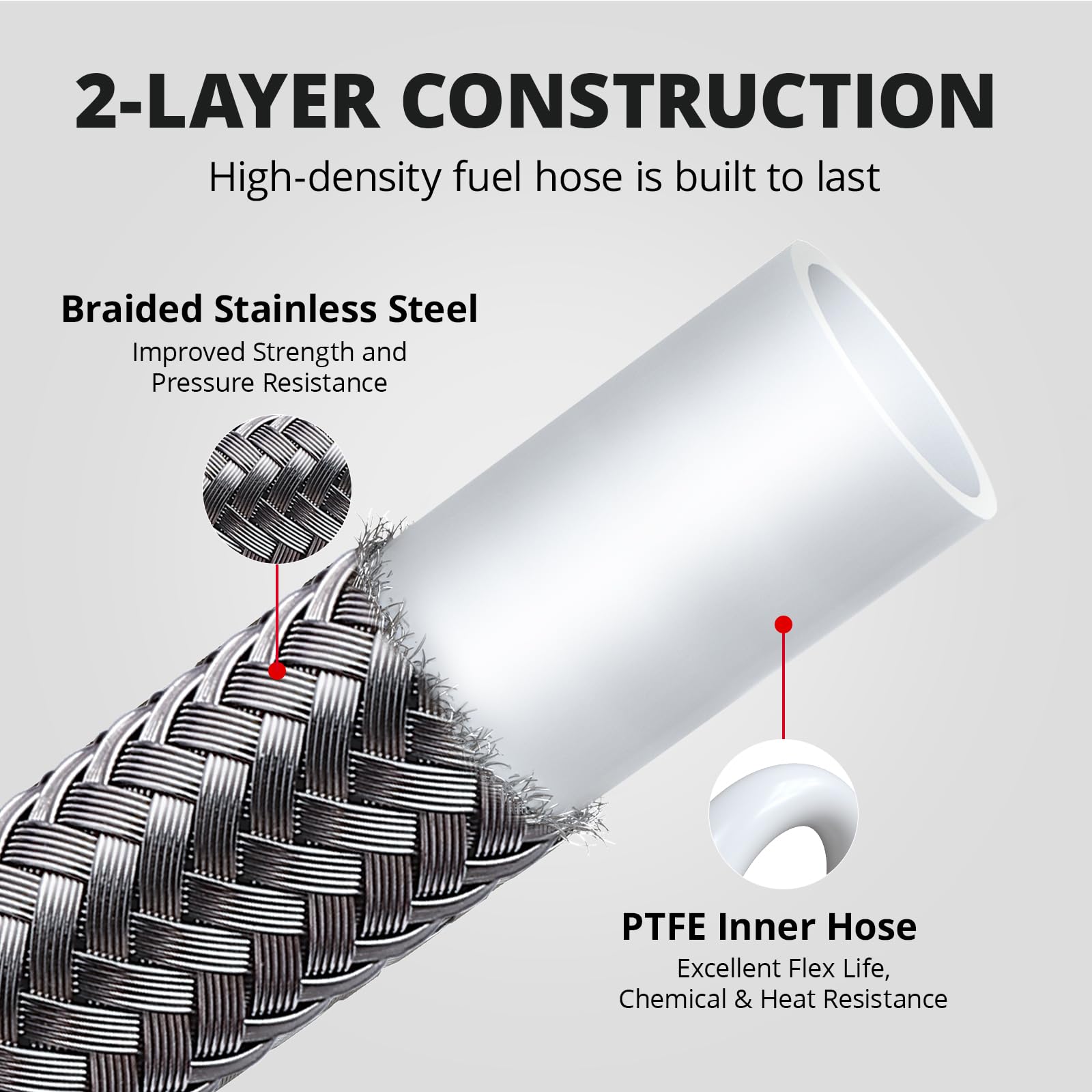

This 6AN PTFE fuel line kit features a multi-layer construction designed to outlast standard rubber lines:

• PTFE Liner: The core of our Oil Cooler Hose resists all types of fluids and chemicals while preventing gas odors from permeating.
• Stainless Steel Wire Mesh: Provides enhanced reinforcement that increases strength and pressure resistance.
• Braided Nylon Outer Shield: Protects the 6AN fuel line hose when it rubs against the engine or other car parts.

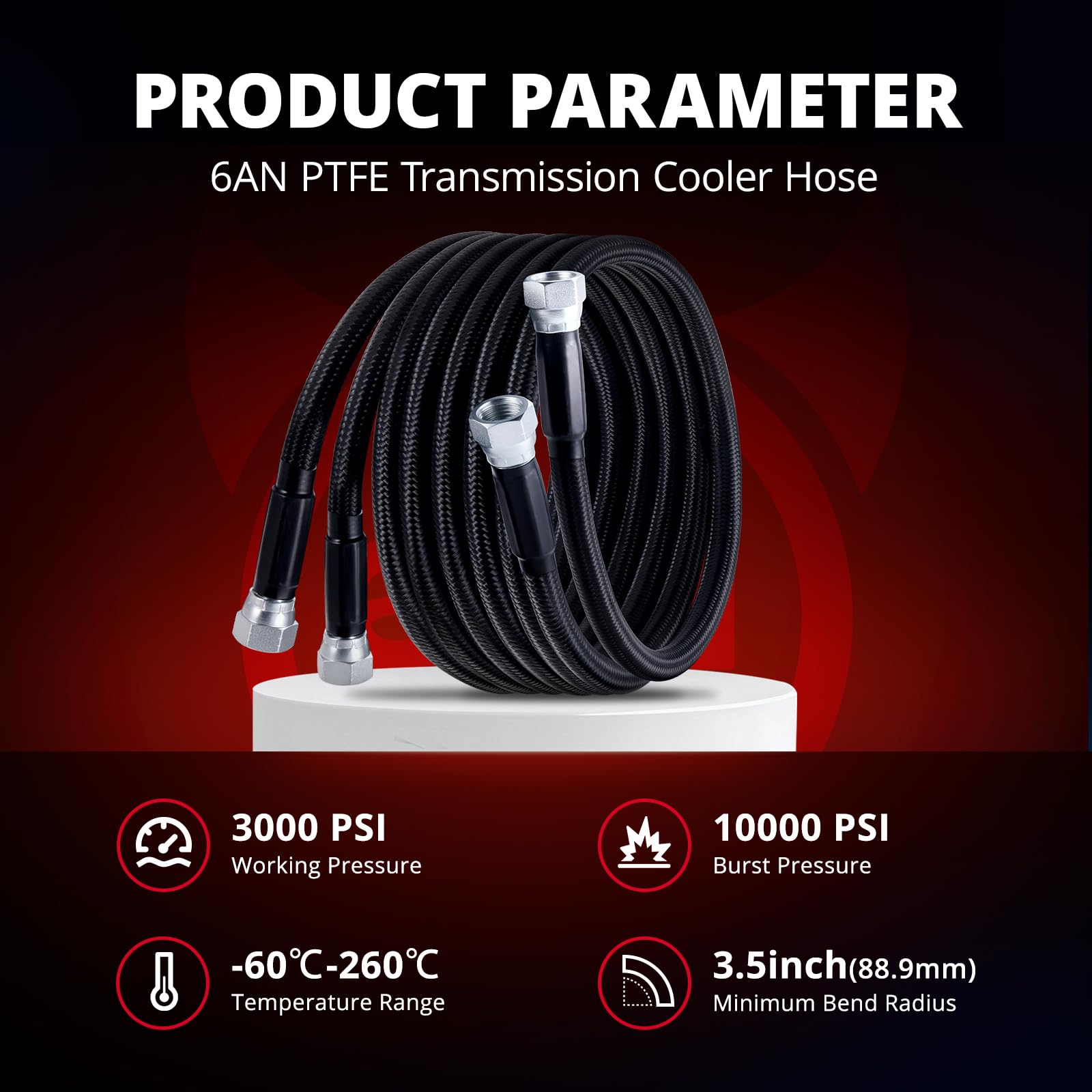

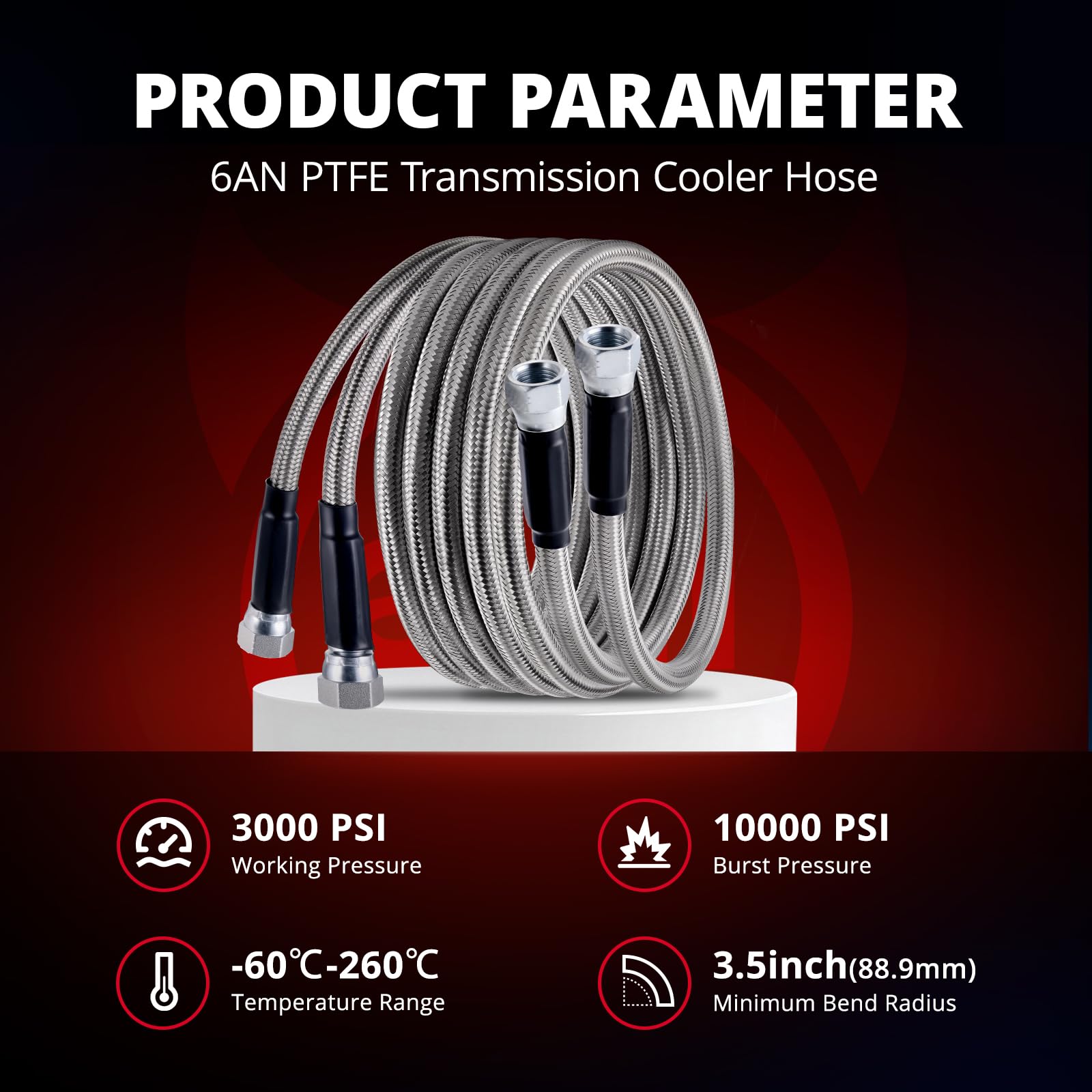

• Extreme Parameters: This Oil Cooler Hose supports a working pressure of 3000 PSI and a burst pressure of 10000 PSI within a temperature range of -60°C to 260°C.
• Flexibility: Designed with a minimum bend radius of 3.5 inches (88.9mm) for versatile routing in tight spaces.

Whether you need a reliable E85 fuel line hose or a heavy-duty AN fuel line for your transmission cooler, EVIL ENERGY delivers the precision engineering your vehicle deserves.

NOTE: Please restore the deformed cuts with the tool before installation.

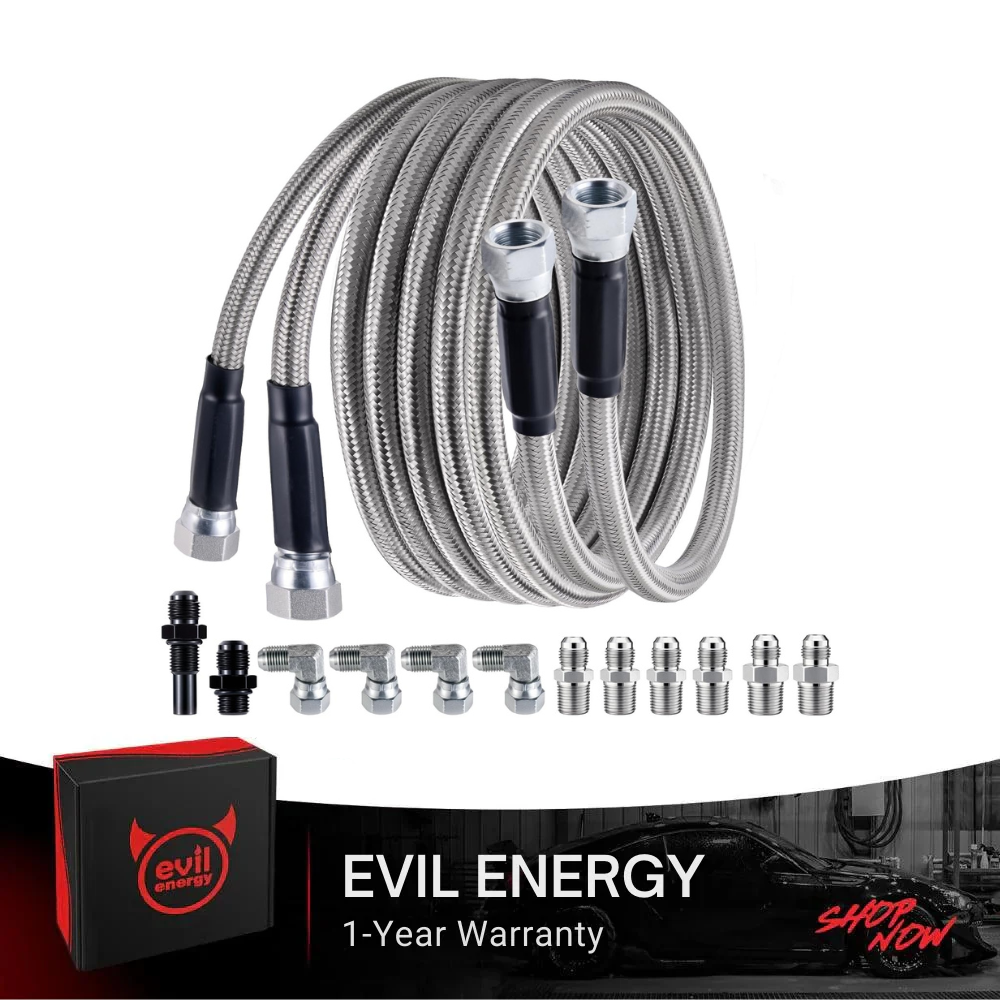

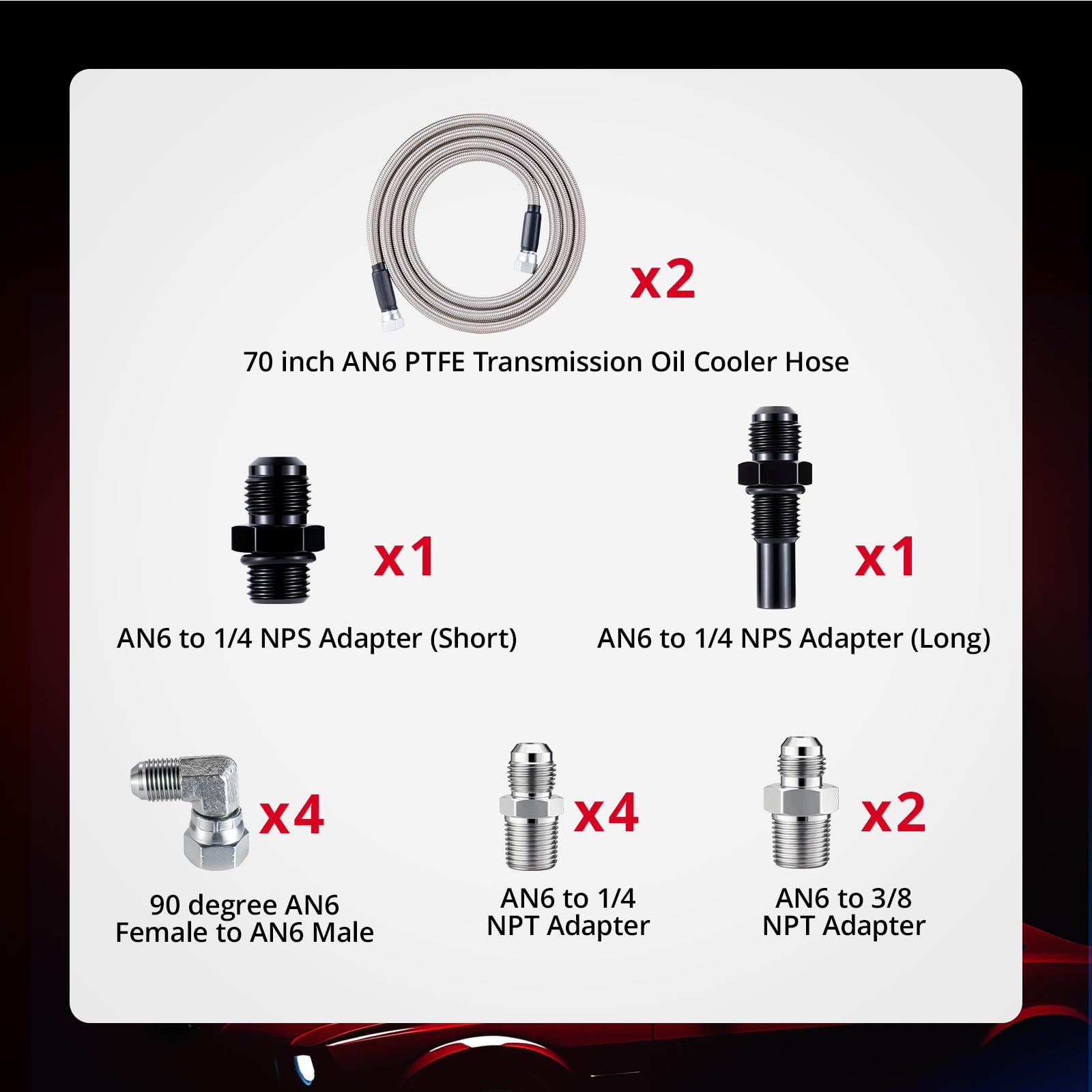

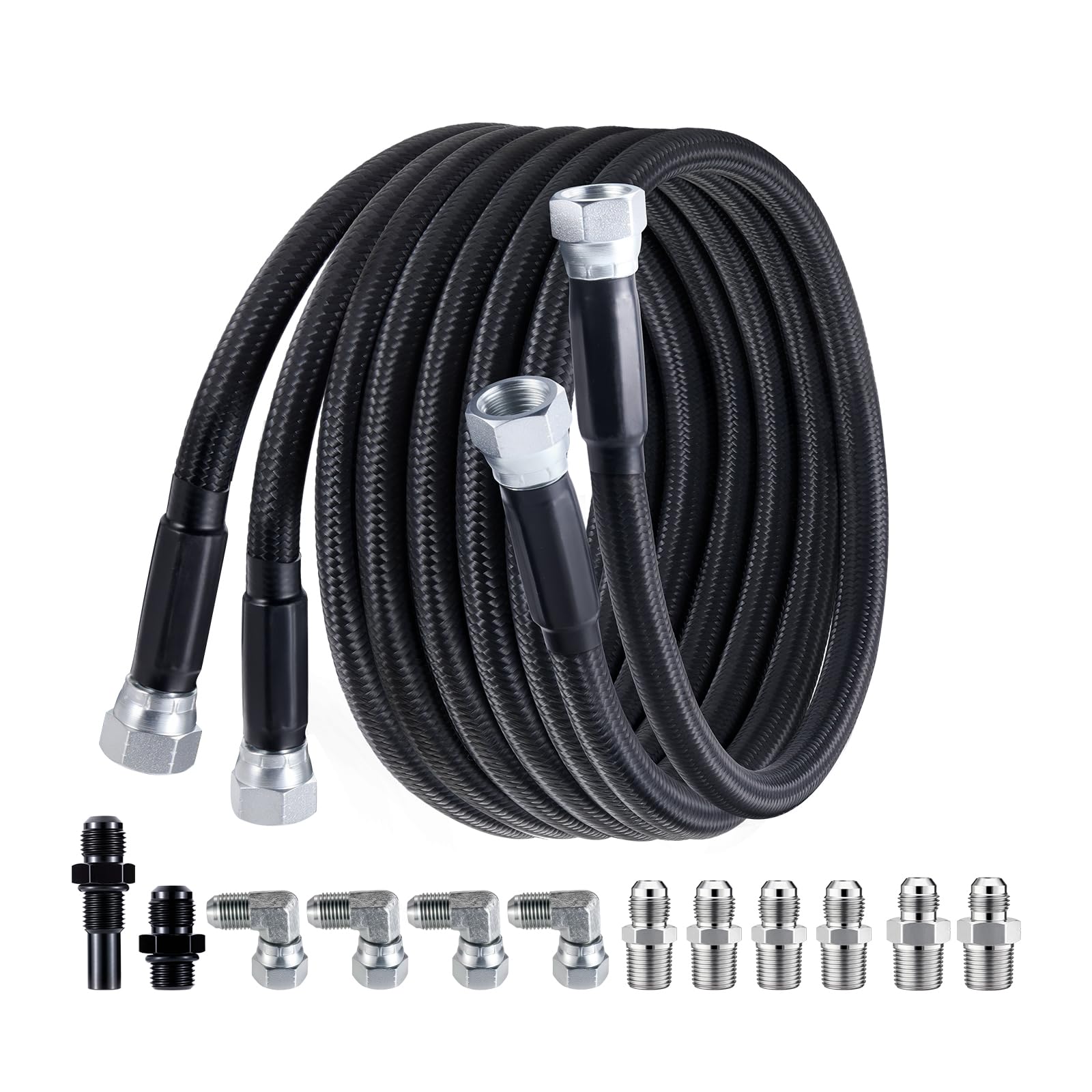

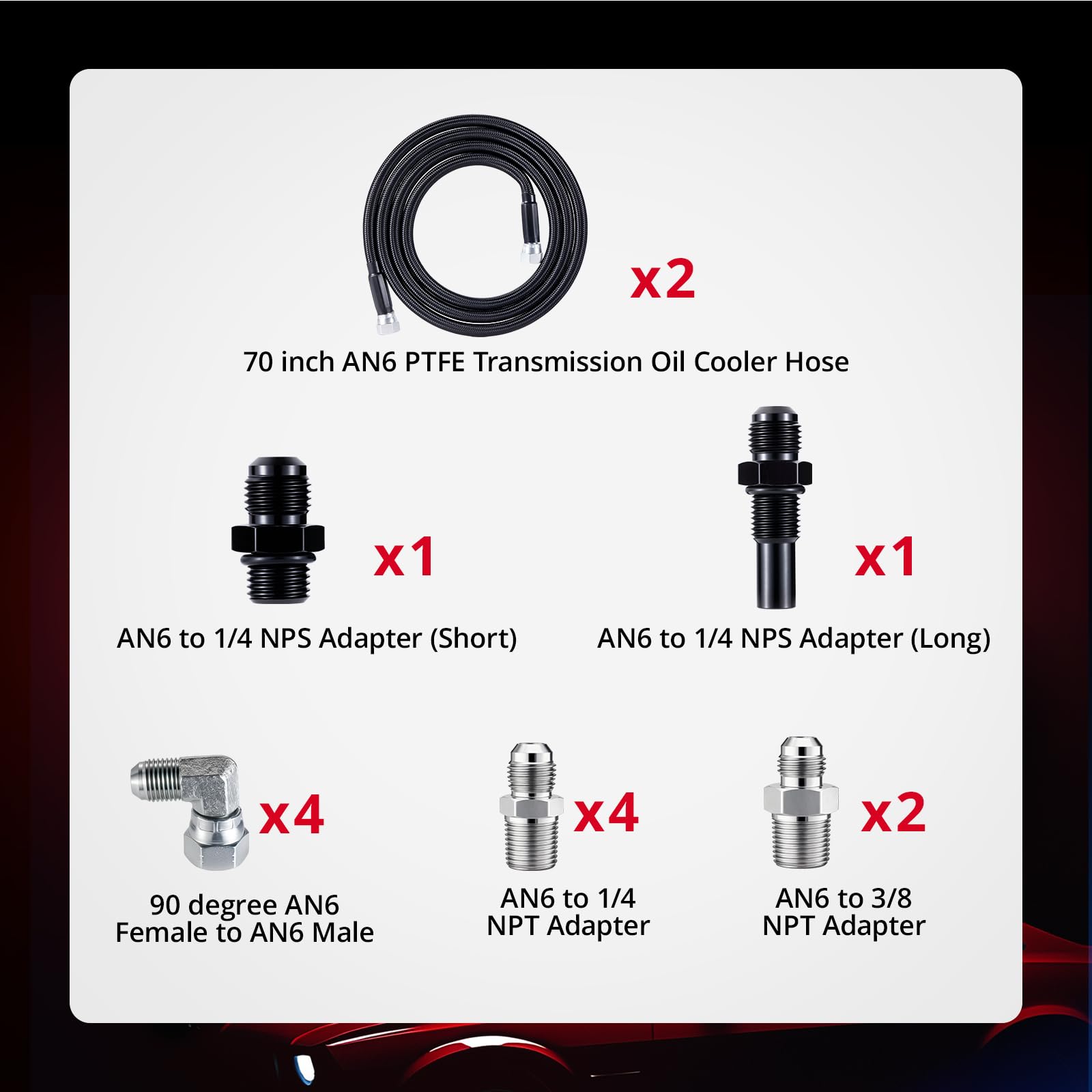

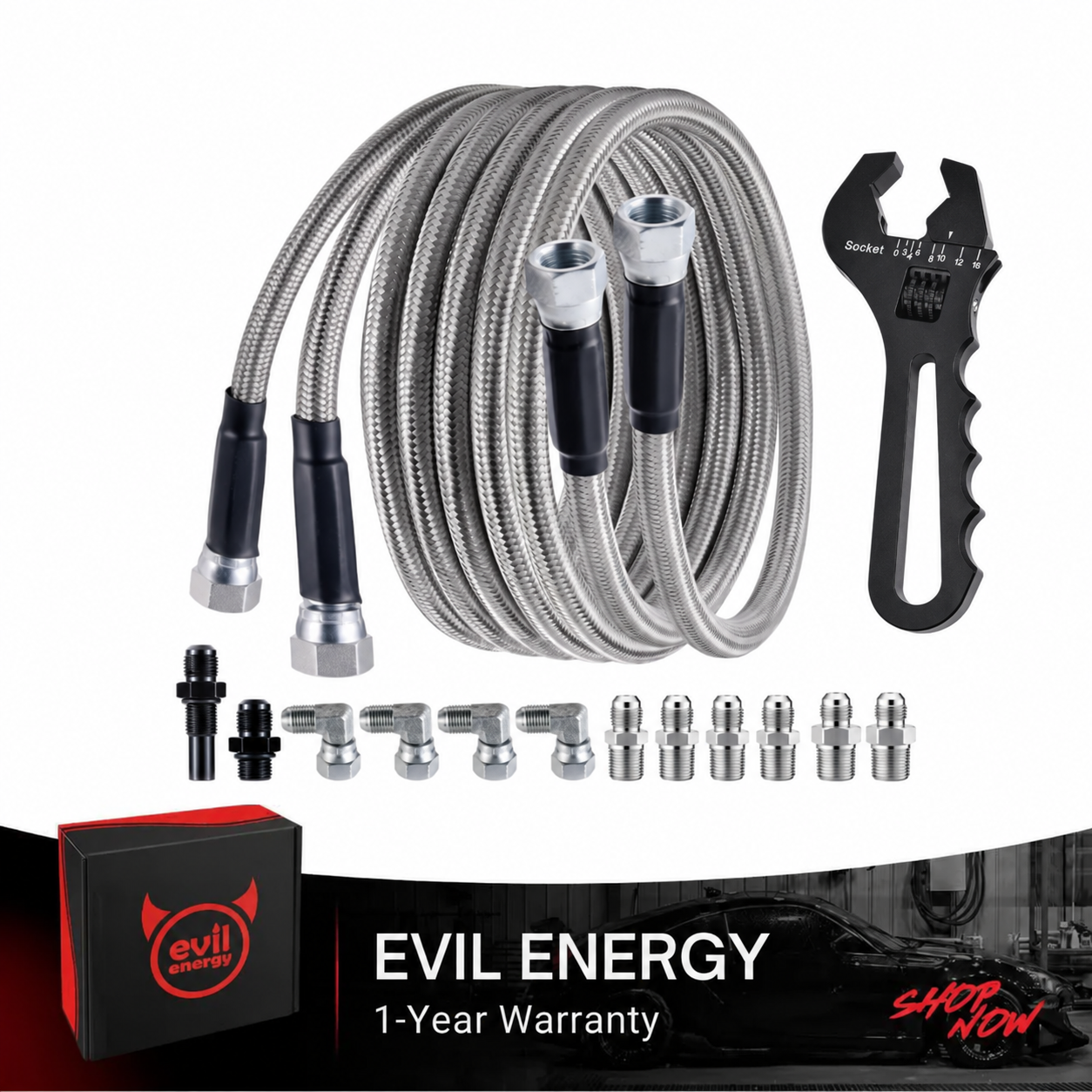

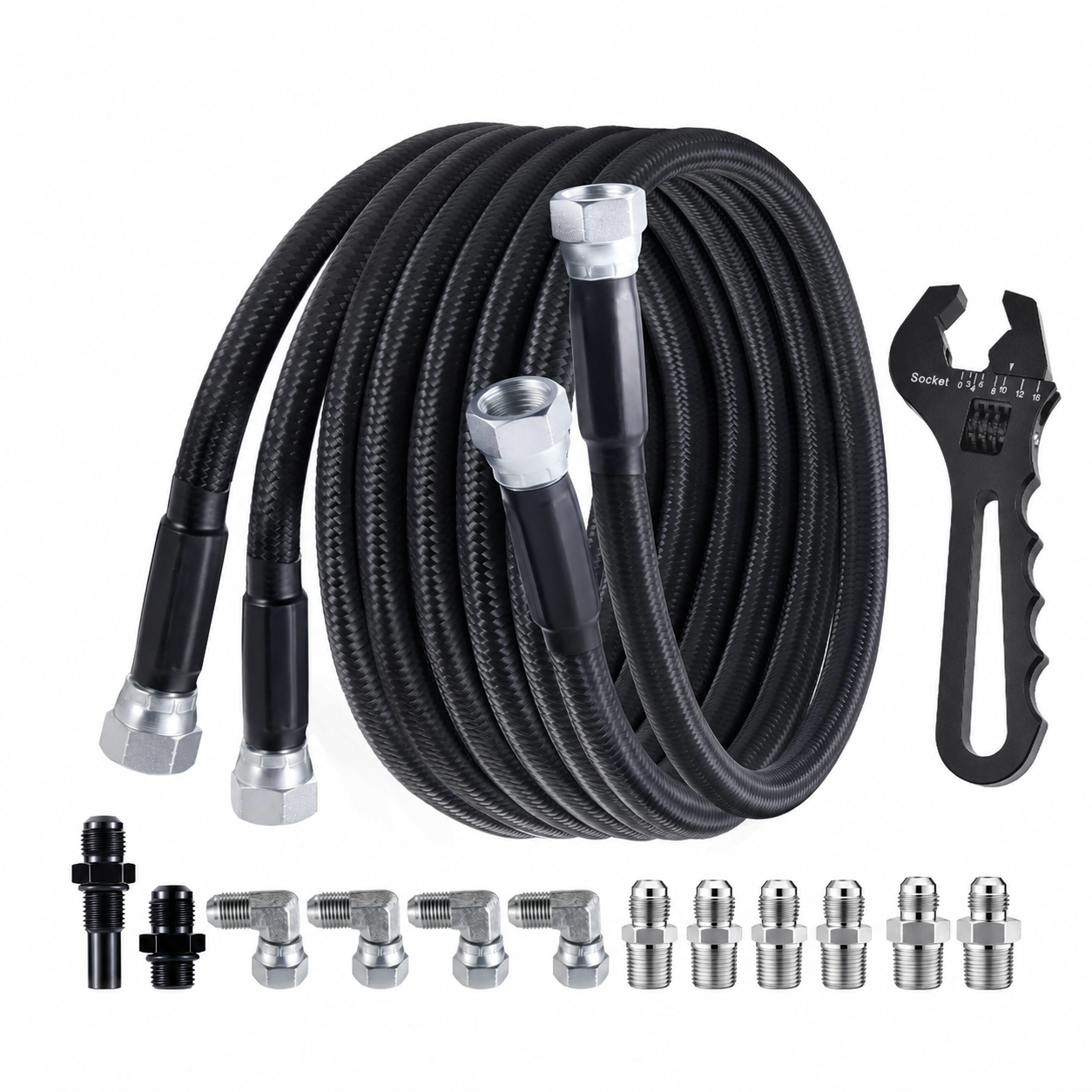

PACKAGE INCLUDES

This comprehensive PTFE fuel line kit comes with all the components necessary for a professional Oil Cooler Hose installation:

• 70-inch AN6 PTFE Hose (with pre-installed AN6 female threaded connectors) × 2
• 90 Degree AN6 Female to AN6 Male Adapters × 4
• AN6 to 1/4 NPT Adapters × 4
• AN6 to 3/8 NPT Adapters × 2
• AN6 to 1/4 NPS Adapter (Short) × 1
• AN6 to 1/4 NPS Adapter (Long) × 1

Installation Guide: EVIL ENERGY Oil Cooler Hose

For peak performance and safety, follow these specific guidelines when installing your 6AN PTFE fuel line kit as a transmission cooler line. Proper positioning and torque are essential to ensure a leak-free AN fuel line system.

Correct Installation Position

• Target Location: Install the Oil Cooler Hose specifically between the transmission and the transmission cooler.
• Routing: Ensure the 6AN fuel line hose follows a path that avoids moving parts or extreme heat sources that exceed the specified range.

Important Installation Precautions

To ensure the safety and longevity of your EVIL ENERGY 6AN PTFE fuel line kit, please adhere to the following guidelines:

• Correct Positioning: Install the Oil Cooler Hose specifically between the transmission and the transmission cooler to ensure efficient heat and oil-resistant transfer.
• Avoid Kinking: Because the PTFE fuel line is relatively rigid, it cannot be bent or folded in half. Always maintain a minimum bend radius of 3.5 inches (88.9mm) to prevent damaging the internal liner.
• Prevent Seepage: Oil leaks typically occur due to unsealed threads, insufficient tightening, or incorrect installation angles. Ensure all AN fuel line fittings are properly aligned and torqued.
• Abrasion Protection: Position the 6AN fuel hose so the braided nylon shield does not rub against sharp engine components or car parts.
• Professional Setup: Due to the high-pressure nature (up to 3000 PSI) of this PTFE fuel line kit, professional installation is highly recommended.

Extensive Vehicle & Transmission Application

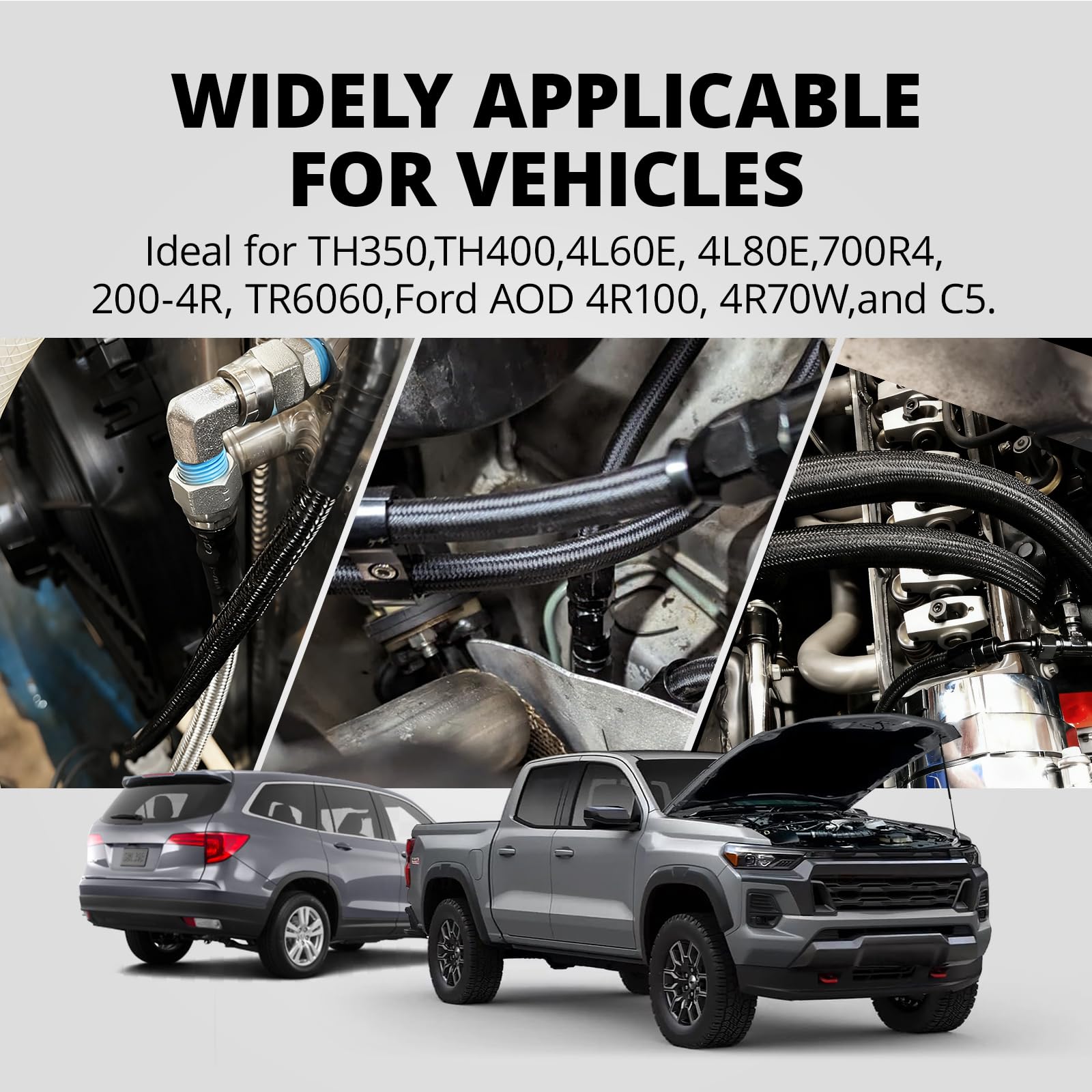

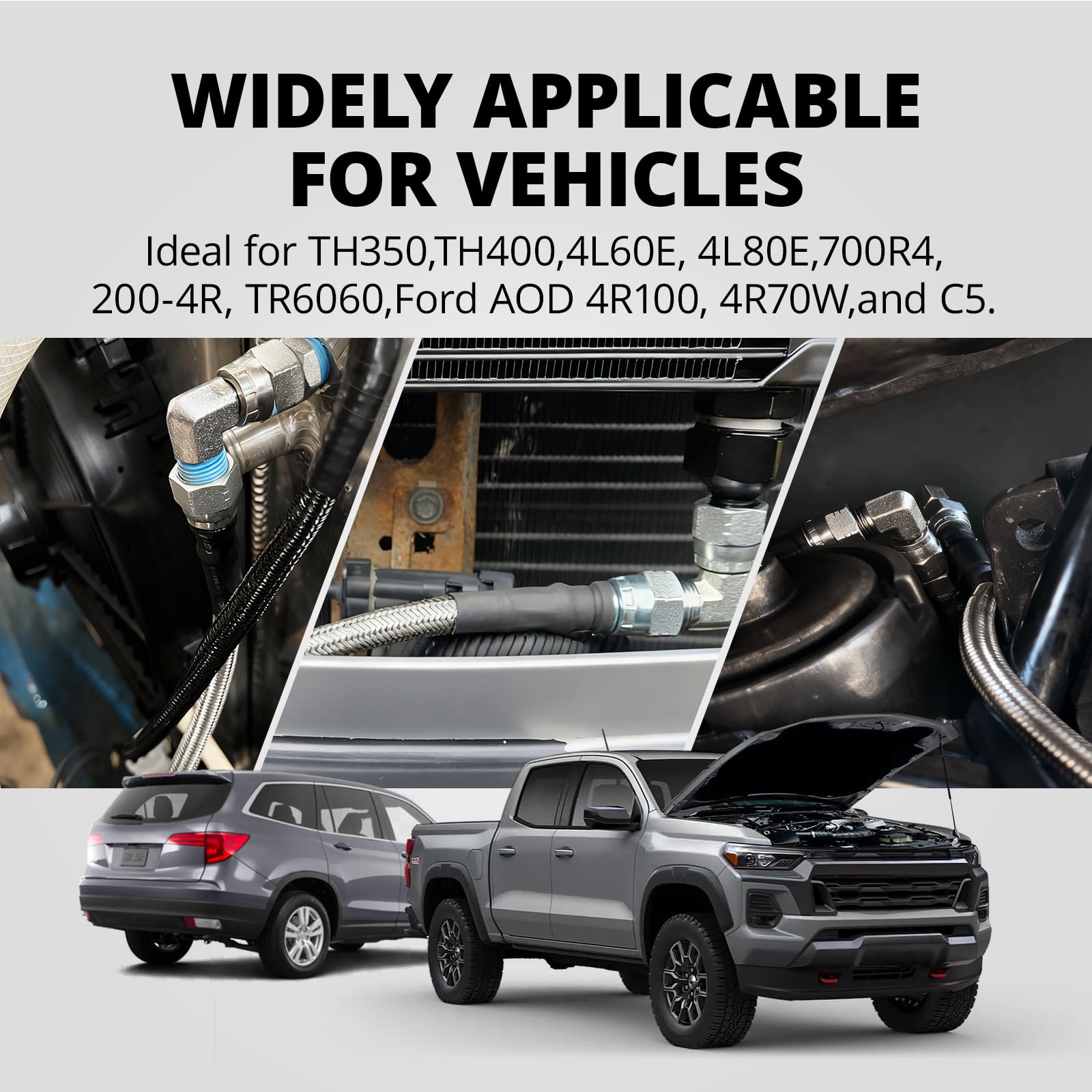

Experience a professional-grade suspension and fluid delivery upgrade with the EVIL ENERGY 6AN PTFE fuel line kit. Engineered for high-performance fuel and oil cooling systems, this Oil Cooler Hose provides heat and oil-resistant transfer between the transmission and the engine oil cooler. Based on real-world application tests (as shown in the images), the high-flexibility 6AN PTFE fuel line works in tandem with precision AN fuel line fittings to ensure a secure, leak-free connection, even in cramped engine bays. Whether you are building an E85 fuel line system or upgrading daily transmission lines, this 6AN fuel hose is the ultimate choice for stable operation in high-pressure and high-temperature environments.

This 6AN PTFE fuel line kit is a direct fit for GM and Ford series vehicles. It is the ideal 6AN fuel hose for the following transmission models:

• GM: TH350, TH400, 4L60E, 4L80E, 700R4, 200-4R, TR6060.
• Ford: AOD, 4R100, 4R70W, and C5.
