EVIL ENERGY 5.2" Electric Cooling Fan, 12V 25W, 7-Blade Radiator Mounting Kit

Compact 5.2-Inch Cooling for Tight Installation Spaces

Heat can build quickly when a compact radiator, oil cooler, condenser, or custom enclosure lacks space for a large fan. This EVIL ENERGY 5.2-inch electric cooling fan combines a slim 51 mm profile with seven curved blades, up to 300 m³/h suction airflow, and a 12V 25W motor. It is designed for builders, repair technicians, and DIY users who need targeted airflow in space-limited automotive cooling or ventilation installations, with mounting hardware included for a more complete setup.

Seven Curved Blades with 4,100 RPM Maximum Speed

The balanced seven-blade design delivers up to 300 m³/h (approximately 177 CFM) at a maximum speed of 4100 ± 350 RPM. The fan is rated for 12V operation, 25W power, and a working current of 1.8 ± 0.3A, providing focused airflow for smaller cooling cores and ventilation areas.

Slim 51 mm Profile for Compact Cooling Projects

With a listed depth of 51 mm (2.01 in), this compact fan is designed for installations where clearance is limited. Product imagery identifies approximately 133 mm (5.24 in) vertical and 110 mm (4.33 in) horizontal mounting-hole spacing. Always measure the usable mounting area and check nearby hoses, wiring, belts, pulleys, fittings, and other moving or hot components before ordering.

Suction-Type Airflow for Compatible Heat Exchangers

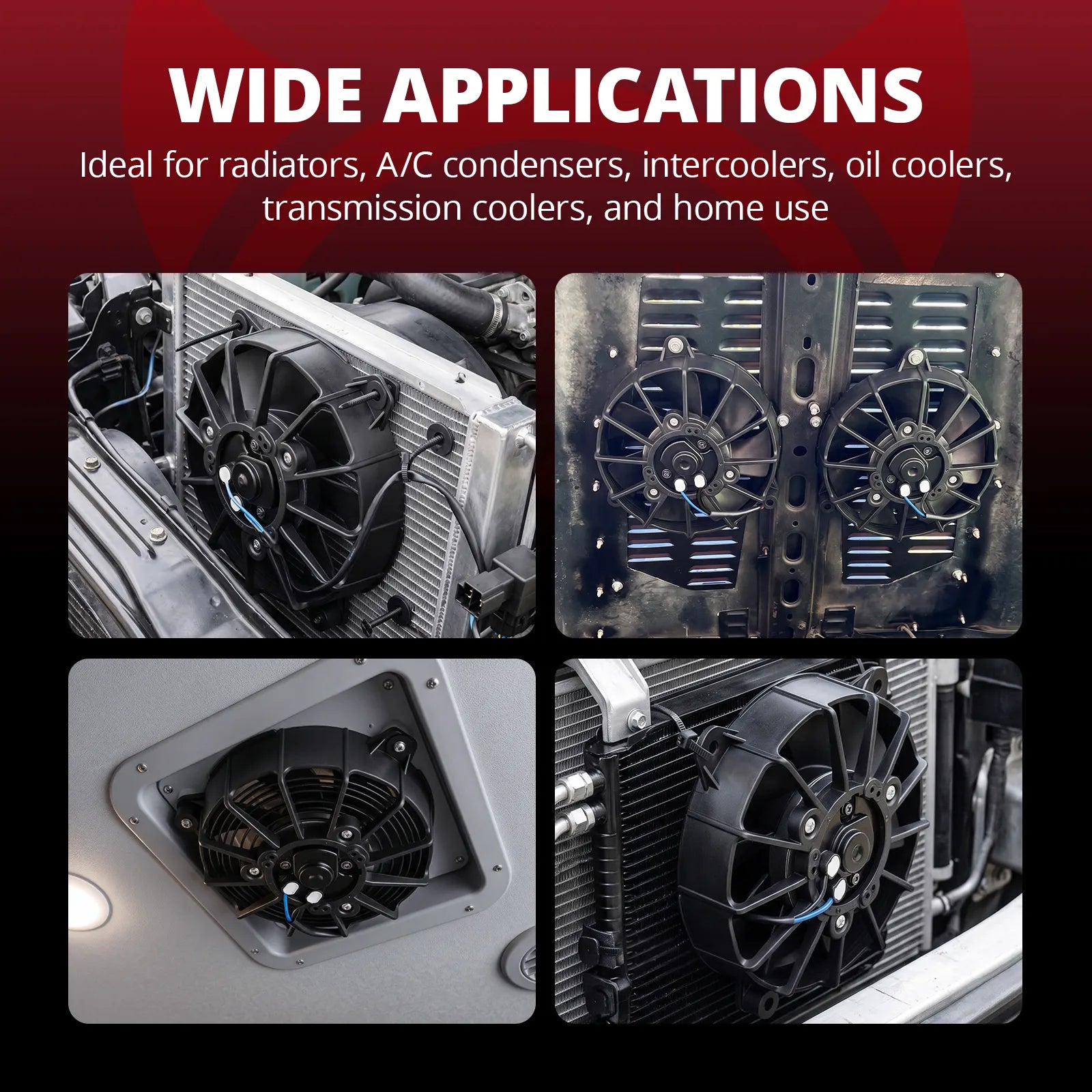

This model is configured for suction airflow and is not switchable between suction and blowing modes. It may be used with a compatible radiator, A/C condenser, intercooler, oil cooler, transmission cooler, or other 12V ventilation project when its size and airflow direction suit the installation. Confirm the intended mounting side and required airflow direction before fastening the fan.

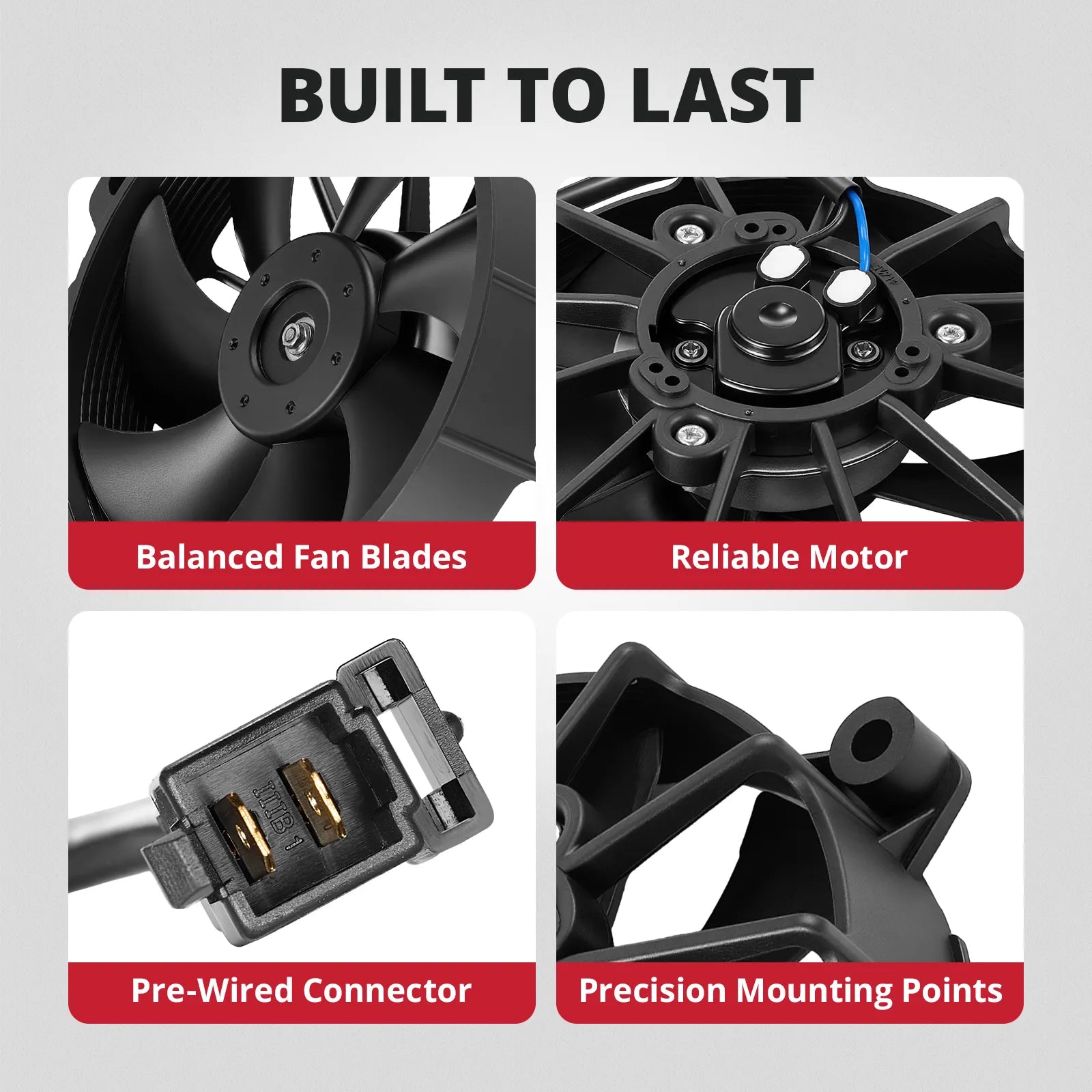

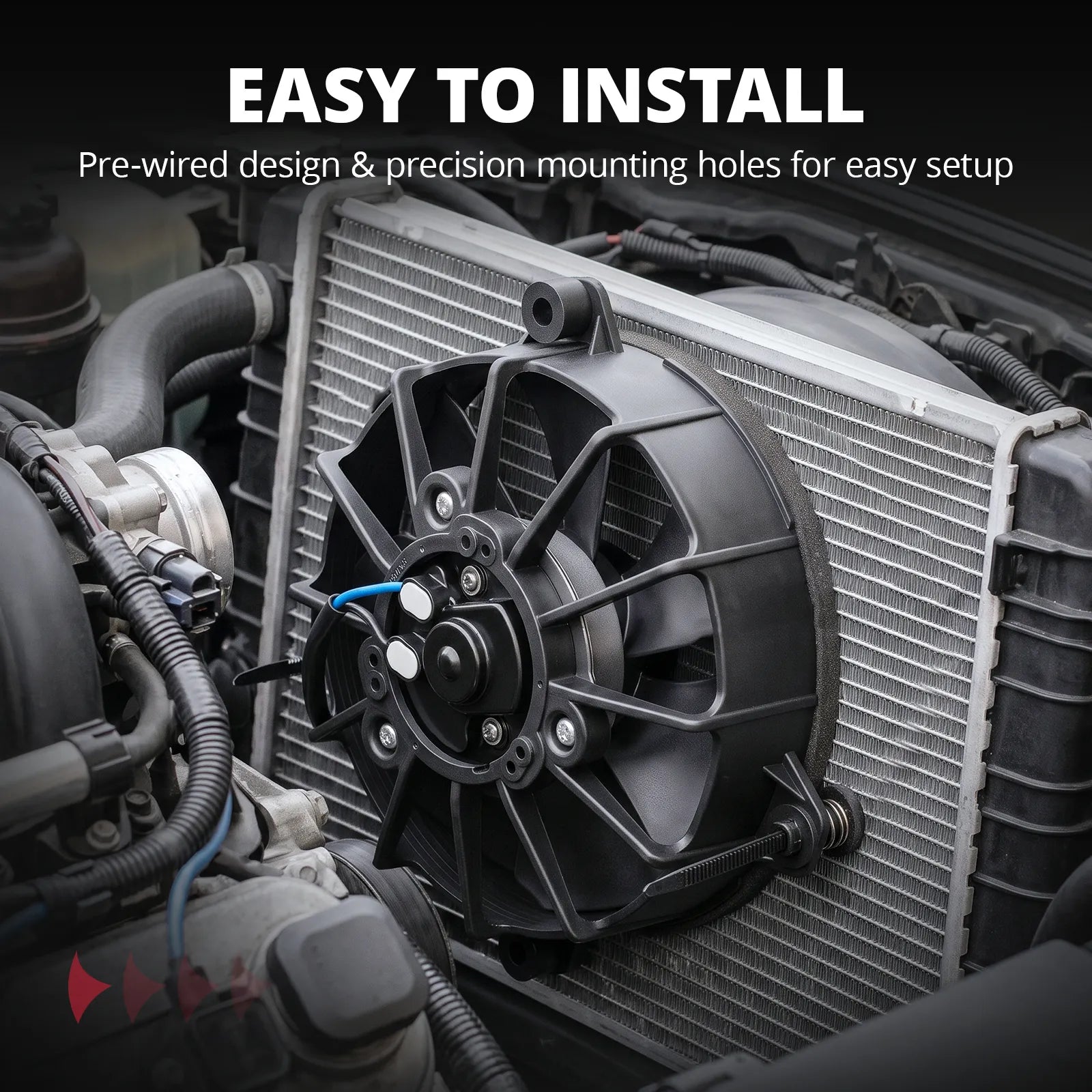

Pre-Wired Connector and Complete Mounting Hardware

The fan includes a pre-wired two-pin connector plus four mounting rods, four locking clips, eight foam pads, and four springs. The foam pads help cushion contact points during installation. Route the mounting rods carefully through suitable fin gaps without contacting or puncturing fluid tubes, and avoid overtightening the clips against the cooling core.

Electrical Setup and Startup Checks

This kit does not include a thermostat, relay harness, or automatic controller. Use wiring, circuit protection, switching, and control components appropriate for the vehicle or project. Keep all wiring away from fan blades, belts, pulleys, exhaust parts, and sharp edges. After installation, check blade clearance, connector security, airflow direction, abnormal vibration, and unusual heat before regular use.

Package Contents

• 1 x 5.2" seven-blade electric cooling fan
• 4 x mounting rods
• 4 x mounting clips
• 8 x foam pads
• 4 x mounting springs
• 1 x user manual

Why Choose This EVIL ENERGY 5.2-Inch Fan Kit

Choose this compact fan when your project calls for a small 12V suction fan, a slim mounting depth, and a hardware set that supports installation on a compatible cooling core. Its seven curved blades and pre-wired connector make it a practical option for targeted airflow where larger automotive fans will not fit.
