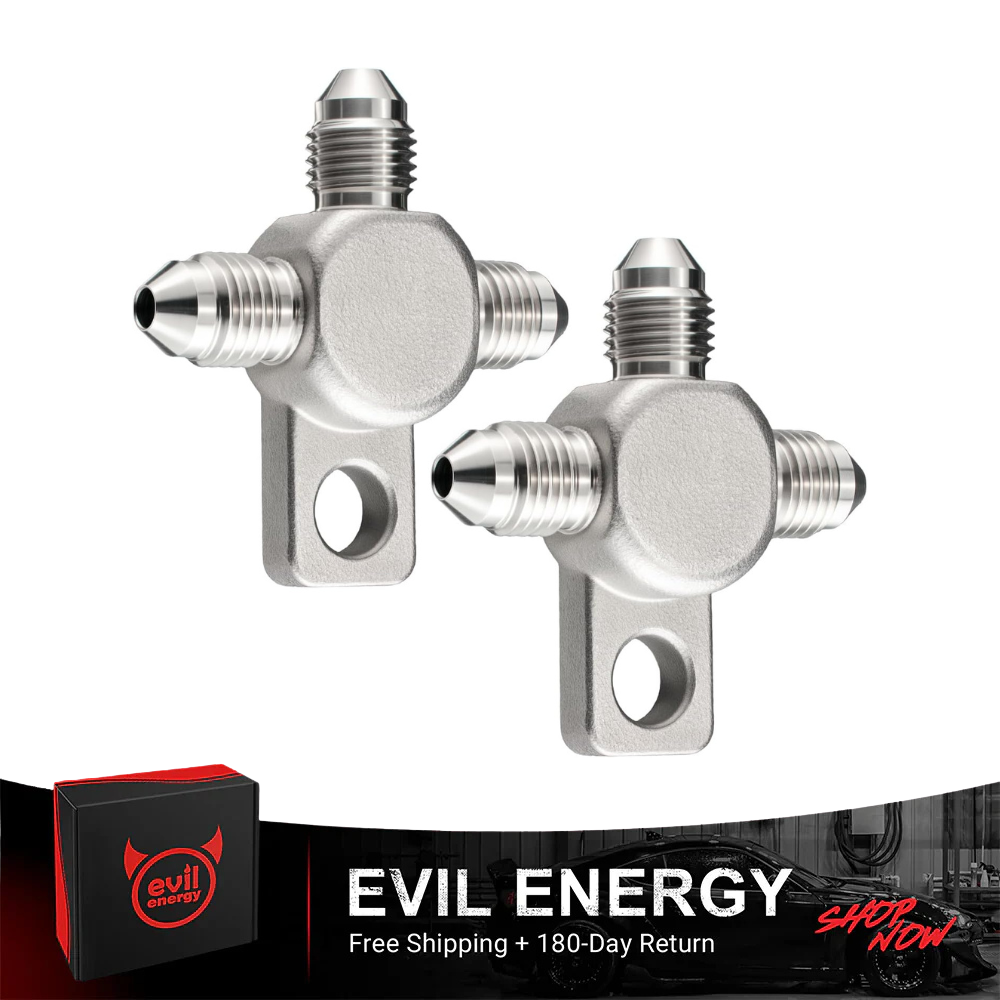

EVIL ENERGY 3AN Brake Tee Block Fitting with Mounting Tab – Stainless Steel 2PCS

3AN Brake Tee Block with Mounting Tab

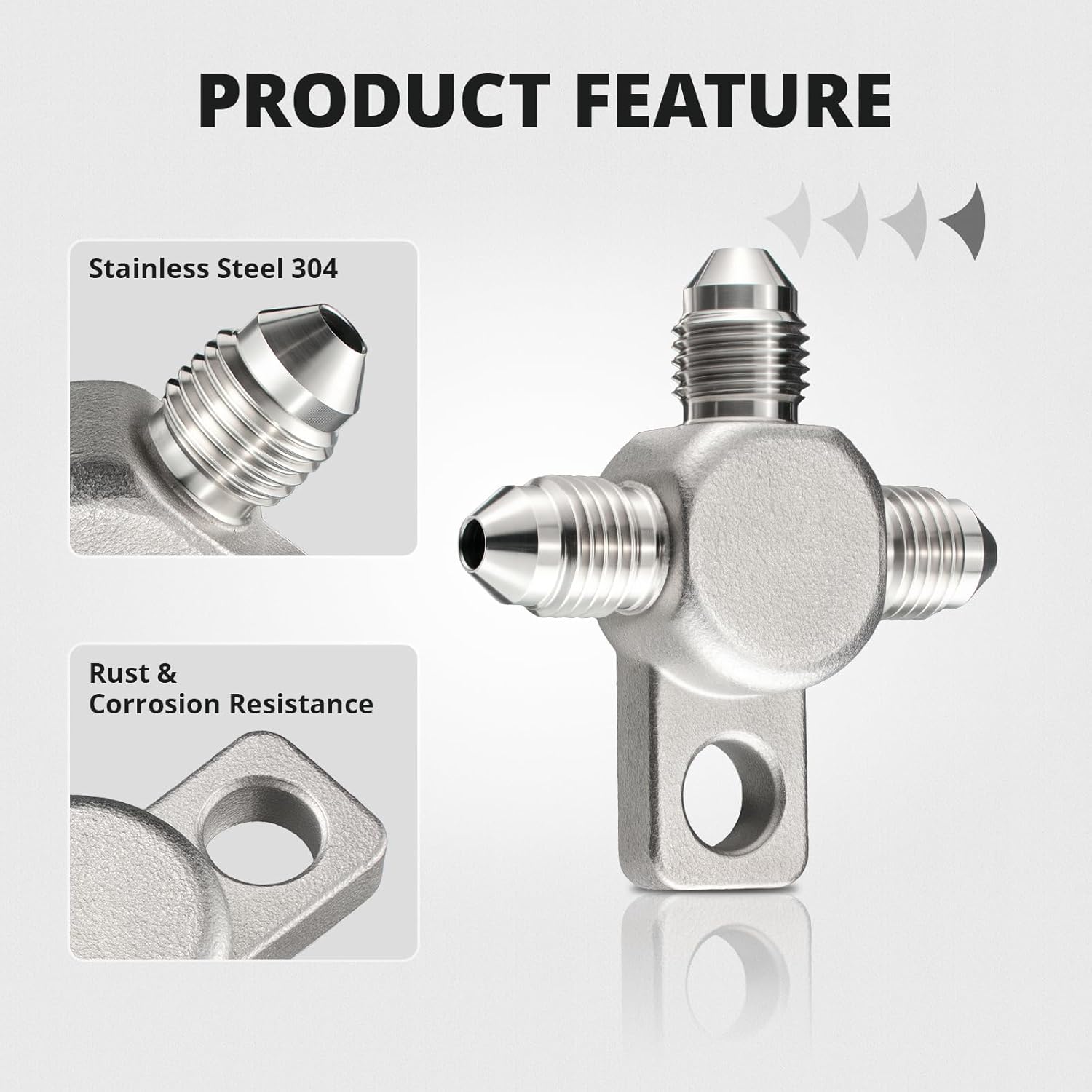

Split a 3AN line into two branches while securing the junction to a chassis or bracket. The stainless tee uses three male 37-degree flare ports and an integrated tab with a 7.2 mm mounting hole.

Plan the Brake-Line Junction

Map the Inlet and Two Branches

Confirm all three connected hose ends or tube fittings are compatible 3AN female flare connections. Choose a mounting position that supports the lines without creating sharp bends or contact with moving and hot components.

Secure the Mounting Tab

Use suitable hardware for the 7.2 mm mounting hole and the installation surface. The mounting point should hold the block firmly without distorting the tab or placing strain on the connected lines.

Assemble and Inspect Every Port

Clean the 37-degree flare seats, start all connections by hand, support each line, and test the completed system under intended operating conditions. Inspect the mounting hardware and all three joints before operation.
