Product Manual
- CPE Fuel Line Manual — Download
CPE Fuel Line Details
 |
 |
 |
 |
|
SIZE |
4AN |
6AN |
8AN |
10AN |
|

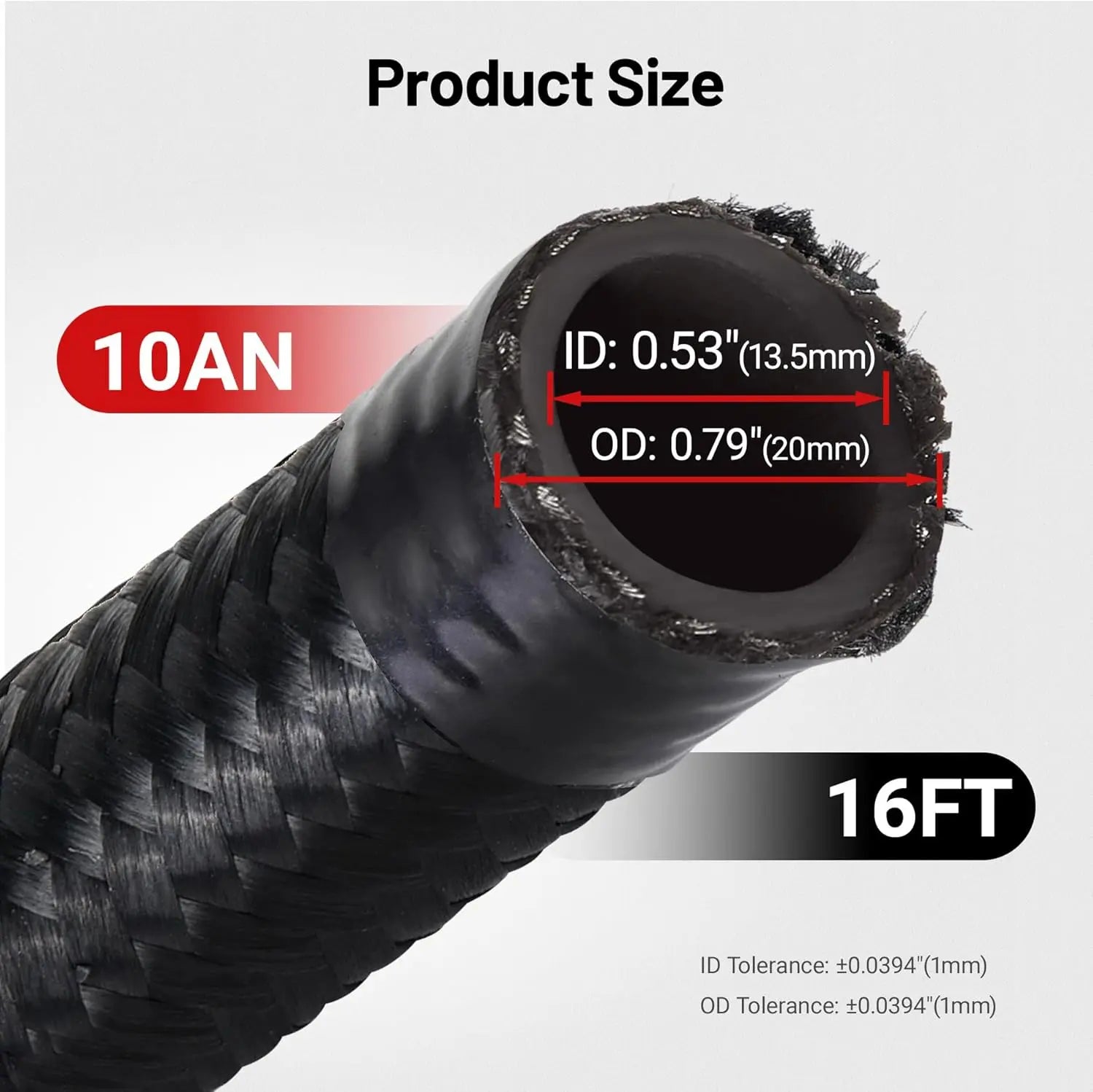

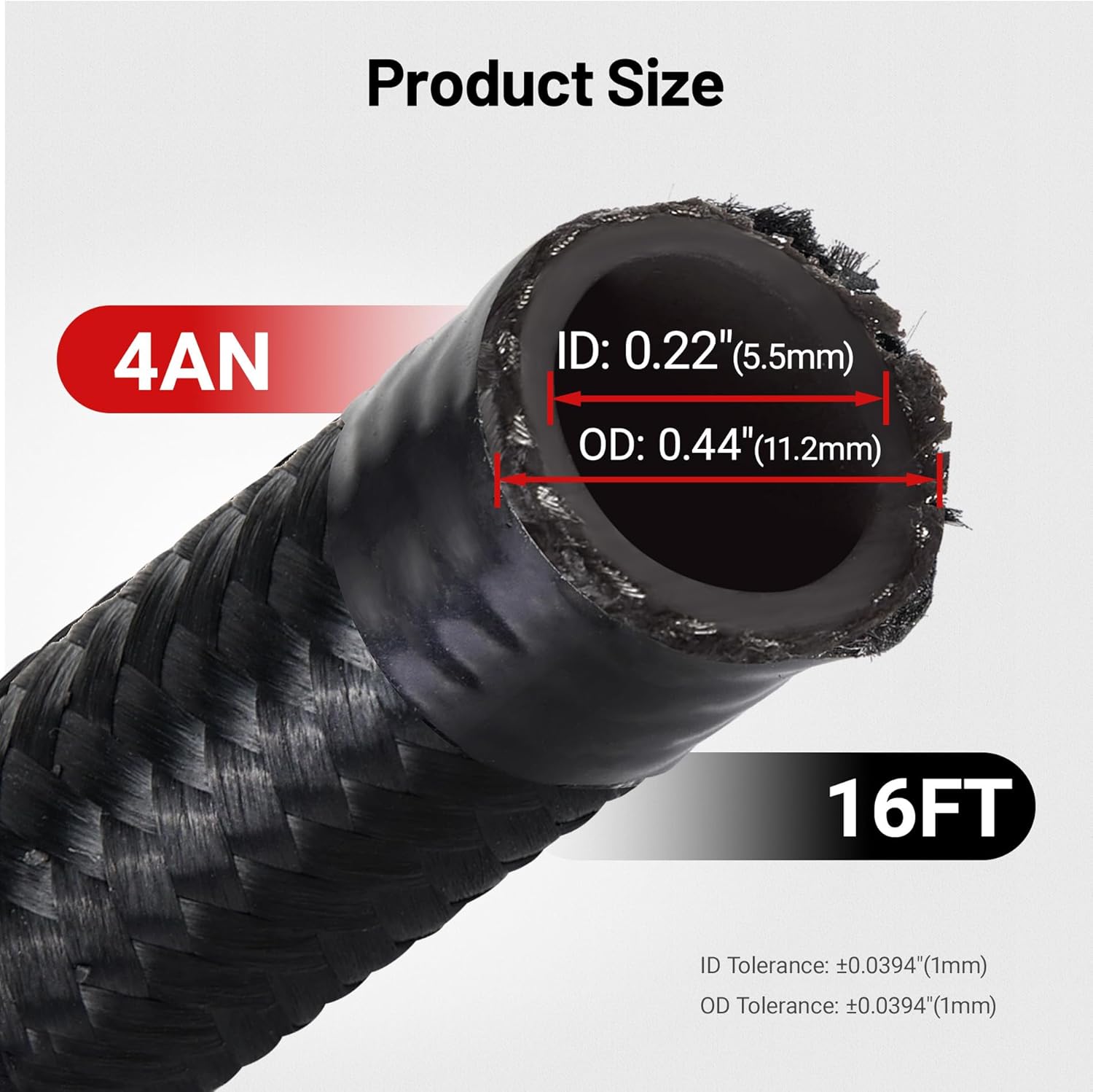

Hose ID |
0.228"(5.79mm) |
0.343"(8.71mm) |
0.437"(11.1mm) |
0.551"(14mm) |
| Hose OD | 0.425"(10.8mm) |
0.543"(13.79mm) |
0.642"(16.31mm) |
0.784"(19.91mm) |
|
Min Bending Radius |
2.0"(50.8mm) |
2.5"(63.5mm) |
3.5"(88.9mm) |
4.0"(101.6mm) |
|

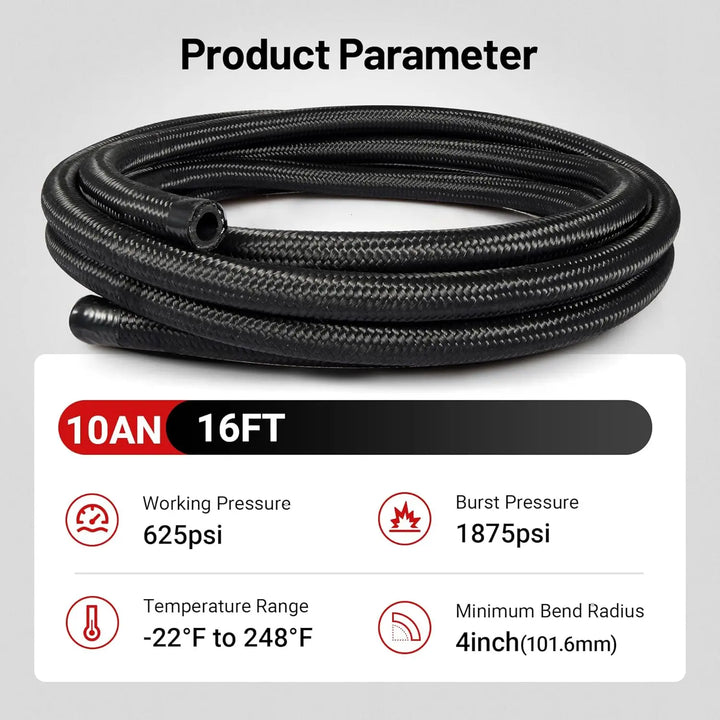

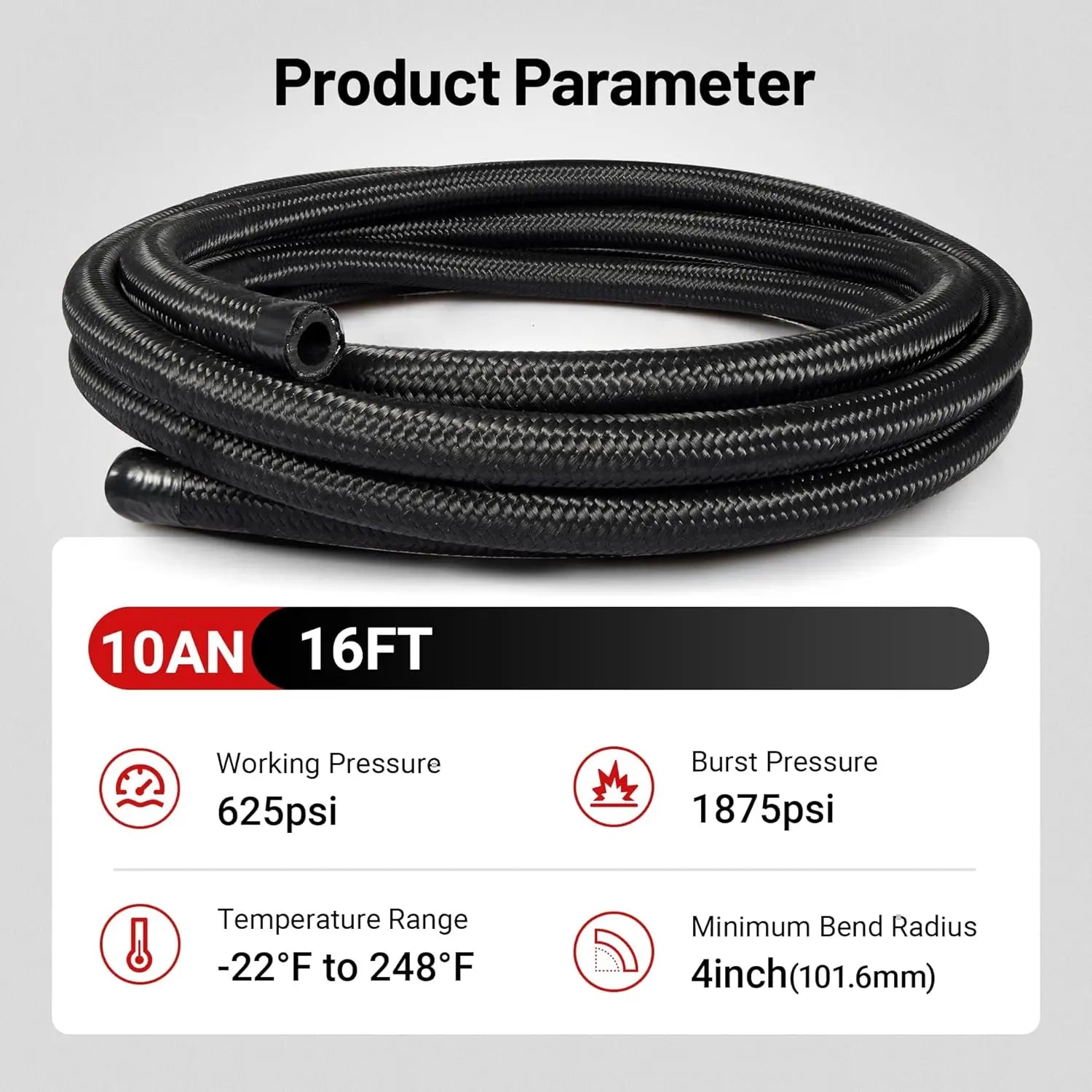

Max Working Pressure |
750PSI |
750PSI |
750PSI |
625PSI |
|
Bursting Pressure |
2250PSI |
2250PSI |
2250PSI |
1875PSI |

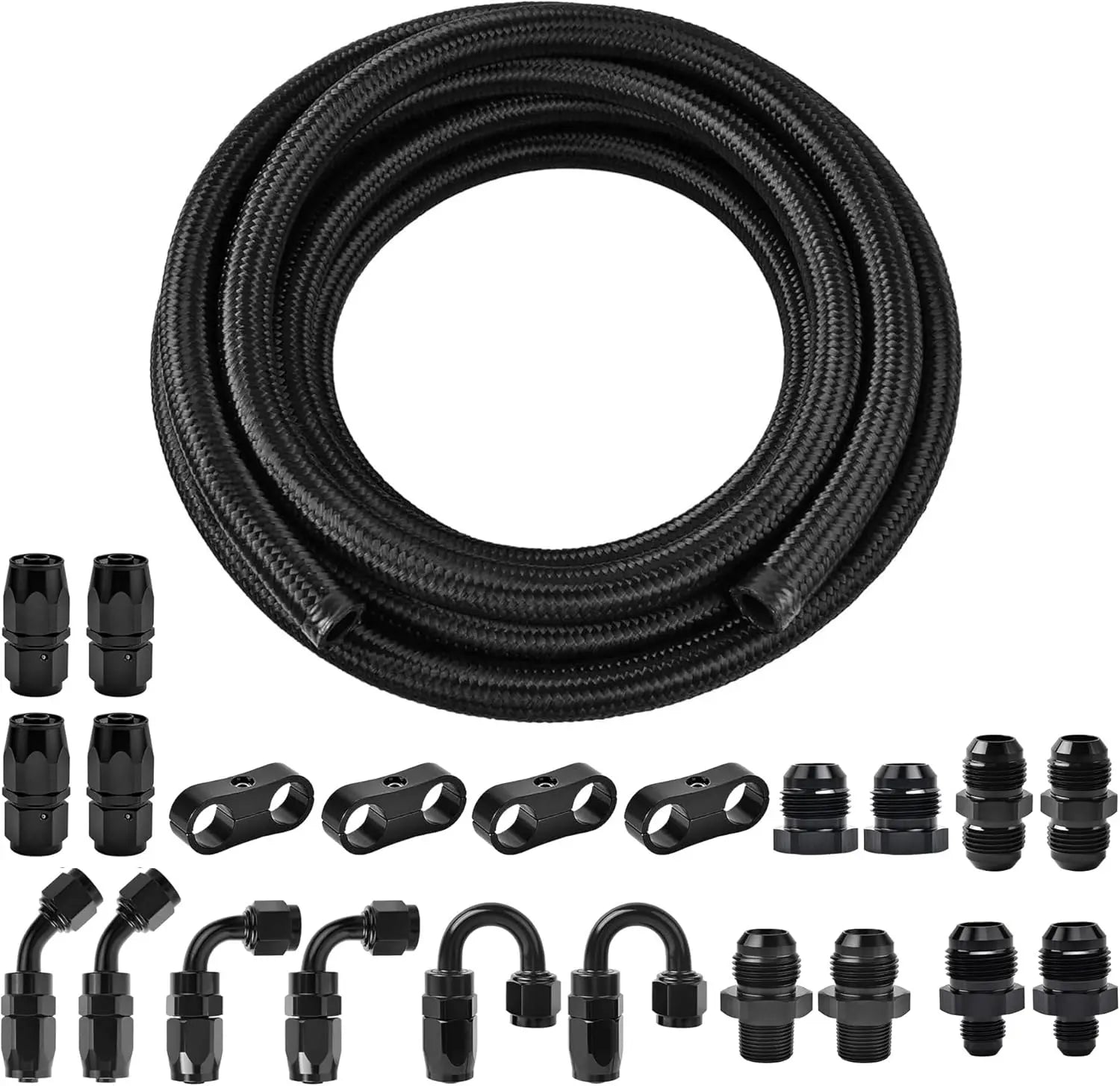

Complete 26-Piece Fitting Kit – Ready for Installation
This all-in-one kit comes with every component you need to set up your fluid system without extra purchases. The package includes:
| Package |

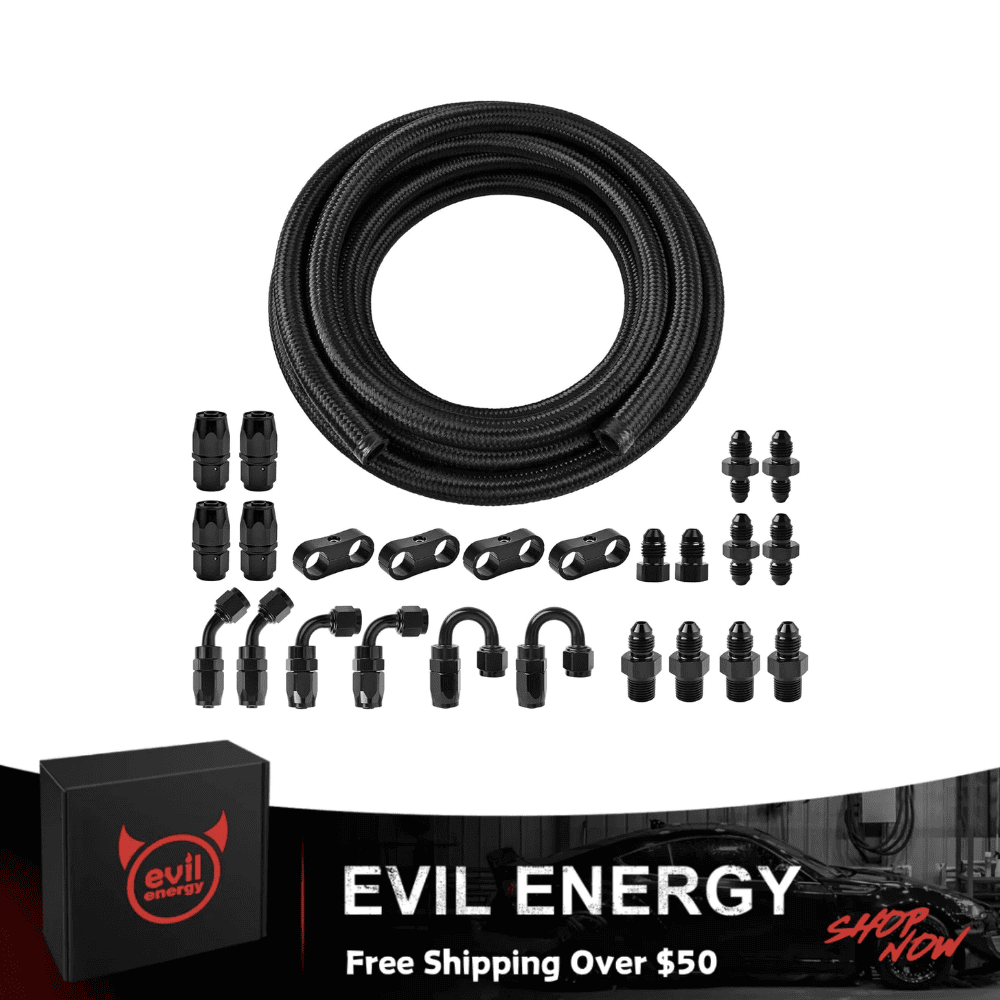

Common Accessories: 4 × hose end straight fitting 2 × 45°hose end fitting 2 × 90°hose end fitting 2 × 180°hose end fitting 2 × Blanking Plug 4 × Hose separator clamp Size-Specific Accessories: 4AN: 2 × 4AN to 3AN Adapter 2 × 4AN to 4AN Adapter 4 × 4AN to 1/8 NPT Adapter 6AN: 2 × 6AN to 6AN Adapter 2 × 6AN to 4AN Adapter 4 × 6AN to 1/4 NPT Adapter 8AN: 2 × 8AN to 8AN Adapter 2 × 8AN to 10AN Adapter 4 × 8AN to 3/8 NPT Adapter 10AN: 2 × 10AN to 10AN Adapter 2 × 6AN to 10AN Adapter 4 × 10AN to 3/8 NPT Adapter |
The EVIL ENERGY 4/6/8/10AN Braided Fuel Line Kit is a versatile, high-performance fluid transfer solution designed for automotive enthusiasts, DIY modifiers, and professional mechanics alike. Engineered to meet the demands of diverse vehicle systems, this kit is a one-stop solution for all your fluid transfer needs, with broad applicability across vehicle setups.
Why Choose Us?

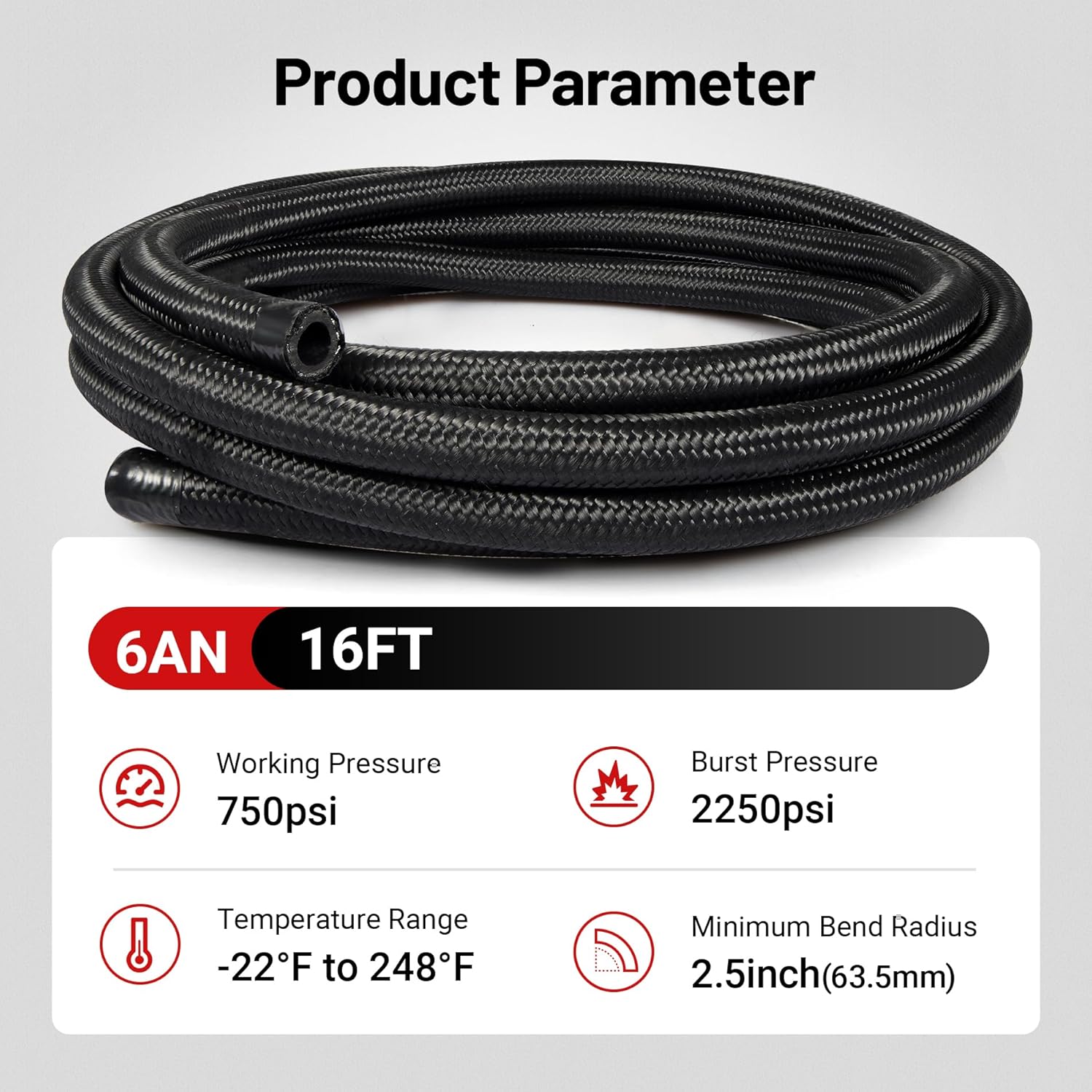

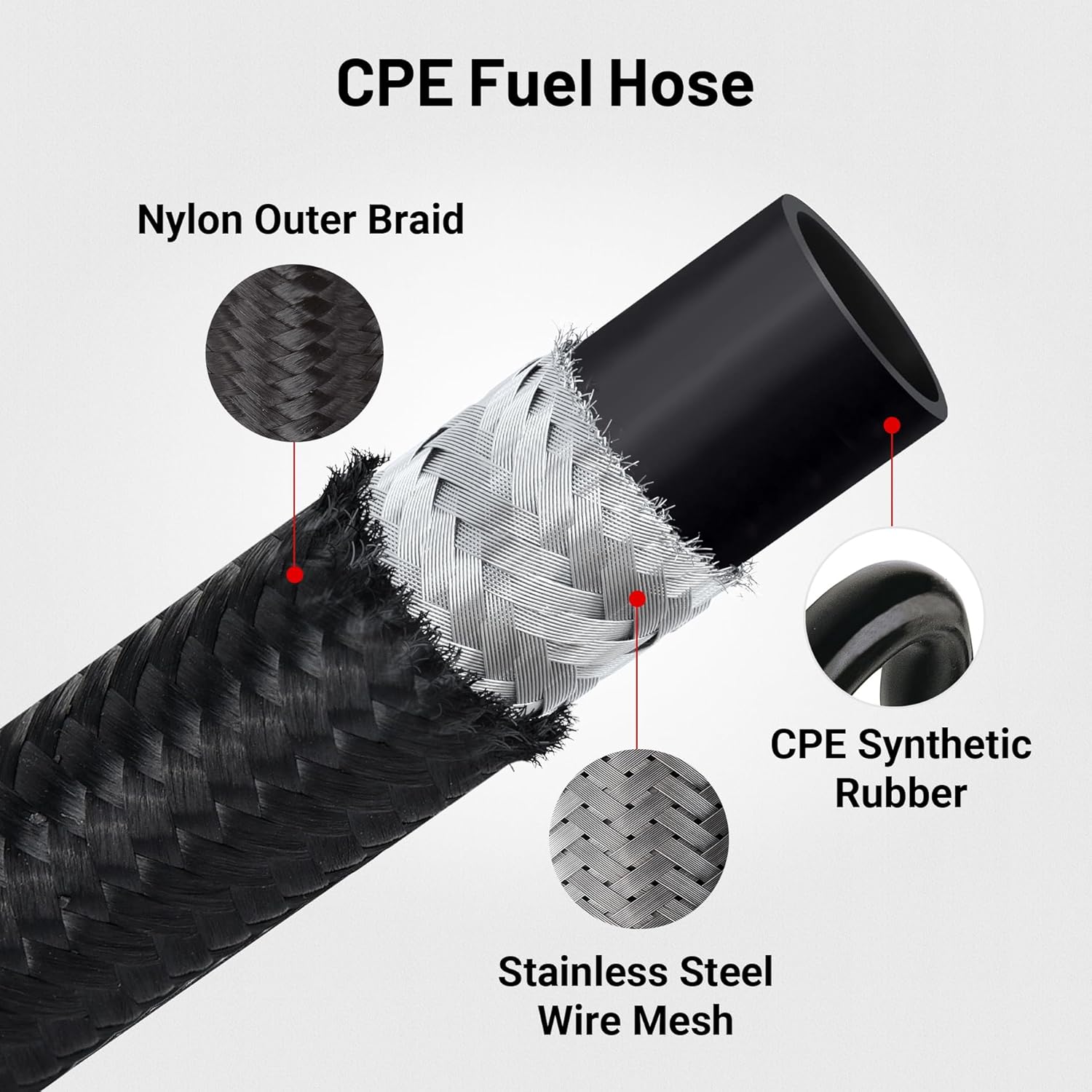

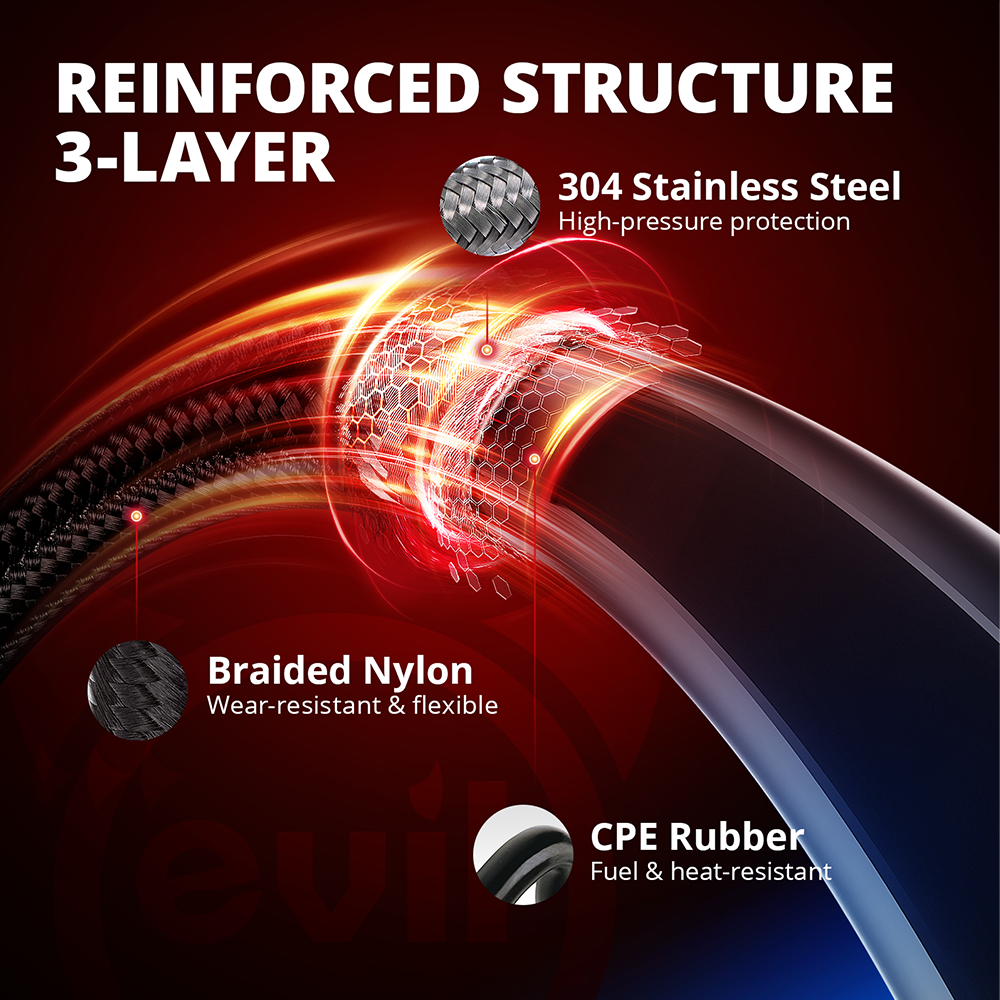

- Premium Durable Build: CPE rubber inner + 304 stainless steel helix + nylon outer braid for abrasion/corrosion resistance, with aluminum alloy fittings for leak-free connections.

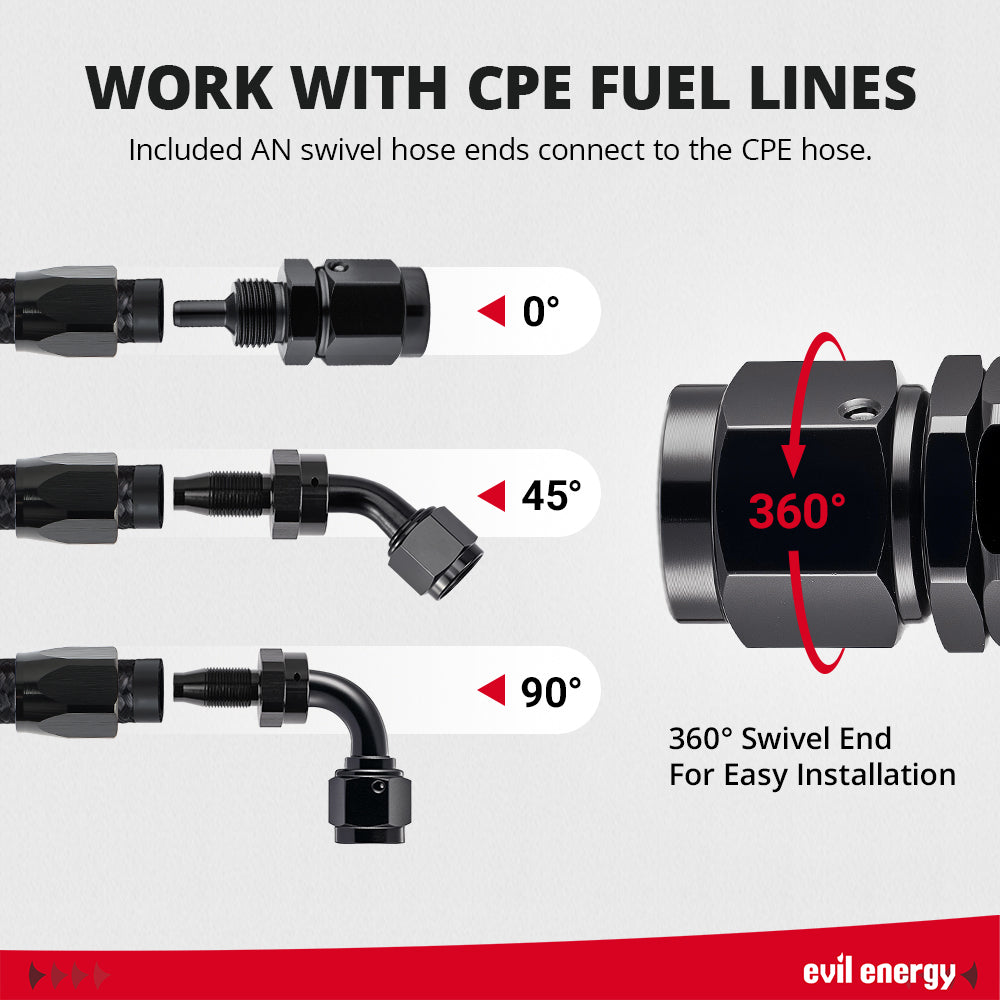

- All-In-One Kit: Complete with universal fittings (straight/45°/90°/180° hose ends, blanking plugs, clamps) and size-specific adapters—no extra purchases needed.

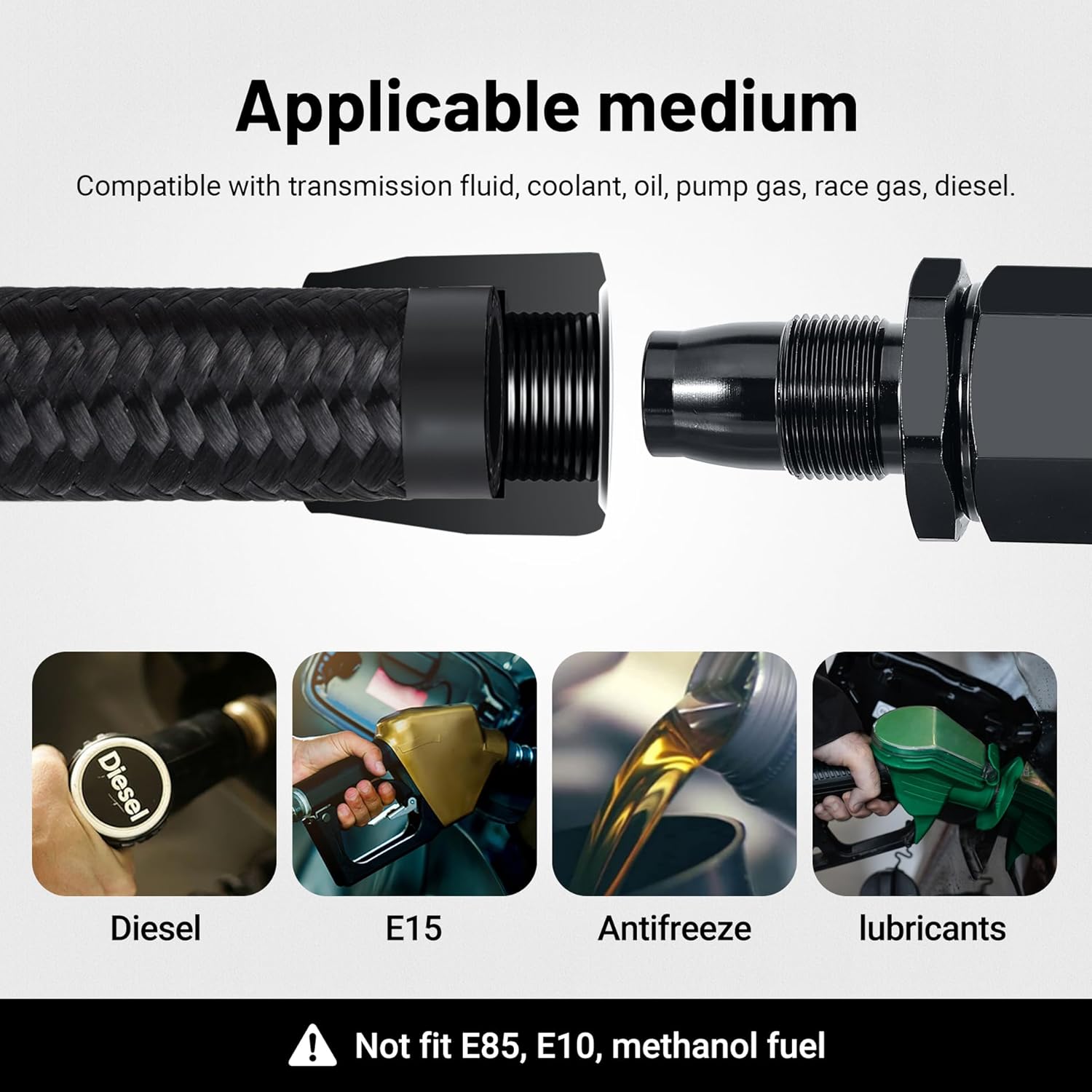

- Broad Versatility: Works with transmission fluid, oil, race gas, diesel, hydraulic fluid, and vacuum (excludes E85/E10); ideal for fuel lines, coolers, turbo systems, etc.
- Extreme Performance: 750PSI working pressure (625PSI for 10AN), 2250PSI bursting pressure (1875PSI for 10AN), and -22°F to 248°F temperature range—stable in all conditions.
- Size Options: Available in 4AN/6AN/8AN/10AN to fit diverse vehicle setups.
Moderate
Estimated Time: 0.5-1 hour
Tools Required
- AN wrench set
- Bench vise
- Hose cutter or fine-tooth hacksaw
- Deburring tool
- Marker
- Assembly lubricant
- Safety glasses
- Fuel-resistant gloves
Pre-Installation Checklist
- Confirm whether the supplied hose is CPE, PTFE, or antistatic PTFE and use the matching assembly method.
- Plan the routing path away from exhaust heat, moving parts, sharp edges, and abrasion points.
- Confirm the correct hose ends and AN fittings are available.
- Wear safety glasses and fuel-resistant gloves and work away from ignition sources.
Installation Steps
- Measure the hose along the intended routing path and allow enough length for bends without kinks or tension.
- Wrap the cutting area with tape, make a square cut, then deburr and clean the hose end.
- For CPE hose, secure the socket in a vise, thread the hose into it until snug, leave a 1-1.5 mm gap, and mark the hose position.
- For PTFE hose, slide on the socket, flare back the outer braid, seat the ferrule fully on the PTFE liner with no gap, and push the assembly onto the nipple.
- Apply assembly lubricant to the fitting threads, hold the socket securely, and tighten the fitting body until fully seated.
- Clean and pressure-test the completed hose assembly before installing it.
- Install the hose according to the system flow diagram and secure it away from heat, sharp edges, and moving parts.
Post-Installation Verification
- Verify all hose ends are fully seated and fittings are secure without overtightening.
- Confirm no hose is kinked, twisted, under tension, or exposed to abrasion or excessive heat.
- Pressure-test the assembly and inspect every connection for leaks before starting the engine.
- Reinspect after the road test and after 50-100 km.
Troubleshooting
- Fuel leak: turn the ignition OFF immediately and replace damaged hose or fittings before operation.
- Restricted flow or low pressure: inspect for kinks, incorrect routing, debris, or an incomplete hose-end assembly.
- Air entering the system or fluctuating pressure: check all hose ends and fittings for loose connections or leaks.
Maintenance
- Inspect hose routing, abrasion protection, and fittings periodically.
- Replace any hose that is damaged, leaking, kinked, or heat-affected before operating the vehicle.
