EVIL ENERGY 10 Inch Electric Radiator Cooling Fan 12V 80W Mount Kit High-Performance Cooling Upgrade

10-Inch Electric Radiator Cooling Fan for Cars, Trucks, and Custom Builds

The EVIL ENERGY 10-inch Electric Radiator Cooling Fan is a compact auto electric fan designed for cars, trucks, SUVs, and modified vehicles. Mounted in front of a compatible radiator or oil cooler, it creates forced airflow through the cooling fins when the vehicle is idling, moving at low speeds, or sitting in traffic. This airflow helps carry heat away from the engine coolant or oil, providing targeted cooling for critical components and supporting a stable operating temperature.

This auto radiator fan works well across a variety of cooling-system applications:

• Use it as an electric radiator fan replacement when an aging factory mechanical fan is no longer operating reliably.

• Add supplemental airflow to a classic car that tends to run hot during summer traffic, extended idling, or low-speed cruising.

• Pair it with an oversized aftermarket radiator or an added oil cooler that requires a dedicated auto cooling fan.

• Use it for an engine swap or custom chassis build when the original fan location can no longer be retained.

• Add auxiliary cooling to a pickup or SUV used for towing, hauling, or off-road driving, where low-speed, high-load operation places greater demand on the cooling system.

The black housing and compact profile make the fan easier to position in engine bays with limited space. For any universal radiator cooling fan replacement or custom car radiator fan replacement, verify the available mounting area, installation depth, airflow direction, and electrical requirements before ordering. This is a universal-fit component rather than a vehicle-specific, plug-and-play factory replacement.

6-Blade Design with 560 CFM Airflow and 2,700 RPM

The six-blade auto electric fan delivers up to 560 CFM of airflow at a maximum speed of 2,700 RPM. It helps maintain airflow through the radiator when the vehicle is idling, moving at low speeds, or operating under load—conditions where natural airflow may be limited.

By improving air circulation across the radiator core, this auto cooling fan helps the cooling system dissipate heat more effectively, reduces the risk of overheating, and limits prolonged high-temperature operation that can accelerate engine wear. It is a practical choice for custom auto radiator fan installations and radiator cooling fan replacement projects.

Only 2.17 Inches Thick: Built for Tight Engine Bays

At just 2.17 inches thick (approximately 55 mm), this slim, lightweight auto electric fan fits where a conventional fan assembly may not. It is ideal for vehicles with limited engine-bay clearance, including builds equipped with an oversized aftermarket radiator, a front-mounted intercooler, or an engine swap that prevents the factory fan from being reinstalled in its original location.

The compact profile allows the auto cooling fan to mount close to the radiator in narrow spaces while preserving clearance around hoses, belts, pulleys, and other engine components. Whether you are completing a custom radiator cooling fan replacement or a space-limited car radiator fan replacement, measure the total available depth and verify surrounding clearance before installation.

Choose the Right Fan Size in Three Simple Steps

Before starting a radiator fan replacement, confirm the available space in three steps:

1. Measure the usable height and width of the radiator core, excluding the tanks, hoses, fittings, and brackets.
2. Compare those measurements with the overall frame dimensions of this 10-inch auto electric fan—not just the nominal blade diameter.
3. Choose a fan slightly smaller than the usable radiator area, leaving enough clearance for the mounting hardware, wiring, and fan motor.

A properly sized auto radiator fan mounts more securely, directs airflow across the correct area of the radiator core, and is less likely to interfere with nearby components.

If the 10-inch model does not fit your available radiator area, compare EVIL ENERGY electric radiator cooling fan sizes to find the right airflow and dimensions for your build.

Complete Installation Kit: Everything You Need in the Box

The 10 inch radiator fan is the heart of this radiator cooling fan replacement kit. To keep it securely mounted, the included hardware works together as a complete system: four mounting feet support the fan at each corner, mounting rods secure the assembly to the radiator, and locking clips hold the fan frame firmly in place. Foam pads cushion the contact points, help protect the radiator fins, reduce vibration-related wear, and minimize rattling or resonance while the fan is running.

Because an auto electric fan draws more current than a standard control switch should handle directly, the included relay wiring harness uses a low-current trigger to safely switch the higher-current fan circuit on and off. A 30A inline fuse opens the circuit if excessive current is detected, helping protect both the fan and the vehicle’s wiring. If your installation also requires a radiator fan relay replacement, the supplied relay harness provides the switching components needed for the new fan circuit.

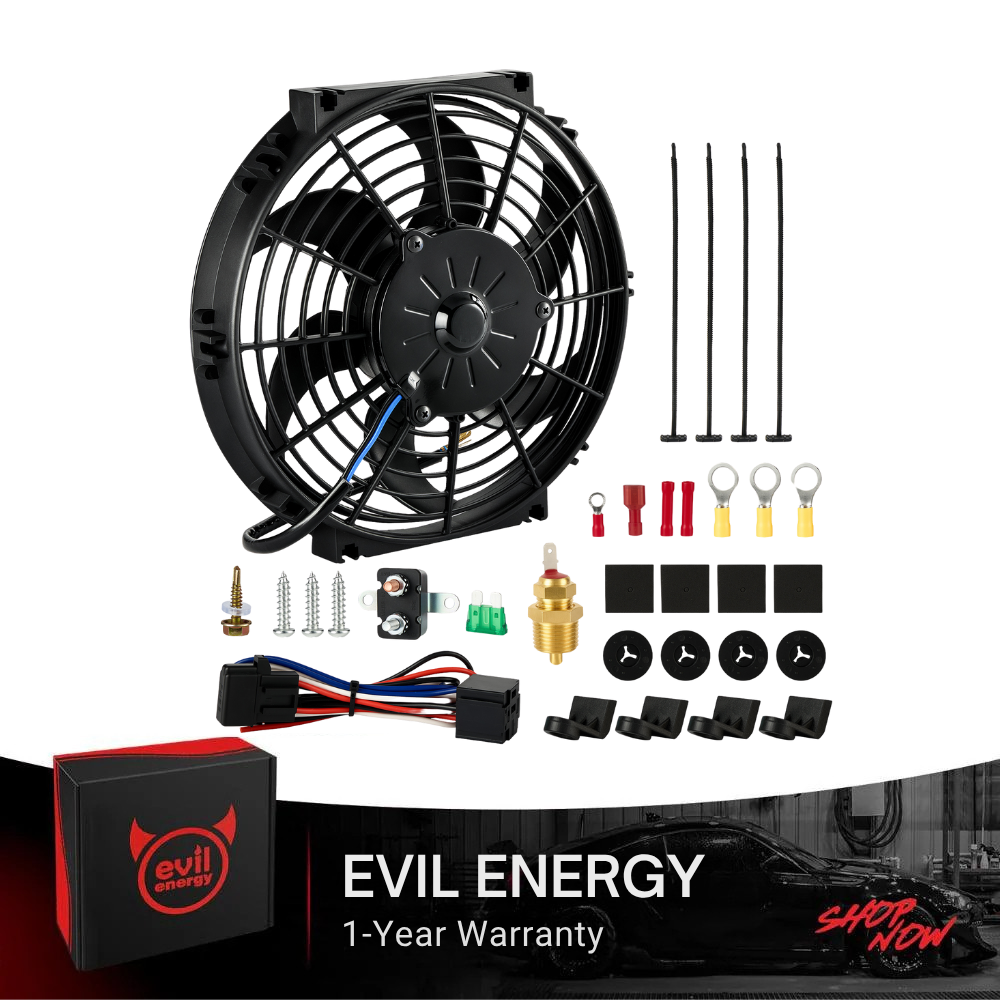

The auto radiator fan, relay harness, 30A fuse, mounting feet, rods, clips, foam pads, and installation manual are all included. Whether you are completing a car radiator fan replacement or learning how to replace a radiator fan, the essential mounting and electrical components are ready in one box—no need to purchase the basic hardware separately. This complete package also reduces unexpected add-on parts that can increase the overall radiator fan replacement cost.

Always verify the available mounting space and your vehicle’s electrical requirements before installation, then follow the included instructions for proper mounting and wiring.
