Securing Exhaust Systems: The Importance of V Clamps and Exhaust Pipe Clamps
Exhaust systems are a critical component of any internal combustion engine. They serve to route hot gases away from the engine and help muffle noise. Properly securing the various components of the exhaust system is essential to prevent leaks, rattles, and even complete system failure.
Two of the most common methods for securely fastening exhaust components are v clamps and exhaust pipe clamps. In this blog post, we'll look at these useful fasteners in-depth and discuss why proper clamping is vital for a safe, functional exhaust system.
An Introduction to V Clamps
V clamps, sometimes called U-bolt clamps, are a tried-and-true method for joining cylindrical objects like pipes and tubes. As the name suggests, they consist of a V-shaped band that fits around the outside of the components to be joined. The open end of the V is fitted with a bolt that draws the two sides together when tightened.
V clamps provide a simple but reliable circumferential clamping force. This allows them to securely join exhaust components even when dealing with vibration, thermal cycles, and corrosion. They can accommodate some degree of misalignment between parts and seal effectively despite rough surfaces and minor imperfections.
Key advantages of v clamps:
- Creates a strong circumferential seal
- Handles vibration and thermal cycling
- Adjustable to accommodate misalignment
- Compensates for rough surfaces
- Inexpensive and reusable
V clamps are available in a wide range of sizes, materials, and designs to suit different exhaust hardware. Common materials include stainless steel for corrosion resistance and worm drive adjustment for vibration resistance. Proper torque specification should always be followed to ensure sufficient clamping force.

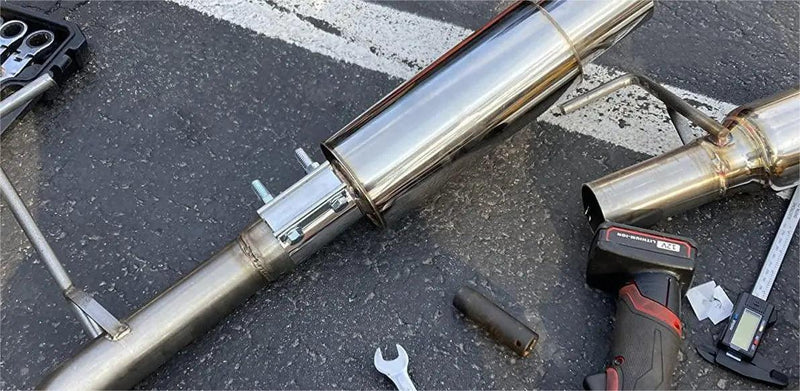

Exhaust Pipe Clamps - For Inline Connections
While v clamps are ideal for joining cylindrical components like pipes, they are less suitable when making inline connections between two pipe ends. For this application, exhaust pipe clamps are designed specifically to create a tight seal between mating pipe surfaces.
Exhaust pipe clamps consist of two curved half shells that bolt together over the ends of the pipes to be joined. Rubber gasket material lines the inside surface to create a seal. Tightening the clamp bolts compresses the gasket between the pipe ends.
Benefits of exhaust pipe clamps:
- Creates an inline seal for pipe connections
- Seals effectively with rubber gasket compression
- Accommodates some misalignment
- Available in different sizes for various pipe diameters
- Reusable design
Using properly sized pipe clamps allows for secure connections without the need for welding or expensive flanged fittings. The clamps compensate for reasonable misalignment, while the gasket material forms a leak-free seal. Stainless steel construction provides corrosion resistance and durability.
Proper Clamping Is Crucial
While v clamps and exhaust pipe clamps are both effective solutions, they must be applied correctly to work properly. Under-clamping can lead to leaks and component failures. Conversely, over-clamping can cause gasket extrusion or even pipe or clamp damage.
Follow manufacturer torque specifications for the clamp size and material being used. Generally, worm drive clamps require less torque than simple cross-bolt models. Use a calibrated torque wrench to achieve proper tightening during installation.
It is also important to position the clamps properly with respect to the joint being secured. As a rule of thumb, the clamps should be centered over the joint with half the clamp width on each side. This prevents the clamping force from creating stress concentrations at the pipe ends.
Clamping Exhaust System Components
Exhaust systems feature many different joining points that must be properly clamped, including:
1. Manifold-to-Headpipe Connections
The exhaust manifold collects gases from the cylinder head and routes them into the head pipe. These high-temperature components are usually joined with studs and nuts or bolts. V clamps offer an alternative to secure the connection if studs are damaged or unavailable.
2. Headpipe-to-Catalytic Converter Joints
The head pipe and catalytic converter are commonly joined using a flat-face flanged connection. An exhaust pipe clamp around this flanged joint is recommended as an additional measure to prevent leaks.
3. Catalytic Converter-to-Midpipe Connections
Similar to the head pipe joint, v clamps are an excellent solution for clamping between the catalytic converter outlet and the mid-pipe. Their circumferential seal compensates for expansion and contraction in this section.
4. Midpipe-to-Muffler Inlets
For pipe-to-pipe connections like at the muffler inlet, exhaust pipe clamps make secure inline seals between the mating pipe ends. Gasketed clamps prevent exhaust gas leaks even with road vibration and engine movement.
5. Tailpipe Slip Joints
Slip joints allow relative motion between system components to account for thermal expansion. Sliding sleeve joints should be clamped with a v clamp to prevent disengagement while permitting axial motion.
6. Tailpipe Hanger Clamps
V clamps or two-bolt hanger clamps secure tailpipes and mufflers to their insulating rubber hangers. This prevents rattling while allowing the exhaust to move with suspension dynamics.
Replacing Compromised Exhaust Clamps
Over time, clamps can become loose, get damaged, or even go missing altogether. This can lead to leaks, rattling, and potentially dangerous exhaust system failure. Here are some signs it's time to replace compromised clamps:
- Visible corrosion, cracks, or damage
- stripped or damaged threads on bolts/nuts
- missing or grossly loose clamps
- audible rattles or leaks at joints
- soot stains around joints indicating gas leaks
- detached or collapsed rubber muffler hangers
Replacing clamps at the first sign of deterioration can prevent more extensive repairs. Always use OEM or high-quality aftermarket clamps for critical exhaust joints. Apply a high-temperature anti-seize compound to bolt threads during installation to facilitate future removal.
