Evilenergy | SKU: KT01757S1BK

EVIL ENERGY 6/8/10AN Female to Hose Barb Fitting Straight Swivel Aluminum （3/8'' 5/16'' 1/2''）

$11.09 USD

Shipping calculated at checkout.

SKU:	Size	Price	Stock
KT01757S1BK	6AN to 3/8inch	$11.09	✔
KT01757S2BK	6AN to 5/16inch	$11.09	✔
KT01757S3BK	8AN to 1/2inch	$12.10	✔
KT01757S5BK	8AN to 5/16inch	$12.10	✔
KT01757S6BK	10AN to 1/2inch	$12.10	✔

Description

Product details

Size	6AN to 3/8 5/16 inch 8AN to 1/2 5/16 inch 10AN to 1/2inch
Thread size	6AN is 9/16-18UNF 8AN is 3/4-16 UNF 10AN is 7/8-14 UNF
Material	Aluminum
Brand	EVIL ENERGY
Angle	Straight
Connector Type	Barb
Exterior	Aluminum
Number of Pieces	1

About this item

Material: Made of aluminum alloy 6061-T6.
Seal: The AN side of the flare is sealed by a 37 degree angle.

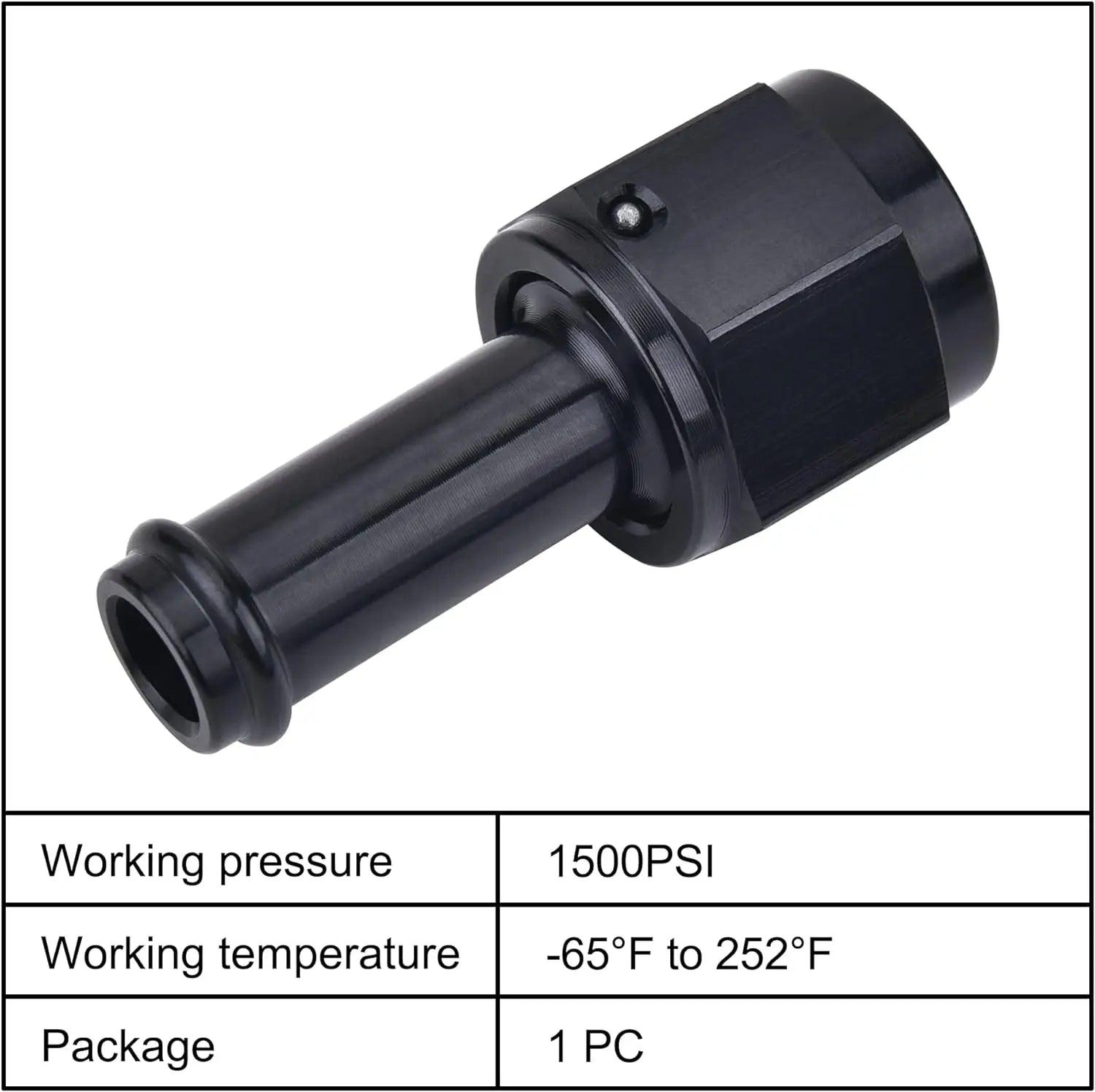

Parameter: Working pressure: 1500PSI; Working temperature: -65°F-252°F.

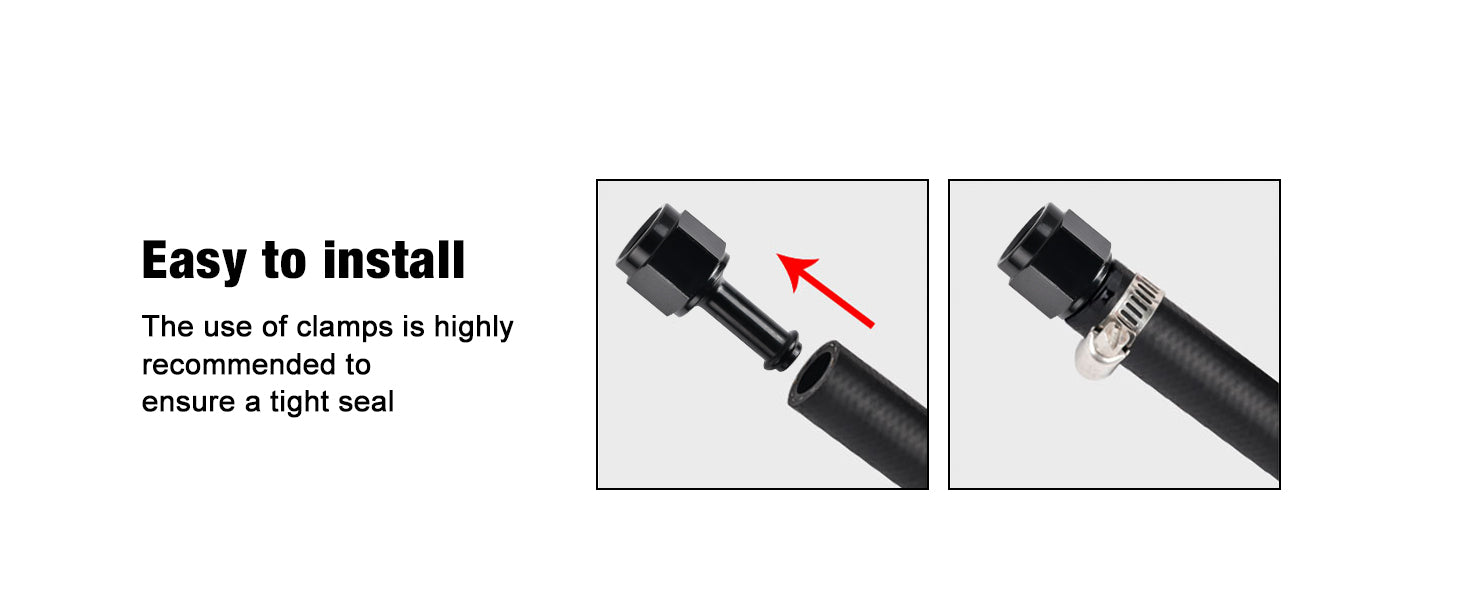

Easy installation: Just push the barb end of the fitting into the hose. It is recommended to use clamps to ensure a tight seal.
